LED VALUE DOWNLIGHT ALU GEN2

5” 15W RF

GTIN: 4099854308352 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Selectable color temperature: 3000K or 4000K or 6500K
  • Two versions for structure selection: diffusor version, reflector version
  • Luminous flux output of up to 4200 lm
  • IP54 rating for the front side of reflector version, indicating water resistance
  • Flicker-free driver, ensuring a stable and comfortable lighting experience
  • Safety compliance certificates: CB, EU RoHS 2.0, indicating adherence to safety and environmental regulations
Electrical data
Nominal wattage 15.00 W
Nominal voltage 100…277 V
Mains frequency 50…60 Hz
Protection class II
Photometrical data
Color rendering index Ra ≥80
Beam angle 80 °
Dimensions & Weight
Diameter 145.00 mm
Height 74.00 mm
Product weight 200.00 g
Materials & Colors
Product color White
Housing color White
Body material Aluminum
Mercury content 0.0 mg
Application & Mounting
Type of protection IP20/IP54
Dimmable No
Mounting type Recessed
Application environment Indoor
Replaceable light source No
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854308352 Folding box
1		 165 mm x 165 mm x 90 mm 250.00 g 2.45 dm³
4099854308369 Shipping box
18		 515 mm x 350 mm x 290 mm 4998.00 g 52.27 dm³
User instruction / safety instructions
LED VALUE DOWNLIGHT ALU GEN2
PDF (2.8 MB)

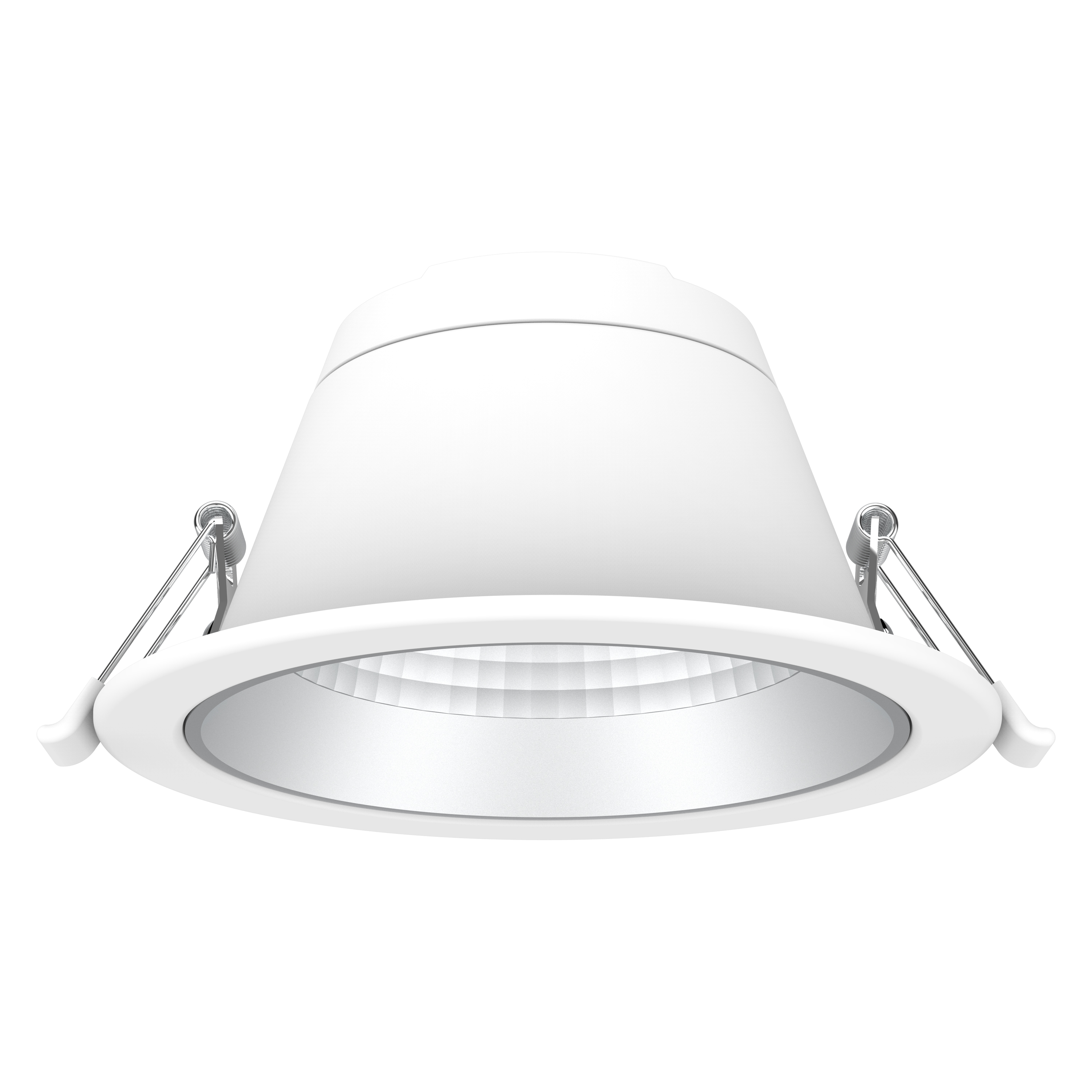

Product image: white background, spacial
LDVAL DL R50 ALU
JPG (1.38 MB)
Product line drawing, front, no dimensions
LED VALUE DOWNLIGHT ALU GEN2
SVG (69.05 KB)
