LED STRIP PERFORMANCE IP20 1500

LM-SP 1500-950-DC 60W 24V

GTIN: 4099854006456 BAG / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • High lumen efficacy up to127 lm/W leads to energy saving
  • 140 LEDs per meter makes excellent uniform light output with stable performance
  • Wide lumen output range from 500 lm-m to 2000 lm-m can meet different application requirements
  • Shorter cuttable length (50 mm) enables more flexibility on design
  • Long lifetime 50,000 hours (L70/B50) @45°C leads to saving in maintenance
Areas of application
  • Indoor semi-professional ambience lighting for hotel office and industry
  • Backlighting
  • Cabinet, closet lighting
Product features
  • 24 V DC low voltage input
  • 2700 K, 3000 K, 4000 K, 5000 K and 6500 K available
  • Color rendering index Ra: > 90
  • Consistent lighting color < 3 SDCM
  • IP20 for indoor application
  • CB certificate available
  • Flexible and easy to install with 3M back tape and accessories
  • Compatible to work with LEDVANCE 24 V Driver and dimming controller
Electrical data
Nominal wattage 60.00 W
Construction wattage 60.00 W
Nominal wattage per meter 12 W
Nominal voltage 24 V
Input voltage DC 24 V
Nominal current 500.000 mA
Photometrical data
Color temperature 5000 K
Color rendering index Ra > 90
Standard deviation of color matching < 3 sdcm
Light technical data
Rated beam angle (half peak value) 120.00 °
LED MODULE INFORMATION
Number of LEDs per meter 140
Dimensions & Weight
Length 5000.00 mm
Length – smallest unit 50 mm
Cable length 200.000
Width 8.00 mm
Height 1.40 mm
Product weight 100.00 g
Colors & materials
Body material Polyvinylchlorid (PVC)
Temperatures & operating conditions
Ambient temperature range -20…+45 °C
Maximum temperature at tc test point 85 °C
Lifespan
Nominal lamp life time 50000 h
Certificates & Standards
Standards CB
Protection class III
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854006456 BAG
1		 190 mm x 180 mm x 205 mm 105.00 g 7.01 dm³
4099854006463 Shipping box
10		 185 mm x 150 mm x 205 mm 1167.00 g 5.69 dm³
4099854006470 Shipping box
40		 400 mm x 326 mm x 235 mm 5321.00 g 30.64 dm³

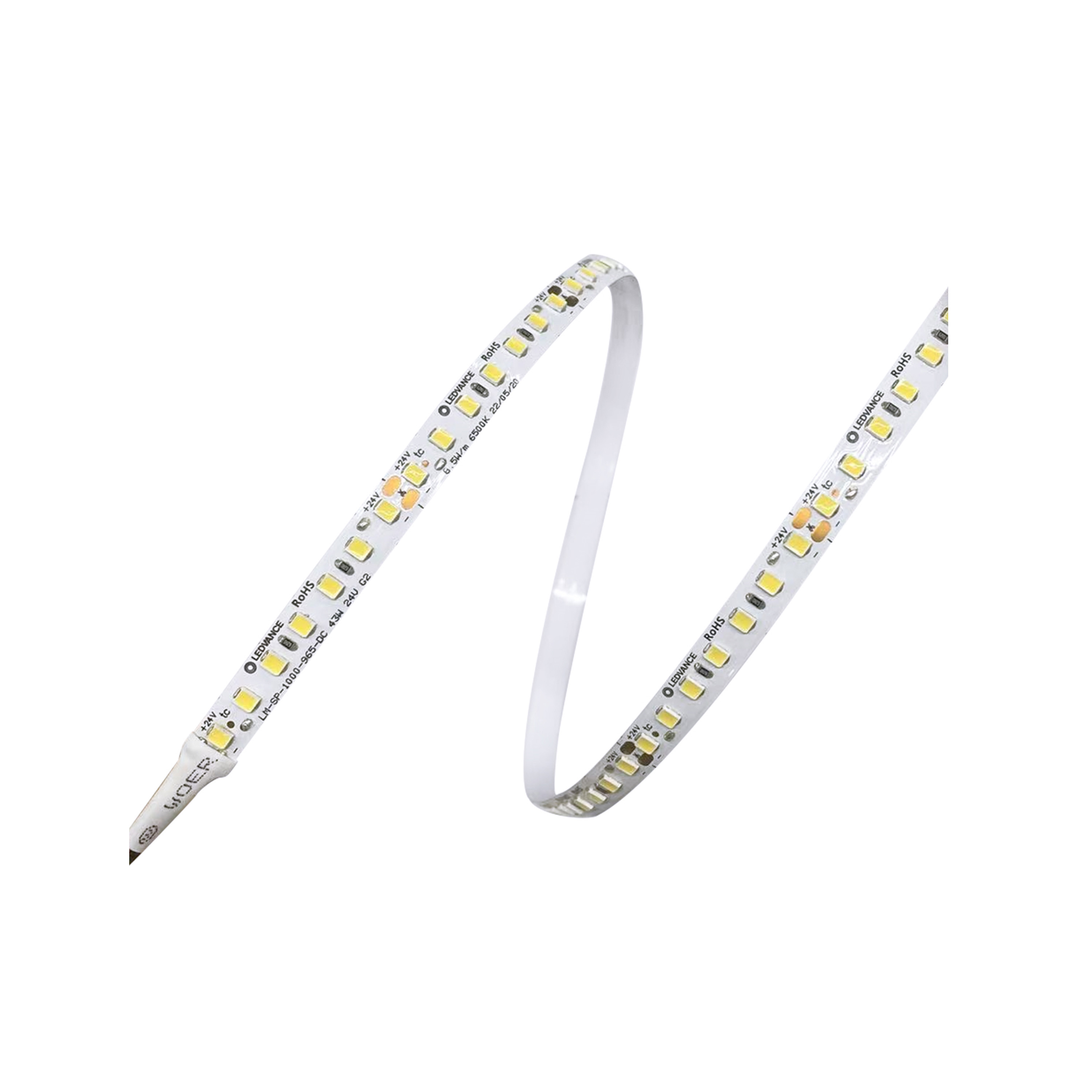

Product image: white background, diagonal
PFM STRIP IP20 G2
JPG (421.17 KB)

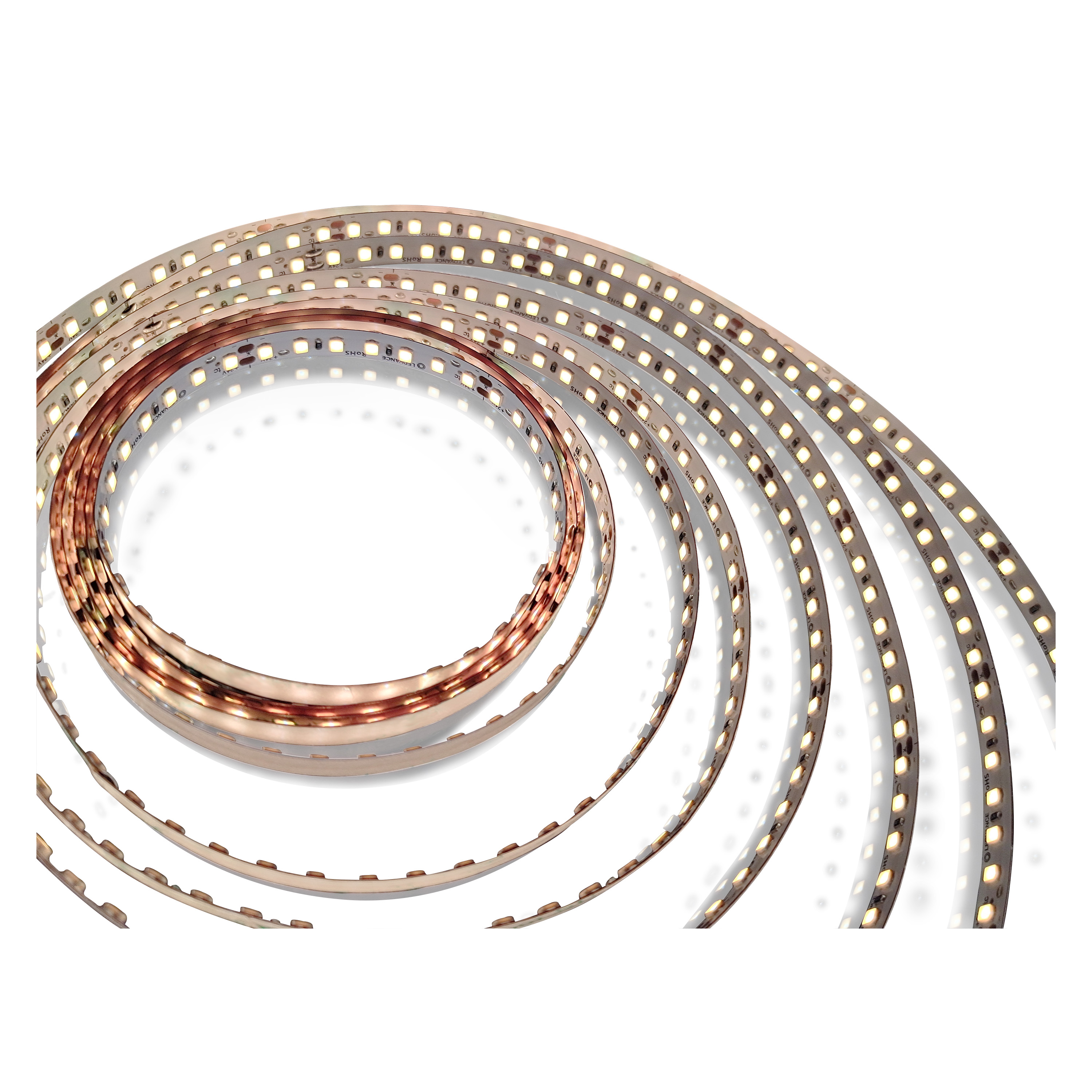

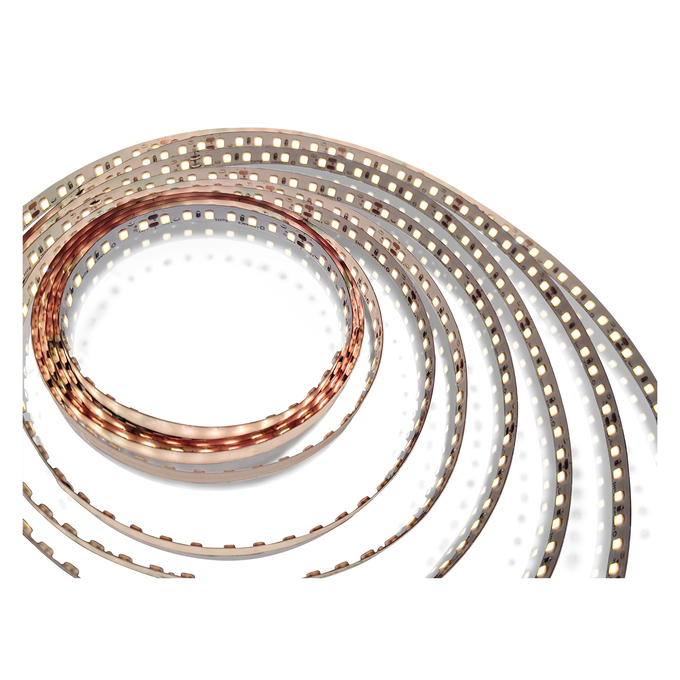

Product image: white background, horizontal
PFM STRIP IP20 G2
JPG (1.2 MB)

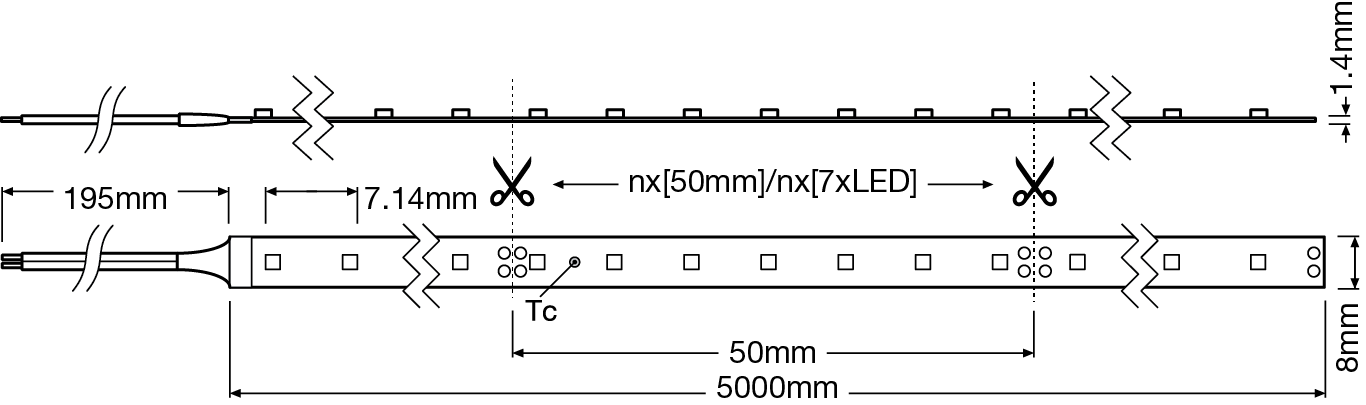

Product line drawing with numbers
PFM STRIP IP20 G2
PNG (31.68 KB)
