LED STAR LINE R7s
ST LINE 78.00 mm 60 7 W/2700 K R7s
GTIN: 4058075811690
Blister / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Long lifetime of up to 15,000 h
- Low energy consumption
- Three year guarantee
- Good all-around light emission
- Fits into most R7s luminaires thanks to excentric base
Areas of application
- Hospitality
- Domestic applications
- Outdoor applications only in suitable luminaires
Product features
- LED alternative to conventional R7s lamps
Safety advice
- To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links
- For further products and actual information concerning LED lamps see www.osram-lamps.com/led-lamps
- For Guarantee see www.osram-lamps.com/guarantee
Electrical data
| Nominal wattage | 7 W |
| Construction wattage | 7.00 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 60 W |
| Nominal current | 60 mA |
| Type of current | AC |
| Inrush current | 4.68 A |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
| Max. lamp number on MCB B10 A | 82 |
| Max. lamp number on MCB B16 A | 132 |
| Power factor λ | 0.50 |
Photometrical data
| Luminous flux | 806 lm |
| Nominal useful luminous flux 90° | 806 lm |
| Luminous efficacy | 115 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Warm White |
| Color temperature | 2700 K |
| Color rendering index Ra | ≥80 |
| Light color | 827 |
| Standard deviation of color matching | ≤6 sdcm |
| Rated LLMF at 6,000 h | 0.80 |
Light technical data
| Beam angle | 300 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 78.00 mm |
| Diameter | 29 mm |
| Maximum diameter | 29 mm |
| Product weight | 50.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
| Maximum temperature at tc test point | 89 °C |
Lifespan
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
| Base (standard designation) | R7s |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Clear |
Capabilities
| Dimmable | No |
Certificates & Standards
| Energy efficiency class | A++ 1) |
| Energy consumption | 7.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE, EAC |
| Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
| ILCOS | DRDG-7/827-230-R7s-114,2 |
| Order reference | LEDSLI 78 60 7W |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | R7s |
| Length | 78.00 mm |
| Height | 29 mm |
| Width | 29 mm |
| EPREL ID | 1498585 |
| Model number | AC19589 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075811690 | Blister 1 |
37 mm x 140 mm x 120 mm | 62.00 g | 0.62 dm³ |
| 4058075811706 | Shipping box 9 |
345 mm x 153 mm x 136 mm | 719.00 g | 7.18 dm³ |
PRODUCT DATASHEET
4008597194948 ZMP_2905257 ST LINE 78.0 mm 60 7 W 2700 K R7s.pdf
4008597194948 ZMP_2905257 ST LINE 78.0 mm 60 7 W 2700 K R7s.pdf
Product image: white background, diagonal with OSRAM logo
LED LINE R7s 78mm
LED LINE R7s 78mm
Product image: white background, diagonal
LED LINE R7s 78mm
LED LINE R7s 78mm
Product image: white background, upright, OSRAM logo
LED LINE R7s 78mm
LED LINE R7s 78mm
Product image: white background, upright
LED LINE R7s 78mm
LED LINE R7s 78mm
Product line drawing with letters
LED LINE R7s 78mmx29mm
LED LINE R7s 78mmx29mm
Product line drawing with numbers
LED LINE R7s 78mmx29mm
LED LINE R7s 78mmx29mm
Product line drawing - technical
LED LINE R7s 78mmx29mm
LED LINE R7s 78mmx29mm

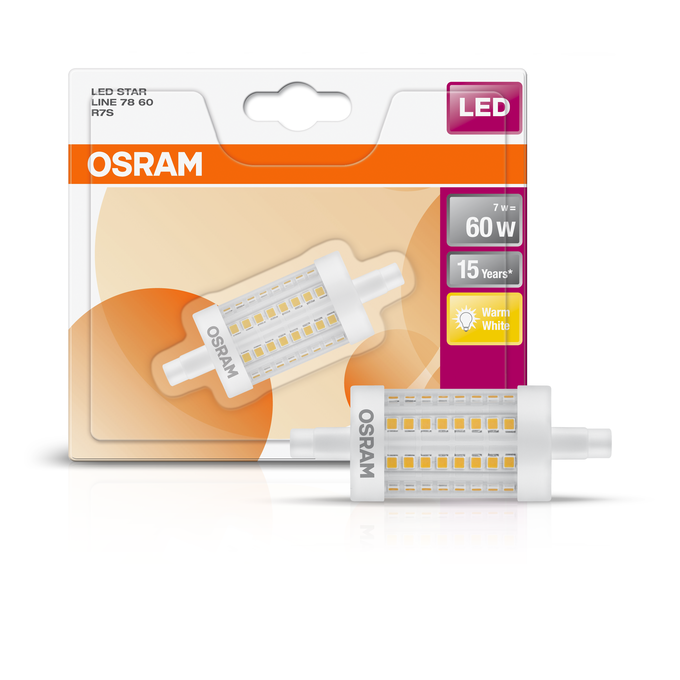

Combo Shot = Product Beauty Shot + Packaging Image
