LED VALUE CLASSIC B
LED VALUE CLAS B 25 3.3 W/2700 K E14
GTIN: 4058075473522
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Lower energy consumption than incandescent or halogen lamps
- Simple direct replacement for conventional incandescent lamps
- Instant 100 % light, no warm-up time
Areas of application
- General illumination
- Domestic applications
- Chandeliers
- Outdoor use in suitable outdoor luminaires only
Product features
- LED alternative to conventional lamps
- Not dimmable
- Good color rendering CRI ≥ 80 and color stability throughout the life of the lamp
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Electrical data
| Nominal wattage | 3.3 W |
| Construction wattage | 3.30 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 25 W |
| Nominal current | 28 mA |
| Type of current | AC |
| Operating frequency | 50…60 Hz |
| Mains frequency | 50…60 Hz |
| Power factor λ | > 0.50 |
Photometrical data
| Luminous flux | 250 lm |
| Nominal useful luminous flux 90° | 250 lm |
| Luminous efficacy | 75 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Warm White |
| Color temperature | 2700 K |
| Color rendering index Ra | ≥80 |
| Light color | 827 |
| Standard deviation of color matching | ≤6 sdcm |
| Rated LLMF at 6,000 h | 0.80 |
Light technical data
| Beam angle | 220 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 100.00 mm |
| Diameter | 37.00 mm |
| Maximum diameter | 35 mm |
| Product weight | 18.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
Lifespan
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
| Base (standard designation) | E14 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
Capabilities
| Dimmable | No |
Certificates & Standards
| Energy efficiency class | G 1) |
| Energy consumption | 3.00 kWh/1000h |
| Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
| Order reference | LVCLB253,3W/827 |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | E14 |
| Correlated colour temperature type | SINGLE_VALUE |
| Length | 100.00 mm |
| Height | 37.00 mm |
| Width | 37.00 mm |
| Displacement factor | 0.5 |
| EPREL ID | 1403236 |
| Model number | AC24723 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Additional info can be provided per individual request |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075473522 | Folding box 1 |
38 mm x 38 mm x 102 mm | 28.00 g | 0.15 dm³ |
| 4058075473539 | Shipping box 10 |
198 mm x 84 mm x 113 mm | 339.00 g | 1.88 dm³ |
Product image: white background, diagonal
723258_LED CLB 25/40 3,3W/827 E14 FR
723258_LED CLB 25/40 3,3W/827 E14 FR

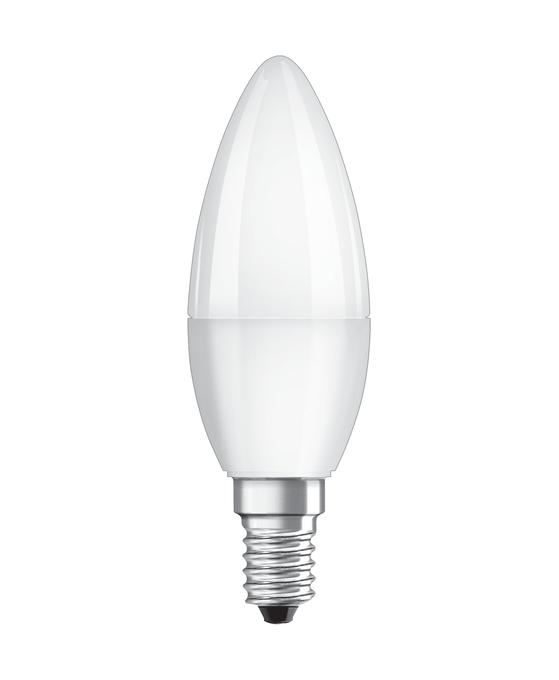

Product image: white background, upright
Classic_B_25_frosted_n on-dim_E14
Classic_B_25_frosted_n on-dim_E14
Product line drawing, front, no dimensions
666477_Classic B 25-40 frosted non-dim E14
666477_Classic B 25-40 frosted non-dim E14

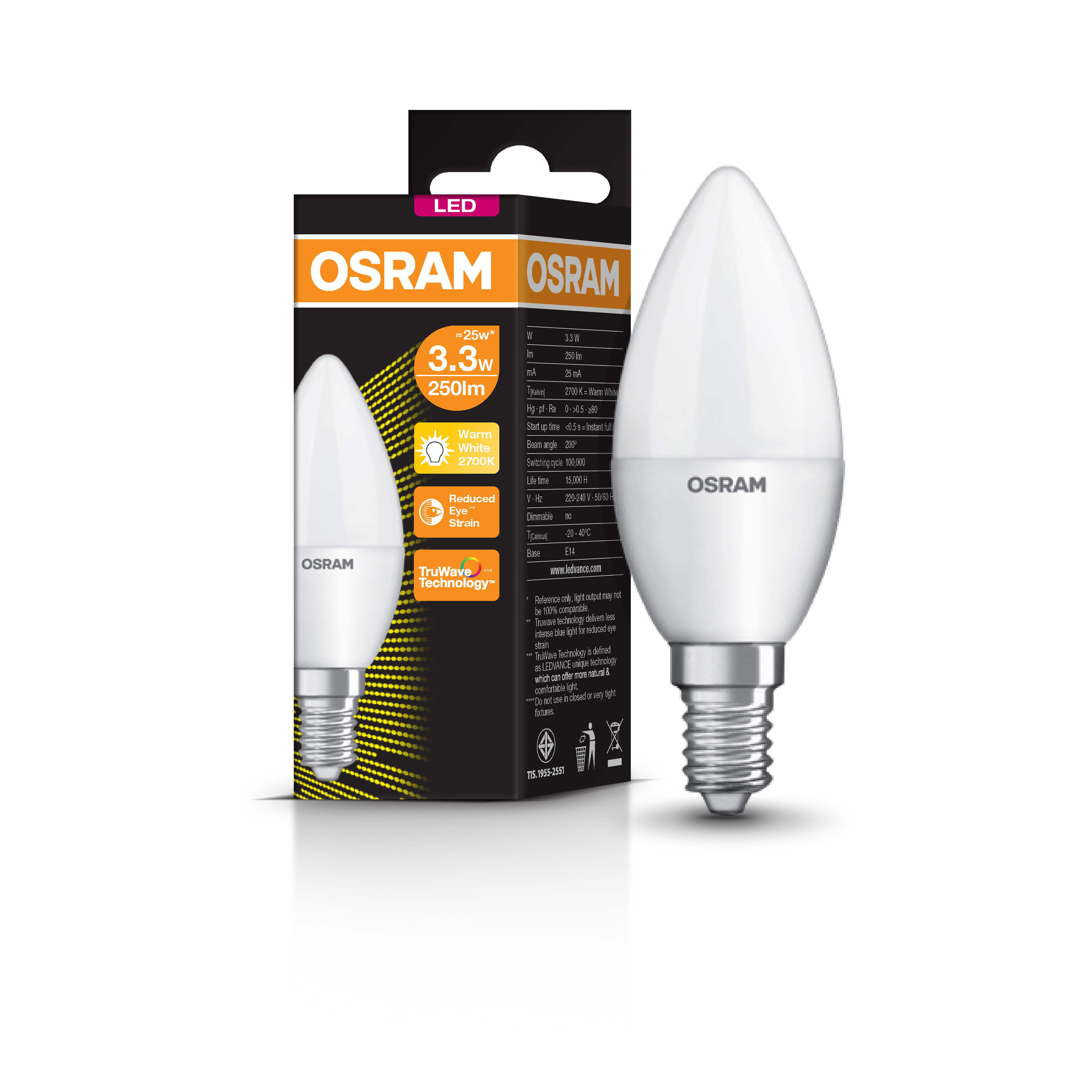

Combo Shot = Product Beauty Shot + Packaging Image
