LED VALUE CLASSIC B

LED VALUE CLAS B 4.9 W/6500 K B22d

GTIN: 4058075625112 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Simple direct replacement for conventional incandescent lamps
  • Instant 100 % light, no warm-up time
Areas of application
  • General illumination
  • Domestic applications
  • Chandeliers
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to conventional lamps
  • Not dimmable
  • Good color rendering CRI ≥ 80 and color stability throughout the life of the lamp
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Electrical data
Nominal wattage 4.9 W
Construction wattage 4.90 W
Nominal voltage 220…240 V
Nominal current 39 mA
Type of current AC
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Power factor λ > 0.50
Photometrical data
Luminous flux 470 lm
Luminous efficacy 95 lm/W
Light color (designation) Daylight
Color temperature 6500 K
Color rendering index Ra ≥80
Light color 865
Standard deviation of color matching ≤6 sdcm
Light technical data
Beam angle 180 °
Starting time < 0.5 s
Dimensions & Weight
Overall length 101.50 mm
Diameter 37.00 mm
Product weight 20.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Lifespan
Number of switching cycles 100000
Additional product data
Base (standard designation) B22d
Mercury content 0.0 mg
Capabilities
Dimmable No
Country-specific categorizations
Order reference LVCLB40 4,9W/86
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) B22d
Length 101.50 mm
Height 37.00 mm
Width 37.00 mm
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075625112 Folding box
1		 38 mm x 38 mm x 102 mm 26.00 g 0.15 dm³
4058075625129 Shipping box
10		 198 mm x 84 mm x 113 mm 319.00 g 1.88 dm³
4099854084560 Shipping box
10		 206 mm x 91 mm x 127 mm 335.00 g 2.38 dm³

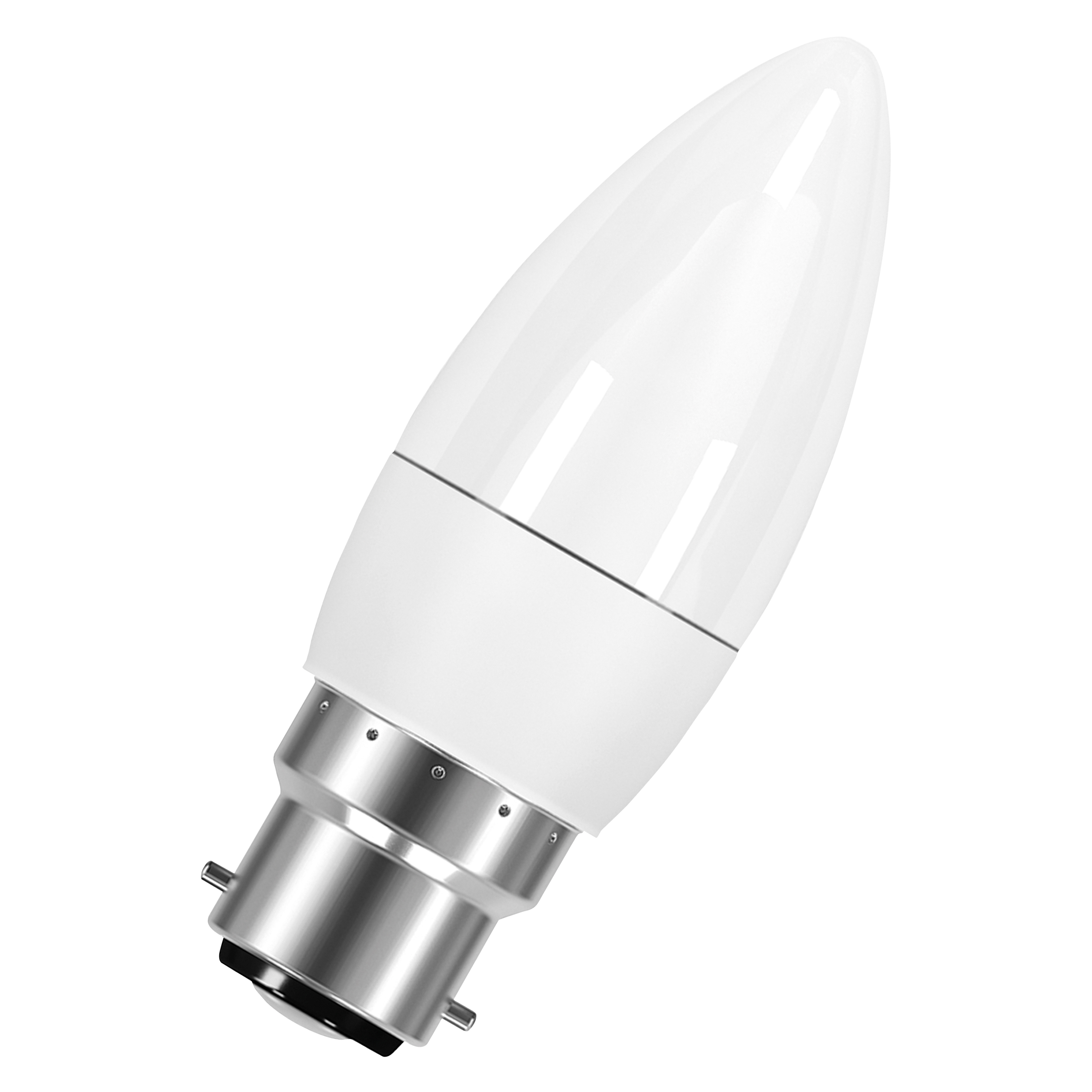

Product image: white background, diagonal
CLAS B 40 FR 5.5 W B22D
JPG (1.23 MB)

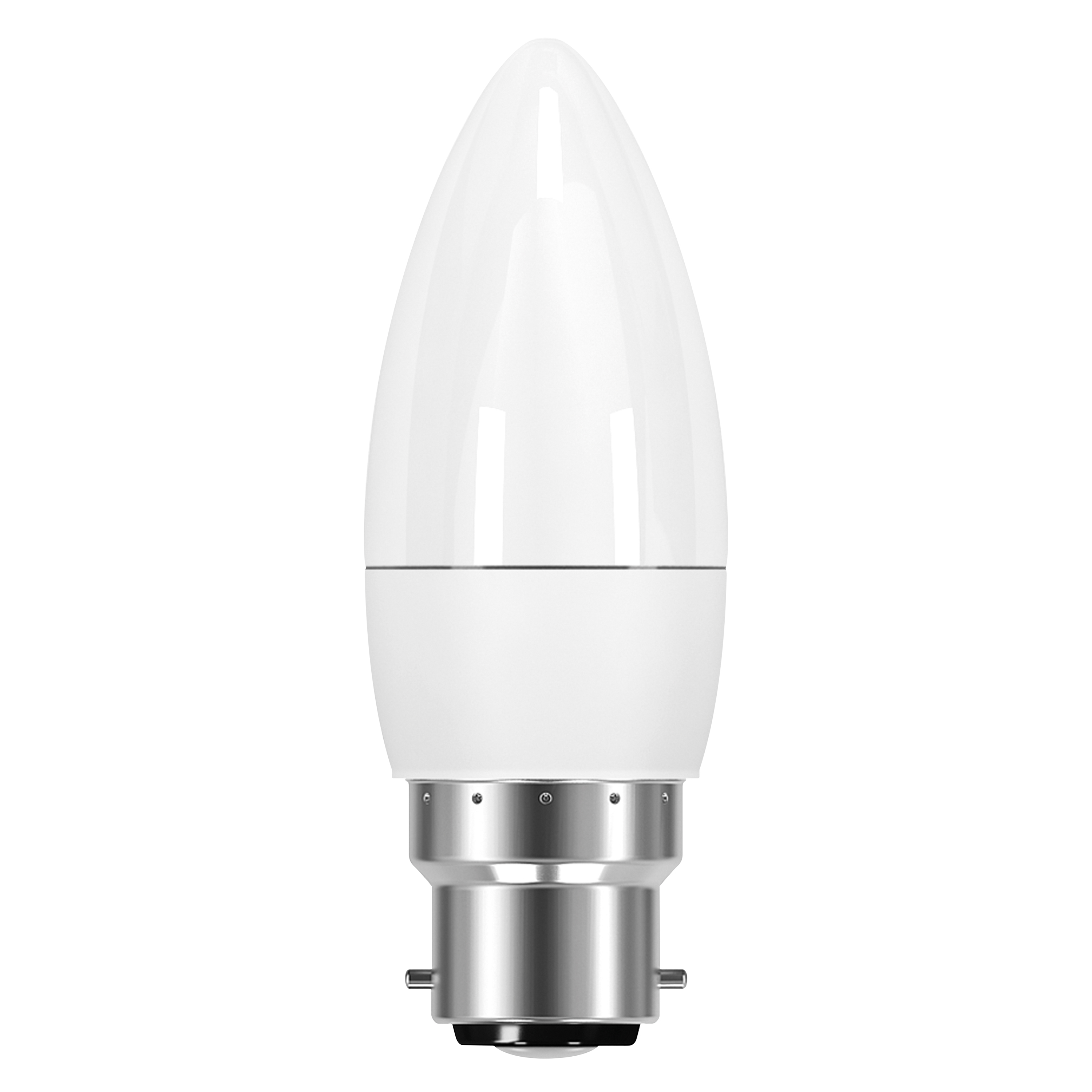

Product image: white background, upright
CLAS B 40 FR 5.5 W B22D
JPG (1.15 MB)
Product line drawing, front, no dimensions
CLAS B 40 FR 5.5 W B22D
SVG (6.29 KB)

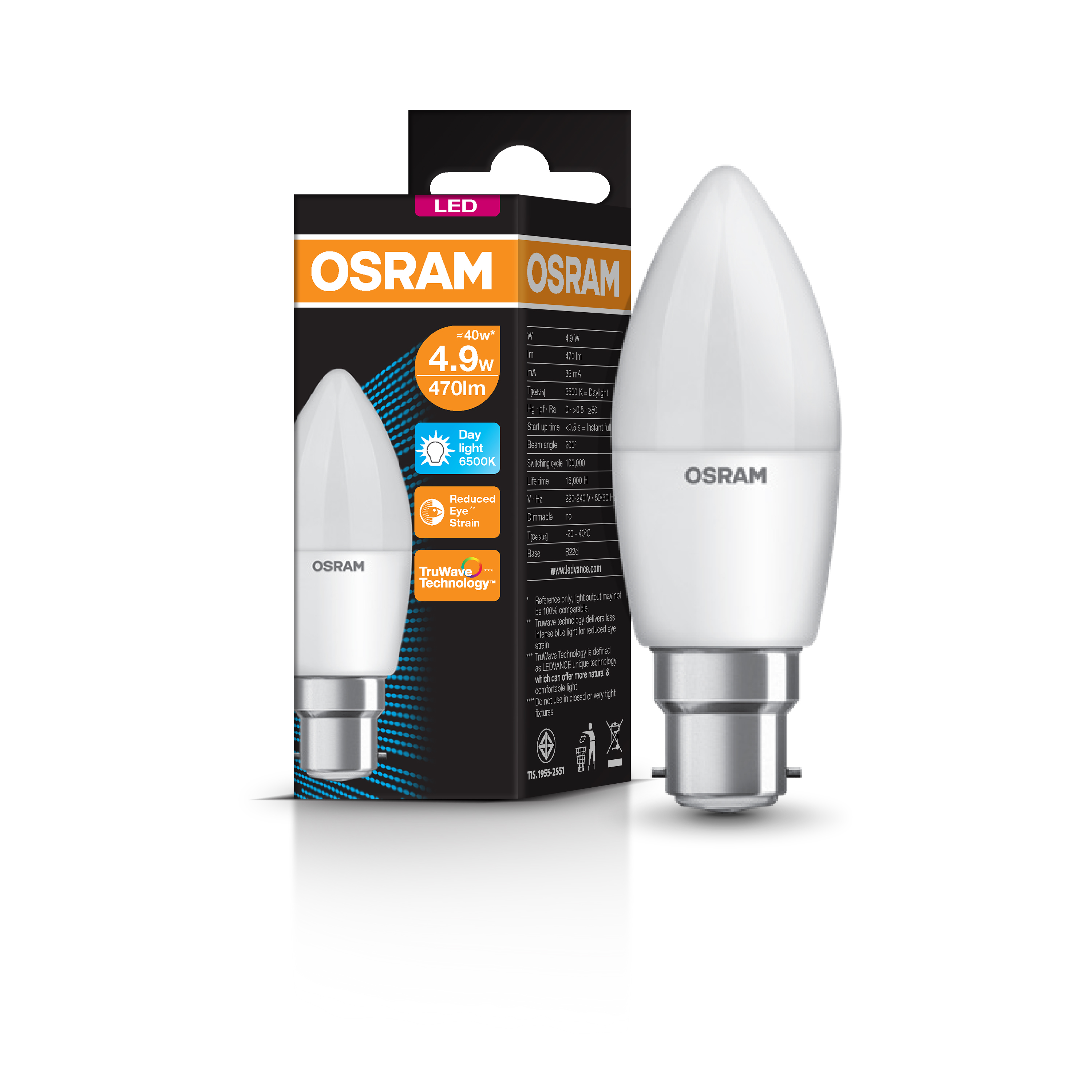

Combo Shot = Product Beauty Shot + Packaging Image
