LED VALUE MR16 230 V

LED VALUE MR 16 36 ° 5.5 W/2700 K GU5.3

GTIN: 4099854297410 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Clear cast shadows for brilliant accent light
  • Uniform illumination thanks to TIR-reflector and fly eye single optic design
  • Very low energy consumption
  • Good quality of light
  • Easy replacement of halogen lamps thanks to compact design
  • Easy and cost-effective operation
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
Areas of application
  • Residential interiors
  • Hospitality
  • Restaurants
  • Museums, art galleries
Product features
  • High-quality LED replacement for halogen reflector lamps
  • High color consistency: < 6 SDCM
  • No electronic transformer is needed
  • Surge protection: up to 1,000 V
  • Mercury-free lamps
Electrical data
Nominal wattage 5.5 W
Construction wattage 5.50 W
Nominal voltage 100…240 V
Claimed equiv. conventional lamp power 50 W
Nominal current 34 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ 0.70
Photometrical data
Luminous intensity 880 cd
Luminous flux 525 lm
Nominal useful luminous flux 90° 470 lm
Luminous efficacy 95 lm/W
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated peak intensity 880 cd
Light technical data
Beam angle 36 °
Starting time < 0.5 s
Dimensions & Weight
Overall length 48.00 mm
Diameter 50.00 mm
Product weight 29.00 g
Temperatures & operating conditions
Ambient temperature range -20…+45 °C
Maximum temperature at tc test point ≤ 100 °C
Lifespan
Number of switching cycles 100000
Additional product data
Base (standard designation) GU5.3
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Capabilities
Dimmable No
Certificates & Standards
Type of protection IP20
Country-specific categorizations
Order reference LVMR16365,5W/82
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) GU5.3
Length 48.00 mm
Height 50.00 mm
Width 50.00 mm
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854297410 Folding box
1		 51 mm x 51 mm x 54 mm 36.00 g 0.14 dm³
4099854297427 Shipping box
10		 268 mm x 113 mm x 69 mm 408.00 g 2.09 dm³

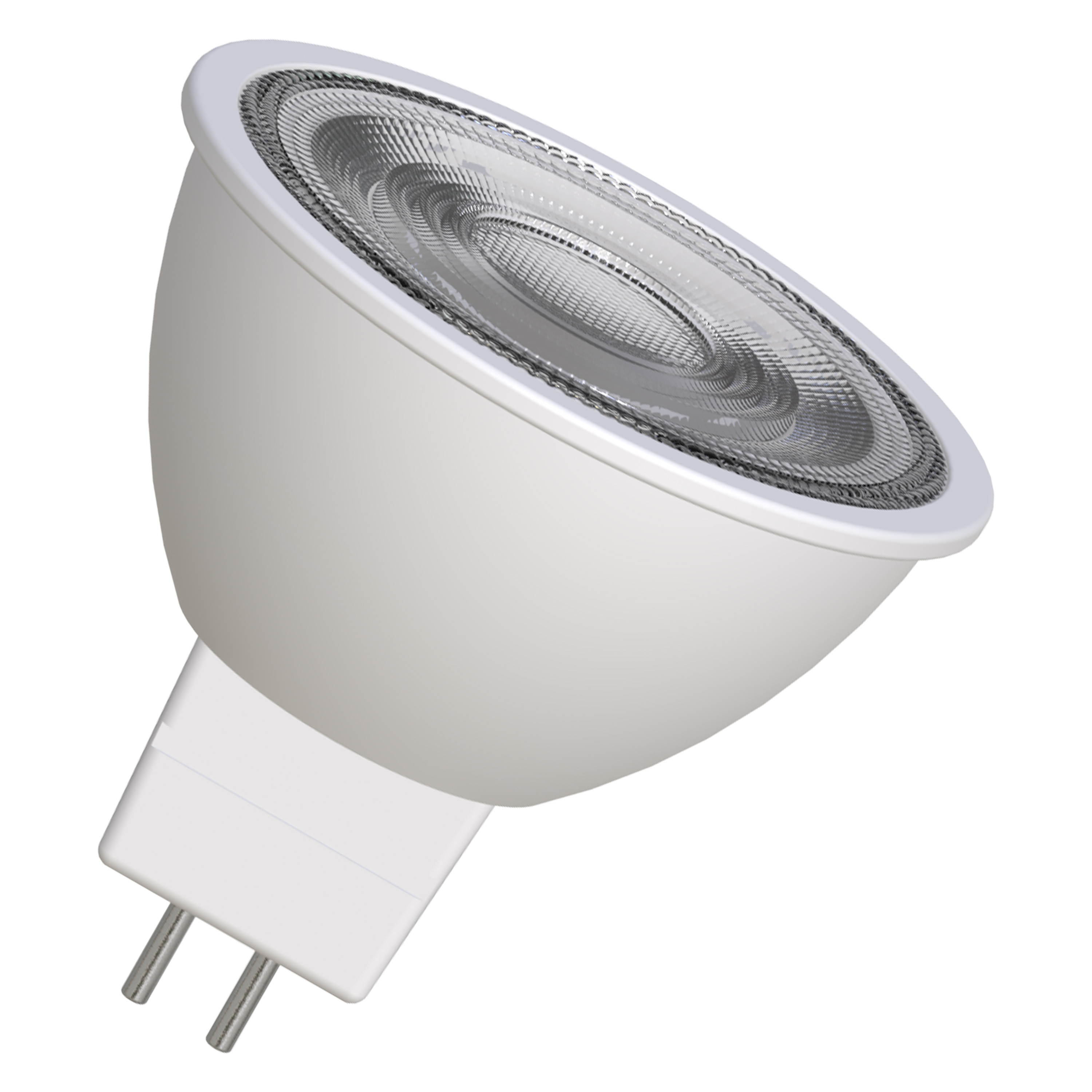

Product image: white background, diagonal
LVMR16 GU5.3
JPG (1.36 MB)

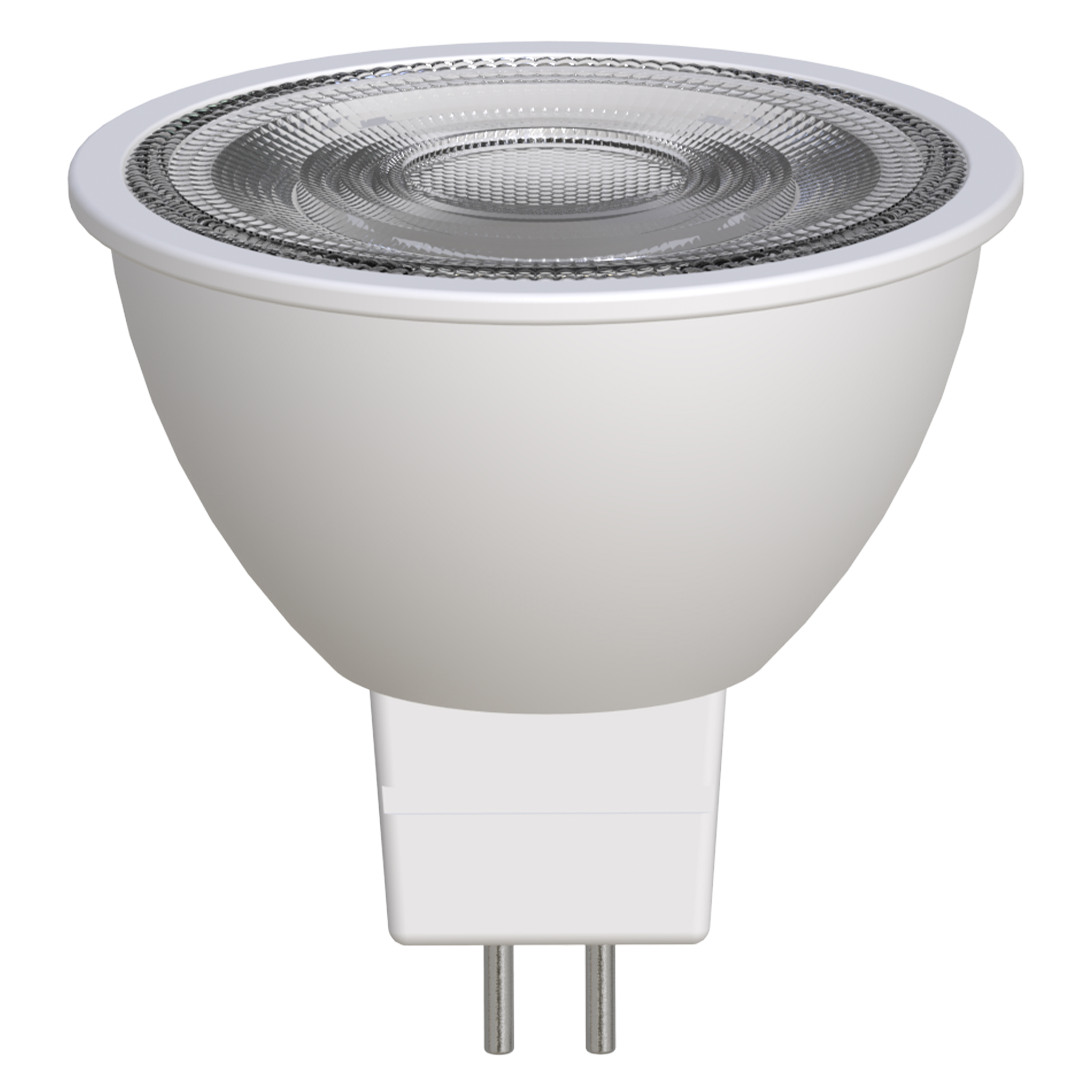

Product image: white background, upright
LVMR1636
JPG (1.31 MB)
Product line drawing with numbers
LVMR16 GU5.3
SVG (8.86 KB)
IES file (IES)
LV MR1636 5.5W 230V GU5.3
IES (37.1 KB)
IES files (IES, additional)
LV MR1636 5.5W 120V GU5.3
IES (37.12 KB)
