LED VALUE CLASSIC B FILAMENT

LED VALUE CLAS B FIL 4 W/2700 K B15d GEN2

GTIN: 4058075267688 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • Lamps with innovative LED "filament" technology
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Lower thermal output (compared with the standard reference product)
  • Can be easily fitted instead of ordinary light bulbs
Areas of application
  • Decorative applications
  • General illumination
  • Outdoor use in outdoor luminaires only (minimum IP65)
  • Perfect for decorative installations
Product features
  • Professional LED lamps for line voltage
  • Not dimmable
  • Mercury-free lamps
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
  • Lifetime up to 15,000 h
Electrical data
Nominal wattage 4 W
Construction wattage 4.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 40 W
Nominal current 36 mA
Type of current AC
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Power factor λ > 0.40
Photometrical data
Luminous flux 470 lm
Nominal useful luminous flux 90° 470 lm
Luminous efficacy 117 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Light technical data
Beam angle 300 °
Starting time < 0.5 s
Dimensions & Weight
Overall length 98.00 mm
Diameter 45.00 mm
Maximum diameter 35 mm
Product weight 16.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Lifespan
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Additional product data
Base (standard designation) B15d
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Certificates & Standards
Type of protection IP20
Photobiological safety group acc. to EN62778 RG0
Country-specific categorizations
Order reference LV CLB 4W/827 2
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) B15d
Length 98.00 mm
Height 45.00 mm
Width 45.00 mm
EPREL ID 734527
Model number AC36779
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075267688 Folding box
1		 51 mm x 51 mm x 130 mm 28.00 g 0.34 dm³
4099854259975 Shipping box
10		 266 mm x 109 mm x 142 mm 415.00 g 4.12 dm³
4058075506459 Shipping box
10		 266 mm x 109 mm x 142 mm 425.00 g 4.12 dm³
4058075267695 Shipping box
10		 266 mm x 109 mm x 142 mm 414.00 g 4.12 dm³
4058075750777 Shipping box
10		 266 mm x 109 mm x 142 mm 424.00 g 4.12 dm³

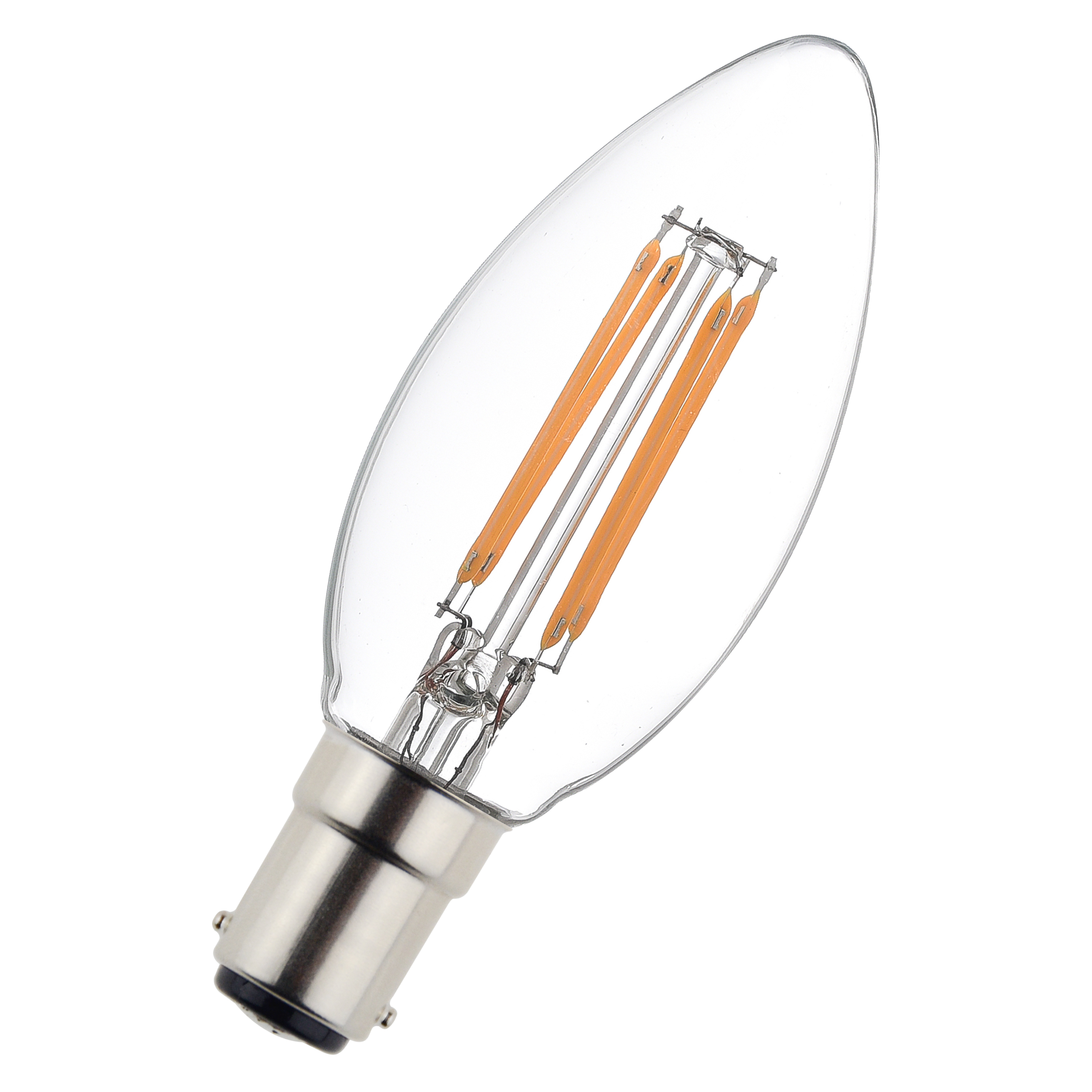

Product image: white background, diagonal
LED VALUE CLASSIC B 4 W FIL B15D
JPG (1.52 MB)

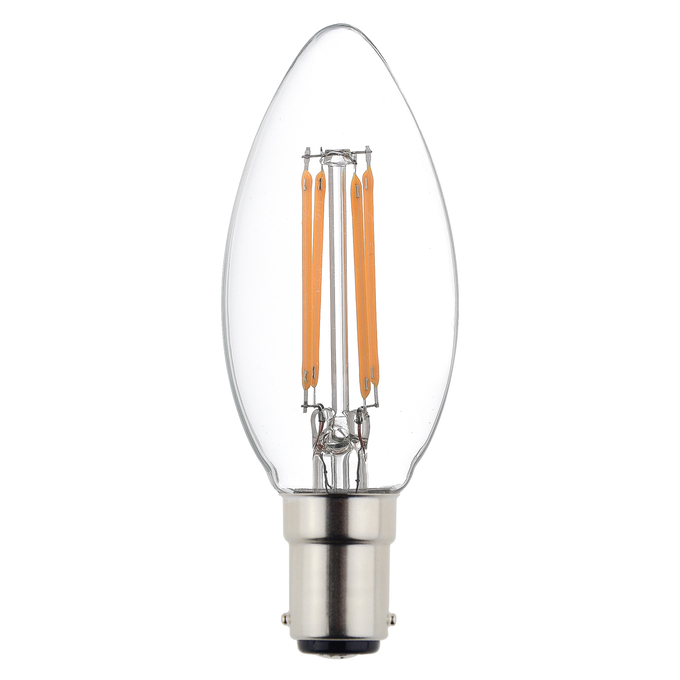

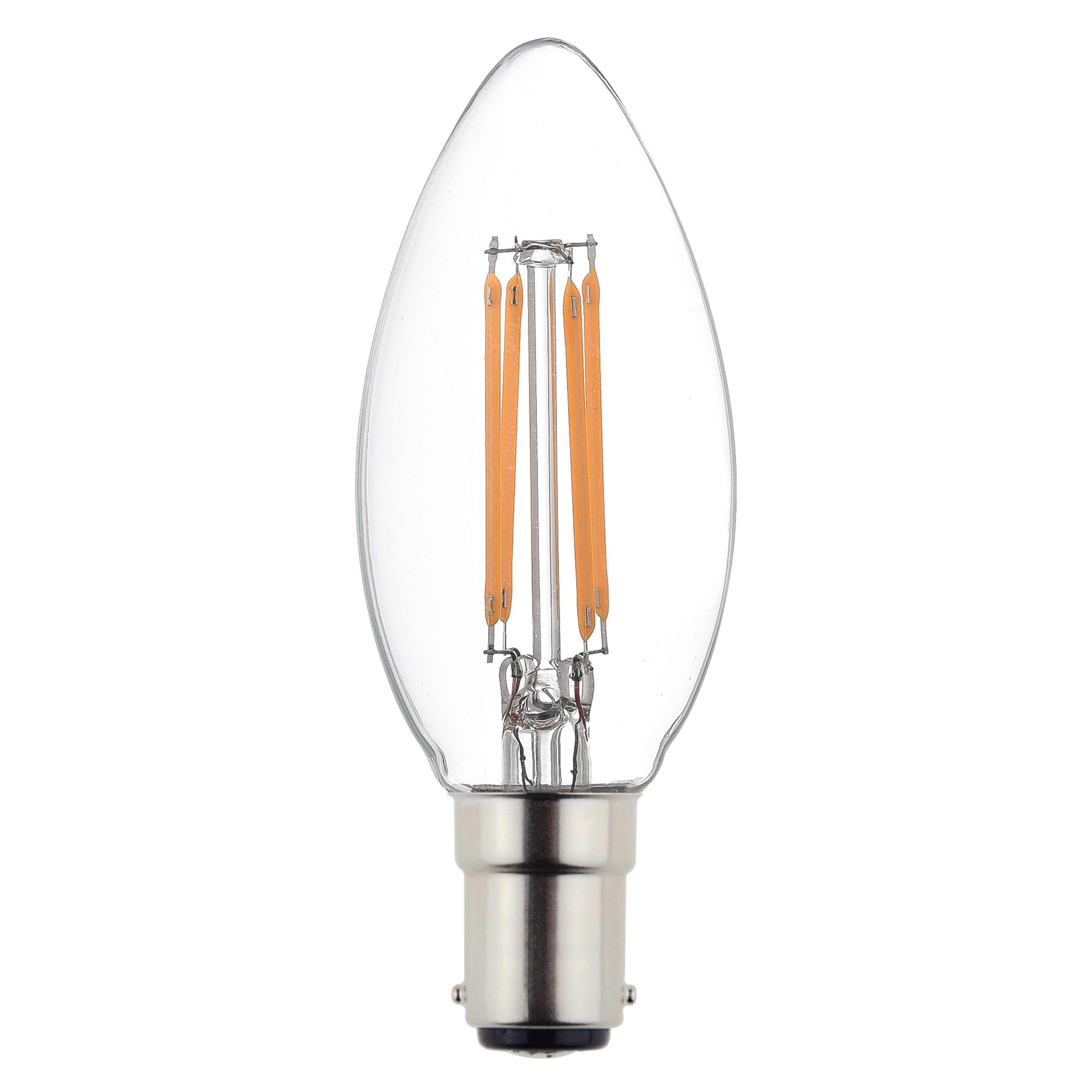

Product image: white background, upright
