LED VALUE CLASSIC B FILAMENT

LED VALUE CLAS B FIL 2.5 W/2700 K E14

GTIN: 4099854311086 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Lamps with innovative LED "filament" technology
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Lower thermal output (compared with the standard reference product)
  • Can be easily fitted instead of ordinary light bulbs
Areas of application
  • Decorative applications
  • General illumination
  • Outdoor use in outdoor luminaires only (minimum IP65)
  • Perfect for decorative installations
Product features
  • Professional LED lamps for line voltage
  • Not dimmable
  • Mercury-free lamps
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
  • Lifetime up to 15,000 h
Electrical data
Nominal wattage 2.5 W
Construction wattage 2.50 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 25 W
Nominal current 19 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ ≥ 0.40
Photometrical data
Luminous flux 250 lm
Nominal useful luminous flux 90° 250 lm
Luminous efficacy 100 lm/W
Lumen main.fact.at end of nom.life time 0.93
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Light technical data
Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s
Dimensions & Weight
Overall length 100.00 mm
Diameter 35.00 mm
Maximum diameter 35 mm
Product weight 16.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Lifespan
Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.93
Rated lamp survival factor at 6,000 h ≥ 0.90
Additional product data
Base (standard designation) E14
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Capabilities
Dimmable No
Certificates & Standards
Energy efficiency class F
Energy consumption 3.00 kWh/1000h
Type of protection IP20
Standards CB
Photobiological safety group acc. to EN62778 RG1
Country-specific categorizations
Order reference LV CLB 2,5W/827
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Light source cap-type (or other electric interface) E14
Correlated colour temperature type SINGLE_VALUE
Length 100.00 mm
Height 35.00 mm
Width 35.00 mm
EPREL ID 523087
Model number AC32467
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854311086 Folding box
1		 39 mm x 39 mm x 109 mm 30.00 g 0.17 dm³
4099854311093 Shipping box
10		 205 mm x 87 mm x 123 mm 349.00 g 2.19 dm³

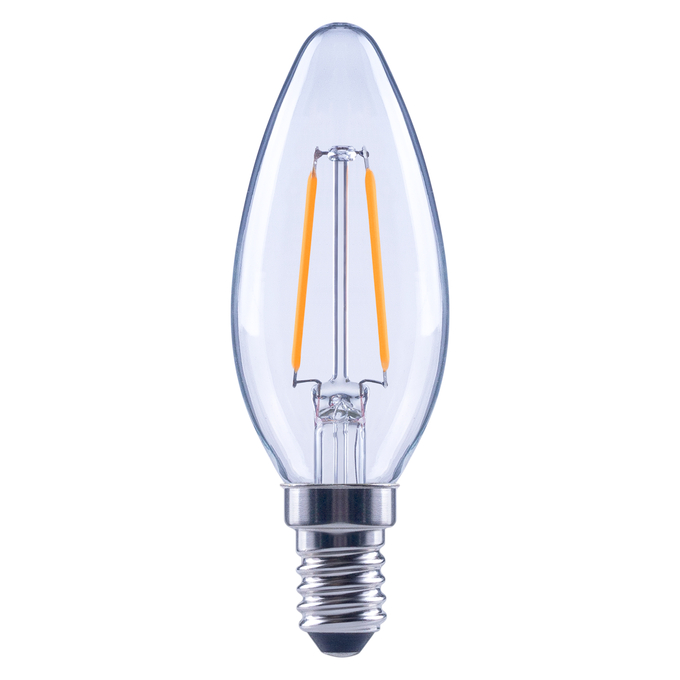

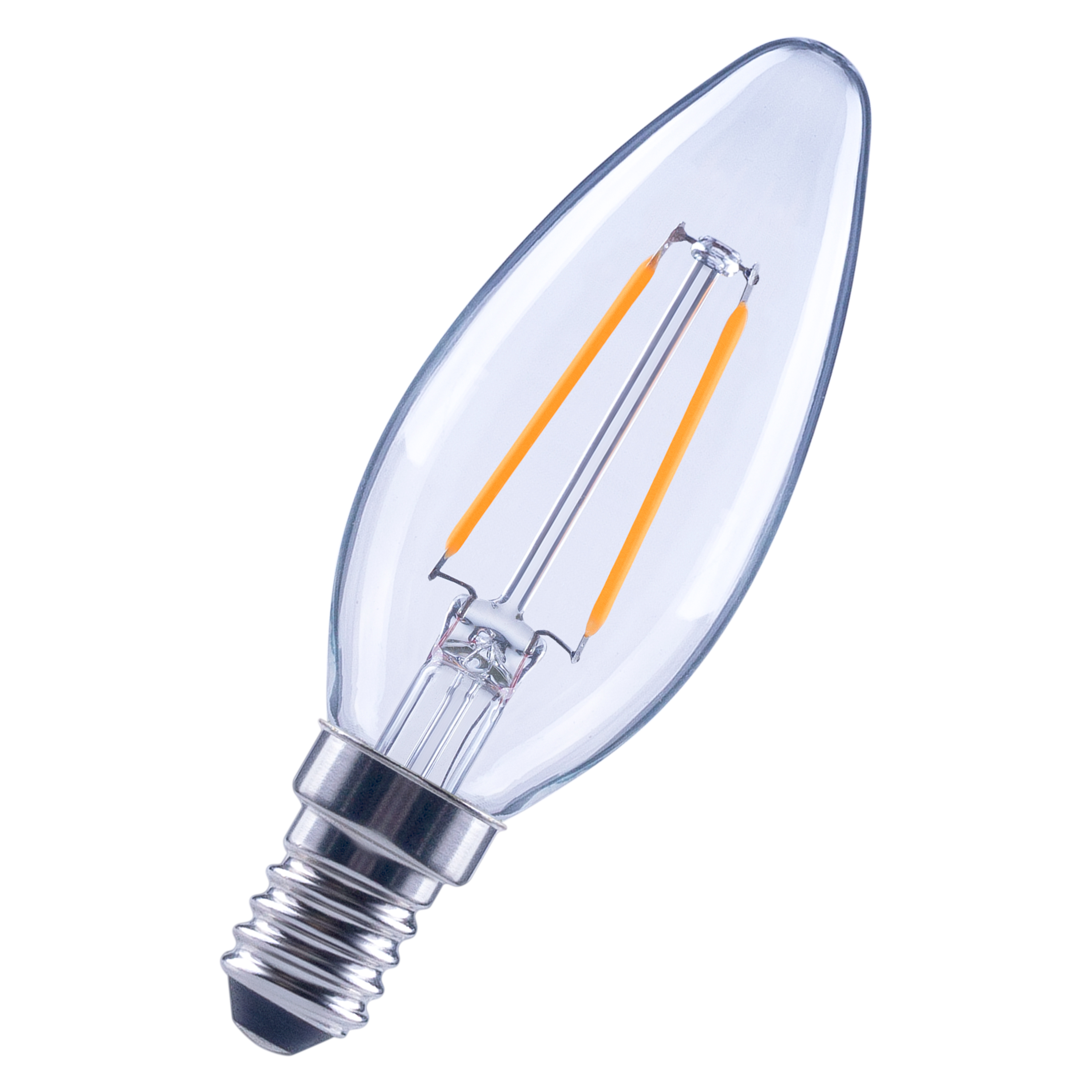

Product image: white background, diagonal
LV CLB E14
JPG (1.05 MB)

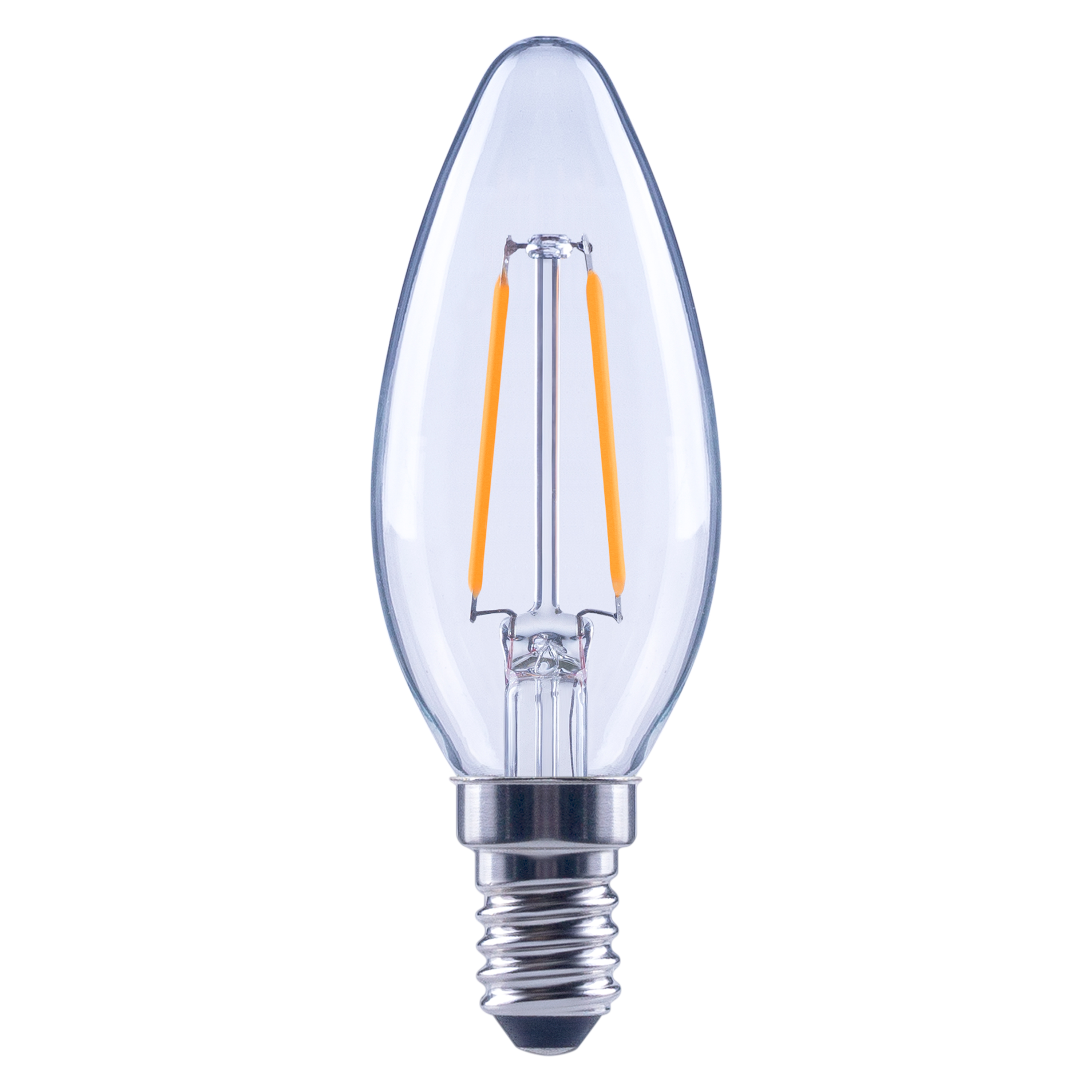

Product image: white background, upright
