LED VALUE CLASSIC P FILAMENT

LED VALUE CLAS P FIL 4 W/2700 K E14 FR GEN2

GTIN: 4058075312074 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Very low energy consumption
  • Lamps with innovative LED "filament" technology
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lower thermal output (compared with the standard reference product)
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
Areas of application
  • Perfect for decorative installations
  • General illumination
  • Outdoor use in outdoor luminaires only (minimum IP65)
  • Domestic applications
Product features
  • Professional LED lamps for line voltage
  • Not dimmable
  • Mercury-free lamps
  • Beam angle: up to 300°
  • Lifetime up to 15,000 h
Electrical data
Nominal wattage 4 W
Construction wattage 4.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 40 W
Nominal current 35 mA
Type of current AC
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Power factor λ > 0.40
Photometrical data
Luminous flux 470 lm
Nominal useful luminous flux 90° 470 lm
Luminous efficacy 117 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Light technical data
Beam angle 300 °
Starting time < 0.5 s
Dimensions & Weight
Overall length 78.00 mm
Diameter 45.00 mm
Maximum diameter 45 mm
Product weight 13.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Lifespan
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Additional product data
Base (standard designation) E14
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Certificates & Standards
Type of protection IP20
Photobiological safety group acc. to EN62778 RG0
Country-specific categorizations
Order reference LV CLP 4W/827 2
LOGISTICAL DATA
Temperature range at storage -20…+80 °C
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E14
Length 78.00 mm
Height 45.00 mm
Width 45.00 mm
EPREL ID 1403381,523067
Model number AC24300,AC32457
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075312074 Folding box
1		 46 mm x 46 mm x 93 mm 27.00 g 0.20 dm³
4058075750890 Shipping box
10		 266 mm x 109 mm x 121 mm 376.00 g 3.51 dm³
4099854260100 Shipping box
10		 266 mm x 109 mm x 121 mm 396.00 g 3.51 dm³
4058075509184 Shipping box
10		 266 mm x 109 mm x 121 mm 396.00 g 3.51 dm³

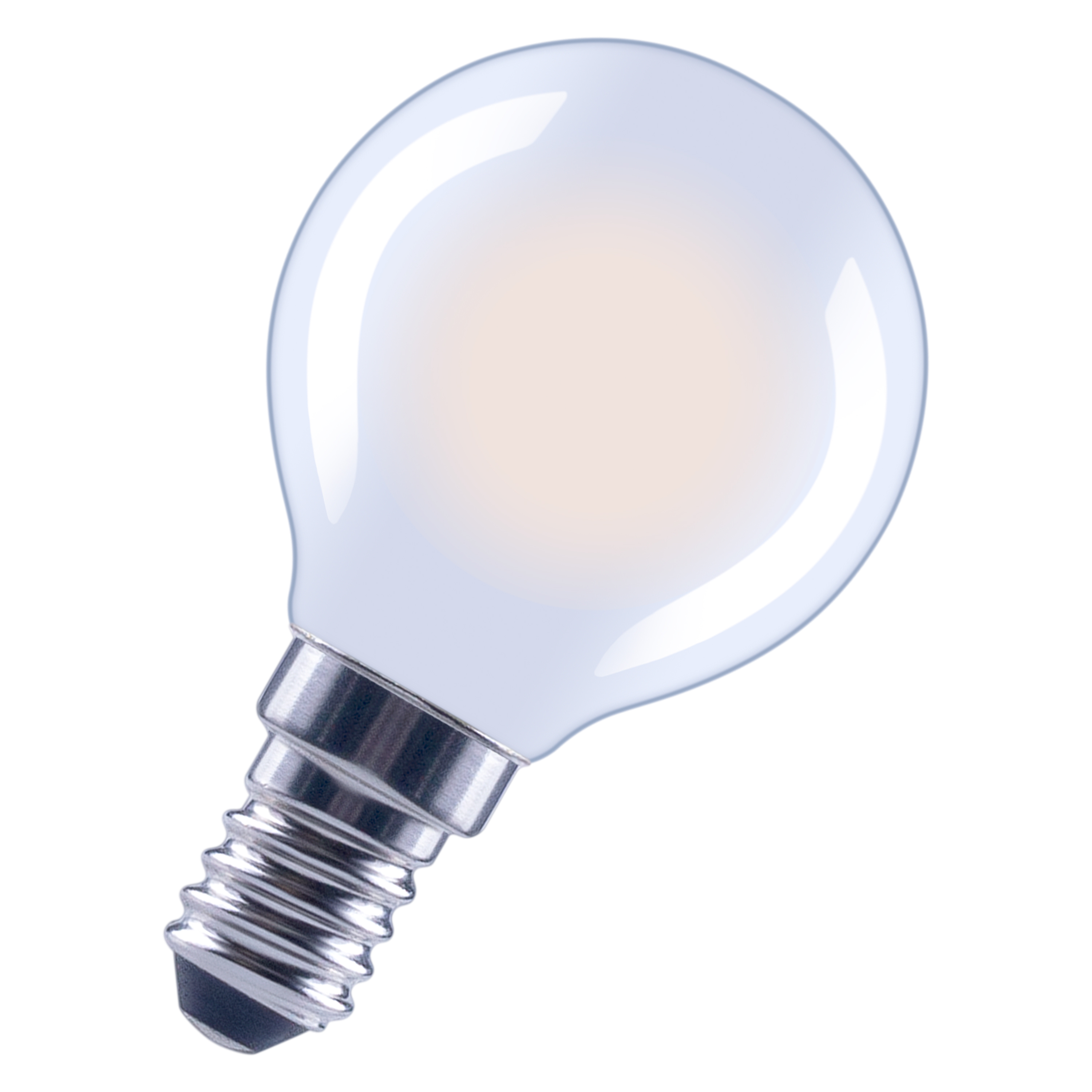

Product image: white background, diagonal
LV CLP E14
JPG (669.05 KB)

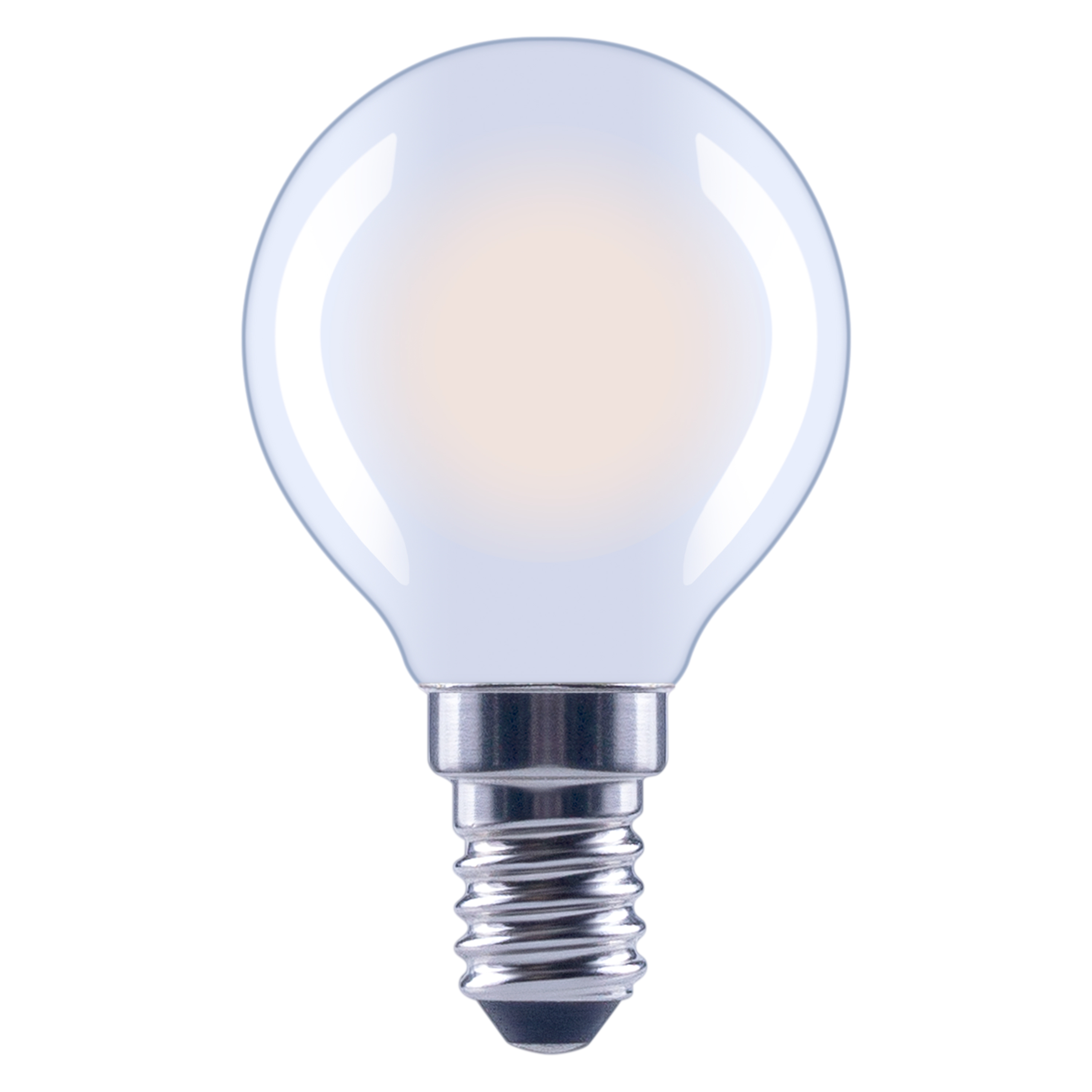

Product image: white background, upright
