LED ECO HIGH WATT

LED ECO Hi-Watt 425 80 W/6500 K E40

GTIN: 4058075683310 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Energy savings of up to 85 % (compared to traditional incandescent lamps)
  • Wide beam angle: 200°
  • Instant 100 % light, no warm-up time
  • No UV and near-IR radiation in the light beam
Areas of application
  • Especially suitable for the food sector
  • Warehouses
  • Supermarkets and department stores
  • Suitable for indoor applications.
Product features
  • Lifetime: up to 12,000 h
  • Good color rendering index Ra: ≥ 80
  • Overtemperature protection
  • Surge protection: up to 2,000 V
  • Luminous efficacy: up to 100 lm/W
  • Mercury-free lamps
  • Minimum start voltage at 180 VAC
Electrical data
Nominal wattage 80 W
Construction wattage 80.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 425 W
Nominal current 640 mA
Type of current AC
Operating frequency 50 Hz
Mains frequency 50 Hz
Power factor λ 0.50
Photometrical data
Luminous flux 8000 lm
Nominal useful luminous flux 90° 8000 lm
Luminous efficacy 100 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Daylight
Color temperature 6500 K
Color rendering index Ra ≥80
Light color 865
Standard deviation of color matching ≤6 sdcm
Light technical data
Beam angle 180 °
Starting time < 0.5 s
Dimensions & Weight
Overall length 263.00 mm
Diameter 135.00 mm
Maximum diameter 135 mm
Product weight 738.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Lifespan
Number of switching cycles 100000
Additional product data
Base (standard designation) E40
Mercury content 0.0 mg
Capabilities
Dimmable No
Certificates & Standards
Standards CB, RoHS
Country-specific categorizations
Order reference LE HW 80W/865 2
LOGISTICAL DATA
Temperature range at storage -20…+80 °C
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E40
Length 263.00 mm
Height 135.00 mm
Width 135.00 mm
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075683310 Folding box
1		 145 mm x 145 mm x 223 mm 773.00 g 4.69 dm³
4058075683327 Shipping box
4		 306 mm x 306 mm x 250 mm 3609.00 g 23.41 dm³

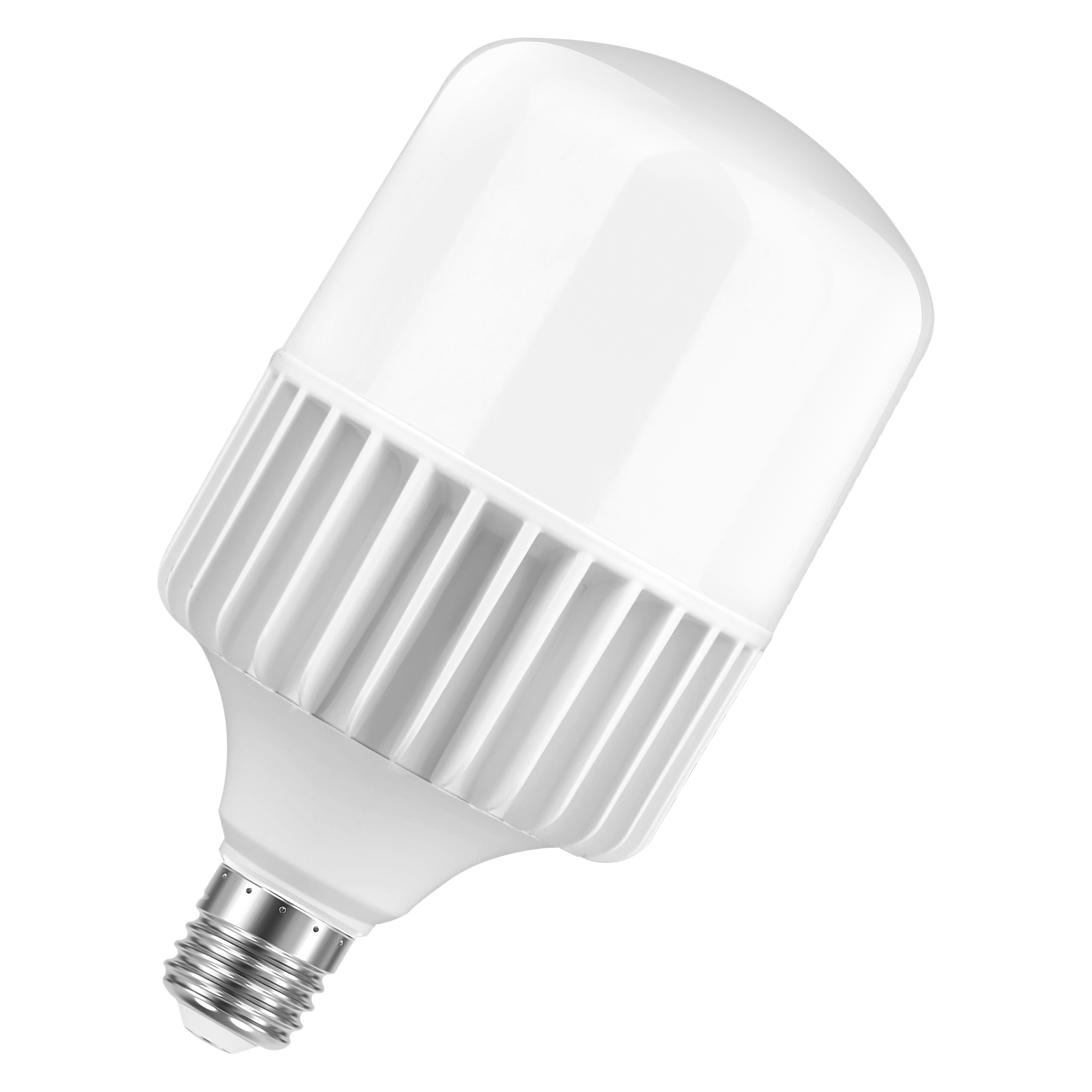

Product image: white background, diagonal
LE HW 80W E40
JPG (624.56 KB)

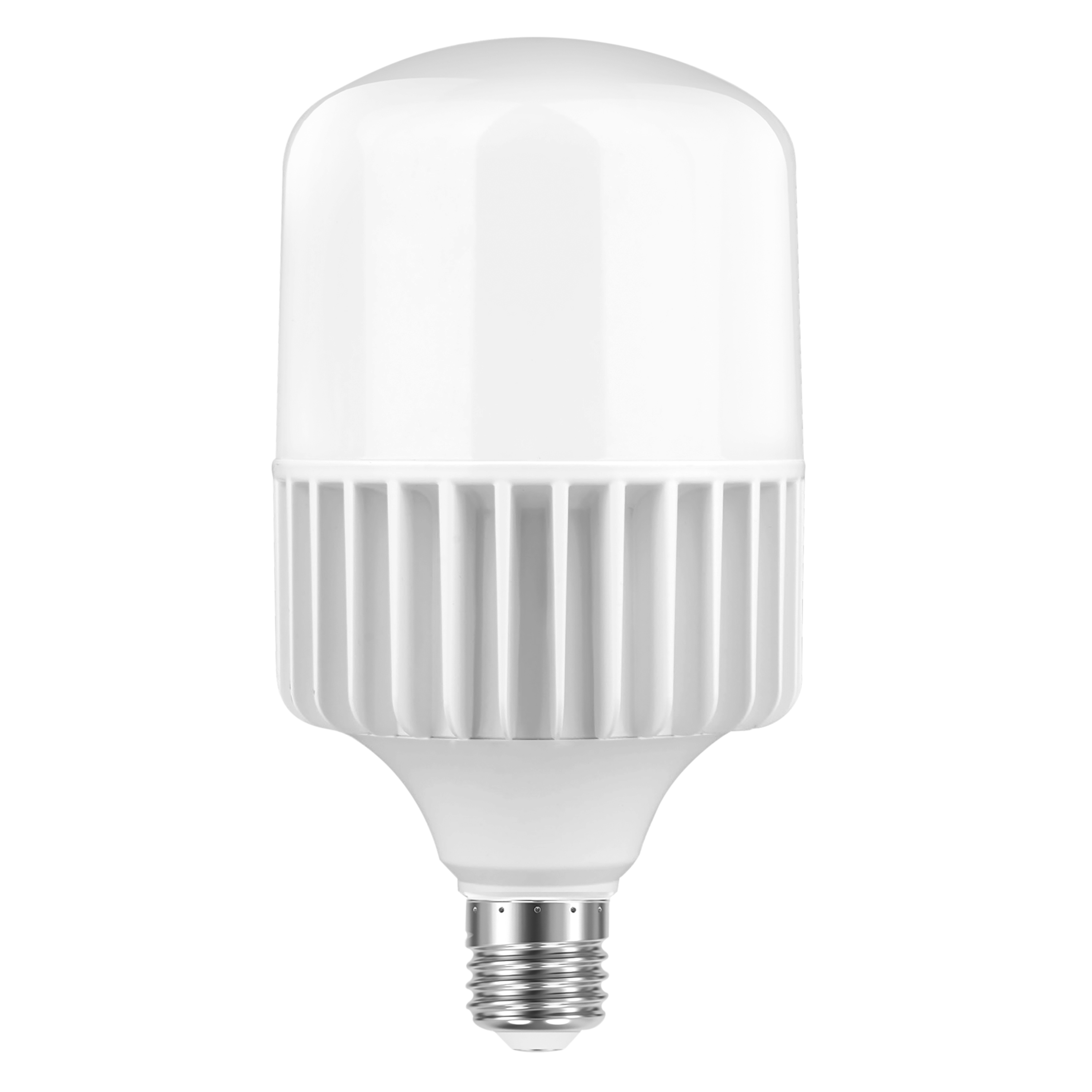

Product image: white background, upright
LE HW 80W E40
JPG (493.29 KB)
Product line drawing with numbers
LE HW 60-80W E40
SVG (9.77 KB)
