LED ECO HIGH WATT

LED ECO Hi-Watt 225 40 W/6500 K E27

GTIN: 4058075683198 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Energy savings of up to 85 % (compared to traditional incandescent lamps)
  • Wide beam angle: 200°
  • Instant 100 % light, no warm-up time
  • No UV and near-IR radiation in the light beam
Areas of application
  • Especially suitable for the food sector
  • Warehouses
  • Supermarkets and department stores
  • Suitable for indoor applications.
Product features
  • Lifetime: up to 12,000 h
  • Good color rendering index Ra: ≥ 80
  • Overtemperature protection
  • Surge protection: up to 2,000 V
  • Luminous efficacy: up to 100 lm/W
  • Mercury-free lamps
  • Minimum start voltage at 180 VAC
Electrical data
Nominal wattage 40 W
Construction wattage 40.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 225 W
Nominal current 320 mA
Type of current AC
Operating frequency 50 Hz
Mains frequency 50 Hz
Power factor λ 0.50
Photometrical data
Luminous flux 4000 lm
Nominal useful luminous flux 90° 4000 lm
Luminous efficacy 100 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Daylight
Color temperature 6500 K
Color rendering index Ra ≥80
Light color 865
Standard deviation of color matching ≤6 sdcm
Light technical data
Beam angle 180 °
Starting time < 0.5 s
Dimensions & Weight
Overall length 185.00 mm
Diameter 118.00 mm
Maximum diameter 118 mm
Product weight 140.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Lifespan
Number of switching cycles 100000
Additional product data
Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Capabilities
Dimmable No
Certificates & Standards
Standards CB, RoHS
Country-specific categorizations
Order reference LE HW 40W/865 2
LOGISTICAL DATA
Temperature range at storage -20…+80 °C
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E27
Length 185.00 mm
Height 118.00 mm
Width 118.00 mm
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075683198 Folding box
1		 123 mm x 123 mm x 198 mm 214.00 g 3.00 dm³
4058075683204 Shipping box
10		 631 mm x 262 mm x 225 mm 2801.00 g 37.20 dm³

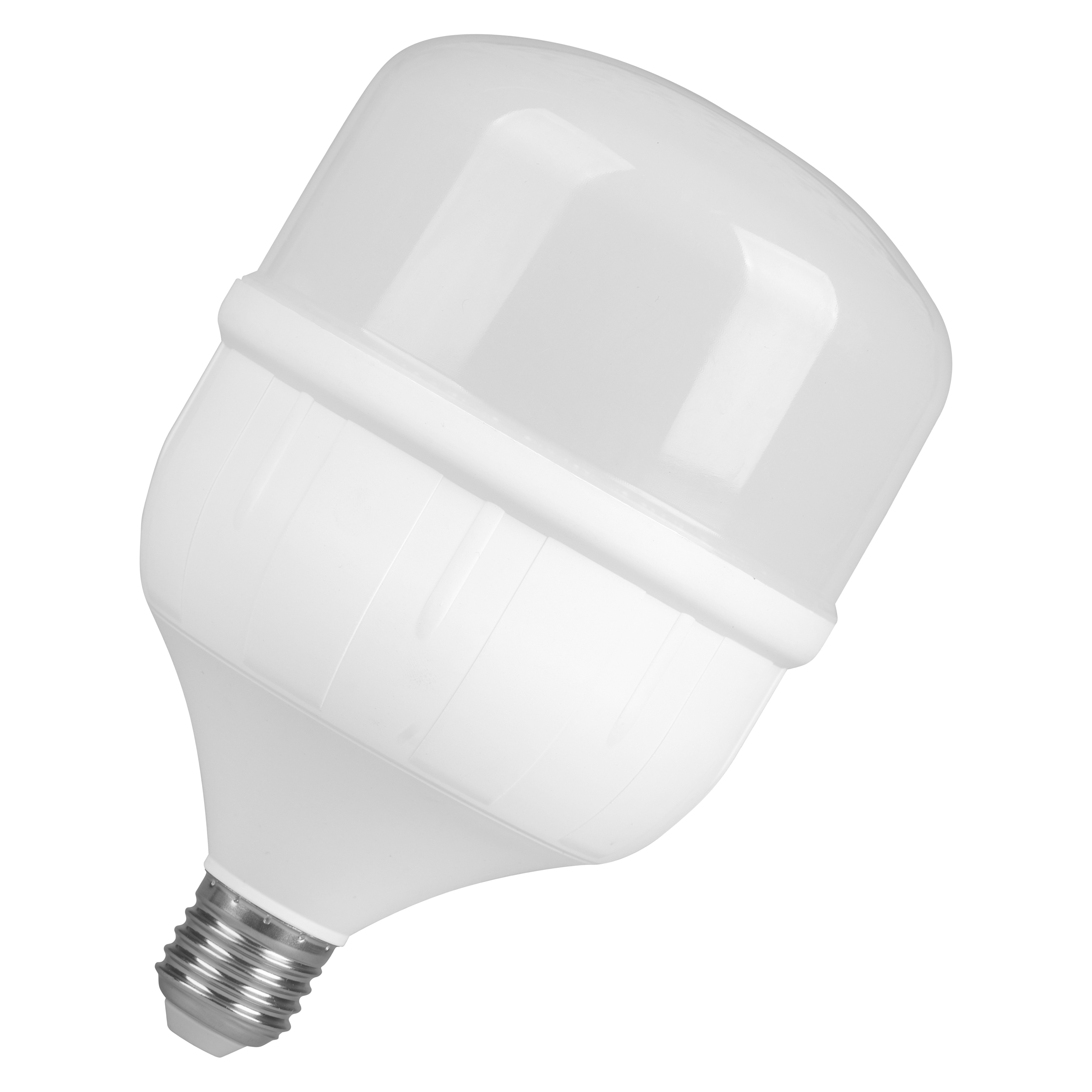

Product image: white background, diagonal
LE HW 40W E27
JPG (1.56 MB)

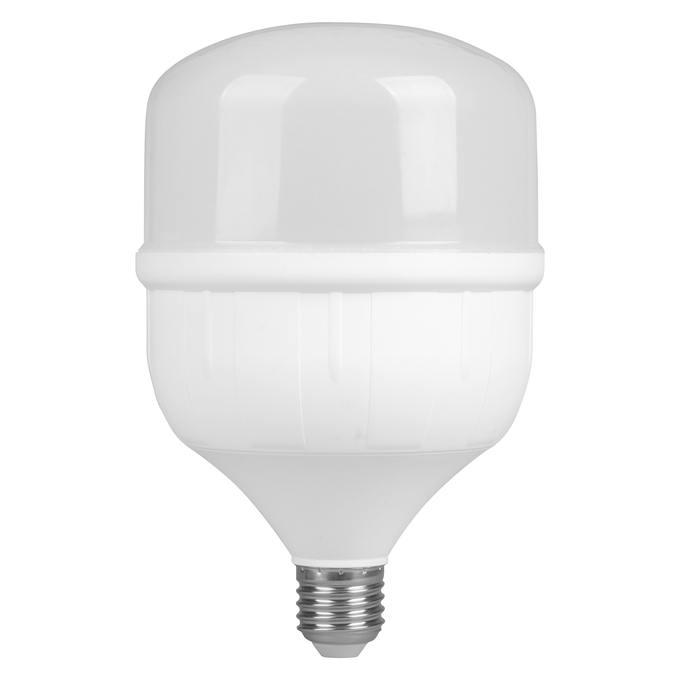

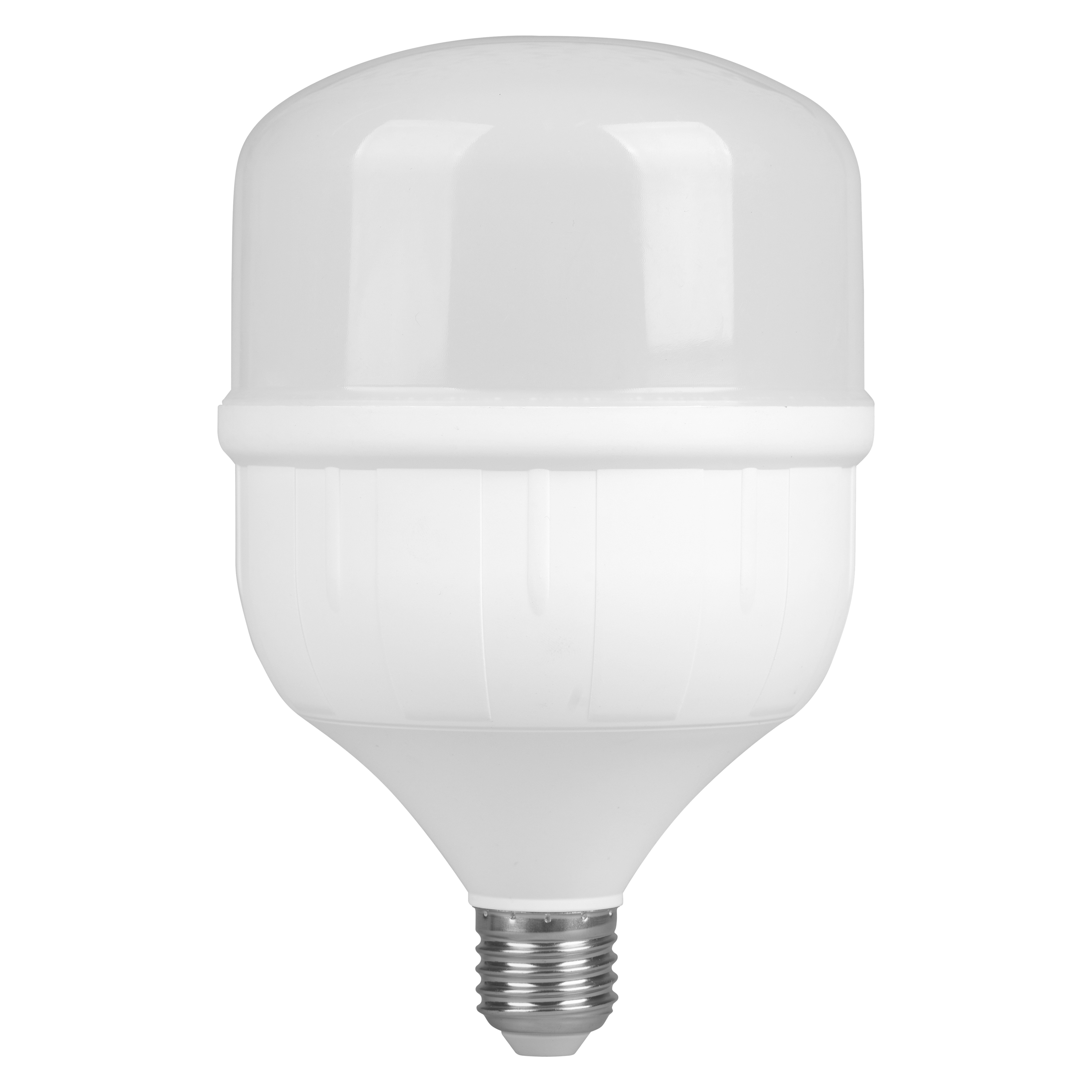

Product image: white background, upright
