LED ECO HIGH WATT

LED ECO Hi-Watt 125 20 W/6500 K B22

GTIN: 4058075683099 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Energy savings of up to 85 % (compared to traditional incandescent lamps)
  • Wide beam angle: 200°
  • Instant 100 % light, no warm-up time
  • No UV and near-IR radiation in the light beam
Areas of application
  • Especially suitable for the food sector
  • Warehouses
  • Supermarkets and department stores
  • Suitable for indoor applications.
Product features
  • Lifetime: up to 12,000 h
  • Good color rendering index Ra: ≥ 80
  • Overtemperature protection
  • Surge protection: up to 2,000 V
  • Luminous efficacy: up to 100 lm/W
  • Mercury-free lamps
  • Minimum start voltage at 180 VAC
Electrical data
Nominal wattage 20 W
Construction wattage 20.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 125 W
Nominal current 160 mA
Type of current AC
Operating frequency 50 Hz
Mains frequency 50 Hz
Power factor λ 0.50
Photometrical data
Luminous flux 2000 lm
Nominal useful luminous flux 90° 2000 lm
Luminous efficacy 100 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Daylight
Color temperature 6500 K
Color rendering index Ra ≥80
Light color 865
Standard deviation of color matching ≤6 sdcm
Light technical data
Beam angle 180 °
Starting time < 0.5 s
Dimensions & Weight
Overall length 135.00 mm
Diameter 80.00 mm
Maximum diameter 80 mm
Product weight 65.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Lifespan
Number of switching cycles 100000
Additional product data
Base (standard designation) B22
Mercury content 0.0 mg
Capabilities
Dimmable No
Certificates & Standards
Standards CB, RoHS
Country-specific categorizations
Order reference LE HW 20W/865 2
LOGISTICAL DATA
Temperature range at storage -20…+80 °C
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) B22
Length 135.00 mm
Height 80.00 mm
Width 80.00 mm
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075683099 Folding box
1		 81 mm x 81 mm x 148 mm 100.00 g 0.97 dm³
4058075683105 Shipping box
10		 421 mm x 178 mm x 175 mm 1329.00 g 13.11 dm³

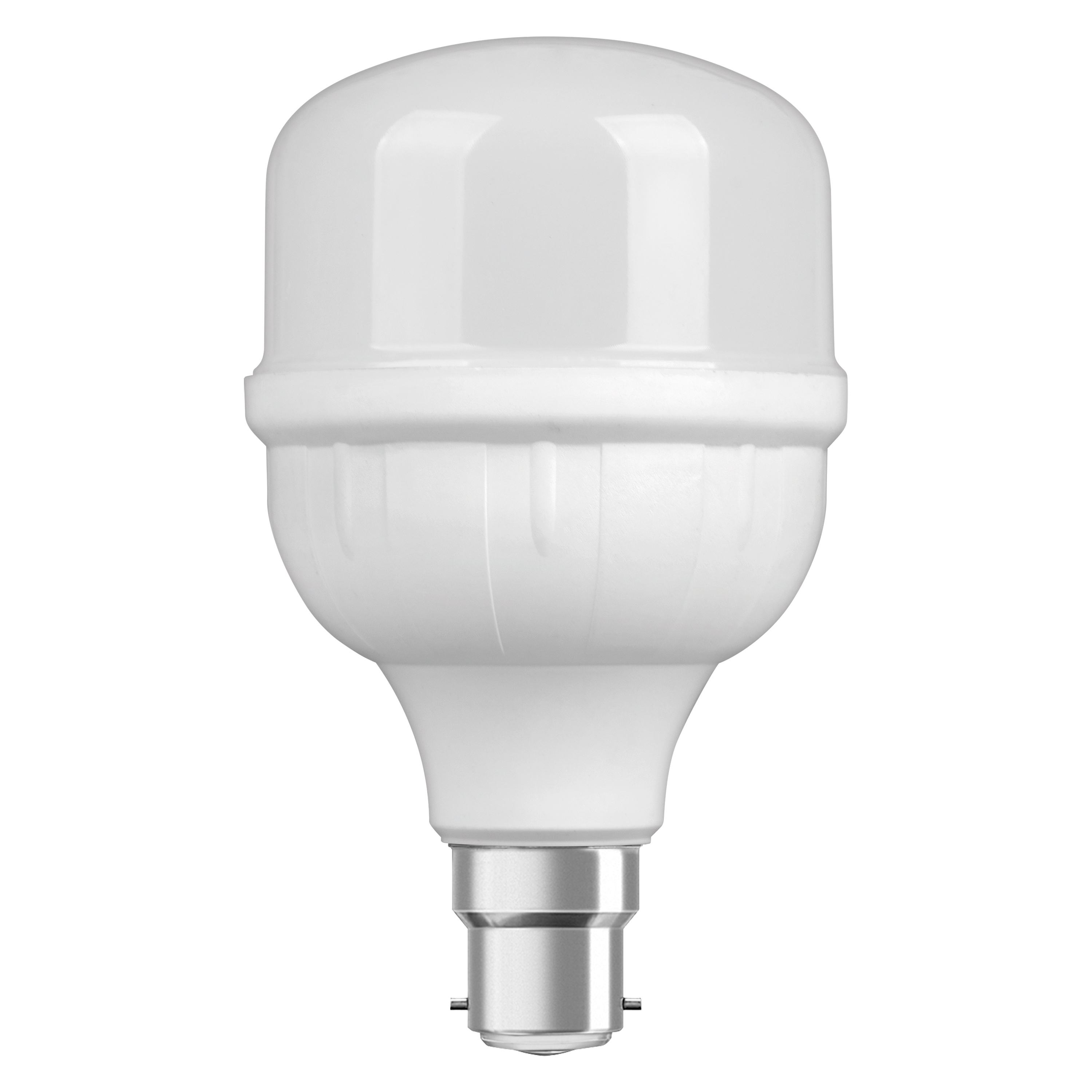

Product image: white background, diagonal
LE HW 20W B22
JPG (2.1 MB)
Product image: white background, upright
LE HW 20W B22
JPG (1.07 MB)
Product line drawing with numbers
LE HW 20W B22
SVG (8.7 KB)
