LED VALUE HIGH WATTAGE

LED VALUE HW 100 45 W/6500 K E40

GTIN: 4099854174186 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Energy savings of up to 50 % compared to conventional compact fluorescent lamps
  • Accessory cover works as a reflector and increase the illuminance up to 100 %
  • Wide beam angle: 200°
  • Long lifetime of up to 20,000 h
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
Areas of application
  • Suitable for indoor applications.
  • Warehouses
  • Workshops
  • Stadiums
  • Car parks
Product features
  • Luminous efficacy: up to 100 lm/W
  • Color rendering index Ra: ≥ 80
  • Power factor: 0.9
  • Mercury-free lamps
Electrical data
Nominal wattage 45 W
Construction wattage 45.00 W
Nominal voltage 100…240 V
Claimed equiv. conventional lamp power 100 W
Nominal current 550 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ 0.90
Photometrical data
Luminous flux 5175 lm
Luminous efficacy 115 lm/W
Light color (designation) Daylight
Color temperature 6500 K
Color rendering index Ra 80
Light color 865
Standard deviation of color matching ≤6 sdcm
Light technical data
Beam angle 180 °
Starting time < 0.5 s
Dimensions & Weight
Overall length 220.00 mm
Diameter 138.00 mm
Maximum diameter 138 mm
Product weight 258.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 82 °C
Lifespan
Number of switching cycles 100000
Additional product data
Base (standard designation) E40
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Capabilities
Dimmable No
Certificates & Standards
Type of protection IP20
Standards CB, EMC, ROHS
Photobiological safety group acc. to EN62778 RG0
Country-specific categorizations
Order reference LV HW 45W/865 1
LOGISTICAL DATA
Temperature range at storage -20…+80 °C
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E40
Length 220.00 mm
Height 138.00 mm
Width 138.00 mm
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854174186 Folding box
1		 140 mm x 140 mm x 226 mm 346.00 g 4.43 dm³
4099854174193 Shipping box
10		 721 mm x 301 mm x 258 mm 4161.00 g 55.99 dm³

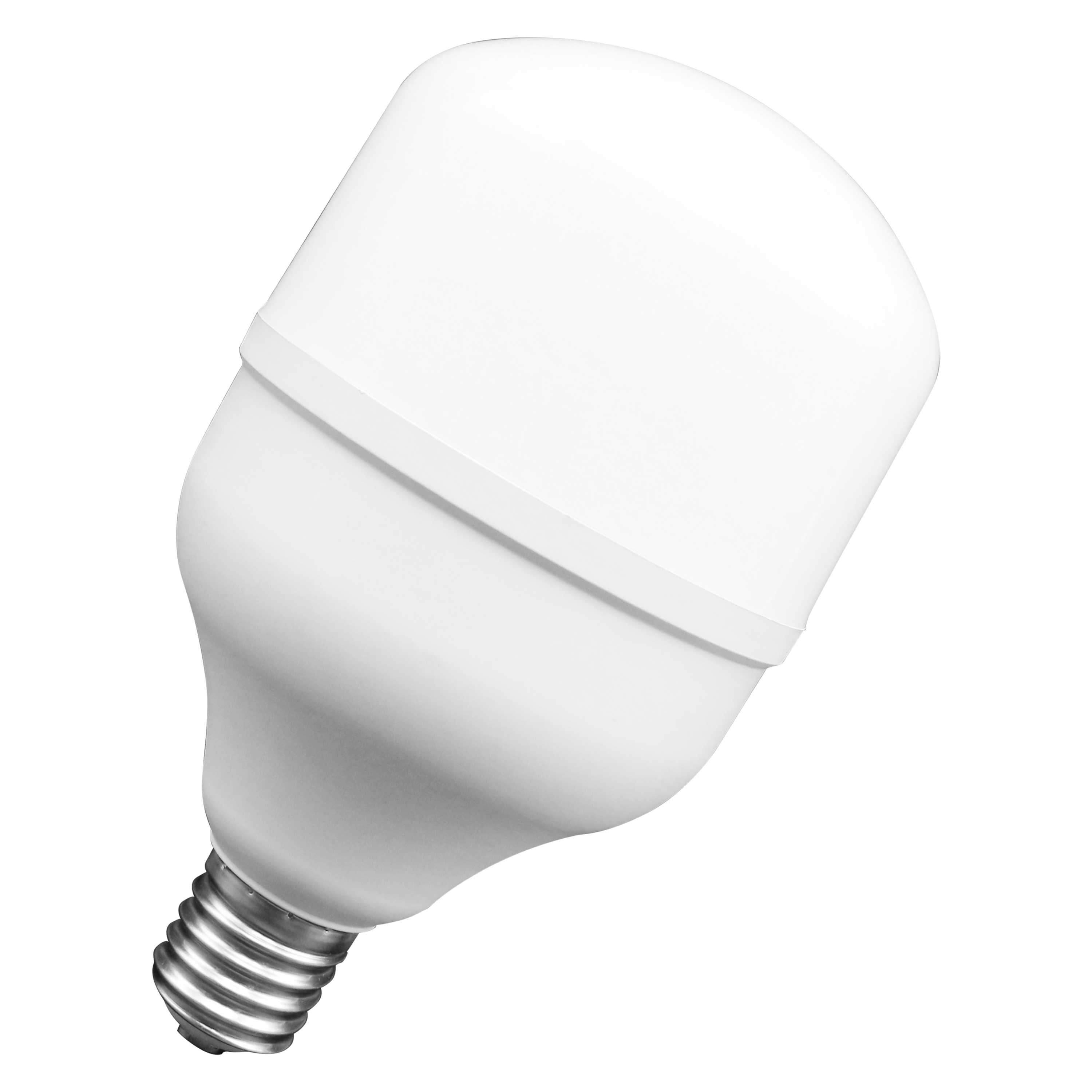

Product image: white background, diagonal
LV HW 45W E40
JPG (1.19 MB)

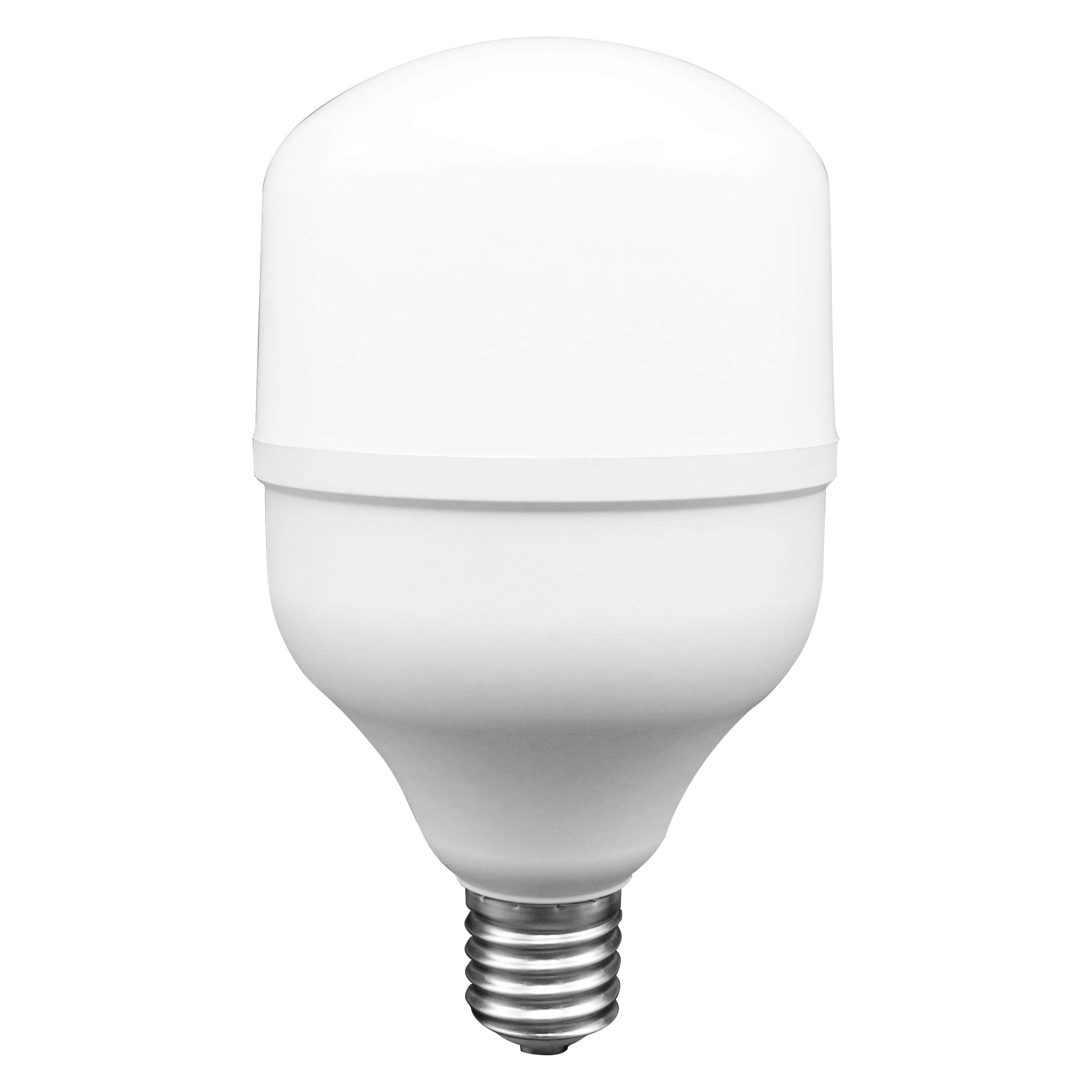

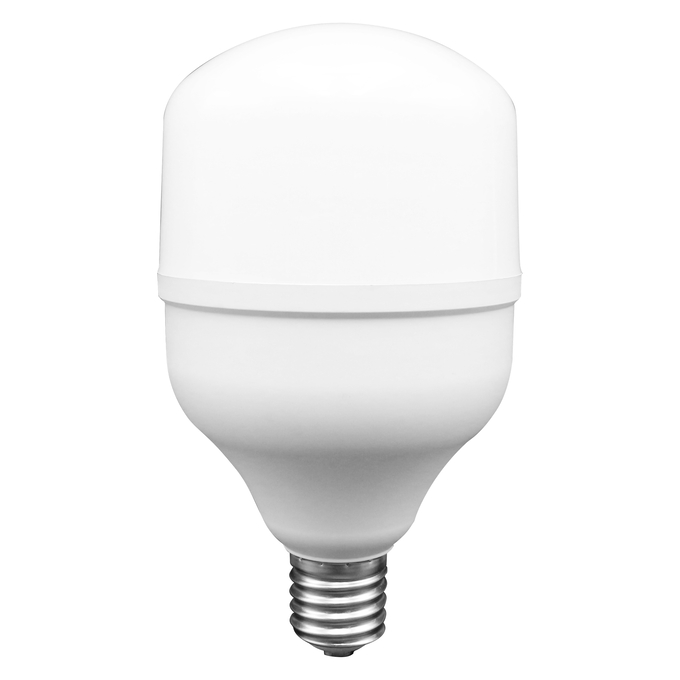

Product image: white background, upright
