LED VALUE STICK TruWave
LED VALUE STICK 5 W/4000 K E14
GTIN: 4099854036378
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- LED lamps with innovative TruWave Technology™
- Support sleep/wake cycle thanks mimic of the natural light spectrum
- The balanced blue light spectrum can support attention, reaction time and mood
- Low energy consumption
- Attractive lamp appearance
Areas of application
- All domestic rooms, especially where the lamps are visible
- Wherever compact and efficient lamps are needed
- Where the lamps need to last a long time or have to withstand frequent on/off switching
Product features
- LED alternative to conventional lamps
- Input voltage: 220…240 VAC
- Color rendering index Ra: ≥ 80
- Lifetime up to 15,000 h
- Mercury-free lamps
Electrical data
| Nominal wattage | 5 W |
| Construction wattage | 5.00 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 8 W |
| Nominal current | 37 mA |
| Type of current | AC |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
| Max. lamp number on MCB B10 A | 270 |
| Max. lamp number on MCB B16 A | 432 |
| Power factor λ | 0.50 |
Photometrical data
| Luminous flux | 400 lm |
| Nominal useful luminous flux 90° | 400 lm |
| Luminous efficacy | 80 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Cool White |
| Color temperature | 4000 K |
| Color rendering index Ra | 80 |
| Light color | 840 |
| Standard deviation of color matching | ≤6 sdcm |
| Rated LLMF at 6,000 h | 0.80 |
Light technical data
| Beam angle | 200 ° |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 85.00 mm |
| Diameter | 30.00 mm |
| Maximum diameter | 30 mm |
| Product weight | 17.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+35 °C |
Lifespan
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.70 |
Additional product data
| Base (standard designation) | E14 |
| Mercury content | 0.0 mg |
Capabilities
| Dimmable | No |
Certificates & Standards
| Type of protection | IP20 |
| Standards | LVD |
| Photobiological safety group acc. to EN62778 | RG0 |
Country-specific categorizations
| Order reference | LVSTICK 5W/840 |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | E14 |
| Length | 85.00 mm |
| Height | 30.00 mm |
| Width | 30.00 mm |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854036378 | Folding box 1 |
43 mm x 43 mm x 84 mm | 32.00 g | 0.16 dm³ |
| 4099854036385 | Shipping box 10 |
222 mm x 93 mm x 98 mm | 380.00 g | 2.02 dm³ |

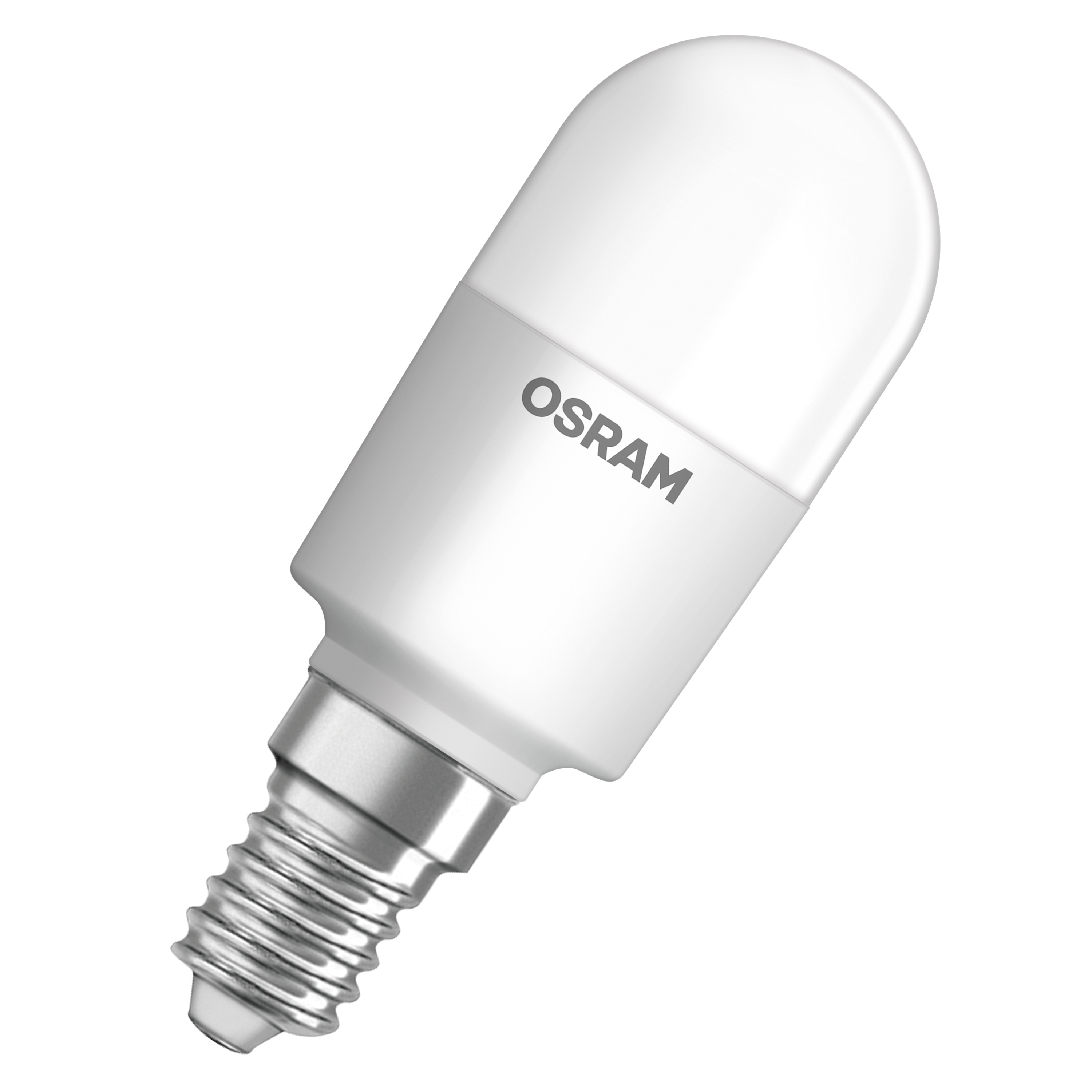

Product image: white background, diagonal with OSRAM logo
LED VALUE STICK 5W 230V E14
LED VALUE STICK 5W 230V E14

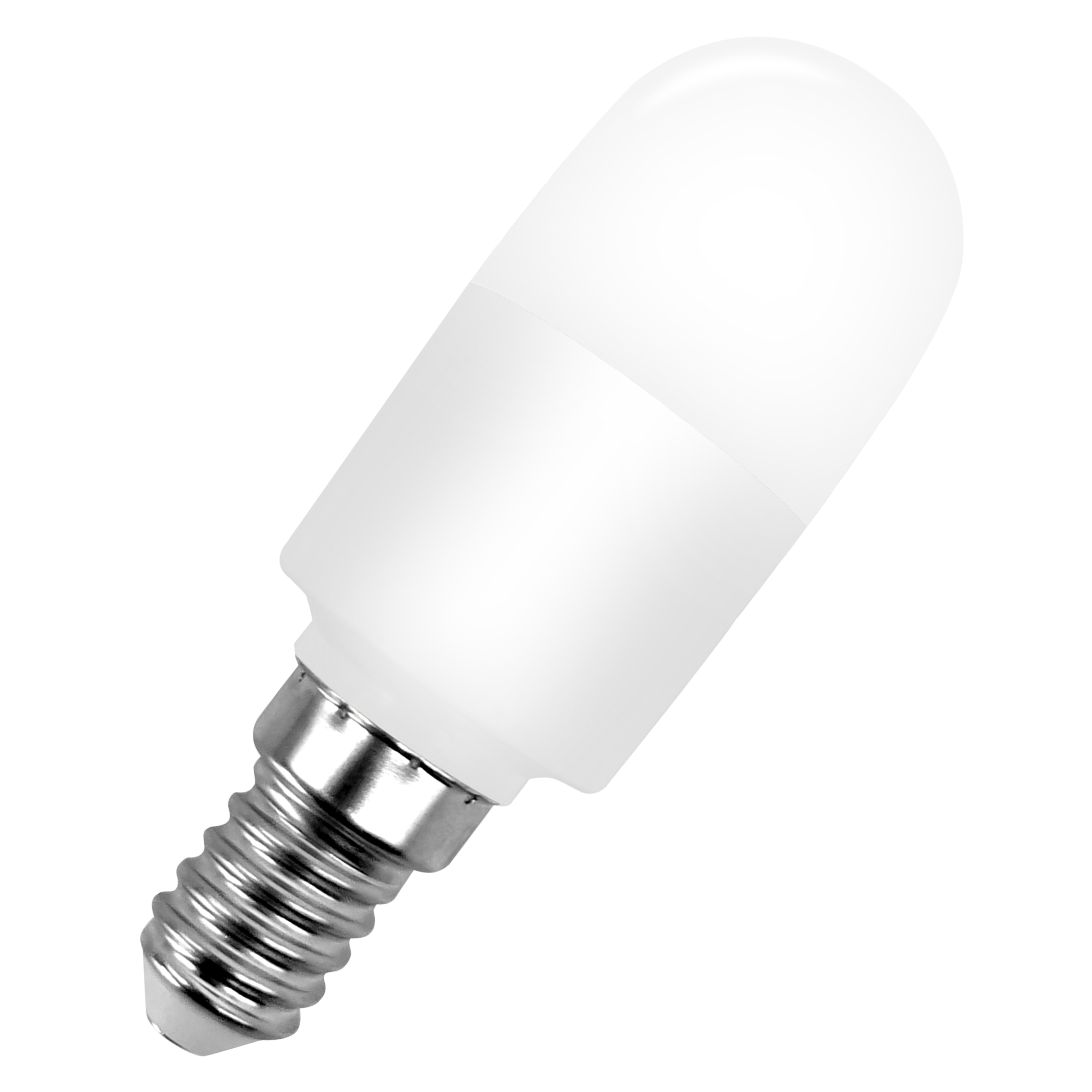

Product image: white background, diagonal
LVSTICK 5W 230V E14
LVSTICK 5W 230V E14

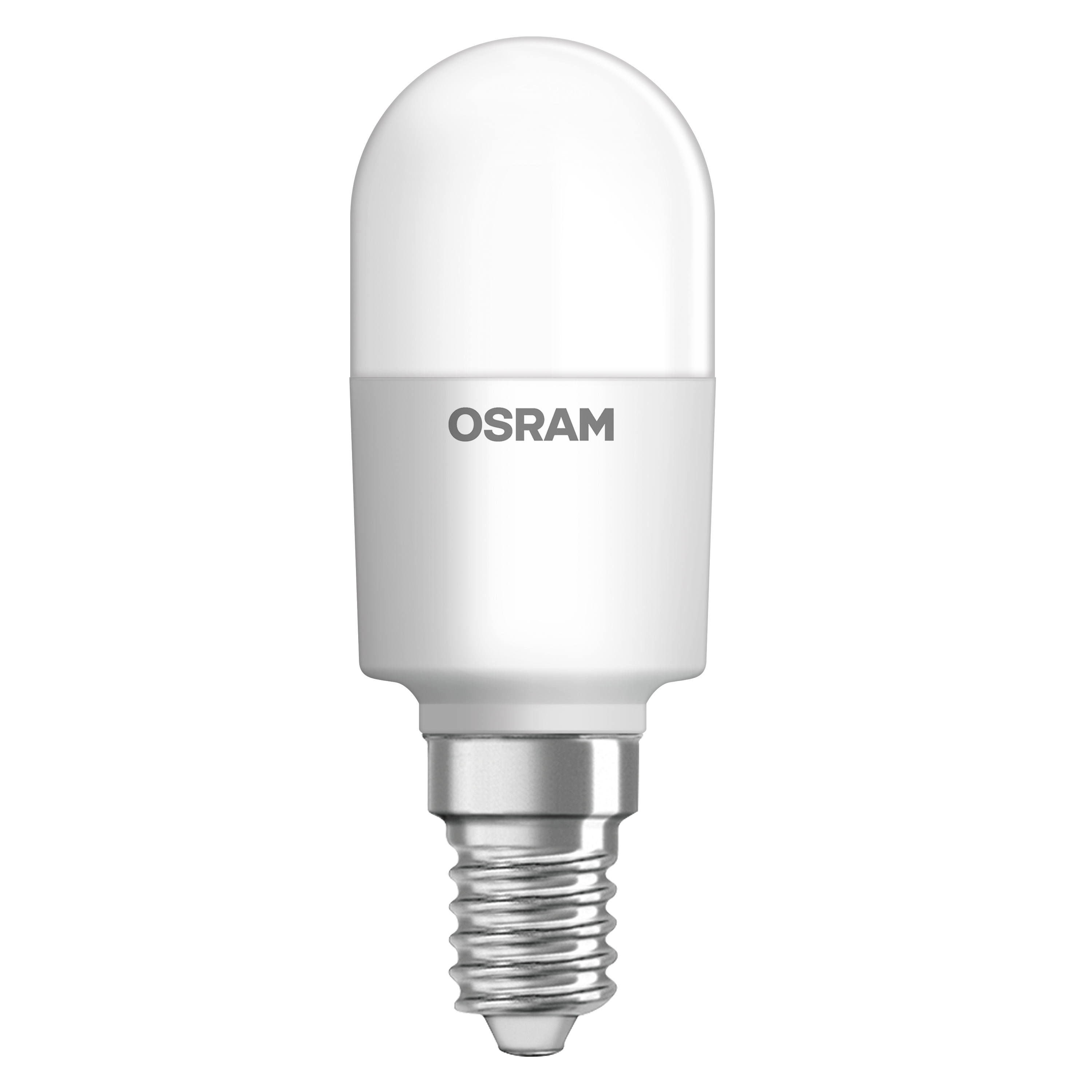

Product image: white background, upright, OSRAM logo
LED VALUE STICK 5W 230V E14
LED VALUE STICK 5W 230V E14

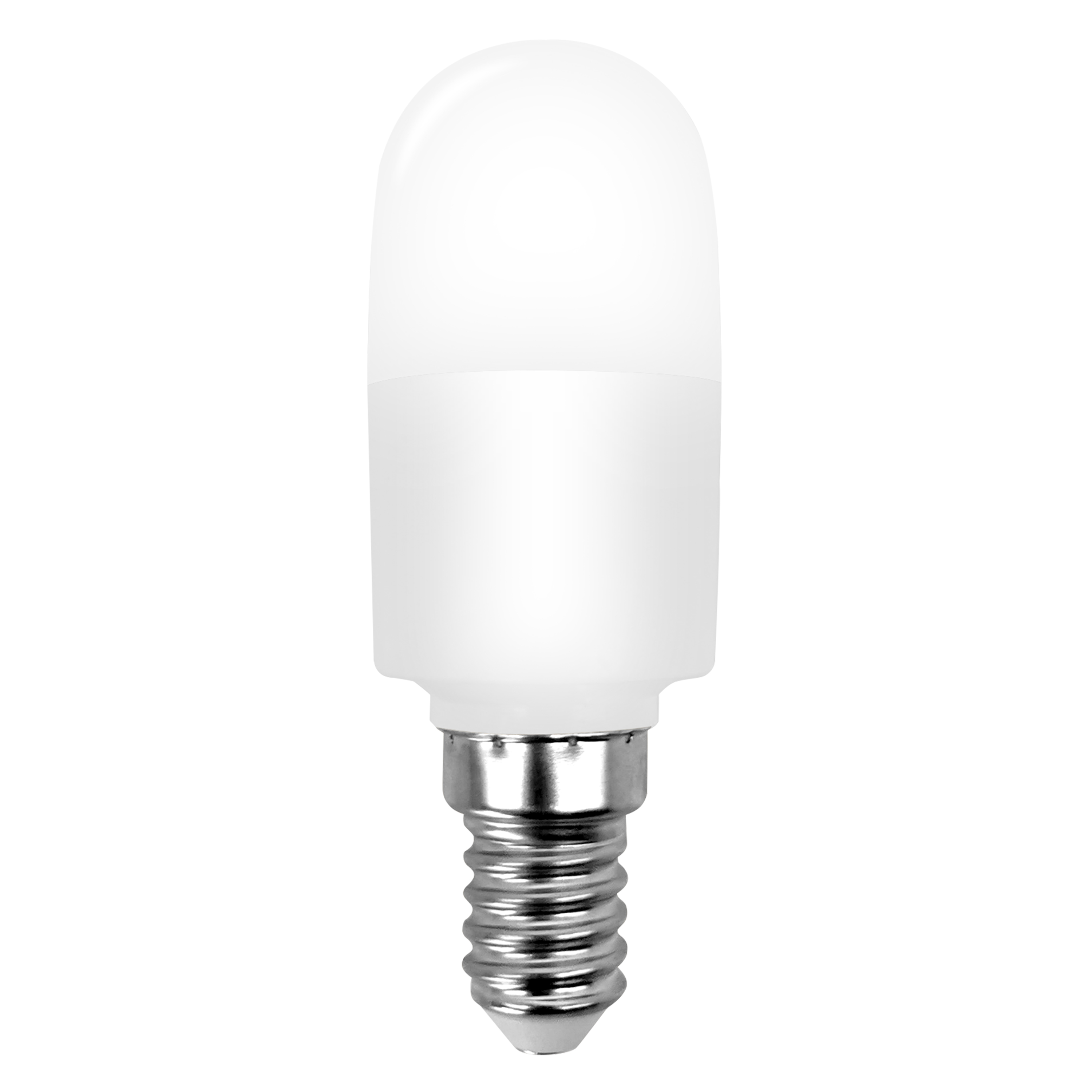

Product image: white background, upright
LED VALUE STICK 5W 230V E14
LED VALUE STICK 5W 230V E14
Product line drawing with numbers
LED VALUE STICK 5W 230V E14
LED VALUE STICK 5W 230V E14
