LED PERFORMANCE STICK

LED PERFORMANCE STICK 9 W/4000 K B22d

GTIN: 4058075636163 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Creation of the preferred light ambience thanks to dimming
  • Wide beam angle: 200°
  • Instant 100 % light, no warm-up time
  • Stylish and modern design
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
Areas of application
  • Suitable for indoor applications.
  • Replacement for conventional compact fluorescent lamps with wattage 11 W, 15 W and 24 W
Product features
  • Dimmable (with many common dimmers, see also www.ledvance.com/dim)
  • Long lifetime up to 25,000 h
  • Mercury-free lamps
  • Input voltage: 220…240 VAC
  • Storage temperature from -20 °C to up to +80 °C, up to 95 % relative humidity
  • Operating temperature from -20 °C to up to +35 °C, up to 95 % relative humidity
Electrical data
Nominal wattage 9 W
Construction wattage 9.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 60 W
Nominal current 58 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ 0.70
Photometrical data
Luminous flux 800 lm
Luminous efficacy 88 lm/W
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra ≥80
Light color 840
Standard deviation of color matching ≤6 sdcm
Light technical data
Beam angle 200 °
Starting time 0.5 s
Dimensions & Weight
Overall length 116.00 mm
Diameter 41.00 mm
Maximum diameter 41 mm
Product weight 28.00 g
Temperatures & operating conditions
Ambient temperature range -20…+30 °C
Lifespan
Number of switching cycles 100000
Additional product data
Base (standard designation) B22d
Mercury content 0.0 mg
Capabilities
Dimmable Yes
Certificates & Standards
Energy efficiency class F
Country-specific categorizations
Order reference LP STICK DIM 9W
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) B22d
Length 116.00 mm
Height 41.00 mm
Width 41.00 mm
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075636163 Folding box
1		 42 mm x 42 mm x 117 mm 42.00 g 0.21 dm³
4058075636170 Shipping box
10		 218 mm x 92 mm x 132 mm 491.00 g 2.65 dm³
4099854275715 Shipping box
10		 218 mm x 93 mm x 134 mm 480.00 g 2.72 dm³
Product image: white background, diagonal
LED STICK FR B22d
TIF (37.33 MB)
Product image: white background, upright
LED STICK FR B22d
TIF (8.39 MB)
Product line drawing, front, no dimensions
LSTICK T FR B22d
SVG (4.09 KB)

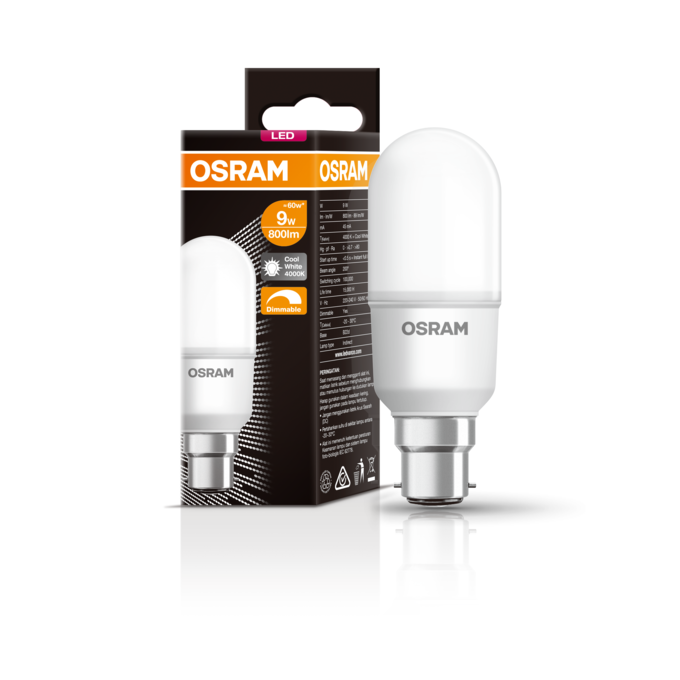

Combo Shot = Product Beauty Shot + Packaging Image
