LED ECO STICK
LED ECO STICK 7 W/4000 K B22d
GTIN: 4058075667174
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Low energy consumption
- Attractive lamp appearance
Areas of application
- All domestic rooms, especially where the lamps are visible
- Wherever compact and efficient lamps are needed
- Where the lamps need to last a long time or have to withstand frequent on/off switching
Product features
- LED alternative to conventional lamps
- Mercury-free lamps
- Lifetime: up to 8,000 h
Electrical data
| Nominal wattage | 7 W |
| Construction wattage | 7.00 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 13 W |
| Nominal current | 56 mA |
| Type of current | AC |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
| Power factor λ | > 0.50 |
Photometrical data
| Luminous flux | 600 lm |
| Nominal useful luminous flux 90° | 600 lm |
| Luminous efficacy | 85 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Cool White |
| Color temperature | 4000 K |
| Color rendering index Ra | ≥80 |
| Light color | 840 |
| Standard deviation of color matching | ≤6 sdcm |
Light technical data
| Beam angle | 200 ° |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 115.00 mm |
| Diameter | 36.00 mm |
| Maximum diameter | 36 mm |
| Product weight | 25.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+30 °C |
Lifespan
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.70 |
Additional product data
| Base (standard designation) | B22d |
| Mercury content | 0.0 mg |
Capabilities
| Dimmable | No |
Certificates & Standards
| Standards | CB, RoHS |
Country-specific categorizations
| Order reference | LECO STICK 7W/8 |
LOGISTICAL DATA
| Temperature range at storage | -20…+80 °C |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | B22d |
| Length | 115.00 mm |
| Height | 36.00 mm |
| Width | 36.00 mm |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075667174 | Folding box 1 |
42 mm x 42 mm x 117 mm | 38.00 g | 0.21 dm³ |
| 4058075667181 | Shipping box 10 |
218 mm x 92 mm x 132 mm | 450.00 g | 2.65 dm³ |
Product image: white background, diagonal with OSRAM logo
LED ECO STICK 7W-9W B22d
LED ECO STICK 7W-9W B22d
Product image: white background, upright, OSRAM logo
LED ECO STICK 7W-9W B22d
LED ECO STICK 7W-9W B22d
Product line drawing, front, no dimensions
LSTICK T FR B22d
LSTICK T FR B22d

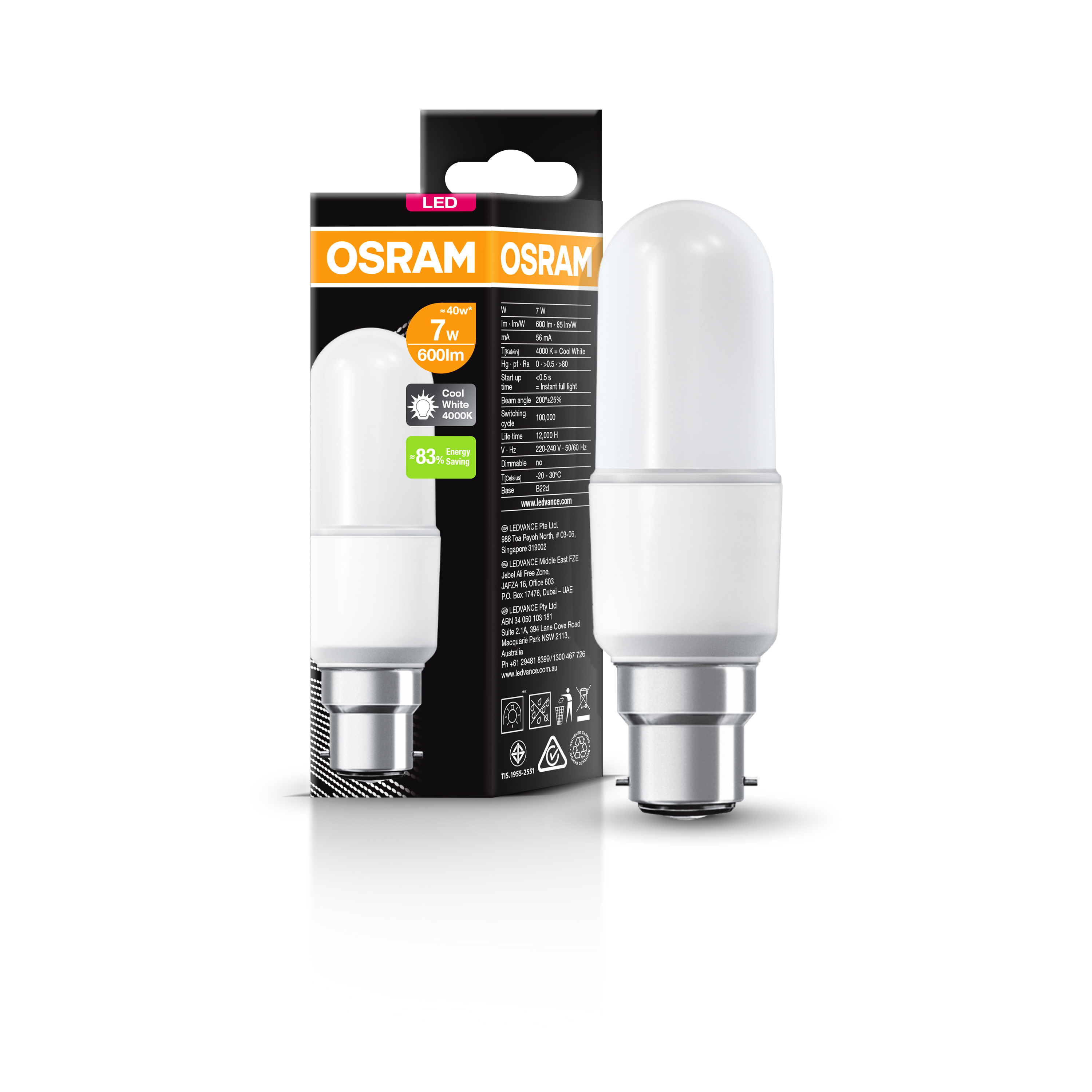

Combo Shot = Product Beauty Shot + Packaging Image
