LED VALUE CLASSIC P

LED VALUE CLAS P 25 3.3 W/6500 K E27

GTIN: 4058075039360 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Energy savings of up to 85 % (compared to traditional incandescent lamps)
  • Instant 100 % light, no warm-up time
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
Areas of application
  • Domestic applications
  • General illumination
  • Outdoor applications only in suitable luminaires
Product features
  • Color rendering index Ra: ≥ 80
  • Not dimmable
  • Mercury-free lamps
Electrical data
Nominal wattage 3.3 W
Construction wattage 3.30 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 25 W
Nominal current 28 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Photometrical data
Luminous flux 250 lm
Nominal useful luminous flux 90° 250 lm
Luminous efficacy 75 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Daylight
Color temperature 6500 K
Color rendering index Ra 80
Light color 865
Standard deviation of color matching ≤6 sdcm
Light technical data
Beam angle 200 °
Dimensions & Weight
Overall length 82.00 mm
Diameter 45.00 mm
Maximum diameter 45 mm
Product weight 10.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Lifespan
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Additional product data
Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Certificates & Standards
Energy efficiency class A+ 1)
Energy consumption 3.30 kWh/1000h
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
Order reference LVCLP253,3W/865
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E27
Length 82.00 mm
Height 45.00 mm
Width 45.00 mm
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075039360 Folding box
1		 45 mm x 45 mm x 75 mm 29.00 g 0.15 dm³
4058075351073 Shipping box
10		 233 mm x 98 mm x 96 mm 321.00 g 2.19 dm³
Product image: white background, diagonal with OSRAM logo
LV CLAP 40 FR E27
TIF (21.75 MB)
Product image: white background, upright, OSRAM logo
LV CLAP 40 FR E27
TIF (3.66 MB)
Product line drawing, front, no dimensions
LS CLP40 5.5W FR E27
SVG (3.14 KB)

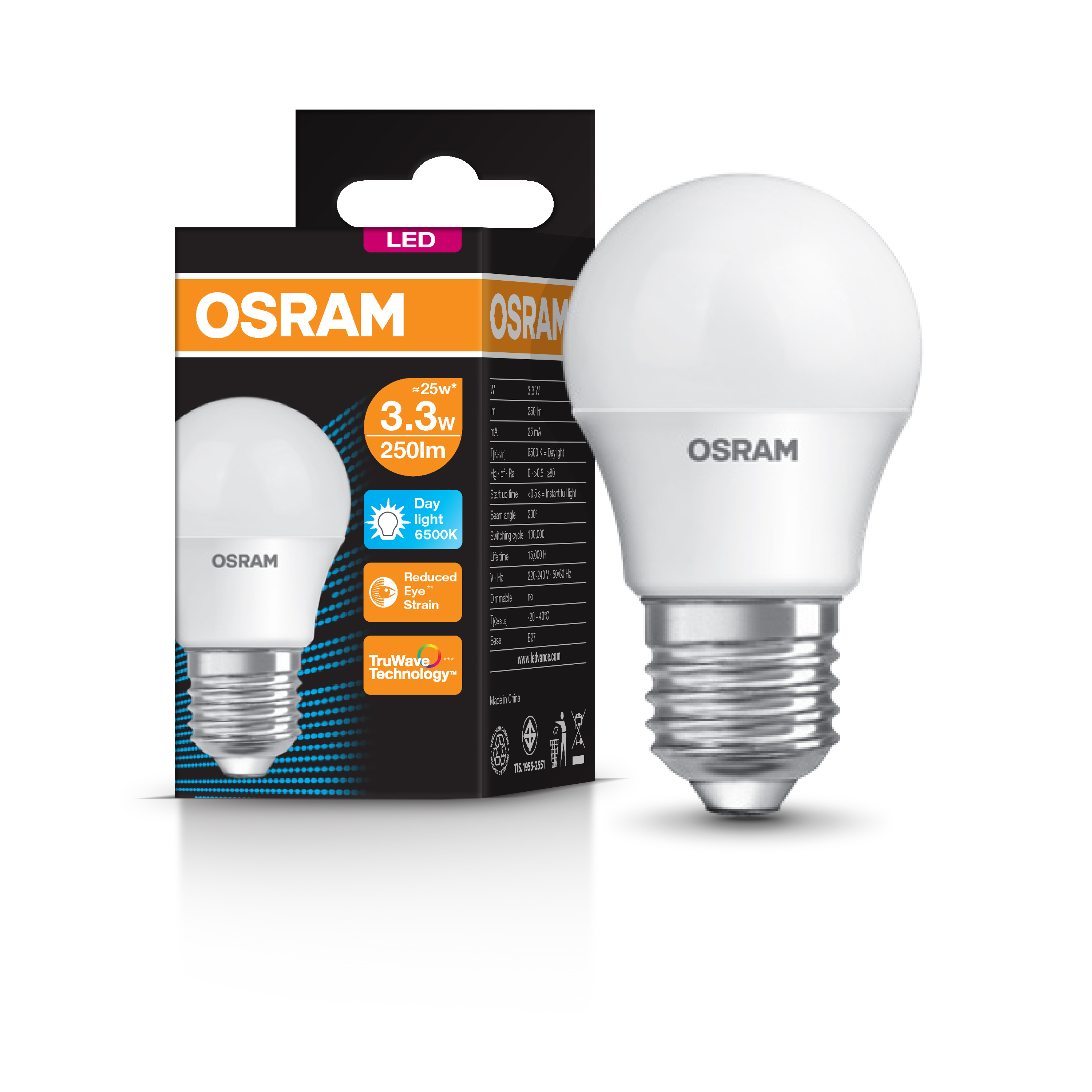

Combo Shot = Product Beauty Shot + Packaging Image
LED VALUE CLP25 3.3W/865 FR E27
JPG (1.74 MB)
