LED VALUE CLASSIC A
LED VALUE CLAS A 8.5 W/2700 K E27 GEN4
GTIN: 4058075202023
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- No "Blue Light" Hazard (according to IEC62778)
- Photobiological safety according to IEC 62778, risk group RG0
- Energy savings of up to 85 % (compared to traditional incandescent lamps)
- Instant 100 % light, no warm-up time
- No UV and near-IR radiation in the light beam
- Reliable operation thanks to brand quality
Areas of application
- Domestic applications
- General illumination
- Outdoor applications only in suitable luminaires
Product features
- Color rendering index Ra: ≥ 80
- Not dimmable
- Mercury-free lamps
Electrical data
| Nominal wattage | 8.5 W |
| Construction wattage | 8.50 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 60 W |
| Nominal current | 67 mA |
| Type of current | AC |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
| Power factor λ | > 0.50 |
Photometrical data
| Luminous flux | 806 lm |
| Nominal useful luminous flux 90° | 806 lm |
| Luminous efficacy | 94 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Warm White |
| Color temperature | 2700 K |
| Color rendering index Ra | ≥80 |
| Light color | 827 |
| Standard deviation of color matching | ≤6 sdcm |
| Rated LLMF at 6,000 h | 0.80 |
Light technical data
| Beam angle | 180 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 113.00 mm |
| Diameter | 60.00 mm |
| Maximum diameter | 60 mm |
| Product weight | 28.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
Lifespan
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
| Base (standard designation) | E27 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
Capabilities
| Dimmable | No |
Certificates & Standards
| Energy efficiency class | F 1) |
| Energy consumption | 9.00 kWh/1000h |
| Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
| Order reference | LVCLA608,5W/827 |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | E27 |
| Correlated colour temperature type | SINGLE_VALUE |
| Length | 113.00 mm |
| Height | 60.00 mm |
| Width | 60.00 mm |
| EPREL ID | 1403215 |
| Model number | AC24699 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075202023 | Folding box 1 |
61 mm x 61 mm x 110 mm | 55.00 g | 0.41 dm³ |
| 4058075351448 | Shipping box 10 |
318 mm x 132 mm x 130 mm | 504.00 g | 5.46 dm³ |
Product image: white background, diagonal with OSRAM logo
LV CLAS A 40 60 FR E27
LV CLAS A 40 60 FR E27
Product image: white background, upright, OSRAM logo
LV CLAS A 40 60 FR E27
LV CLAS A 40 60 FR E27
Product line drawing, front, no dimensions
LS CLA 40 4.5W 5.5W FR E27
LS CLA 40 4.5W 5.5W FR E27

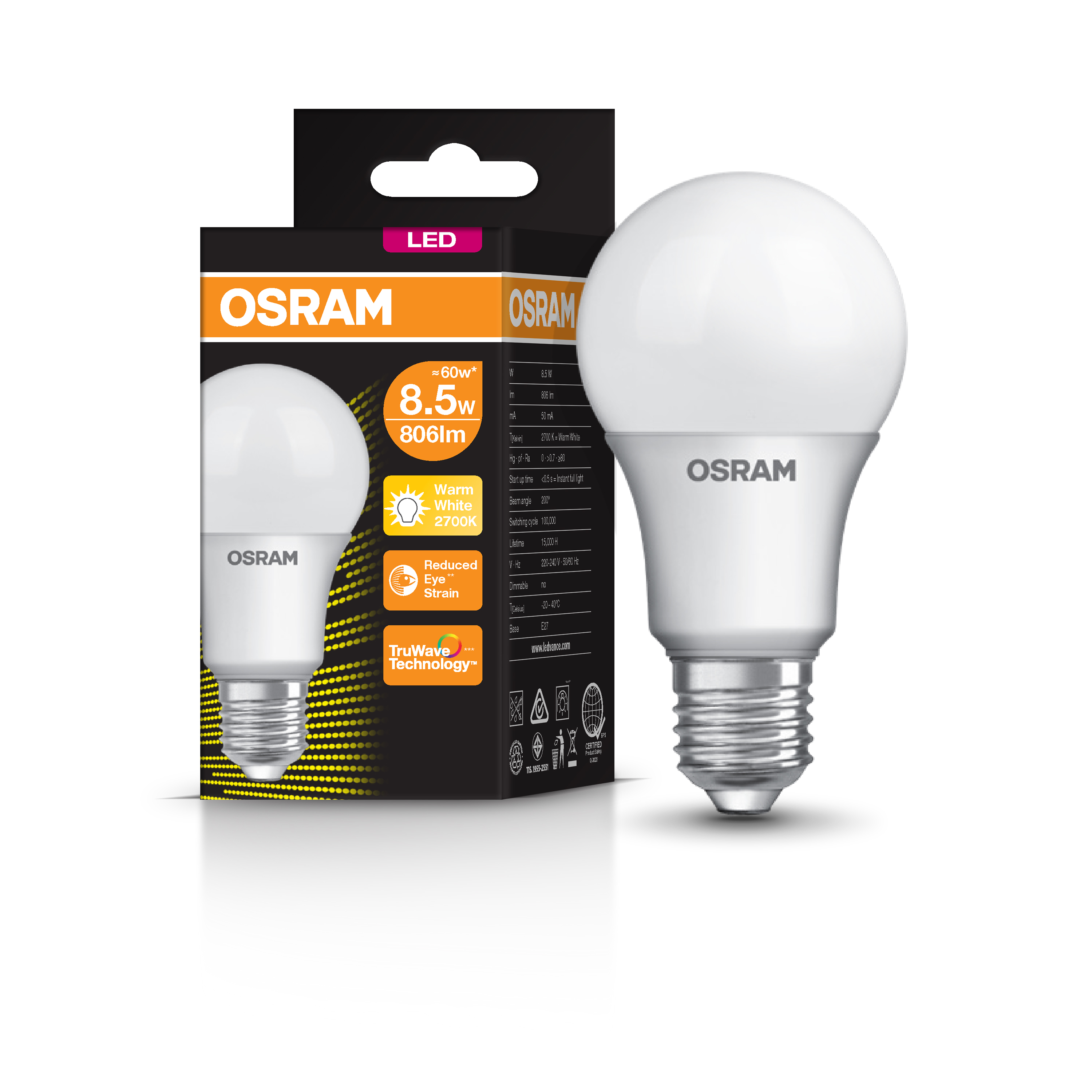

Combo Shot = Product Beauty Shot + Packaging Image
LED VALUE CLA60 8.5W/827 E27
LED VALUE CLA60 8.5W/827 E27

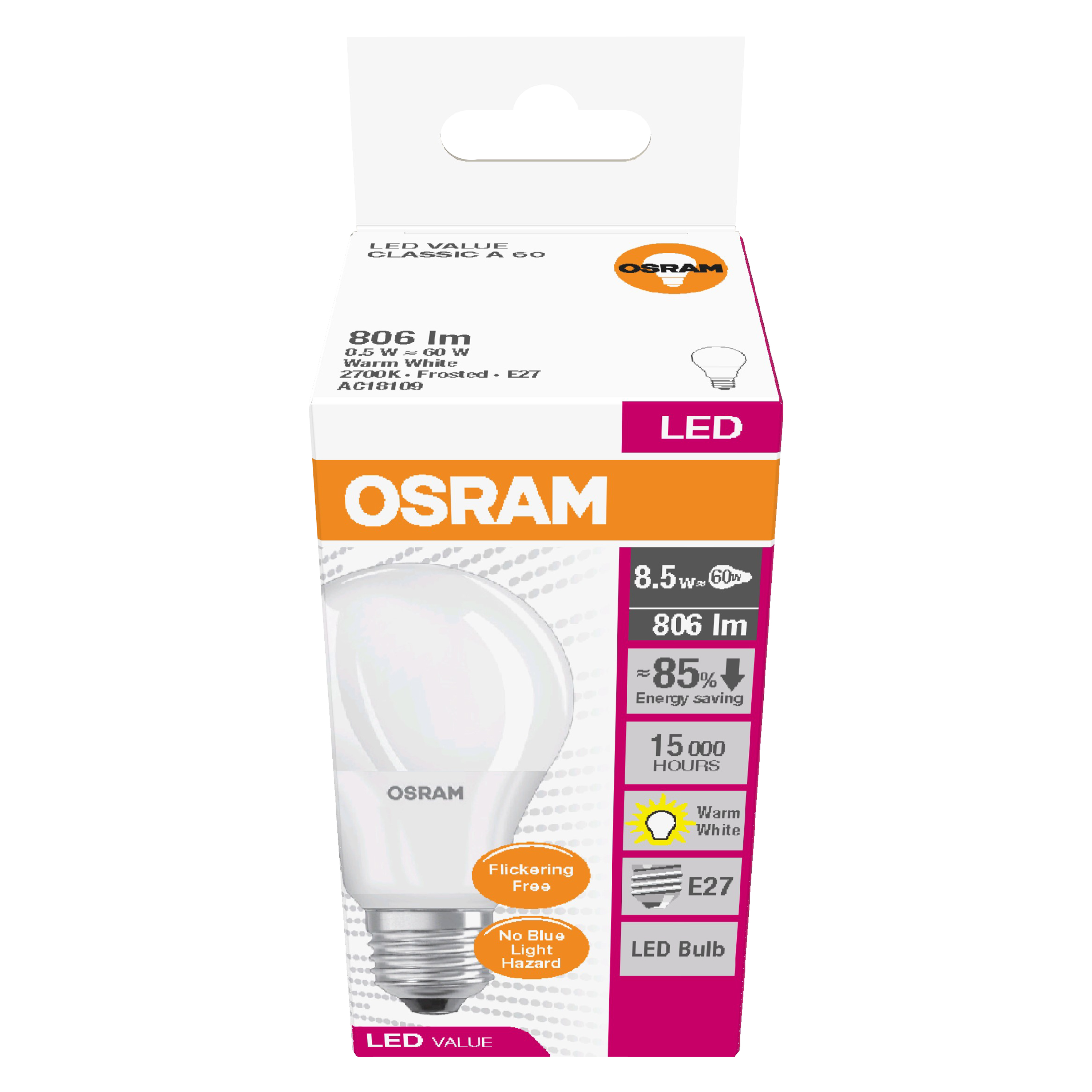

Packaging image, frontal
