LED VALUE CLASSIC A
LED VALUE CLAS A 4.9 W/2700 K B22d
GTIN: 4058075625532
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- No "Blue Light" Hazard (according to IEC62778)
- Photobiological safety according to IEC 62778, risk group RG0
- Energy savings of up to 85 % (compared to traditional incandescent lamps)
- Instant 100 % light, no warm-up time
- No UV and near-IR radiation in the light beam
- Reliable operation thanks to brand quality
Areas of application
- Domestic applications
- General illumination
- Outdoor applications only in suitable luminaires
Product features
- Color rendering index Ra: ≥ 80
- Not dimmable
- Mercury-free lamps
Electrical data
| Nominal wattage | 4.9 W |
| Construction wattage | 4.90 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 40 W |
| Nominal current | 45 mA |
| Type of current | AC |
| Operating frequency | 50…60 Hz |
| Mains frequency | 50…60 Hz |
| Power factor λ | > 0.50 |
Photometrical data
| Luminous flux | 470 lm |
| Nominal useful luminous flux 90° | 470 lm |
| Luminous efficacy | 95 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Warm White |
| Color temperature | 2700 K |
| Color rendering index Ra | ≥80 |
| Light color | 827 |
| Standard deviation of color matching | ≤6 sdcm |
Light technical data
| Beam angle | 200 ° |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 95.00 mm |
| Diameter | 55.00 mm |
| Maximum diameter | 55 mm |
| Product weight | 24.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
Lifespan
| Number of switching cycles | 100000 |
Additional product data
| Base (standard designation) | B22d |
| Mercury content | 0.0 mg |
Capabilities
| Dimmable | No |
Certificates & Standards
| Energy efficiency class | F |
| Energy consumption | 5.00 kWh/1000h |
| Photobiological safety group acc. to EN62778 | RG0 |
Country-specific categorizations
| Order reference | LVCLA40 4,9W/82 |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | B22d |
| Length | 95.00 mm |
| Height | 55.00 mm |
| Width | 55.00 mm |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075625532 | Folding box 1 |
57 mm x 57 mm x 99 mm | 32.00 g | 0.32 dm³ |
| 4058075625549 | Shipping box 10 |
293 mm x 123 mm x 115 mm | 434.00 g | 4.14 dm³ |

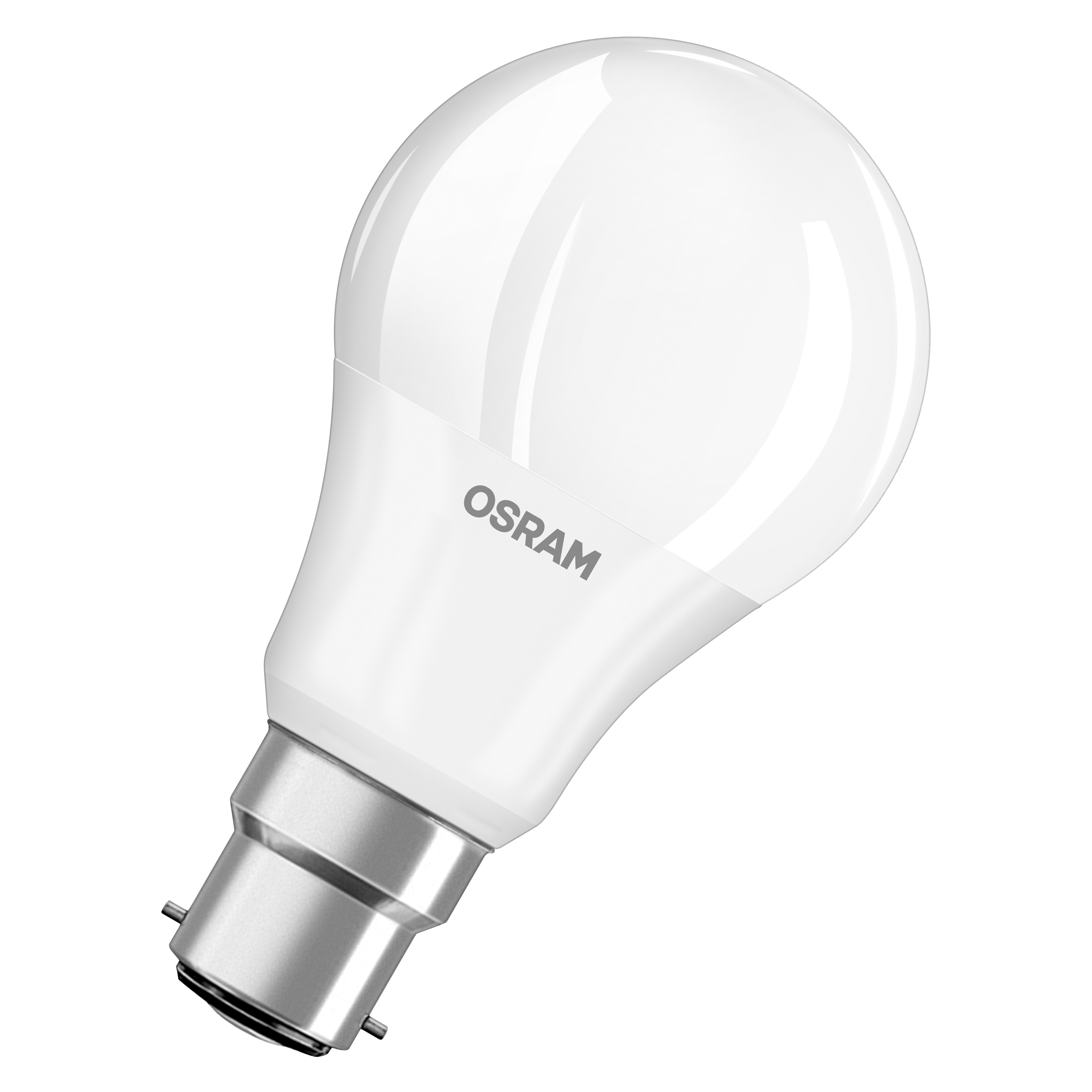

Product image: white background, diagonal with OSRAM logo
LV CLAS A 40 60 FR B22d
LV CLAS A 40 60 FR B22d

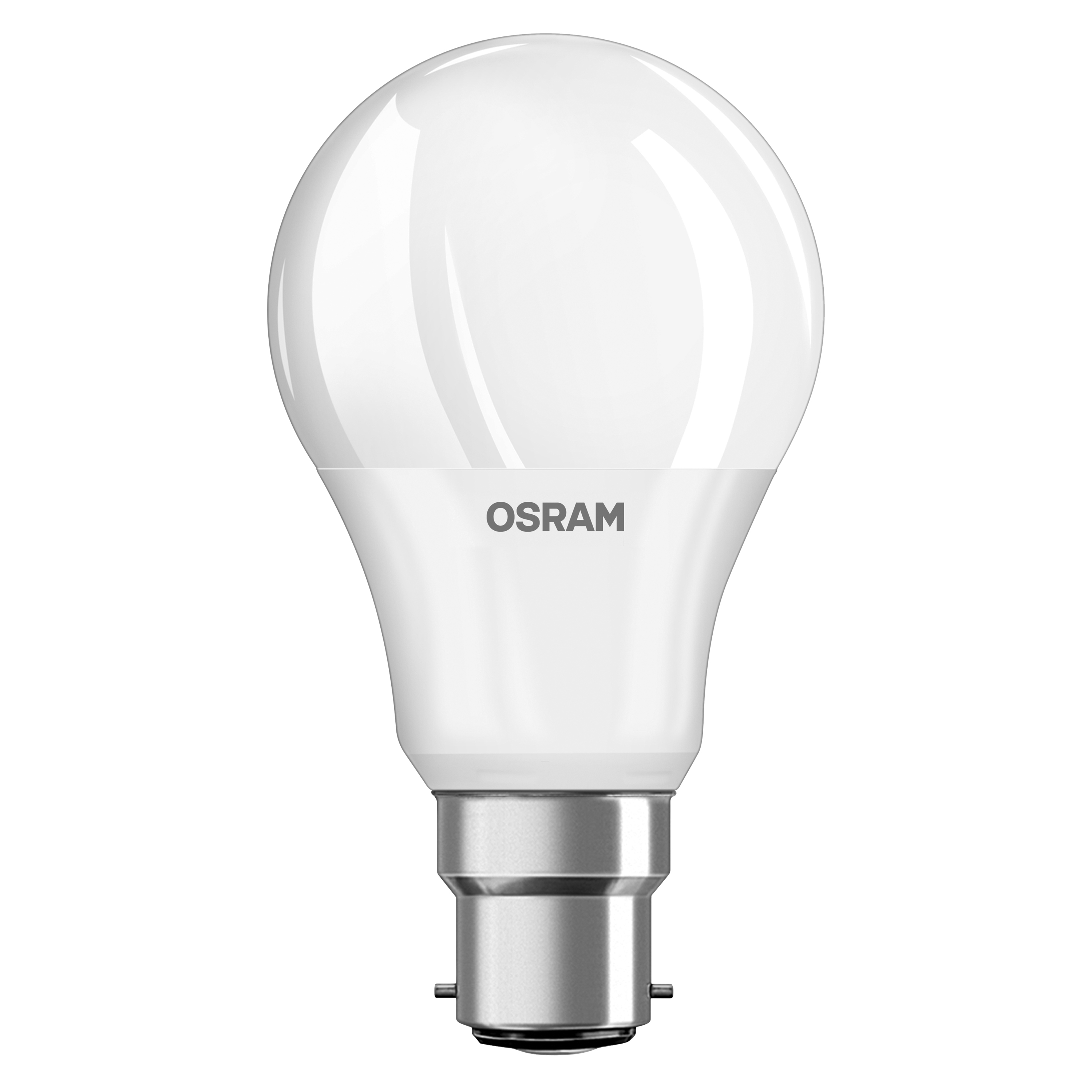

Product image: white background, upright, OSRAM logo
LV CLAS A 40 60 FR B22d
LV CLAS A 40 60 FR B22d
Product line drawing, front, no dimensions
LS CLA 75 10.5W FR B22d
LS CLA 75 10.5W FR B22d

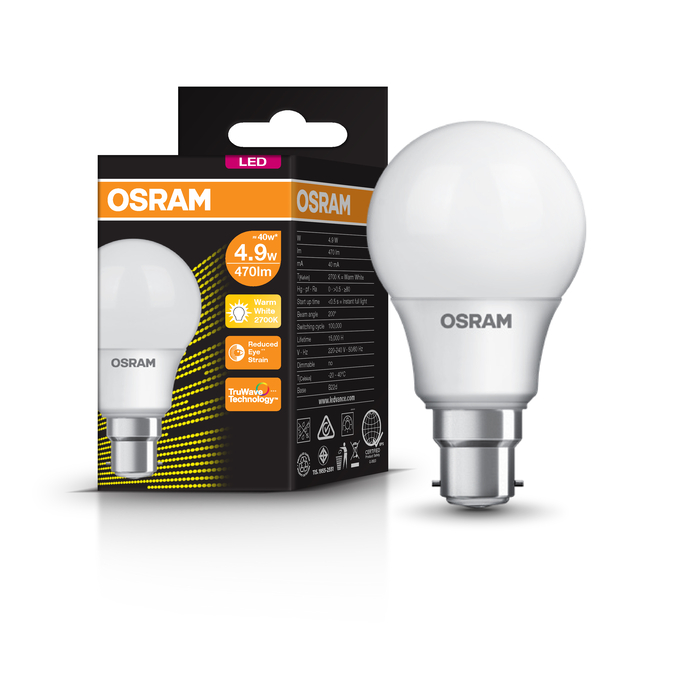

Combo Shot = Product Beauty Shot + Packaging Image
