LED Eco Classic HE

LED ECO CLA 12 W/3000 K B22d

GTIN: 4099854415470 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Energy savings of up to 88 % (compared to traditional incandescent lamps)
  • Excellent price/performance ratio
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
Areas of application
  • Suitable for indoor applications.
Product features
  • Base: E27, B22d
  • Luminous efficacy: up to 105 lm/W
  • Mercury-free lamps
  • Lifetime up to 15,000 h
  • Over Temperature Protection
Electrical data
Nominal wattage 12 W
Construction wattage 12.00 W
Nominal voltage 220…240 V
Nominal current 82 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Photometrical data
Luminous flux 1260 lm
Luminous efficacy 105 lm/W
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra ≥80
Light color 830
Standard deviation of color matching ≤5 sdcm
Light technical data
Starting time ≤ 0.5 s
Dimensions & Weight
Overall length 109.50 mm
Diameter 60.00 mm
Product weight 30.00 g
Temperatures & operating conditions
Ambient temperature range -20…+45 °C
Additional product data
Base (standard designation) B22d
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Capabilities
Dimmable No
Certificates & Standards
Type of protection IP20
Standards CB, EMC, ROHS
Country-specific categorizations
Order reference LECO CLA 12W/83
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) B22d
Length 109.50 mm
Height 60.00 mm
Width 60.00 mm
Displacement factor >0.9
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854415470 Folding box
1		 61 mm x 61 mm x 118 mm 47.00 g 0.44 dm³
4099854415487 Bundle
10		 460 mm x 320 mm 475.00 g
4099854415494 Shipping box
100		 640 mm x 325 mm x 255 mm 5539.00 g 53.04 dm³

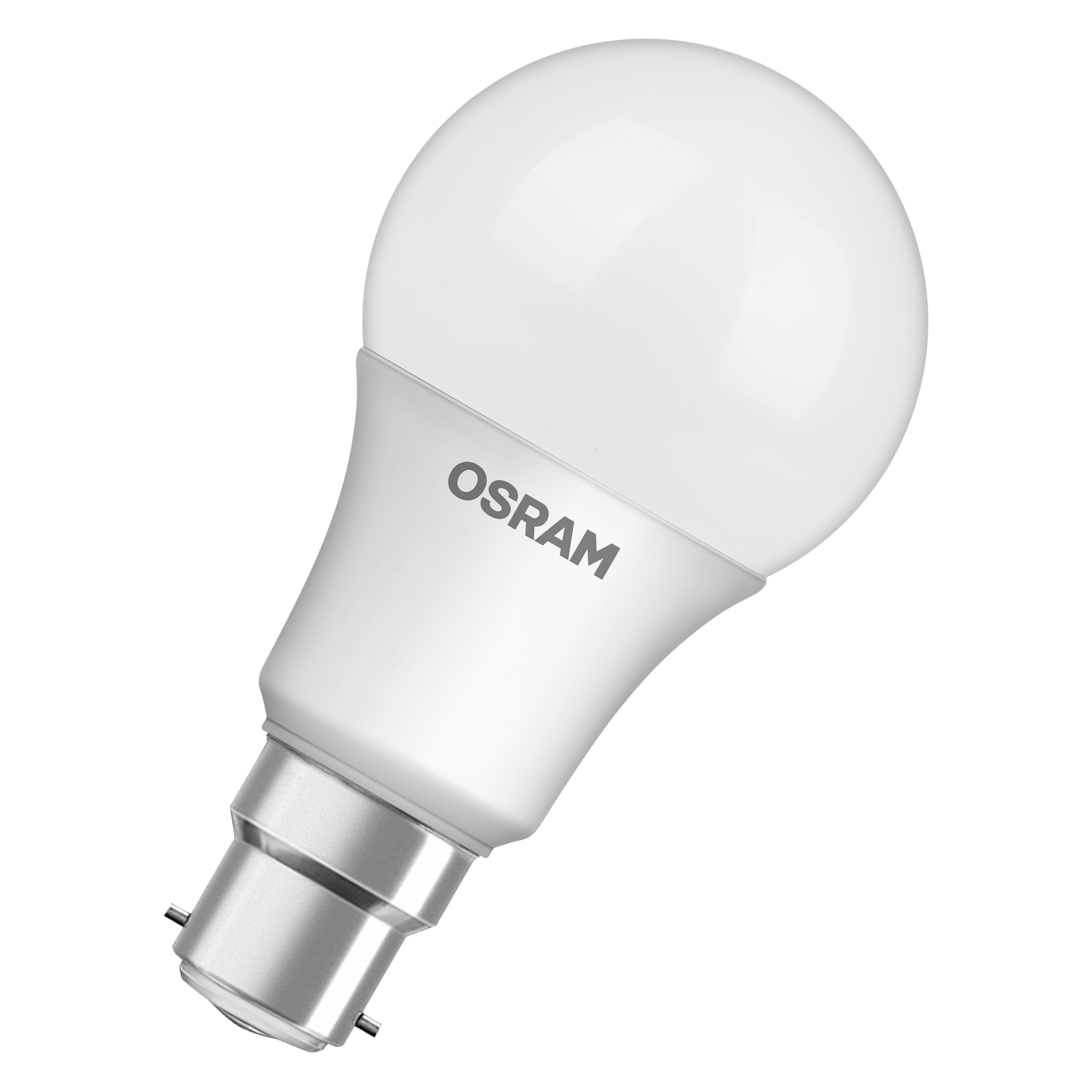

Product image: white background, diagonal with OSRAM logo
LECO CLA 230V B22D
JPG (350.13 KB)

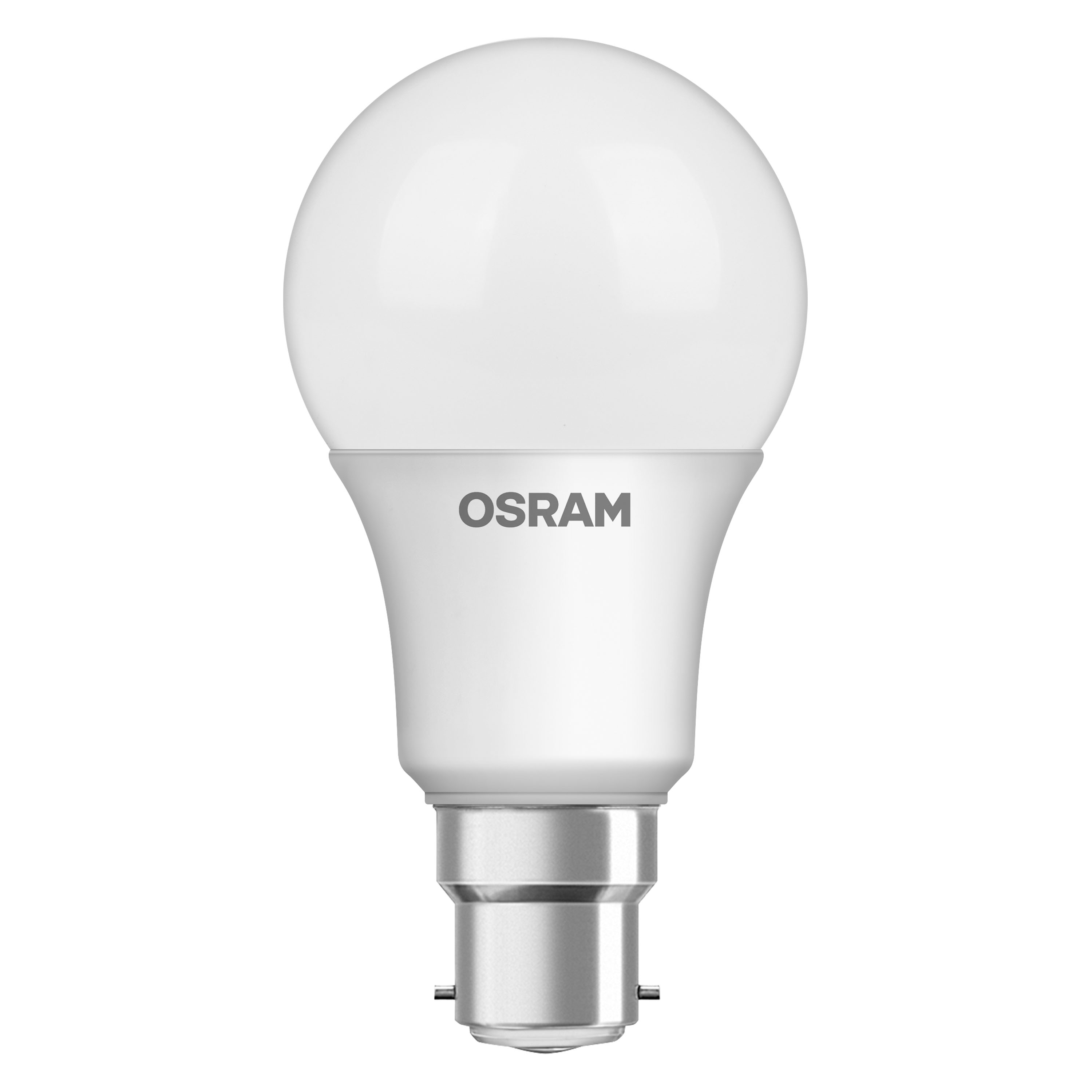

Product image: white background, upright, OSRAM logo
LECO CLA 230V B22D
JPG (332.85 KB)
Product line drawing with numbers
LECO CLA 230V B22D
SVG (310.3 KB)
