LED Antibacterial lamp

LED ANTI-BACTERIAL CLAS A 60 8.5 W/4000 K B22d

GTIN: 4058075700710 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Decompose and neutralize odors
  • Continuous protection
  • Harmless to humans and animals
  • Environmentally safe
Areas of application
  • Dining table lighting
  • Ceiling lights
  • Domestic applications
  • General illumination
  • Suitable for indoor applications.
  • Not suitable for use in closed and compact luminaires
Product features
  • LED alternative to conventional lamps
  • Not dimmable
  • Lifetime up to 15,000 h
  • Mercury-free lamps
  • Input voltage: 220…240 VAC
  • Not suitable for use with dimmers
Electrical data
Nominal wattage 8.5 W
Construction wattage 8.50 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 60 W
Nominal current 50 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ > 0.50
Photometrical data
Luminous flux 806 lm
Nominal useful luminous flux 90° 806 lm
Luminous efficacy 94 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra ≥80
Light color 840
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Light technical data
Beam angle 200 °
Warm-up time (60 %) 0.50 s
Starting time < 0.5 s
Dimensions & Weight
Overall length 112.00 mm
Diameter 60.00 mm
Maximum diameter 60 mm
Product weight 29.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Lifespan
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90
Additional product data
Base (standard designation) B22d
Mercury content 0.0 mg
Capabilities
Dimmable No
Certificates & Standards
Energy efficiency class F
Energy consumption 9.00 kWh/1000h
Standards CB, EMC, RoHS
Photobiological safety group acc. to EN62778 RG0
Country-specific categorizations
Order reference LSCLA60B 8,5W/8
LOGISTICAL DATA
Temperature range at storage -20…+80 °C
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) B22d
Correlated colour temperature type SINGLE_VALUE
Length 112.00 mm
Height 60.00 mm
Width 60.00 mm
R9 Colour rendering index 0.00
EPREL ID 523311
Model number AC31153
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075700710 Folding box
1		 62 mm x 62 mm x 117 mm 38.00 g 0.45 dm³
4058075700727 Shipping box
10		 318 mm x 132 mm x 130 mm 494.00 g 5.46 dm³
Declarations of conformity
EC Declaration of Conformity CLA Non Dim AC31141-56 AC31177-9 AC34531-3
PDF (195.89 KB)
Product image: white background, diagonal with OSRAM logo
LV CLAS A 40 60 FR B22d
JPG (1.28 MB)
Product image: white background, upright, OSRAM logo
LV CLAS A 40 60 FR B22d
JPG (1.14 MB)
Product line drawing, front, no dimensions
LS CLA 75 10.5W FR B22d
SVG (3.81 KB)

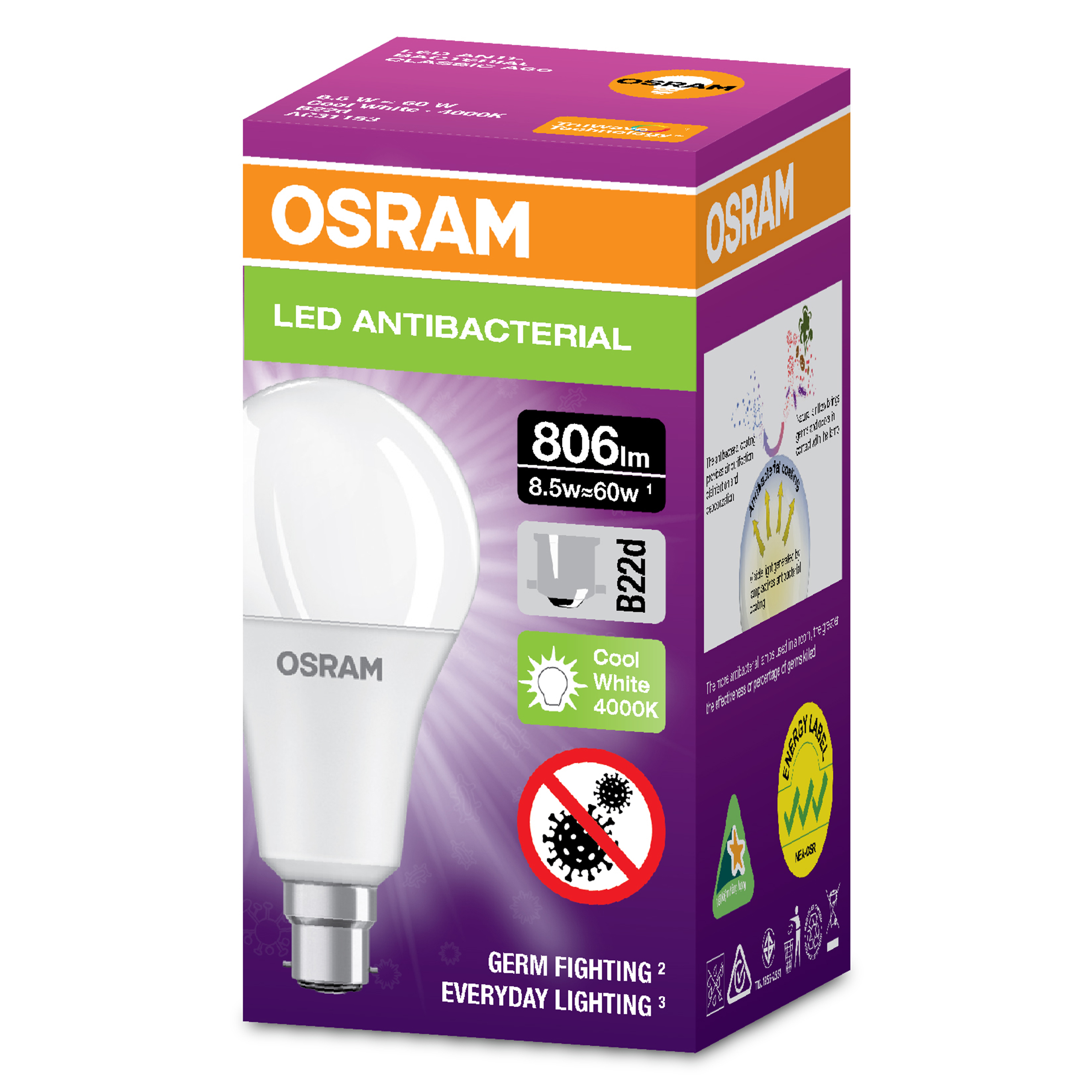

Packaging image, spacial
