HALOGEN CLASSIC A

HAL CL A 57 W 240 V E27

GTIN: 4008321466310 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Simple direct replacement for conventional incandescent lamps
  • The same pleasant quality of light as that of an incandescent lamp
  • Instant 100 % light, no warm-up time
  • Contains no mercury
  • UV filter
Areas of application
  • General illumination
  • Mood lighting
  • Entrance lighting
  • Restaurants, hotels and similar prestigious applications
Product features
  • 100 % dimmable
  • Perfect color rendering (Ra: 100)
  • Average life: 2,000 h
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • Lamp to be used only in a closed luminaire.
Electrical data
Nominal wattage 57 W
Construction wattage 57.00 W
Nominal voltage 240 V
Photometrical data
Luminous flux 915 lm
Luminous efficacy 16 lm/W
Light color (designation) Warm White
Color temperature 2800 K
Color rendering index Ra 100
Light color 1028
Light technical data
Starting time 0 s
Dimensions & Weight
Overall length 97.00 mm
Light center length (LCL) 73,0 mm
Diameter 55.00 mm
Product weight 25.2 g
Additional product data
Base (standard designation) E27
Mercury-free Yes
Design / version Bulb
Capabilities
Burning position Any
Country-specific categorizations
ILCOS HSGSA/F/UB-53-240-E27-73
Order reference 64544 ACLAFR 57
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E27
Length 94.00 mm
Height 55.00 mm
Width 55.00 mm
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321466310 Folding box
1		 97 mm x 55 mm x 55 mm 34.00 g 0.29 dm³
4008321845214 Shipping box
20		 286 mm x 234 mm x 105 mm 794.00 g 7.03 dm³
User instruction / safety instructions
334575_Mounting Instruction
PDF (1.63 MB)
PRODUCT DATASHEET
334109_Technical Data Sheet
PDF (174.62 KB)
Product image: white background, diagonal
323685_HALOGEN ENERGY SAVER - HALOLUX CLASSIC A FROSTED
TIF (350.14 KB)

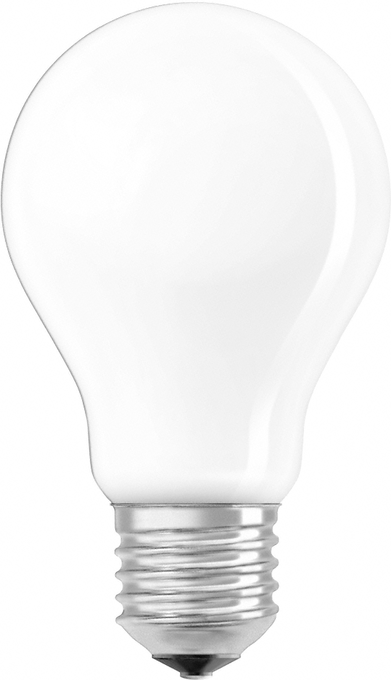

Product image: white background, upright
59392_HALOGEN ENERGY SAVER - HALOLUX CLASSIC A frosted
TIF (517.53 KB)
Product line drawing with letters
330208_Halogen Classic A E27
SVG (13.8 KB)
EAN AU model number
4008321466310 OSR64544AESFR53WES
