OSRAM DULUX VALUE STICK

10 W/865 E27

GTIN: 4008321401106 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Electrical data
Nominal wattage 10 W
Construction wattage 10.00 W
Nominal voltage 220…240 V
Nominal current 100 mA
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Power factor λ ≥ 0.55
Photometrical data
Luminous flux 530 lm
Color temperature 6500 K
Color rendering index Ra 80
Light color 865
Light technical data
Starting time < 2.0 s
Dimensions & Weight
Overall length 145.00 mm
Diameter 41.00 mm
Tube diameter T3
Maximum diameter 41 mm
Product weight 53.00 g
Lifespan
Number of switching cycles ≥3000
Additional product data
Base (standard designation) E27
Mercury content 2.0 mg
Mercury-free No
Capabilities
Dimmable No
Country-specific categorizations
Order reference DVALUE 10W/865
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E27
Length 145.00 mm
Height 41.00 mm
Width 41.00 mm
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321401106 Folding box
1		 45 mm x 45 mm x 144 mm 92.00 g 0.29 dm³
4058075012240 Shipping box
12		 270 mm x 95 mm x 162 mm 947.00 g 4.16 dm³
Product image: white background, diagonal
323651_DULUX STAR 5W E27
TIF (4.97 MB)

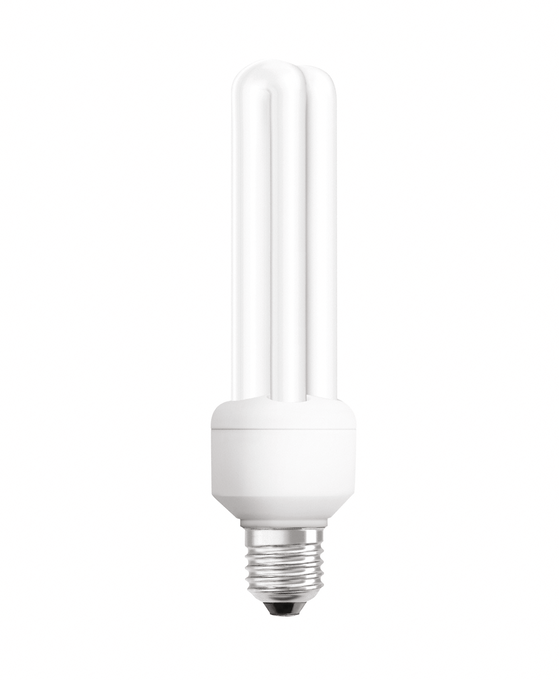

Product image: white background, upright
