OSRAM DULUX EL HO HPF

DEL HO HPF 65 W/865 E27

GTIN: 4008321252869 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • General illumination
  • High-quality domestic and professional environments
  • Outdoor use in enclosed and ventilated luminaires only
Product features
  • Available in 2 light colors: 827 and 865
  • Average life: 10,000 h
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Electrical data
Nominal wattage 65 W
Construction wattage 65.00 W
Nominal voltage 230 V
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Photometrical data
Luminous flux 4000 lm
Luminous efficacy 62 lm/W
Light color (designation) Daylight
Color temperature 6500 K
Color rendering index Ra 80…89
Light color 865
Dimensions & Weight
Overall length 249.00 mm
Diameter 90,0 mm
Product weight 317.00 g
Temperatures & operating conditions
Ambient temperature range -20…+50 °C
Additional product data
Base (standard designation) E27
Mercury content 3.0 mg
Mercury-free No
Capabilities
Dimmable No
Country-specific categorizations
ILCOS FB-65/865-220/240-E27
Order reference DULUX EL 65W/86
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E27
Length 249.00 mm
Height 90,0 mm
Width 90,0 mm
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321252869 Folding box
1		 113 mm x 113 mm x 275 mm 446.00 g 3.51 dm³
4008321252876 Shipping box
6		 356 mm x 240 mm x 290 mm 2985.00 g 24.78 dm³
Product image: white background, diagonal
324007_DULUXSTAR HO / DULUX EL HO 65 W
TIF (9.57 MB)

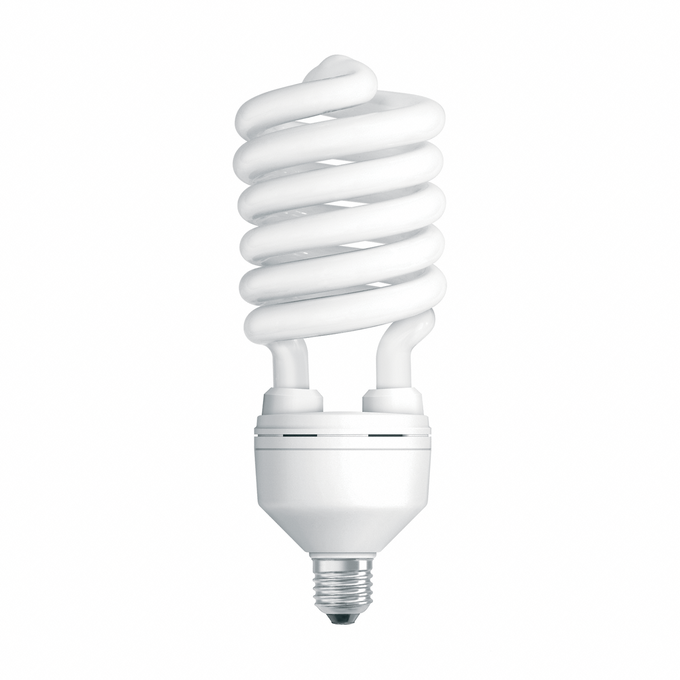

Product image: white background, upright
324008_DULUXSTAR HO / DULUX EL HO 65 W
TIF (11.46 MB)
Product line drawing with letters
324703_DULUXSTAR HO/ DULUX EL HO 65W
SVG (23.56 KB)
Product line drawing, front, no dimensions
324704_DULUXSTAR HO/ DULUX EL HO 65W
SVG (20.59 KB)
Spectral power distribution
349641_FL_865
PNG (92.75 KB)
