LS AY PFM -CSW-P2-50-COBConnectors for COB LED Strips Performance Class

GTIN: 4058075654099 BAG / 2 Show all packages

Contact sales

Nominal voltage	24 V
Nominal current	2.5 A

Length	182.5 mm
Cable length	150 mm
Width	10 mm
Height	4.0 mm
Cable cross-section, input side	0.5 mm²
Product weight	3.15 g

Product color

Transparent

Ambient temperature range	-30…85 °C
Temperature range in operation	-30…+85 °C

Type of protection

IP00

Temperature range at storage

-40…+85 °C

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075654099	BAG 2	80 mm x 45 mm x 6 mm	10.00 g	0.02 dm³
4058075654105	Shipping box 300	353 mm x 147 mm x 200 mm	1730.00 g	10.38 dm³

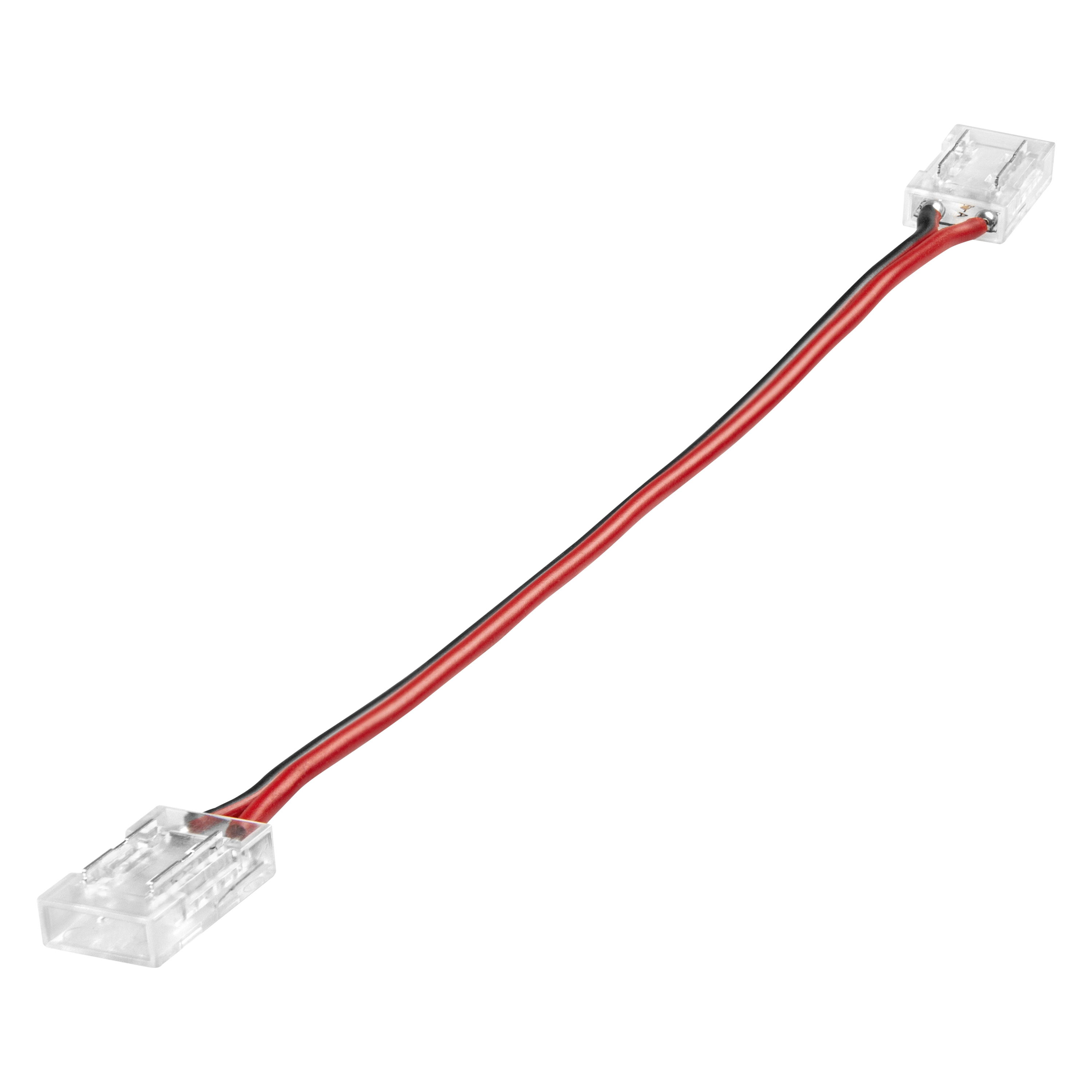

Product image: white background, diagonal
LS AY PFM -CSW/P2/50/COB

Product line drawing with letters
LS AY PFM -CSW/P2/50/COB

Product line drawing - technical
LS AY PFM -CSW/P2/50/COB

Tender documents
Connectors for COB LED Strips Performance Class CSW P2 50 COB-EN

EAN	SEG number	STK number	EFO number	ELDAS number
4058075654099	7509202	4127227	3202863	941902390
