CV Power supplies with DALI
OTi DALI 160/220…240/24 1-2 CH
GTIN: 4052899986305
Unpacked / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Intelligent power matching thanks to Smart power supply
- Slim form factor for mounting on the cove or in linear luminaires
- No stroboscopic effect thanks to patented high PWM frequency management (> 2 kHz)
- Suitable for installation in emergency lighting systems according to EN 60598-2-22
- Available as single-channel or multi-channel with DT6 and DT8 in one device
- DALI message detection "LED Module failure"
- IP rating: IP20
Areas of application
- Cove lighting, wall washer, corridor, handrail, luminous ceilings
- Suitable for use in luminaires of protection class I and II
Product features
- Dimmable via Touch DIM
- LED driver whose output power can be shared arbitrarily among the 2 or 4 channels
- Dimming range: 0.1…100 %
- Line frequency: 0 Hz | 50 Hz | 60 Hz
Equipment / Accessories
- Suitable for 24 V LED modules
Electrical data
| Nominal wattage | 160.00 W |
| Nominal output power | 160 W |
| Nominal voltage | 220…240 V |
| Nominal output voltage | 24.2 V 1) |
| Input voltage AC | 198…264 V |
| Input voltage DC | 176…276 V |
| U-OUT (working voltage) | 24.2 V |
| Inrush current | 69 A |
| Mains frequency | 50/60 Hz |
| Total harmonic distortion | < 5 % |
| Power factor λ | 0.99 |
| ECG efficiency | 93 % |
| Device power loss | 11.5 W |
| Max. ECG no. on circuit breaker 10 A (B) | 5 |
| Max. ECG no. on circuit breaker 16 A (B) | 8 |
| Max. ECG no. on circuit breaker 25 A (B) | 13 |
| Surge capability (L-N) | 1 kV |
| Galvanic isolation | SELV |
| Power loss in stand-by mode | < 0.3 W |
1) DC voltage
Dimensions & Weight
| Length | 300.00 mm |
| Mounting hole spacing, length | 260,0 mm |
| Width | 50.00 mm |
| Height | 35.00 mm |
| Cable cross-section, input side | 0,75…2,5 mm² |
| Cable cross-section, output side | 0,75…2,5 mm² |
| Wire preparation length, input side | 6,0 mm |
| Wire preparation length, output side | 6,0 mm |
| Product weight | 380.00 g |
Colors & materials
| Casing material | Plastic |
| Body material | Plastic |
Temperatures & operating conditions
| Ambient temperature range | -20…+45 °C |
| Maximum temperature at tc test point | 90 °C |
| Max.housing temperature in case of fault | 115 °C |
| Permitted rel. humidity during operation | 5…85 % 1) |
1) Maximum 56 days/year at 85 %
Lifespan
| ECG lifetime | 50000 h 1) |
1) Tc = 90°C - 0.2% / 1,000 h failure rate
Additional product data
| Encapsulated | Yes |
Capabilities
| Dimmable | Yes |
| Dimming interface | DALI-2 |
| Dimming range | 0…100 % |
| Overheating protection | Automatic reversible |
| Overload protection | Automatic reversible |
| Short-circuit protection | Automatic reversible |
| No-load proof | No |
| Max. cable length to lamp/LED module | 10 m |
| Suitable for fixtures with prot. class | I, II |
| Type of connection, output side | Screw terminal |
Certificates & Standards
| Approval marks – approval | CE, ENEC 10, VDE, VDE-EMC, RCM, EAC, CCC, BIS |
| Standards | Acc. to EN 61347-1, Acc. to EN 61347-2-13, Acc. to EN 61547, Acc. to EN 61000-3-2, Acc. to EN 62384, Acc. to EN 60598-2-22, Acc. to EN 62386 |
| Protection class | II |
| Type of protection | IP20 |
LOGISTICAL DATA
| Temperature range at storage | -20…85 °C |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4052899986305 | Unpacked 1 |
|||
| 4052899986329 | Shipping box 20 |
335 mm x 268 mm x 167 mm | 8065.00 g | 14.99 dm³ |
User instruction / safety instructions
OPTOTRONIC LED Power Supply
OPTOTRONIC LED Power Supply
Declarations of conformity
3584656 EU Declaration of Conformity (EN)
3584656 EU Declaration of Conformity (EN)
Certificates
VDE EMC Certificate 40038482
VDE EMC Certificate 40038482
Certificates
INOTEC Certificate OTI DALI 160/1-2 CH
INOTEC Certificate OTI DALI 160/1-2 CH
Certificates
OTi DALI 160 CB 63486 280420
OTi DALI 160 CB 63486 280420
Certificates
CB Test Certificate DE1-59703
CB Test Certificate DE1-59703
Certificates
VDE ENEC Certificate 40043863 appendix
VDE ENEC Certificate 40043863 appendix
Certificates
Certificate NSW27729.1 OTI DALI 160_24
Certificate NSW27729.1 OTI DALI 160_24
Certificates
VDE ENEC Certificate 40043863
VDE ENEC Certificate 40043863
Certificates
OT outdoor ENEC 40050684 100220
OT outdoor ENEC 40050684 100220
Certificates
CCC Certificate 2018171002002183
CCC Certificate 2018171002002183
Certificates
CEAG Certificate OTI DALI 160/1-2 CH
CEAG Certificate OTI DALI 160/1-2 CH
PRODUCT DATASHEET
Datasheet OTI DALI 160/220-240/24 1-2 CH
Datasheet OTI DALI 160/220-240/24 1-2 CH
Product image: white background, diagonal
OTI DALI 160/220-240/24 1-2 CH
OTI DALI 160/220-240/24 1-2 CH

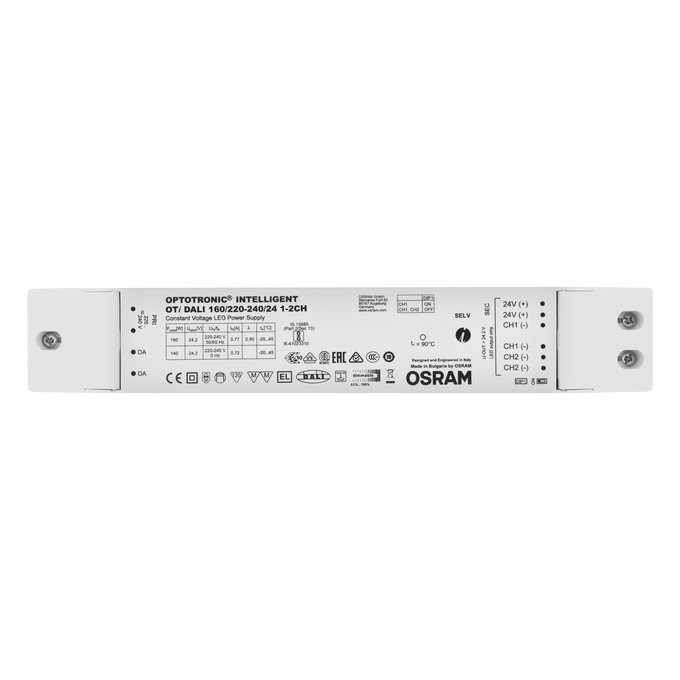

Product image: white background, horizontal
OTI DALI 160/220-240/24 1-2 CH
OTI DALI 160/220-240/24 1-2 CH
Product line drawing with letters
OTI DALI 160/220-240/24 1-2 CH
OTI DALI 160/220-240/24 1-2 CH
Product line drawing with numbers
OTI DALI 160/220-240/24 1-2 CH
OTI DALI 160/220-240/24 1-2 CH
| EAN | ELDAS number |
|---|---|
| 4052899986305 | 919492100 |
