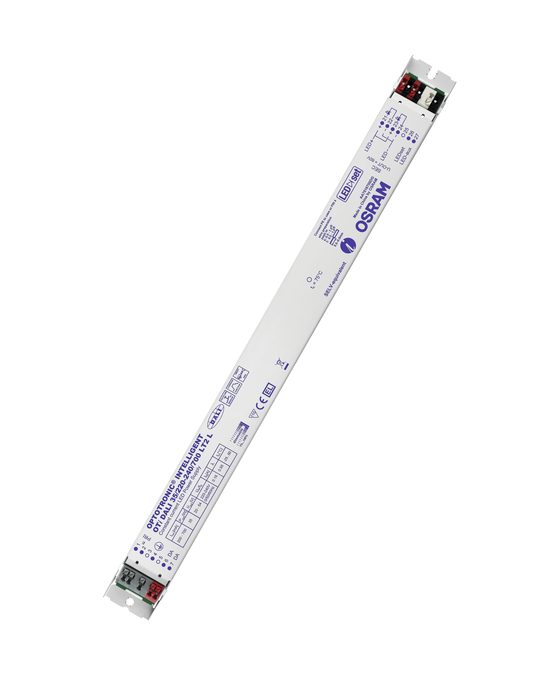

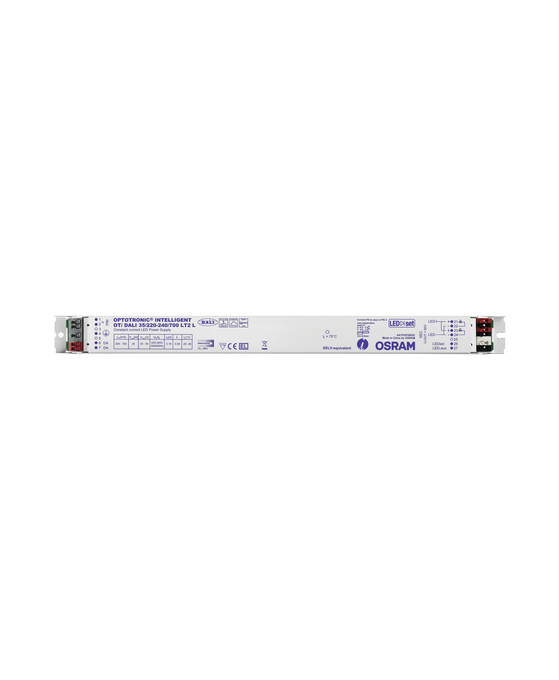

OTi DALI 35/220…240/700 LT2 LOPTOTRONIC® Intelligent

GTIN: 4052899245389 Unpacked / 1 Show all packages

Contact sales

Fully programmable via software (DALI Interface)
Flexible current setting (LEDset2)
Lifetime: up to 100,000 h (temperature at T_c = 65 °C, max. 10 % failure rate)
High-quality dimming of 1…100 % by amplitude dimming (except 80 W versions)
High quality of light thanks to <1% output ripple current
Very high efficiency
Very low standby power consumption: < 0.15 W *
Fulfill safety requirement due to overload, overtemperature, Hot Plug protection

Versatile scope of application due to OSRAM DALI Technology:

Easy to use in corridors and restrooms because of three-level Corridor function
Touch DIM application: easy to control via pushbutton or sensor
Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light
Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable
Feedback of power consumption and operating hours (Fit for SMART GRID)
Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting
Luminaire information for easy maintenance

Linear lighting for office, education, storage areas and retail
Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
Suitable for luminaires of protection class I

Nominal wattage	35.00 W
Nominal output power	35 W
Nominal voltage	220…240 V
Nominal output voltage	20…54 V ¹⁾
Input voltage AC	198…264 V ²⁾
Input voltage DC	176…276 V
U-OUT (working voltage)	60 V
Nominal current	0.18 A
Nominal output current	200…700 mA ³⁾
Inrush current	32 A
Output current tolerance	±2 % ⁴⁾
Output ripple current (100 Hz)	< 1 %
Mains frequency	50/60 Hz
Total harmonic distortion	< 11 %
Power factor λ	> 0.95 ⁵⁾
ECG efficiency	≧90 % ⁶⁾
Device power loss	4.4 W ⁷⁾
Max. ECG no. on circuit breaker 10 A (B)	18
Max. ECG no. on circuit breaker 16 A (B)	30
Max. ECG no. on circuit breaker 25 A (B)	-
Surge capability (L/N-Ground)	2 kV
Surge capability (L-N)	1 kV
Galvanic isolation	SELV
Power loss in stand-by mode	< 0.5 W

¹⁾ Maximum 60 V
²⁾ Permitted voltage range
³⁾ ±2%
⁴⁾ Within nominal output current range
⁵⁾ Full load at 230 V
⁶⁾ At full load and 230 V
⁷⁾ Maximum

Length	360.00 mm
Mounting hole spacing, length	350,0 mm
Width	30.00 mm
Height	21.00 mm
Cable cross-section, input side	0.5…1.5 mm² ¹⁾
Cable cross-section, output side	0.5…1.5 mm² ¹⁾
Wire preparation length, input side	8,5…9,5 mm
Wire preparation length, output side	8,5…9,5 mm
Product weight	275.00 g

¹⁾ Solid or flexible leads

Ambient temperature range	-25…+60 °C
Maximum temperature at tc test point	75 °C
Max.housing temperature in case of fault	110 °C
Permitted rel. humidity during operation	5…85 % ¹⁾

¹⁾ Maximum 56 days/year at 85 %

ECG lifetime

50000 h, 100000 h ¹⁾

¹⁾ At maximum T_c = 75°C / 10% failure rate / At T_c = 65°C / 10% failure rate

Encapsulated

Dimmable	Yes
Dimming interface	DALI, Touch DIM, Touch DIM Sensor
Dimming range	1…100 % ¹⁾
Overheating protection	Automatic reversible
Overload protection	Automatic reversible
Short-circuit protection	Automatic reversible
No-load proof	Yes
Max. cable length to lamp/LED module	2,0 m
Suitable for fixtures with prot. class	I
Suitable for emergency lighting	Yes
Type of connection, output side	Push terminal

¹⁾ For maximum nominal output current

Approval marks – approval	ENEC 10, VDE, EMC, EL, CE
Standards	Acc. to EN 61347-1, Acc. to EN 61347-2-13, Acc. to EN 55015, Acc. to EN 61547, Acc. to EN 61000-3-2, Acc. to EN 62384
Protection class	I
Type of protection	IP20

Temperature range at storage

-25…75 °C

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
