STRING INVERTER SINGLE PHASE COMFORT 2.5 - 6 K
LS 3K F2-DC-AFCI-WIET
GTIN: 4099854168499
Shipping box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- 10 years of product guarantee
- Built-in LCD display
- Low startup voltage starting from 60 V
- AFCI protection, proactively reduces fire risk
- Level II surge protection on AC and DC side
Areas of application
- Residential installations
Product features
- Cooling by natural convection
- Integrated DC switch
- Protection rating: IP66
- Original Stäubli MC4 connectors
Equipment / Accessories
- Mounting bracket included
- Data logger included
- AC connector included
- Supplied with user manual
- Additional DC connectors for the outlets on the inverter
- RJ45 connector included
- Fastening screws included
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Output phases | Single phase |
| Max. input power DC | 4.5 kW |
| Input voltage DC | 330 V |
| MPP voltage | 90 - 520 V |
| Max. input current DC | 14 A |
| Max. input current DC per string input | 14 A |
| Max. input current DC per MPP tracker | 14 A |
| Max. short circuit current per MPPT | 22 A |
| Number of independent MPPT inputs | 2 |
| String connections per MPPT input | 1 |
| Nominal output power AC | 3 kW |
| Power consumption | <1 W |
Dimensions & Weight
| Length | 310 mm |
| Width | 160 mm |
| Height | 543 mm |
| Product weight | 11000.000 g |
Additional product data
| Integrated DC switch | Yes |
| Connection DC for battery | No |
| Suitable for emergency power | No |
| Charging controller integrated | No |
| With data logging | Yes |
| Wireless | Yes |
| Display | Standard |
| Ethernet | Yes |
| Integrated transformer | No |
| Type of connection | Staubli MC4 |
| Temperature range in operation | -25…+60 °C |
| Ambient temperature range | -25…+60 °C |
| Outdoor application | No |
| Type of protection | IP66 |
| Product color | White |
Efficiency
| Maximum efficiency | 97.30 % |
| European efficiency | 96.60 % |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead, 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one, Bisphenol A (BPA), Boric Acid, Diboron trioxide, Disodium octaborate anhydrous, Disodium tetraborate pentahydrate; borax pentahydrate, Dodecamethylcyclohexasiloxane [D6], N,N-Dimethylformamide, Tetraboron disodium heptaoxide, hydrate, |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854168499 | Shipping box 1 |
639 mm x 372 mm x 230 mm | 11943.00 g | 54.67 dm³ |
Declarations of conformity
CE declaration_LS-2.5K-6K
CE declaration_LS-2.5K-6K
Product family datasheet
LS 2-6K F2
LS 2-6K F2

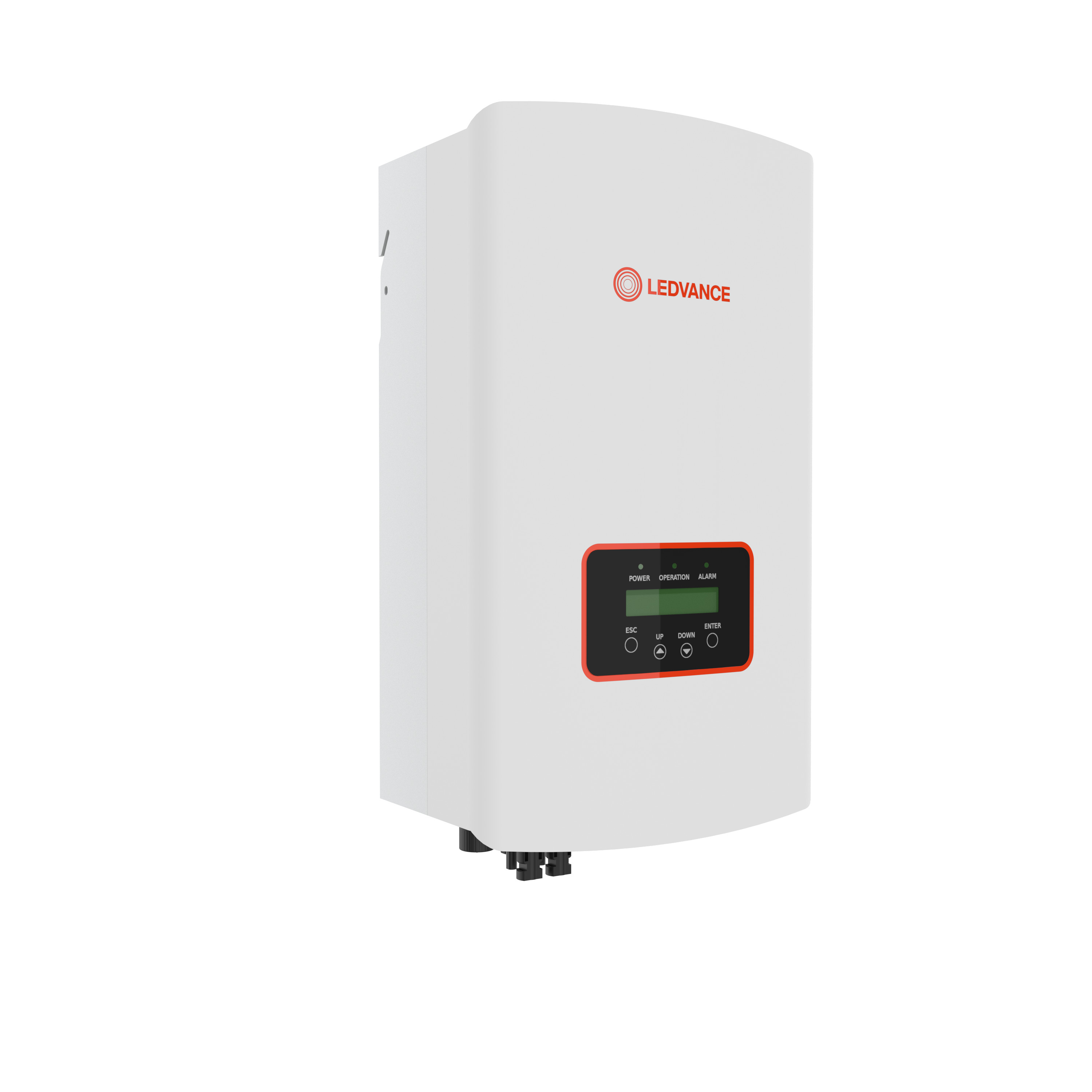

Product image: white background, diagonal
LS-2-6K-F2
LS-2-6K-F2

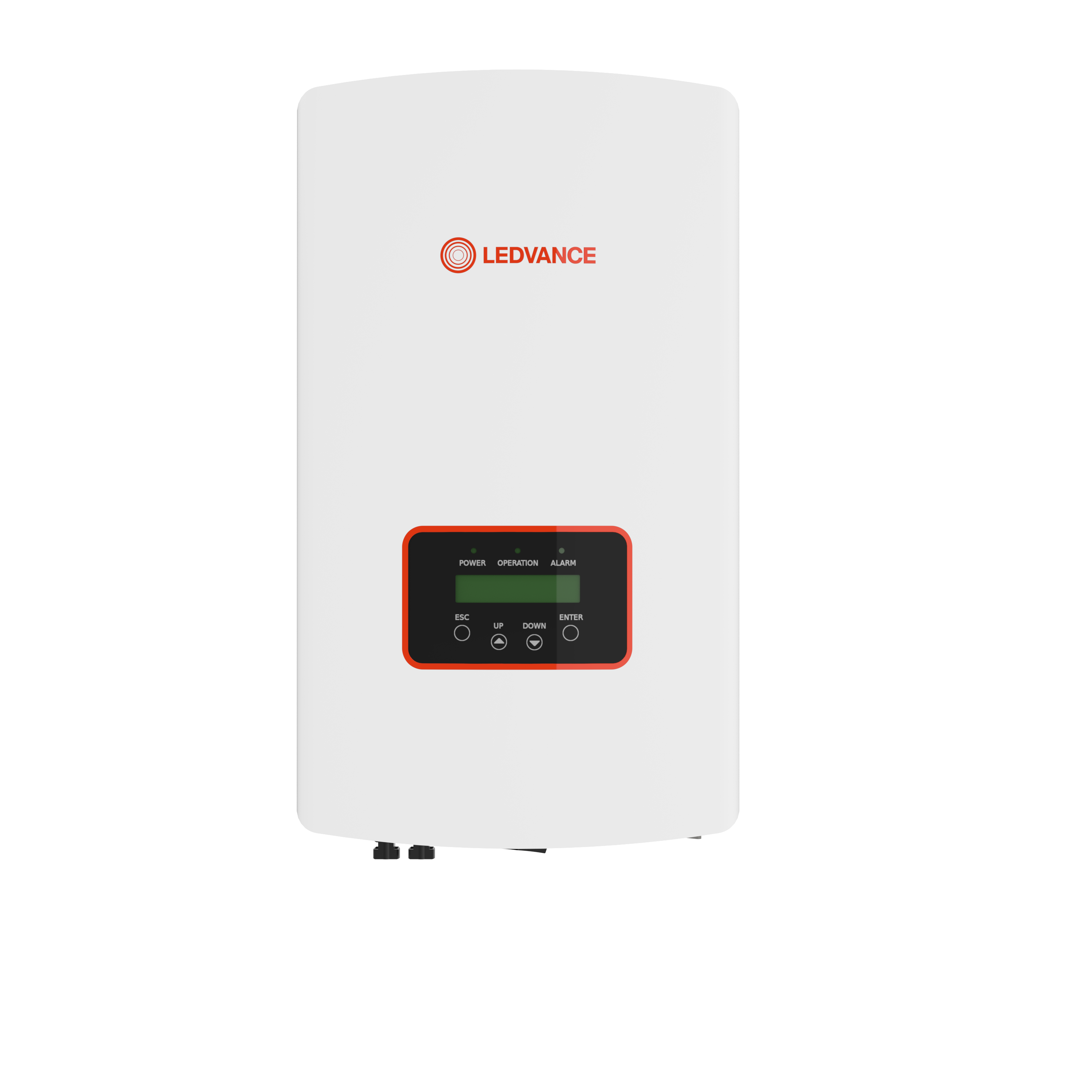

Product image: white background, upright
LS-2-6K-F2
LS-2-6K-F2
| EAN | STK number |
|---|---|
| 4099854168499 | 8010032 |
