BULKHEAD ROUND SENSOR

BLKH RD SEN 250 P 10W CPS BK

GTIN: 4099854286162 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • Multiple adjustments of sensor range, daylight detection and hold time
  • Highly versatile due to selectable CCT and power steps (Multi Color / Multi Lumen) on the driver
  • Flexible mounting patterns for convenient installation
  • Suitable for use in public areas thanks to high IK rating
  • Suitable for use in dusty and damp locations thanks to high IP rating
  • Suitable for use in emergency lighting systems (DC capable)
  • Separate decor element available for an aesthetic and functional product design
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Corridors, stairways, entrance areas
  • Passages, underpasses
  • Public areas
Product features
  • High frequency sensor for daylight and motion detection
  • UV-stabilized polycarbonate (PC) housing, PC-diffuser
  • High luminous efficacy: > 120 lm/W for 3000 K and 4000 K
  • Impact resistance: IK10
  • Type of protection: IP65
  • Push wire terminal for tool-free connection
  • Through-wiring possible
Equipment / Accessories
  • Additional cover rings in different designs available
  • Mounting screws and dowels included
  • Anti-theft screw included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
Electrical data
Nominal wattage 10 W / 8.5 W / 7 W / 6 W 1)
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 46…41…35…30 mA
Inrush current 3.44 A
Inrush current time Th50 3.284 µs
Max. number of luminaires per miniature circuit breaker B16 224
Max. number of luminaires per miniature circuit breaker C10 140
Max. number of luminaires per miniature circuit breaker C16 224
Power factor λ > 0.70
Total harmonic distortion < 20 %
Protection class II
Operating mode Integrated LED driver
1) For possible options refer to lumen/power table image
Photometrical data
Luminous flux 1220 lm / 1070 lm / 860 lm / 710 lm 1)
Luminous efficacy 122 lm/W / 120 lm/W / 118 lm/W 1)
Color temperature 3000 K / 4000 K
Light color (designation) Warm White, Cool White
Color rendering index Ra > 80
Standard deviation of color matching 5 sdcm
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °
1) For possible options refer to lumen/power table image
Adjustable attributes
Nominal wattage Color temperature Luminous flux Luminous efficacy
10 W 4000 K 1220 lm 122 lm/W
10 W 3000 K 1150 lm 115 lm/W
8.5 W 4000 K 1070 lm 120 lm/W
8.5 W 3000 K 1010 lm 116 lm/W
7 W 4000 K 860 lm 120 lm/W
7 W 3000 K 810 lm 114 lm/W
6 W 4000 K 710 lm 118 lm/W
6 W 3000 K 670 lm 112 lm/W
Dimensions & Weight
Diameter 262.00 mm
Height 73.00 mm
Product weight 720.00 g
Materials & Colors
Product color Black
Housing color Black
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Screwless terminal
Type of protection IP65
Protection class IK (shock resistance) IK10
Dimmable No
Mounting type Surface
Mounting location Ceiling, Wall
Application environment Outdoor
With light source Yes
Replaceable light source Yes
Lifespan
Lifespan L70/B50 at 25 °C 70000 h 1)
Lifespan L80/B10 at 25 °C 55000 h 1)
Lifespan L90/B10 at 25 °C 40000 h
Number of switching cycles 100000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
Output current 350…300…250…200 mA
ECG - Output ripple current < 5 %
Sensor
Type of sensor Motion, Light
Sensor technology Microwave
Sensor detection angle 150 °
Sensor controlled switching time 5 s…30 min
Detection range of motion sensor 3…8 m
Detection threshold of daylight sensor 2…50 lx
Emergency lighting
Type of Emergency Lighting (EL) EL certified driver (0Hz / DC operation) for central battery operation included
Type of emergency operation test None
Wattage in emergency operation mode 10 W
Luminous flux in emergency operation mode 1220 lm
Certificates & Standards
Standards CE, CB, UKCA, EAC, ENEC, EPD
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
EPD LEDV-00029-V01.01-EN
Replaceable light source (EPREL) Only by an expert
Additional product data

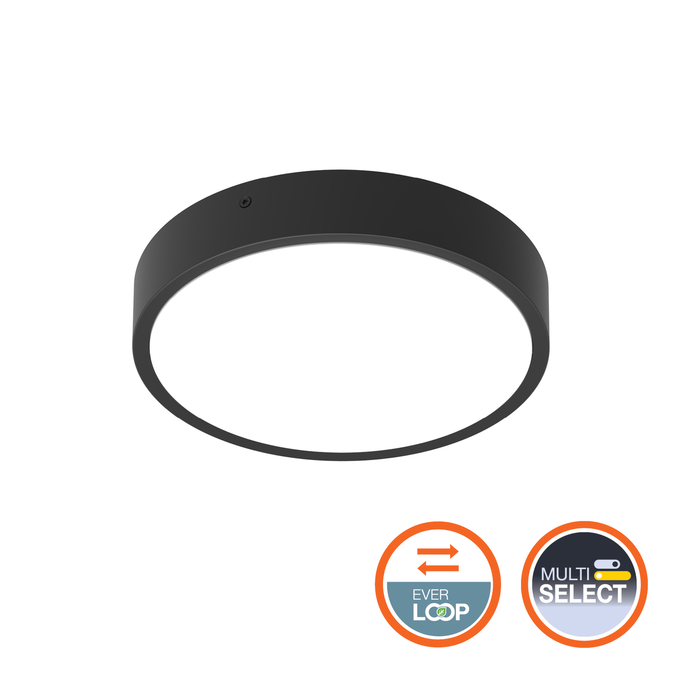

Added function EVERLOOP, MULTI SELECT
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854286162 Folding box
1		 77 mm x 266 mm x 266 mm 823.00 g 5.45 dm³
4099854286179 Shipping box
8		 545 mm x 280 mm x 335 mm 7134.00 g 51.12 dm³
Product image Product name Product brand Product component type GTIN
LISOEV 250R 8W 830 840 BLKH LEDVANCE LIGHT SOURCE direct 4099854311918
DR DS-P- 10/220-240/350 BLKH LEDVANCE driver direct 4099854286834
User instruction / safety instructions
BLKH RD GEN2
PDF (4.52 MB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Legal information
Light Source Insert G11233325
PDF (2.24 MB)
Legal information
Legal Insert G11234785
PDF (887.55 KB)
Legal information
Safety Insert G11234787
PDF (283.81 KB)
Declarations of conformity
BLKH RD SEN
PDF (255.16 KB)
EPD
EPD EN BULKHEAD ROUND
PDF (644.24 KB)
Product image: white background, diagonal
BLKH RD 250/300 P 10/16W BK
JPG (797.6 KB)
Product image: white background, horizontal
BLKH RD 250/300 P 10/16W BK
JPG (812.68 KB)
Product image: white background, spacial
BLKH RD BK
JPG (797.6 KB)
Product image: white background, explosion
Bulkhead Round Eveloop
PNG (7.73 MB)
Product line drawing with letters
BLKH RD/SEN/EM 250 P 10W CPS
JPG (809.87 KB)
Product line drawing with numbers
BLKH RD/SEN/EM 250 P 10W CPS
JPG (818.07 KB)
Product line drawing - technical
BLKH RD/SEN/EM 250 P 10W CPS
JPG (794.14 KB)

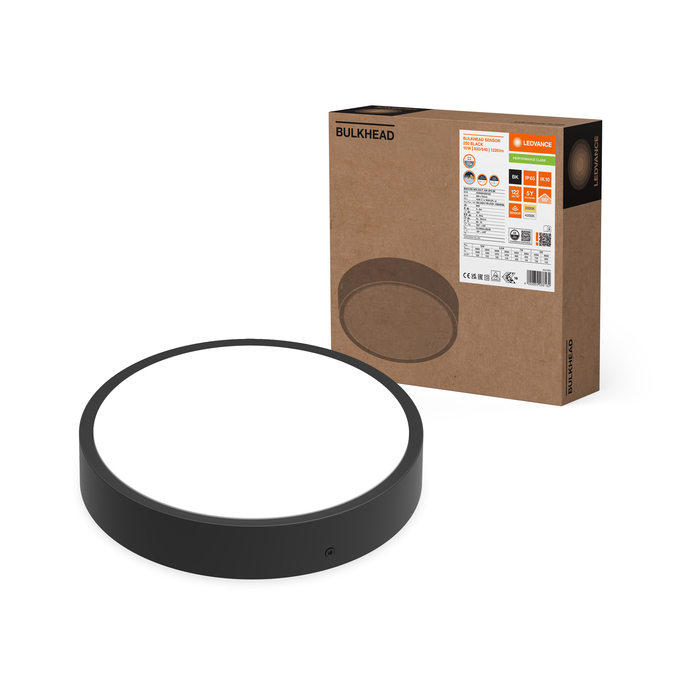

Combo Shot = Product Beauty Shot + Packaging Image
