SURFACE BULKHEAD EYELID
SF BLKH EYELID 300 WT
GTIN: 4058075375529
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product features
- Eyelid ring for Surface Bulkhead
- Available for 250 mm and 300 mm Bulkhead version
- Available in black and white color
- Impact resistance: IK10
Equipment / Accessories
- Anti-theft screw included
References / Links
- For Guarantee see www.ledvance.com/guarantee
Dimensions & Weight
| Diameter | 308 mm |
| Height | 65 mm |
| Product weight | 280.00 g |
Materials & Colors
| Product color | White |
| Cover material | Polycarbonate (PC) |
Application & Mounting
| Mounting location | Luminaire |
| Replaceable light source | No |
Certificates & Standards
| Luminaire with limited surface temperature, "D sign" | No |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075375529 | Folding box 1 |
74 mm x 322 mm x 70 mm | 385.00 g | 1.67 dm³ |
| 4058075375536 | Shipping box 8 |
605 mm x 340 mm x 330 mm | 3801.00 g | 67.88 dm³ |
User instruction / safety instructions
SURFACE BULKHEAD
SURFACE BULKHEAD

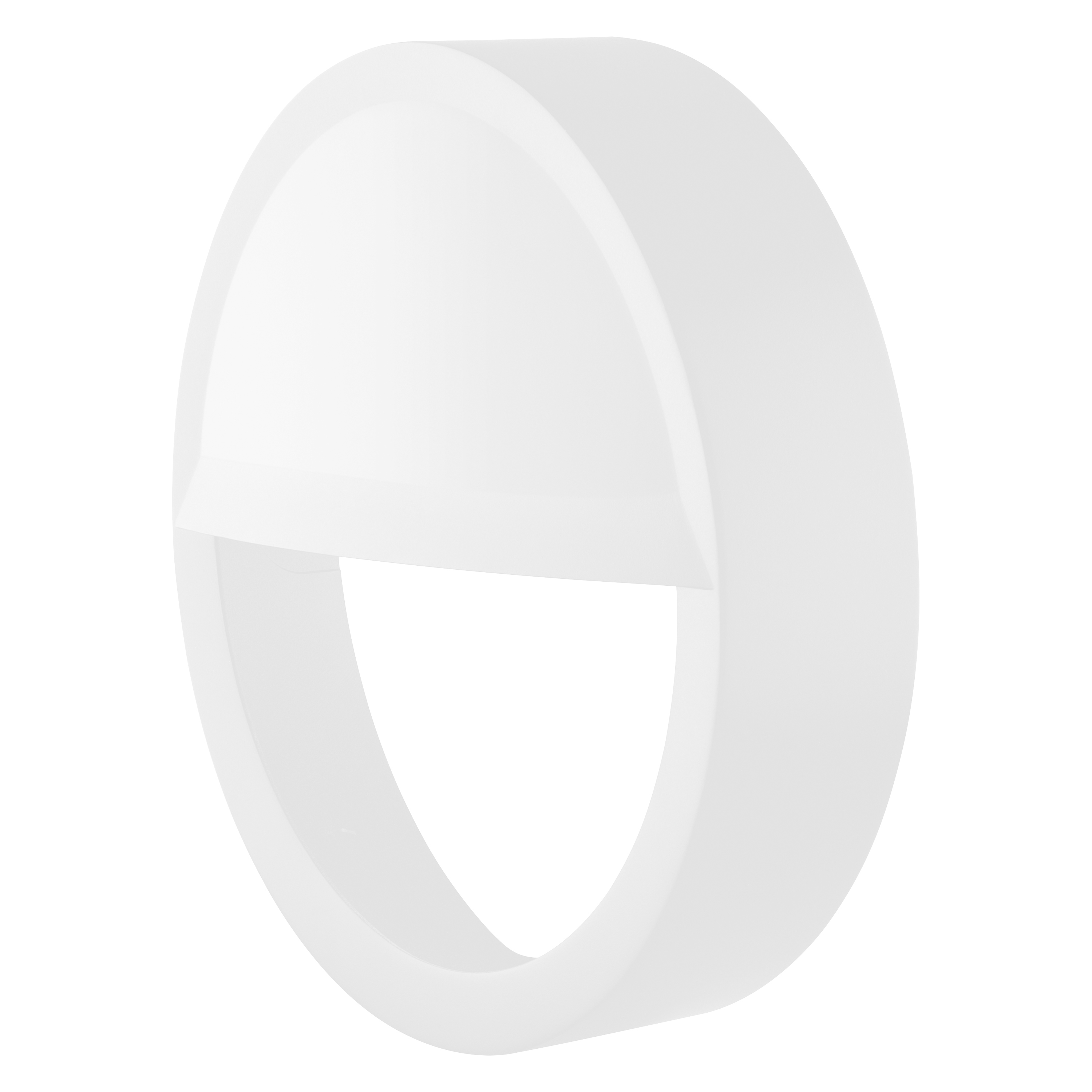

Product image: white background, diagonal
SF BLKH EYELID WT
SF BLKH EYELID WT
Product image: white background, diagonal
SF BLKH EYELID WT
SF BLKH EYELID WT
Product line drawing with letters
SF BLKH EYELID 300
SF BLKH EYELID 300
Product line drawing with letters
SF BLKH EYELID 300
SF BLKH EYELID 300
Product line drawing with numbers
SF BLKH EYELID 300
SF BLKH EYELID 300
Product line drawing with numbers
SF BLKH EYELID 300
SF BLKH EYELID 300
Product line drawing, front, no dimensions
SF BLKH EYELID 300
SF BLKH EYELID 300
Product line drawing, front, no dimensions
SF BLKH EYELID 300
SF BLKH EYELID 300
Packaging image, spacial
Surface Bulkhead Eyelid 300 WT MiCh
Surface Bulkhead Eyelid 300 WT MiCh
IES file (IES)
SF BLKH EYELID 300 WT 3000K
SF BLKH EYELID 300 WT 3000K
IES file (IES)
SF BLKH EYELID 300 WT 4000K
SF BLKH EYELID 300 WT 4000K
Tender documents
SURFACE BULKHEAD EYELID 300 WT-EN
SURFACE BULKHEAD EYELID 300 WT-EN
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075375529 | 7704524 | 4125387 | 3001011 | 941901350 |
