URBAN WALLPACK

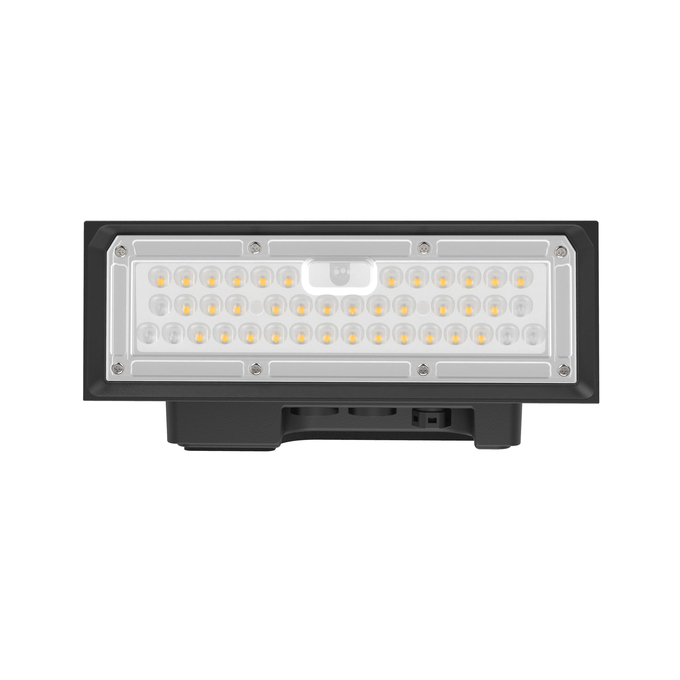

UB WALLPACK P 40W ML 830 GY

GTIN: 4099854592867 Shipping box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • Decorative functional design for urban environment
  • Easy installation due to fast connector and anti-drop screws
  • Very compact shape with high efficiency
  • Multi Lumen: Brightness adjustment via dip switches on the driver
  • Easy cable entry either on the back or from the side of the luminaire
Areas of application
  • Industry
  • Warehouses
  • Schools
  • Commercial buildings
Product features
  • High color consistency: ≤ 3 SDCM
  • Lifetime (L80/B10): up to 100,000 h (at 25 °C)
  • Multi Lumen function: power steps selectable
  • Multi Color function: 4000K and 3000K (20W version only)
  • Optics with wide beam angle of 55° x 135°
  • Ambient temperature in operation: -30…+45 °C
  • Daisy chaining possible
Equipment / Accessories
  • All required accessories included
  • Cable gland included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
Electrical data
Nominal wattage 40.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 180mA / 167mA / 137mA / 114mA / 98 mA
Inrush current 26.6 A
Inrush current time Th50 107.2 µs
Max. number of luminaires per miniature circuit breaker B16 25
Max. number of luminaires per miniature circuit breaker C10 20
Max. number of luminaires per miniature circuit breaker C16 33
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Operating mode Integrated LED driver
Photometrical data
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching 3 sdcm
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 55 ° x 135 °
Adjustable attributes
Nominal wattage Color temperature Luminous flux Luminous efficacy
40 W 3000 K 4600 lm 115 lm/W
36 W 3000 K 4284 lm 119 lm/W
30 W 3000 K 3720 lm 124 lm/W
25 W 3000 K 3225 lm 129 lm/W
20 W 3000 K 2620 lm 131 lm/W
Dimensions & Weight
Length 200.00 mm
Height 96.00 mm
Width 180.00 mm
Product weight 1470.00 g
Materials & Colors
Product color Gray
Housing color Gray
Body material Aluminum
Cover material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -30…+45 °C
Temperature range at storage -30…+80 °C
Type of connection Screwless terminal
Type of protection IP66/IP66
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Surface
Application environment Outdoor
With light source Yes
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 100000 h 1)
Lifespan L90/B10 at 25 °C 79000 h
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
Output current 1000mA/ 900mA / 750mA / 620mA / 500 mA
ECG - Output ripple current < 10 %
Emergency lighting
Luminous flux in emergency operation mode
Certificates & Standards
Standards CE, UKCA, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable
Additional product data
Product remark Available from October 2025
Added function MULTI SELECT
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854592867 Shipping box
1		 257 mm x 257 mm x 139 mm 1930.00 g 9.18 dm³
