NEW
URBAN WALLPACK
UB WALLPACK P 20W ML 83040 GY
GTIN: 4099854592850
Shipping box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Decorative functional design for urban environment
- Easy installation due to fast connector and anti-drop screws
- Very compact shape with high efficiency
- Multi Lumen: Brightness adjustment via dip switches on the driver
- Easy cable entry either on the back or from the side of the luminaire
Areas of application
- Industry
- Warehouses
- Schools
- Commercial buildings
Product features
- High color consistency: ≤ 3 SDCM
- Lifetime (L80/B10): up to 100,000 h (at 25 °C)
- Multi Lumen function: power steps selectable
- Multi Color function: 4000K and 3000K (20W version only)
- Optics with wide beam angle of 55° x 135°
- Ambient temperature in operation: -30…+45 °C
- Daisy chaining possible
Equipment / Accessories
- All required accessories included
- Cable gland included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 20.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 93mA / 78mA / 69mA / 57mA / 47 mA |
| Inrush current | 32 A |
| Inrush current time Th50 | 160.8 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 14 |
| Max. number of luminaires per miniature circuit breaker C10 | 12 |
| Max. number of luminaires per miniature circuit breaker C16 | 20 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 2300 lm / 2000 lm / 1800 lm / 1500 lm / 1260 lm |
| Luminous efficacy | 126 lm/W / 125 lm/W / 121 lm/W / 118 lm/W / 115 lm/W |
| Color temperature | 3000 K / 4000 K |
| Light color (designation) | Warm White…Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 3 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 55 ° x 135 ° |
Adjustable attributes
| Nominal wattage | Color temperature | Luminous flux | Luminous efficacy |
|---|---|---|---|
| 20 W | 4000 K | 2300 lm | 115 lm/W |
| 20 W | 3000 K | 2200 lm | 110 lm/W |
| 17 W | 4000 K | 2000 lm | 118 lm/W |
| 17 W | 3000 K | 1920 lm | 113 lm/W |
| 15 W | 4000 K | 1800 lm | 121 lm/W |
| 15 W | 3000 K | 1740 lm | 116 lm/W |
| 12 W | 4000 K | 1500 lm | 125 lm/W |
| 12 W | 3000 K | 1440 lm | 120 lm/W |
| 10 W | 4000 K | 1260 lm | 126 lm/W |
| 10 W | 3000 K | 1210 lm | 121 lm/W |
Dimensions & Weight
| Length | 200.00 mm |
| Height | 96.00 mm |
| Width | 180.00 mm |
| Product weight | 1450.00 g |
Materials & Colors
| Product color | Gray |
| Housing color | Gray |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -30…+45 °C |
| Temperature range at storage | -30…+80 °C |
| Type of connection | Screwless terminal |
| Type of protection | IP66/IP66 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall |
| Application environment | Outdoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 100000 h 1) |
| Lifespan L80/B10 at 25 °C | 100000 h 1) |
| Lifespan L90/B10 at 25 °C | 79000 h |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 500mA / 420mA / 360mA / 290mA / 230 mA |
| ECG - Output ripple current | < 10 % |
Emergency lighting
| Luminous flux in emergency operation mode |
Certificates & Standards
| Standards | CE, UKCA, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Product remark | Available from October 2025 |
| Added function | MULTI SELECT |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854592850 | Shipping box 1 |
257 mm x 257 mm x 139 mm | 1910.00 g | 9.18 dm³ |
User instruction / safety instructions
G11244300 URBAN WALLPACK
G11244300 URBAN WALLPACK
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety Insert G11205497
Safety Insert G11205497
Legal information
UB WALLPACK
UB WALLPACK
Legal information
UB WALLPACK
UB WALLPACK
Declarations of conformity
LED Wall Light
LED Wall Light

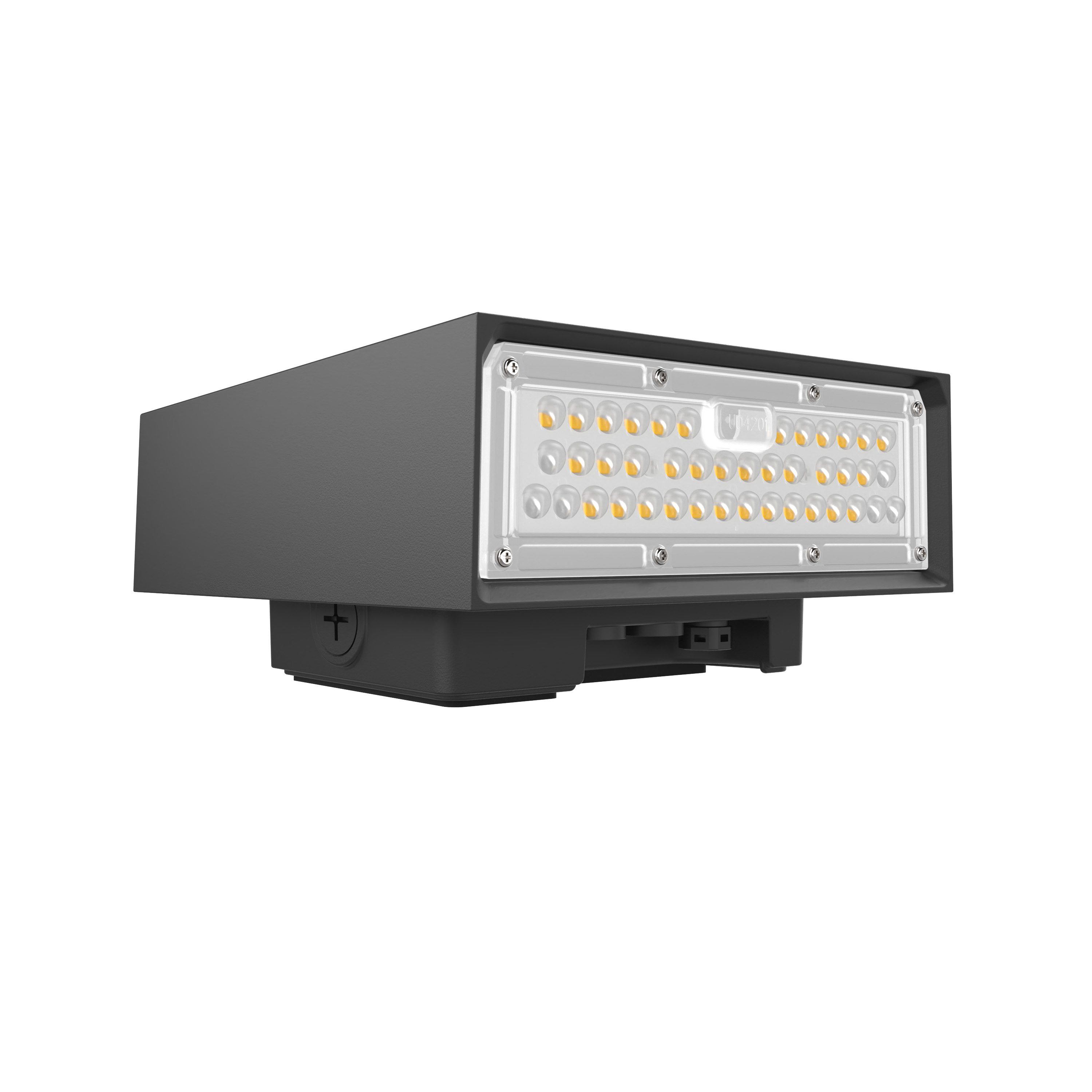

Product image: white background, diagonal
UB WALLPACK P LM GY
UB WALLPACK P LM GY

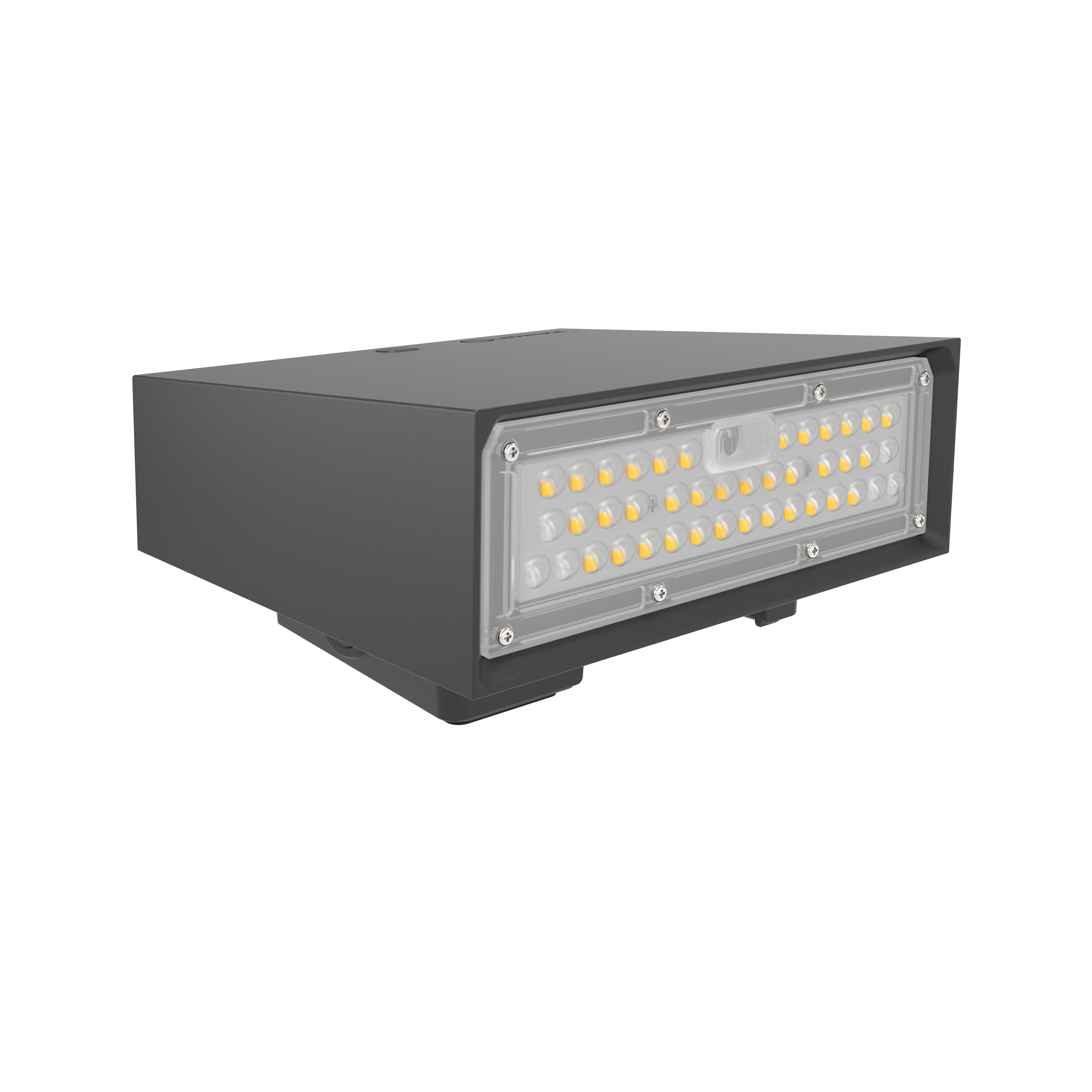

Product image: white background, diagonal, alternative image
UB WALLPACK P LM GY
UB WALLPACK P LM GY

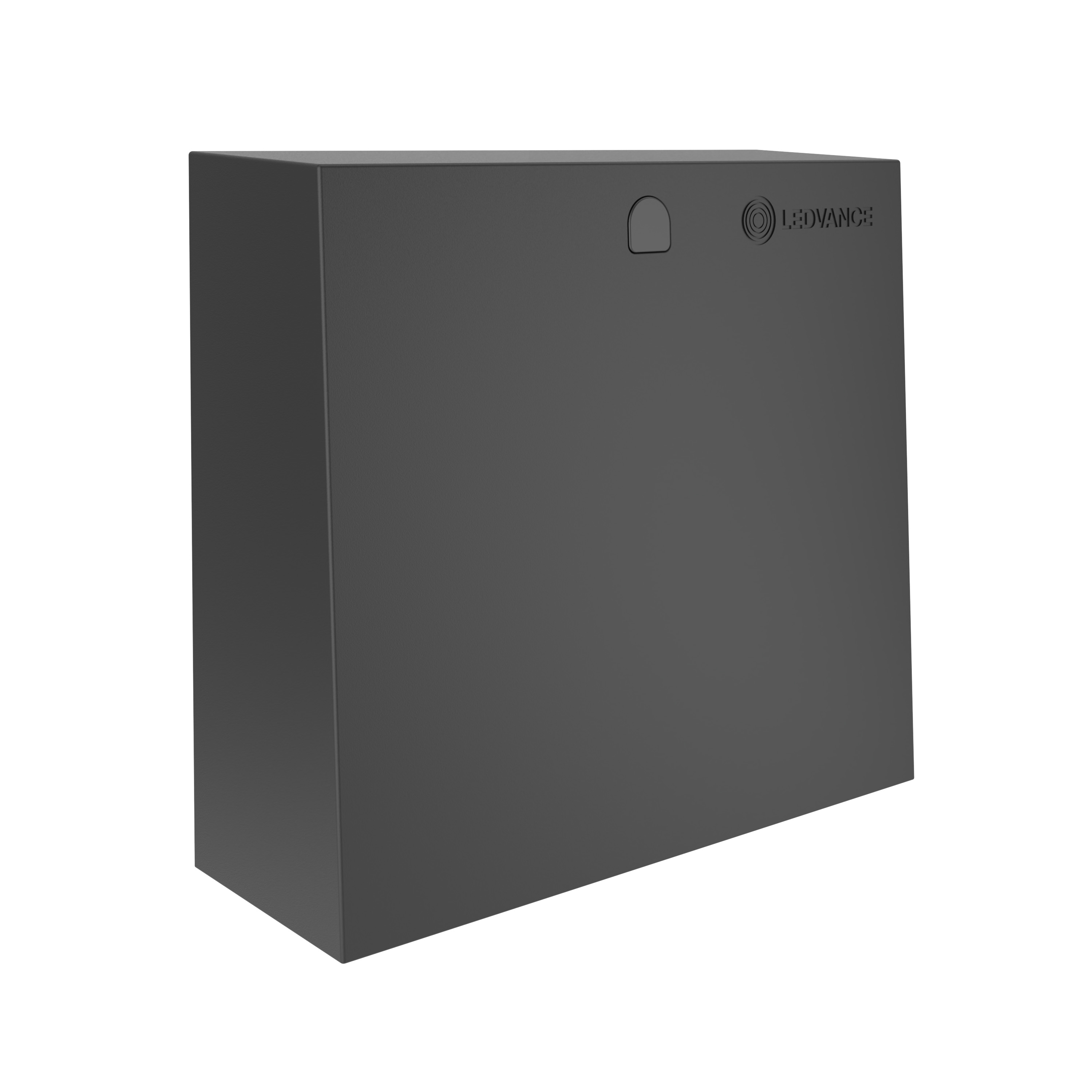

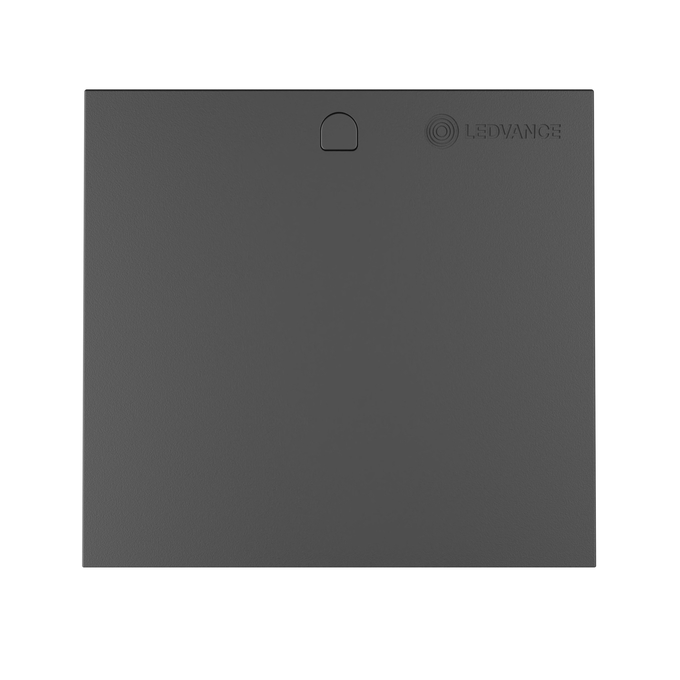

Product image: white background, upright
UB WALLPACK P LM GY
UB WALLPACK P LM GY

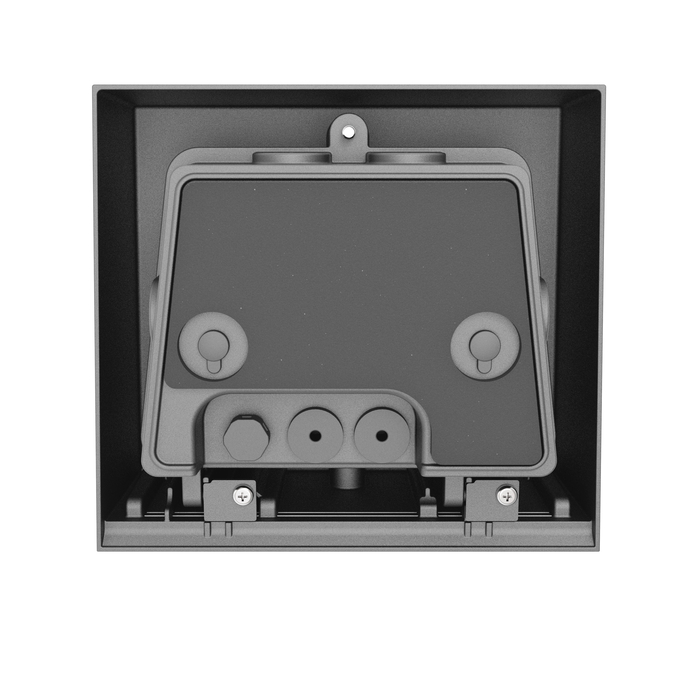

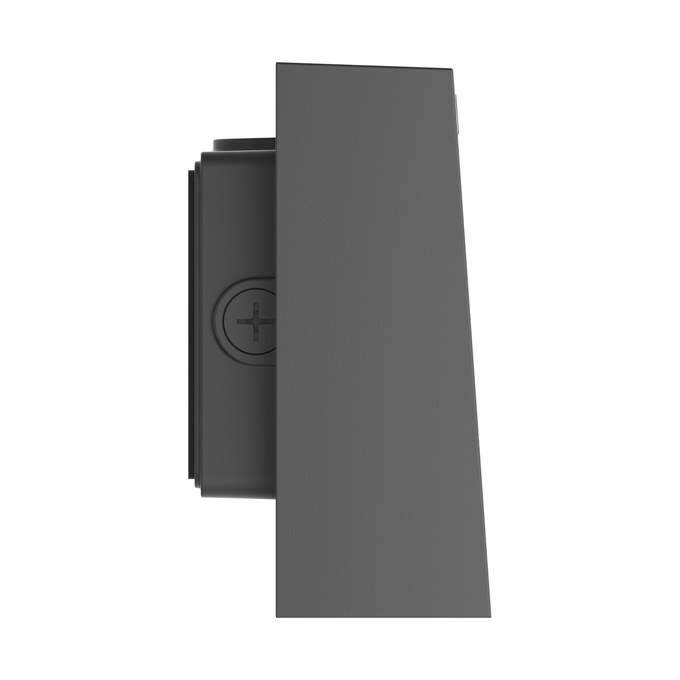

Product image: white background, upright, alternative image
