TRUSYS UNIVERSAL
TRUSYS UNIV P 73W 840 VN CL PS
GTIN: 4099854311581
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits

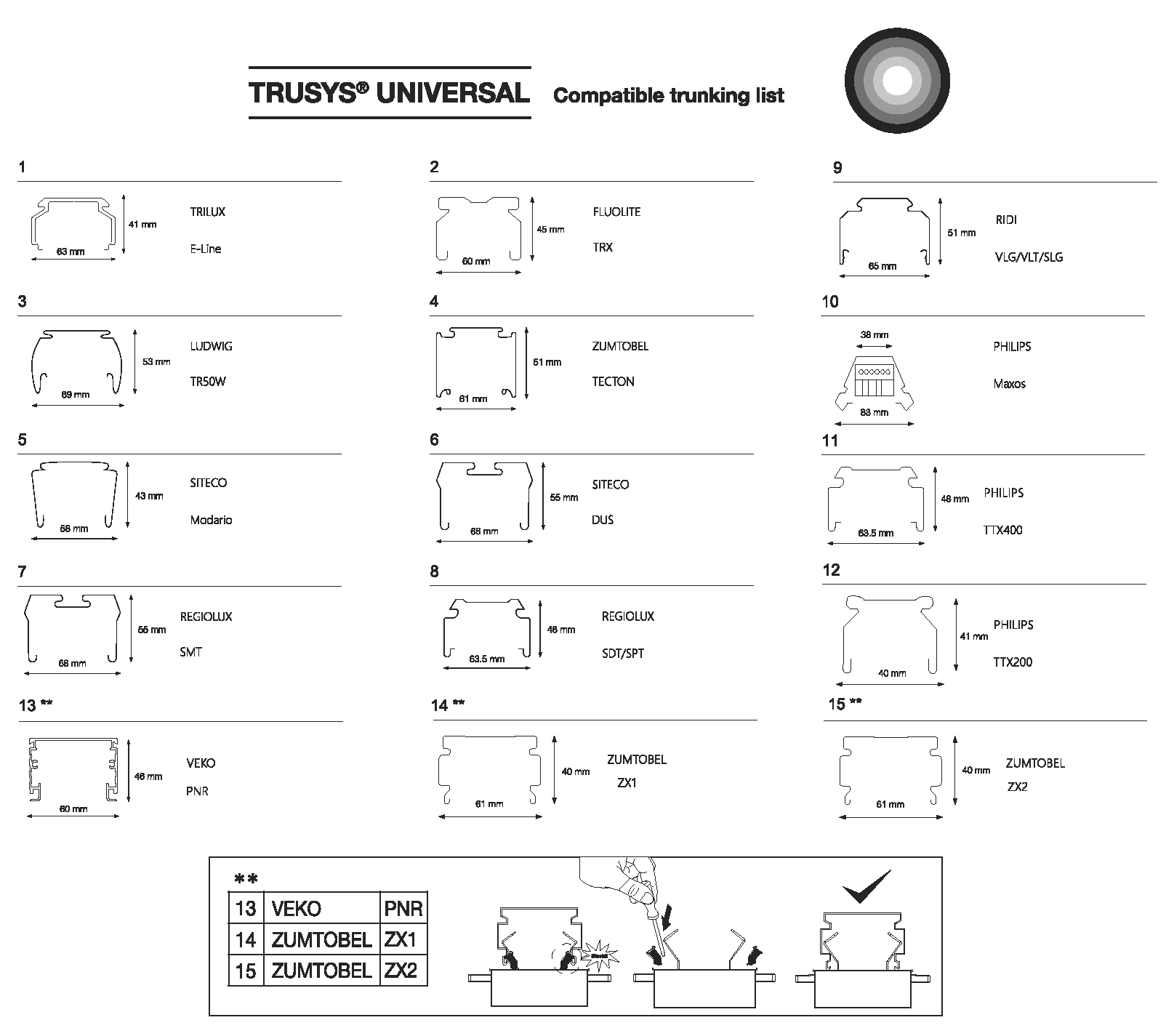

- The solution for refurbishment: universal fitting to existing trunking luminaire system
- Easy installation, no tools required for connection
- Energy saving and cost-effective
- Flexible application due to a range of different lumen packages and beam angles
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Industry halls, high rack warehouse, hardware stores
- Discounters, supermarkets
Product features

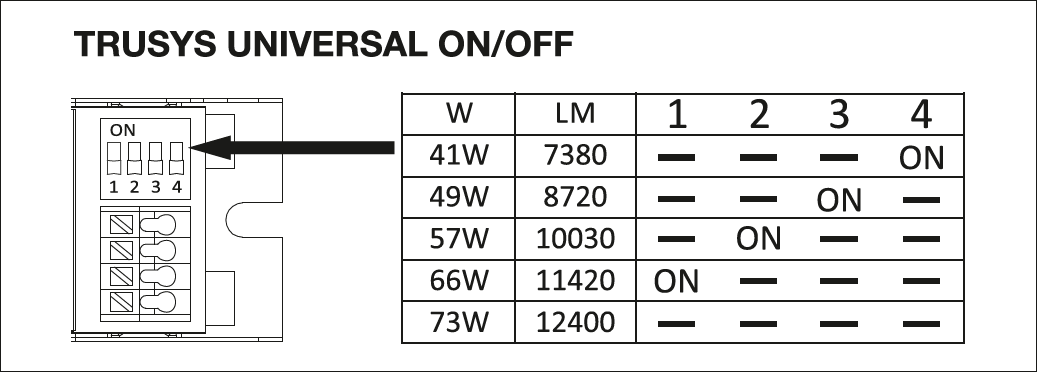

- Multi Lumen function: power steps selectable
- Beam angles: 120° (VW), 90° (W), 60° (N), 30° (VN)
- Click into place solution with smart click buttons
- Luminous efficacy: up to 185 lm/W
- Lifetime (L80/B10): up to 100,000 h (at 25 °C)
- Initial color consistency: ≤ 3 SDCM
Equipment / Accessories
- Various accessories available
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 73 W / 66 W / 57 W / 49 W / 41 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 0/50/60 Hz |
| Nominal current | 330…300…260…220…190 mA |
| Inrush current | 0.33 A |
| Inrush current time Th50 | 302 µs |

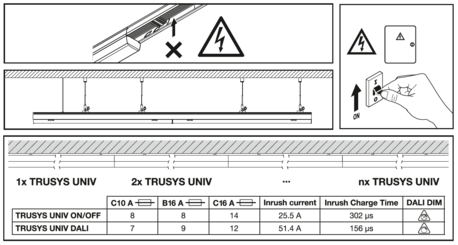

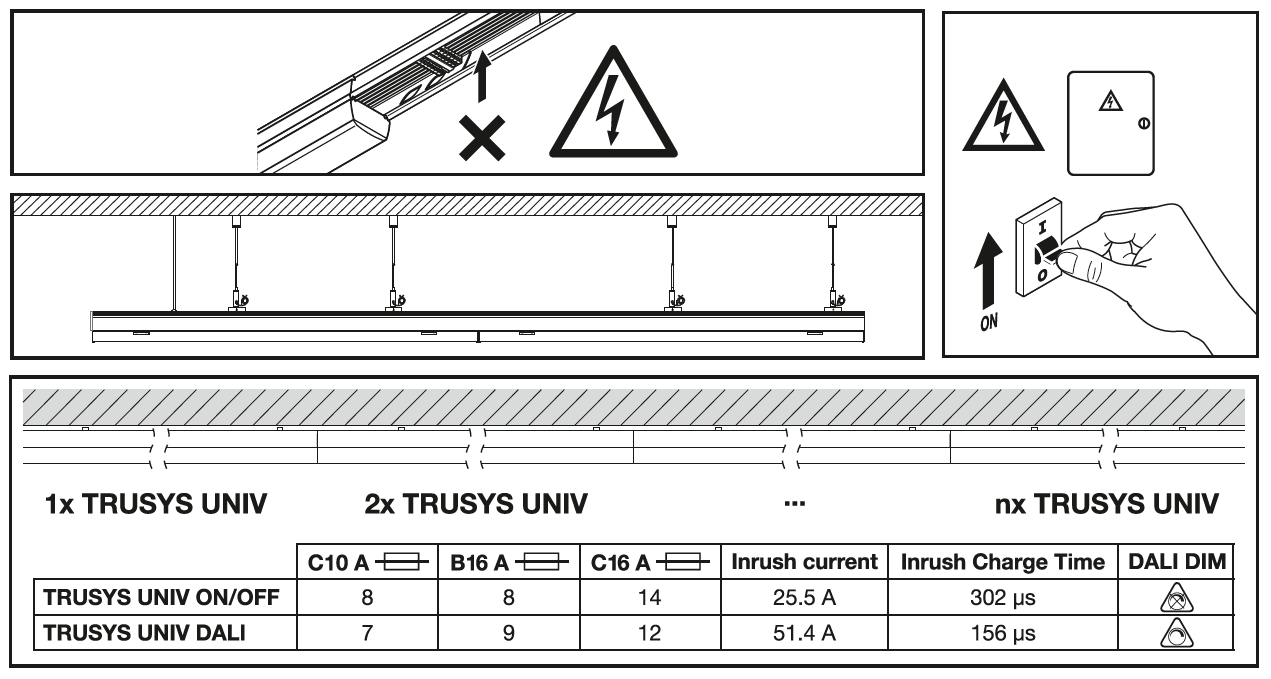

| Max. number of luminaires per miniature circuit breaker B16 | 8 |
| Max. number of luminaires per miniature circuit breaker C10 | 8 |
| Max. number of luminaires per miniature circuit breaker C16 | 14 |
| Power factor λ | ≥ 0.90 |
| Total harmonic distortion | ≤ 15 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 12400 lm / 11420 lm / 10030 lm / 8720 lm / 7380 lm |
| Luminous efficacy | 170 lm/W / 173 lm/W / 176 lm/W / 178 lm/W / 180 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤3 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 30 ° |
Dimensions & Weight
| Length | 1504.00 mm |
| Height | 26.00 mm |
| Width | 68.00 mm |
| Product weight | 1695.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Polymethylmethacrylate (PMMA) |
| Light emitting surface material | Polymethylmethacrylate (PMMA) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -40…+80 °C |
| Type of connection | Plug-In connection |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK02 |
| Dimmable | No |
| Mounting type | Surface/Suspended |
| Mounting location | Mounting rail |
| Application environment | Indoor |
| Adjustable | No |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 120000 h 1) |
| Lifespan L80/B10 at 25 °C | 100000 h 1) |
| Lifespan L90/B10 at 25 °C | 54000 h |
| Number of switching cycles | 50000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 450…400…350…300…250 mA |
| ECG - Output ripple current | < 5 % |
Certificates & Standards
| Standards | CE, CB, UKCA, ENEC, TÜV, EAC, EPD |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| EPD | LEDV-00033-V01.01-EN |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Added function | MULTI SELECT |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1), N,N-Dimethylformamide (68-12-2) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854311581 | Folding box 1 |
93 mm x 1,540 mm x 69 mm | 1985.00 g | 9.88 dm³ |
| 4099854311598 | Shipping box 4 |
1,560 mm x 295 mm x 110 mm | 9400.00 g | 50.62 dm³ |
User instruction / safety instructions
TRUSYS UNIVERSAL
TRUSYS UNIVERSAL
Legal information
Legal insert
Legal insert
Legal information
LISO Insert TRUSYS UNIVERSAL
LISO Insert TRUSYS UNIVERSAL
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
CE Declaration Trusys Universal
CE Declaration Trusys Universal
EPD
TRUSYS UNIVERSAL DALI
TRUSYS UNIVERSAL DALI

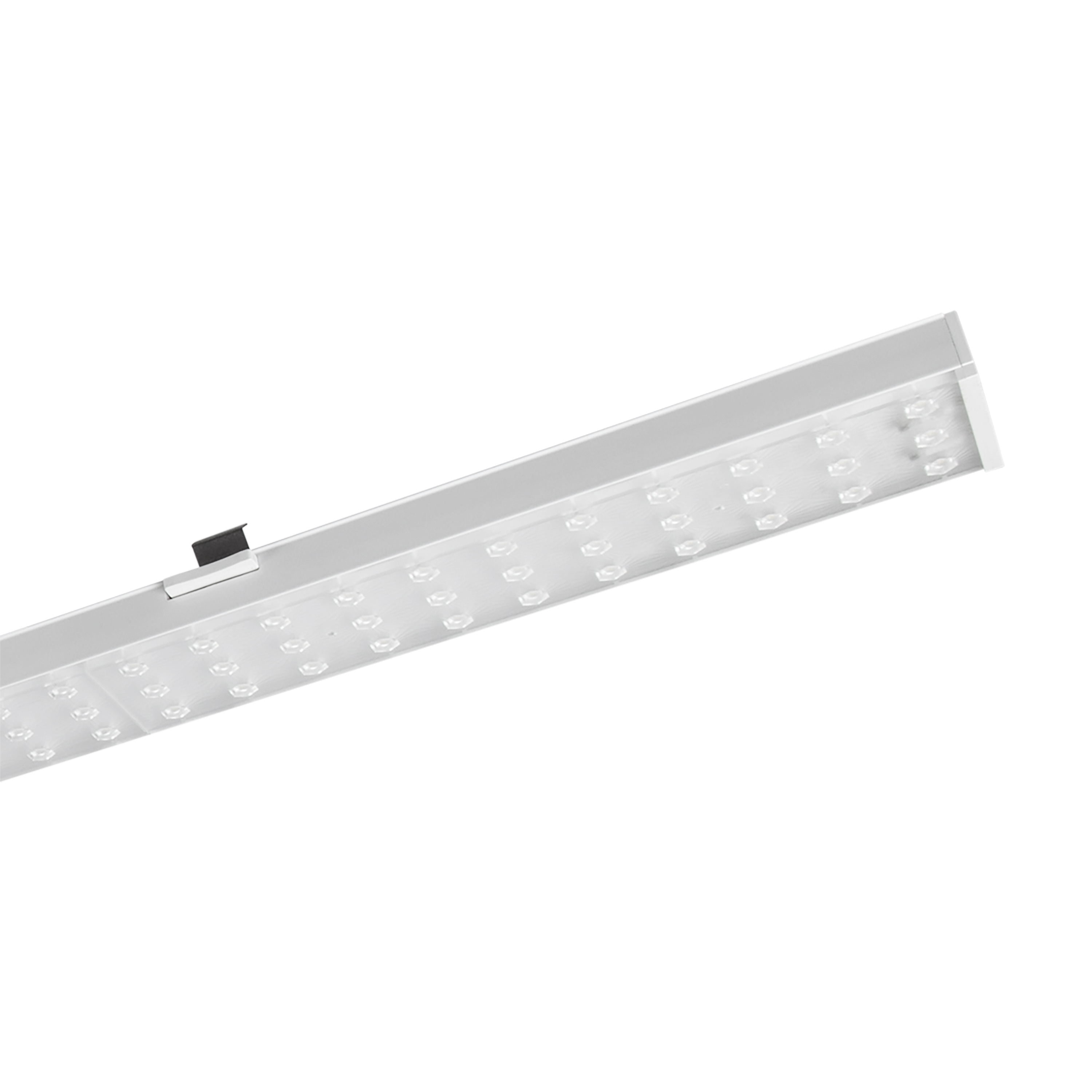

Product image: white background, diagonal
TRUSYS UNIV P 73/75W 840 CL PS/DALI
TRUSYS UNIV P 73/75W 840 CL PS/DALI

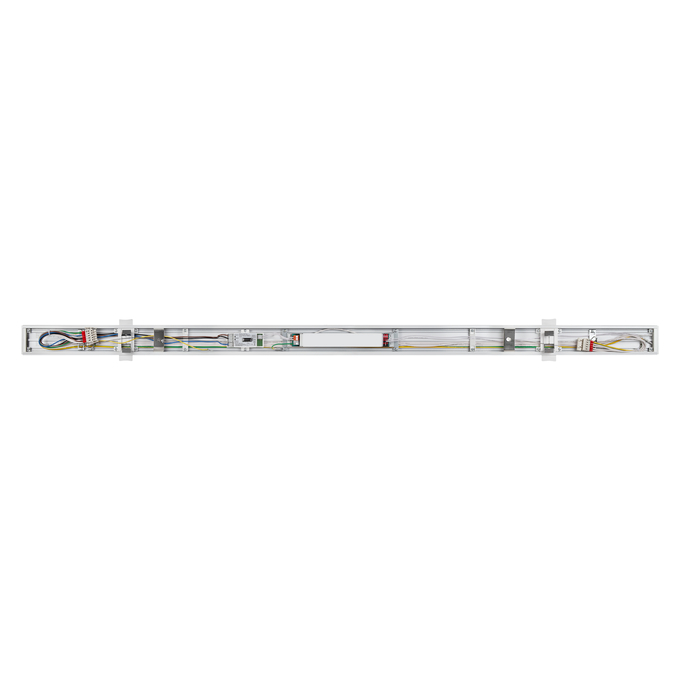

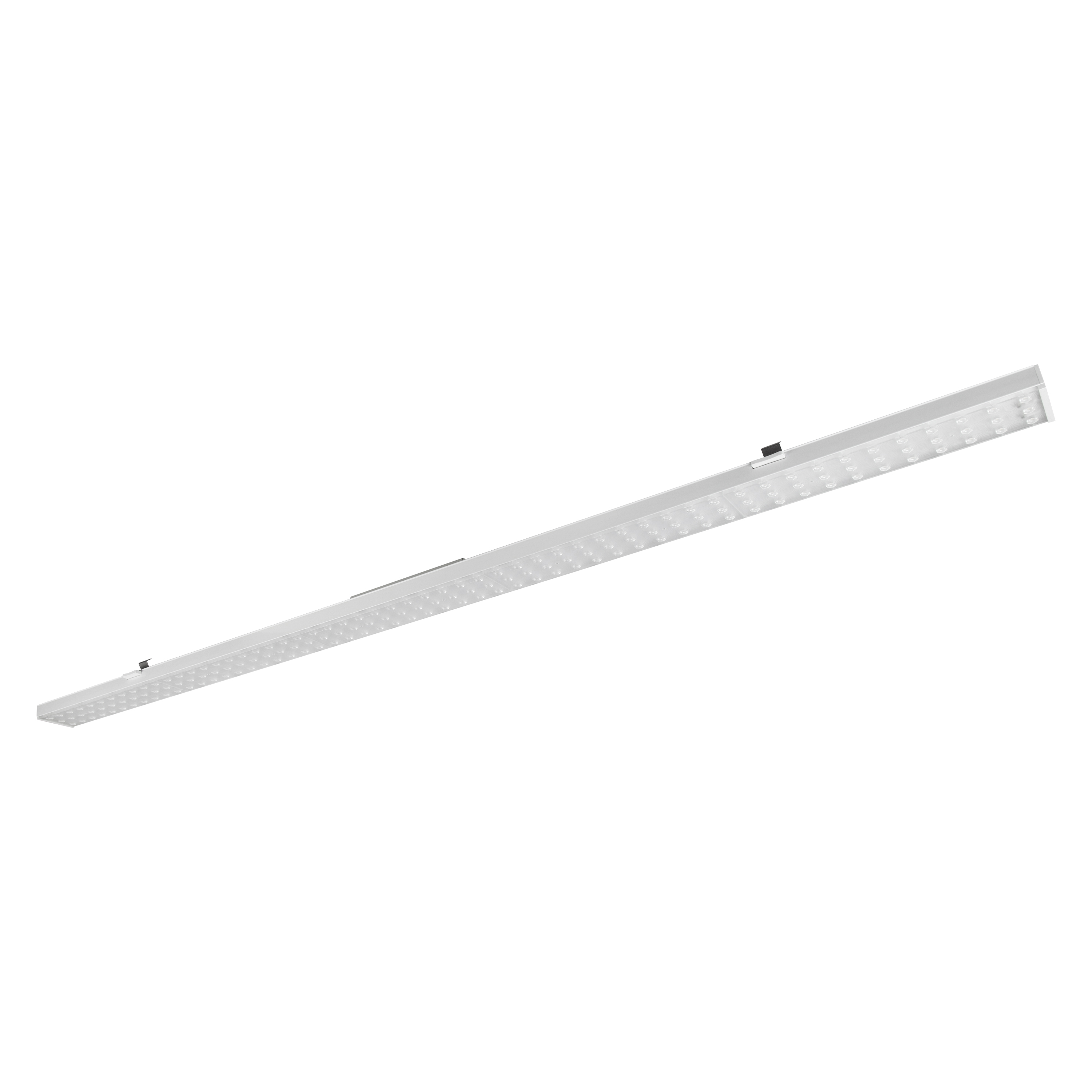

Product image: white background, diagonal, alternative image
TRUSYS UNIV P 73/75W 840 CL PS/DALI
TRUSYS UNIV P 73/75W 840 CL PS/DALI

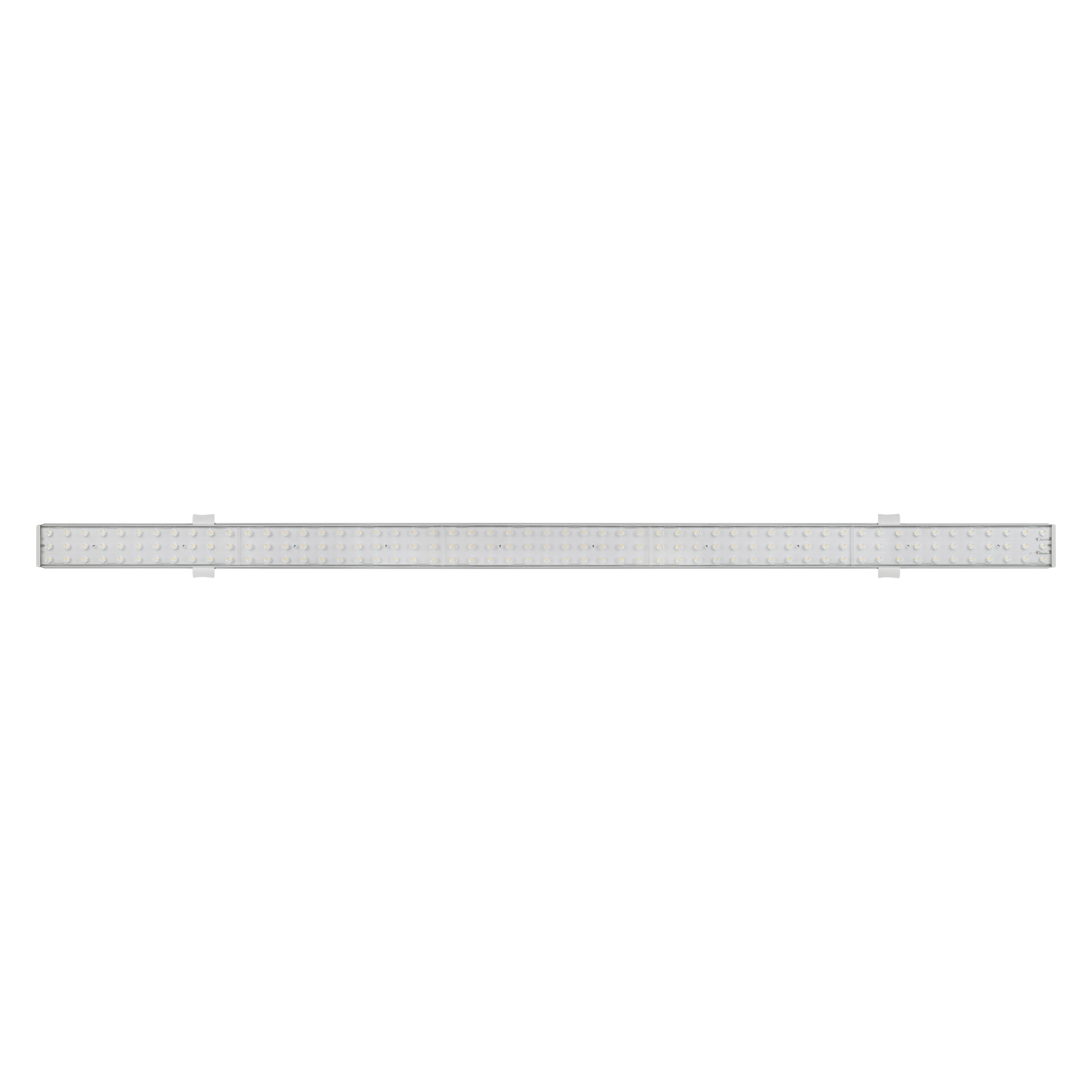

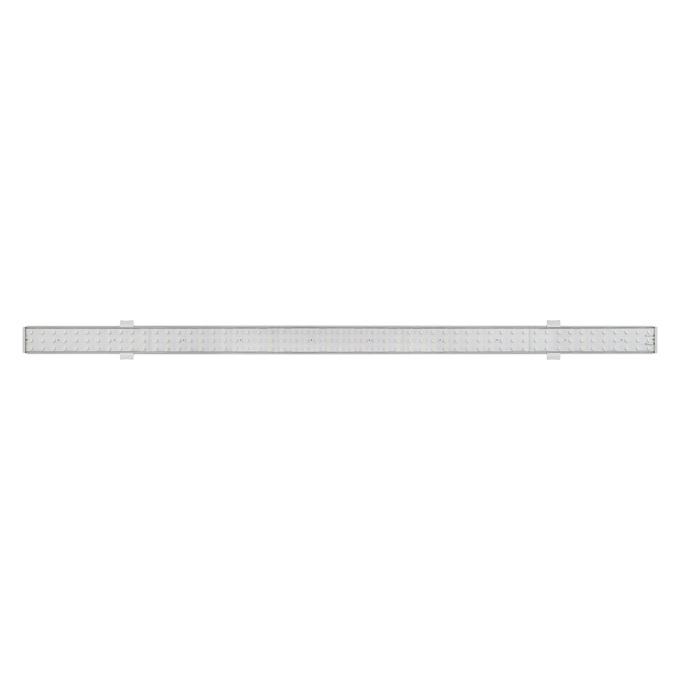

Product image: white background, horizontal
TRUSYS UNIV P 73/75W 840 CL PS/DALI
TRUSYS UNIV P 73/75W 840 CL PS/DALI
Product line drawing with letters
TRUSYS UNIV P 73/75W 840 CL PS/DALI
TRUSYS UNIV P 73/75W 840 CL PS/DALI
Product line drawing with numbers
TRUSYS UNIV P 73/75W 840 CL PS/DALI
TRUSYS UNIV P 73/75W 840 CL PS/DALI

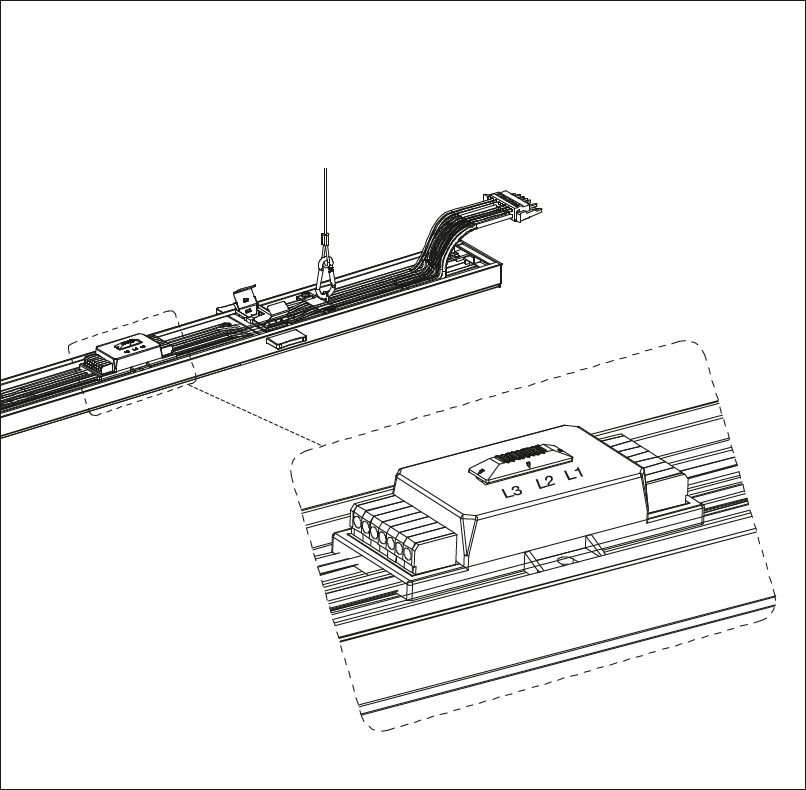

Product line drawing - technical
TRUSYS UNIV P 73/75W 840 CL PS/DALI
TRUSYS UNIV P 73/75W 840 CL PS/DALI

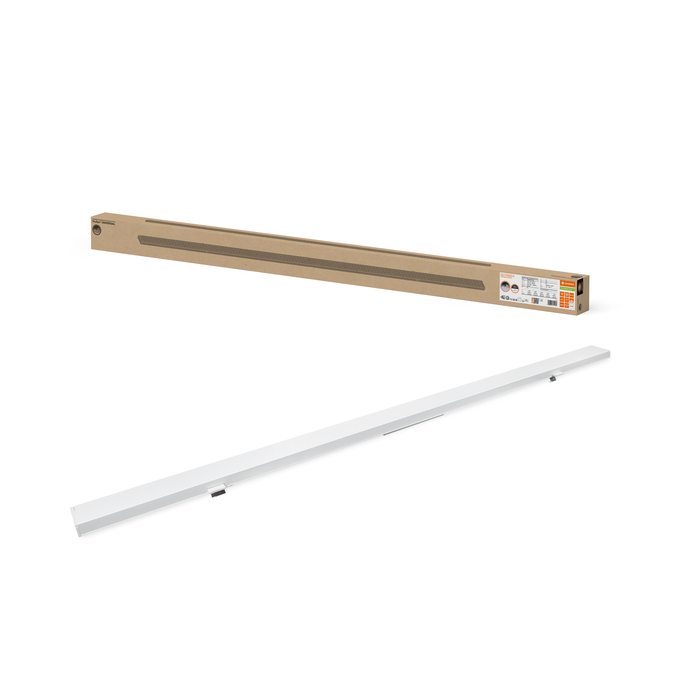

Combo Shot = Product Beauty Shot + Packaging Image
TRUSYS UNIV P 73W 840 VN CL PS
TRUSYS UNIV P 73W 840 VN CL PS
Packaging image, frontal
TRUSYS UNIV P 73W 840 VN CL PS
TRUSYS UNIV P 73W 840 VN CL PS
Packaging image, spacial
TRUSYS UNIV P 73W 840 VN CL PS
TRUSYS UNIV P 73W 840 VN CL PS
Catalog info 1
TRUSYS UNIVERSAL P
TRUSYS UNIVERSAL P
Catalog info 2
TRUSYS UNIVERSAL P
TRUSYS UNIVERSAL P
Catalog info 3
TRUSYS UNIVERSAL P
TRUSYS UNIVERSAL P
Catalog info 4
TRUSYS UNIVERSAL P
TRUSYS UNIVERSAL P
Catalog info 5
TRUSYS UNIVERSAL P
TRUSYS UNIVERSAL P
IES file (IES)
TRUSYS UNIV P 73W 840 VN CL PS
TRUSYS UNIV P 73W 840 VN CL PS
LDT file (Eulumdat)
TRUSYS UNIV P 73W 840 VN CL PS
TRUSYS UNIV P 73W 840 VN CL PS
ULD file (DIALux)
TRUSYS UNIV P 73W 840 VN CL PS
TRUSYS UNIV P 73W 840 VN CL PS
ROLF file (RELUX)
TRUSYS UNIV P 73W 840 VN CL PS
TRUSYS UNIV P 73W 840 VN CL PS
UGR file (UGR table)
TRUSYS UNIV P 73W 840 VN CL PS
TRUSYS UNIV P 73W 840 VN CL PS
Light distribution curve type cone
TRUSYS UNIV P 73W 840 VN CL PS
TRUSYS UNIV P 73W 840 VN CL PS
Light distribution curve type polar
TRUSYS UNIV P 73W 840 VN CL PS
TRUSYS UNIV P 73W 840 VN CL PS
BIM Revit 3D
TruSys Universal
TruSys Universal
CAD STEP 3D
TRUSYS UNIV
TRUSYS UNIV
Tender documents
TRUSYS UNIVERSAL 73W 840 VN CL PS-EN
TRUSYS UNIVERSAL 73W 840 VN CL PS-EN
Application pictures Getty

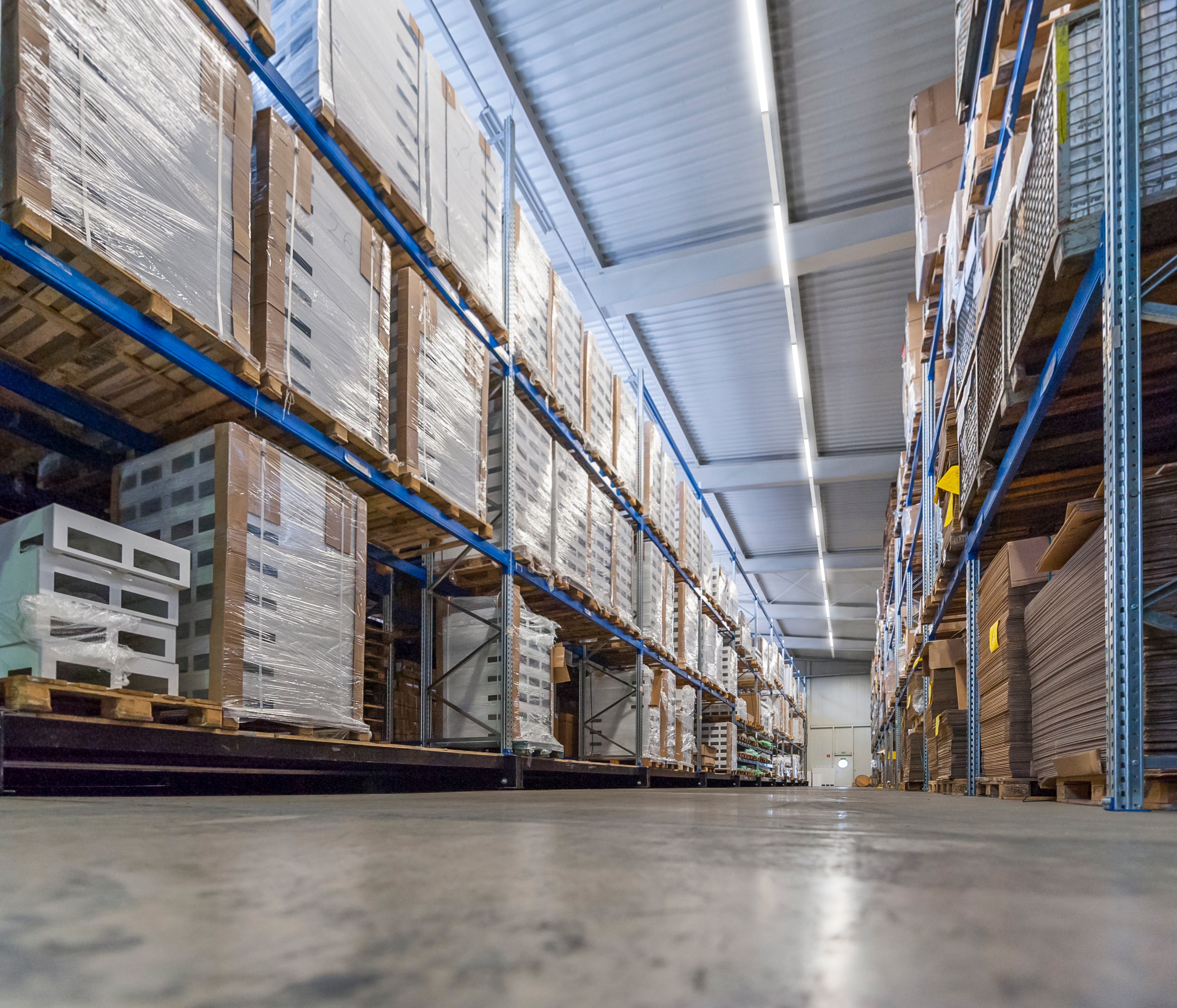

Trusys Universal high rack warehouse with pallets
Trusys Universal high rack warehouse with pallets
Application pictures Getty

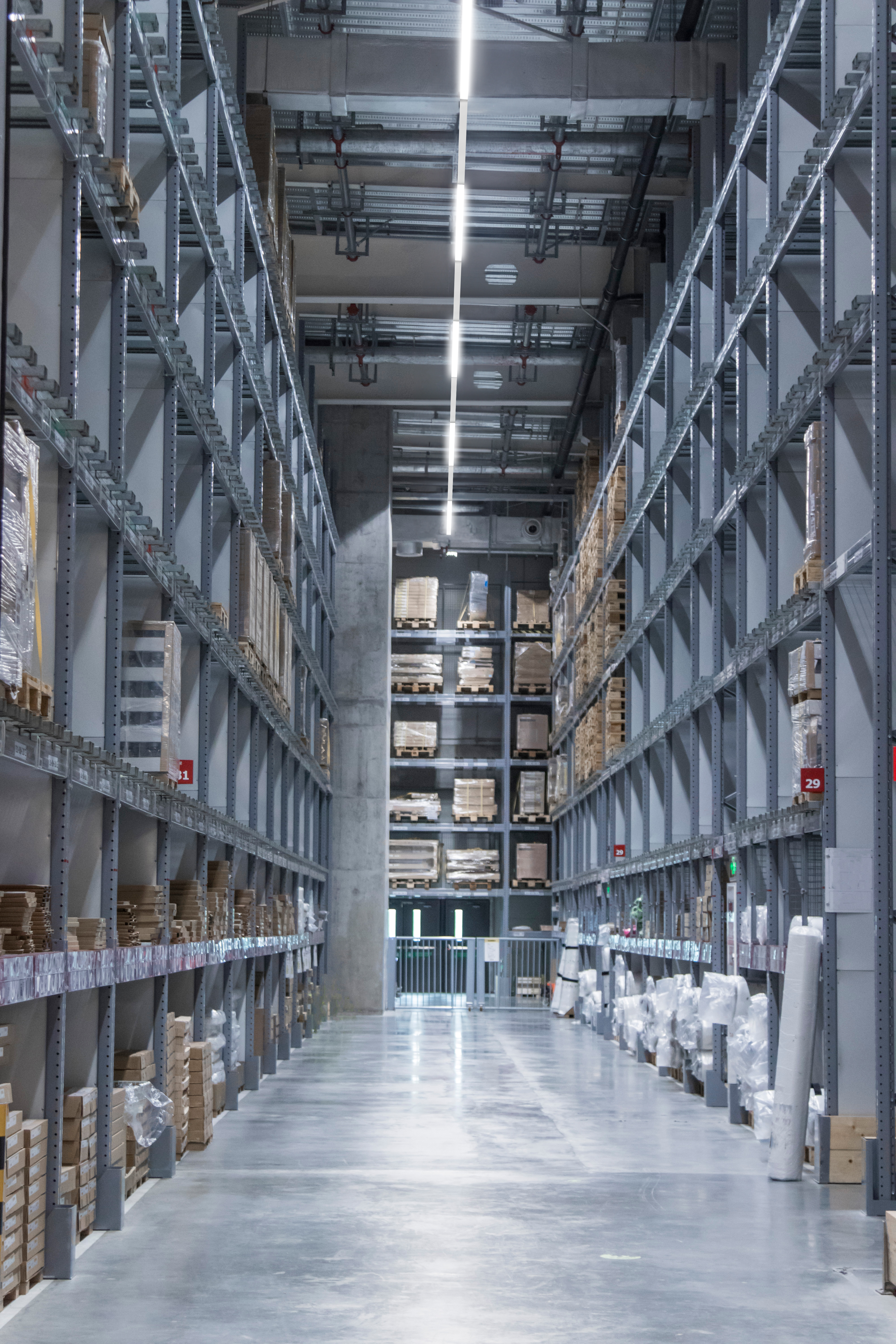

Trusys Universal warehouse
