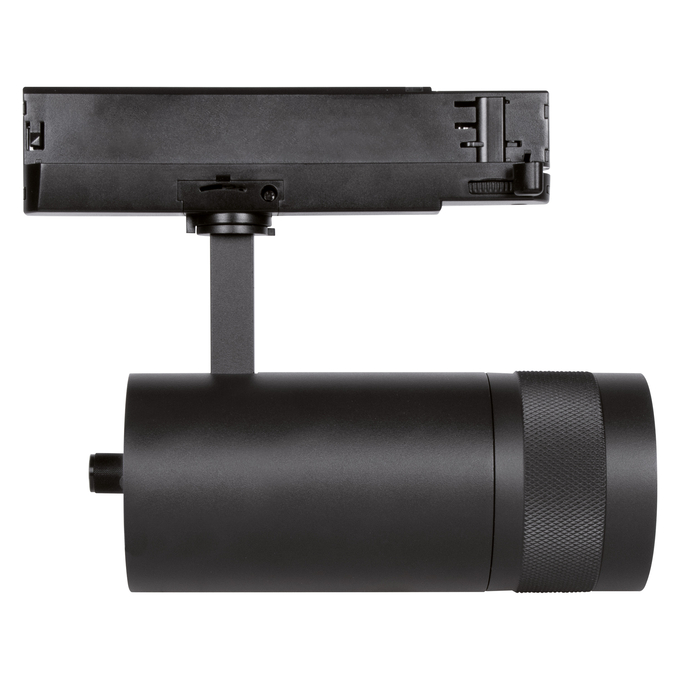

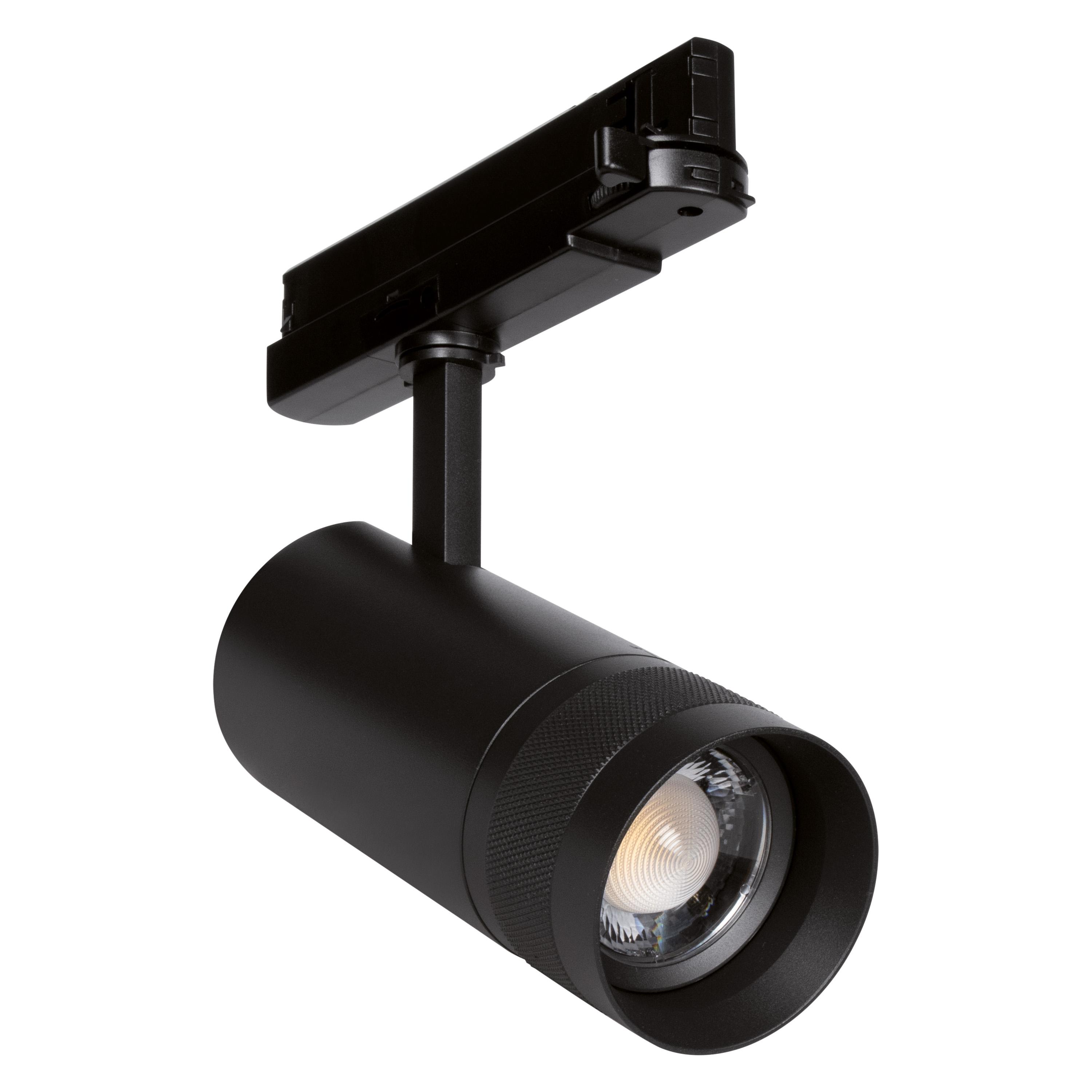

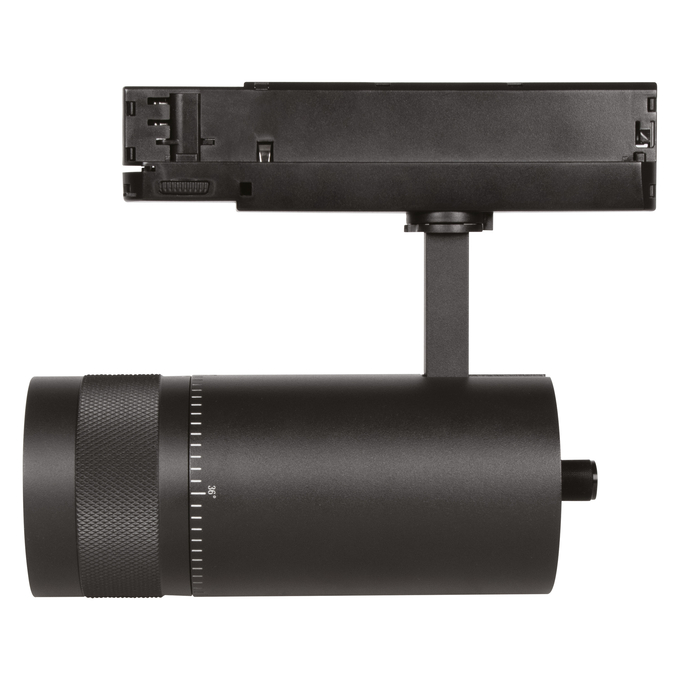

TRACKLIGHT SPOT ZOOM DIM CCT

TR SP ZOOM DIM P 20W 93040 BK

GTIN: 4099854616204 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • Dimmable 3-phase tracklight spot with mechanical zoom lense
  • No distraction from the illuminated objects thanks to the reduced design
  • Low flicker light thanks to special electronic control gear
Areas of application
  • Direct replacement for luminaires using HID lamps
  • Accent lighting
  • Galleries, museums
  • Shops, changing rooms, shop windows
  • Hotels, restaurants
Product features

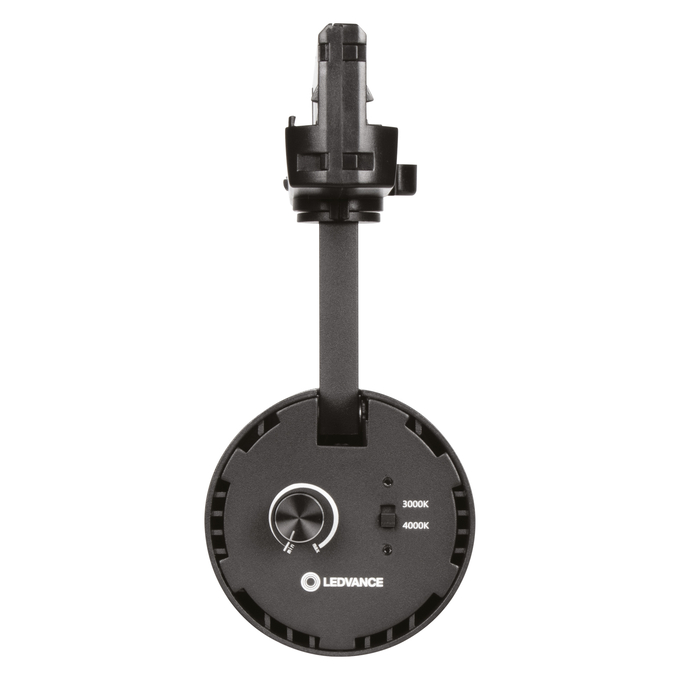

  • Multi Color function: 4000K and 3000K
  • Mechanical zoom lens with a beam angle of 21° to 50°
  • Dimmable (3% - 100%) via potentiometer directly on each luminaire
  • Color rendering index CRI 90
  • Initial color consistency: ≤ 3 SDCM
  • Rotation angle: 350°, tilt angle: 90°
  • Durable die-cast aluminum housing
  • Available in matt white (like RAL9003), matt black (like RAL9005)
  • Luminaire efficacy: up to 120 lm/W
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
Electrical data
Nominal wattage 20.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 500.000 mA
Inrush current 0.56 A
Inrush current time Th50 49 µs
Max. number of luminaires per miniature circuit breaker B16 140
Max. number of luminaires per miniature circuit breaker C10 87
Max. number of luminaires per miniature circuit breaker C16 140
Power factor λ > 0.90
Total harmonic distortion < 15 %
Protection class I
Surge capability (L-N) 1000 V
Surge capability (L/N-Ground) 2000 V
Operating mode Integrated LED driver
Photometrical data
Luminous flux 1600 lm / 1300 lm 1)
Luminous efficacy 80 lm/W / 65 lm/W 2)
Color temperature 3000 K / 4000 K
Light color (designation) Warm White, Cool white
Color rendering index Ra > 90
Standard deviation of color matching ≤3 sdcm
Luminous intensity 1650 cd
Low flicker Yes
Flickering metric (Pst LM) < 1
Stroboscope effect metric (SVM) < 0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 21 °…50 °
UGR < 23
1) 1600lm@50° , 1300lm@21°
2) 80lm/W@50° , 65lm/W@21°
Dimensions & Weight
Diameter 72.00 mm
Length 189.00 mm
Height 256.00 mm
Product weight 720.00 g
Materials & Colors
Product color Black
Housing color Black
Body material Aluminum
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Adapter, 3-phase
Type of protection IP20/IP20
Protection class IK (shock resistance) IK03
Dimmable Yes
Type of dimming 1-10V
Mounting type Surface
Mounting location Mounting track
Application environment Indoor
Adjustable Yes
With light source Yes
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L90/B10 at 25 °C 25000 h
Number of switching cycles 25000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
Output current 500 mA
ECG - Output ripple current < 3 %
Emergency lighting
Type of emergency operation test None
Certificates & Standards
Standards CE, ENEC, UKCA, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable
Additional product data
Product remark Available from September 2025
Added function MULTI SELECT
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854616204 Folding box
1		 211 mm x 247 mm x 100 mm 881.00 g 5.21 dm³
4099854616211 Shipping box
4		 440 mm x 267 mm x 230 mm 4060.00 g 27.02 dm³
