Coming soon
TRACKLIGHT SPOT GU10
TR SP HOUSING E GU10 WT
GTIN: 4099854590023
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Socket compatible for lamp power up to 10W
Areas of application
- Shops, changing rooms, shop windows
- Hotels, restaurants
Product features
- Base: GU10
- Rotation angle: 350°, tilt angle: 90°
- Durable die-cast aluminum housing
- Available in matt white (like RAL9003), matt black (like RAL9005)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
Dimensions & Weight
| Diameter | 58.00 mm |
| Height | 145.00 mm |
| Product weight | 151.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Adapter, 3-phase |
| Protection class IK (shock resistance) | IK02 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Mounting track |
| Application environment | Indoor |
| Adjustable | Yes |
| With light source | No |
| Replaceable light source | No |
| Holder designation | GU10 |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
Additional product data
| Product remark | Available from September 2025 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854590023 | Folding box 1 |
67 mm x 92 mm x 163 mm | 185.00 g | 1.00 dm³ |
| 4099854590030 | Shipping box 20 |
385 mm x 350 mm x 190 mm | 4347.00 g | 25.60 dm³ |
User instruction / safety instructions
G11248823 TRACKLIGHT SPOT HOUSING E GU10
G11248823 TRACKLIGHT SPOT HOUSING E GU10
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
TRACKLIGHT SPOT HOUSING E GU10
TRACKLIGHT SPOT HOUSING E GU10

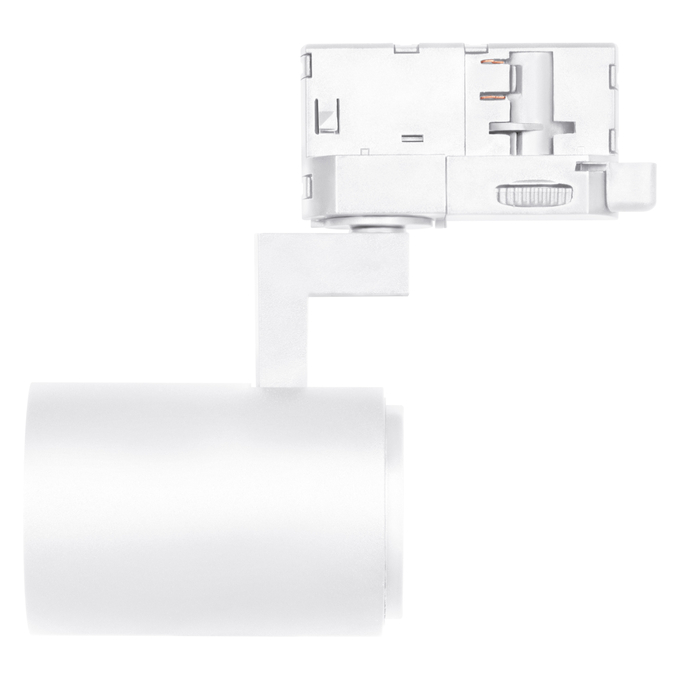

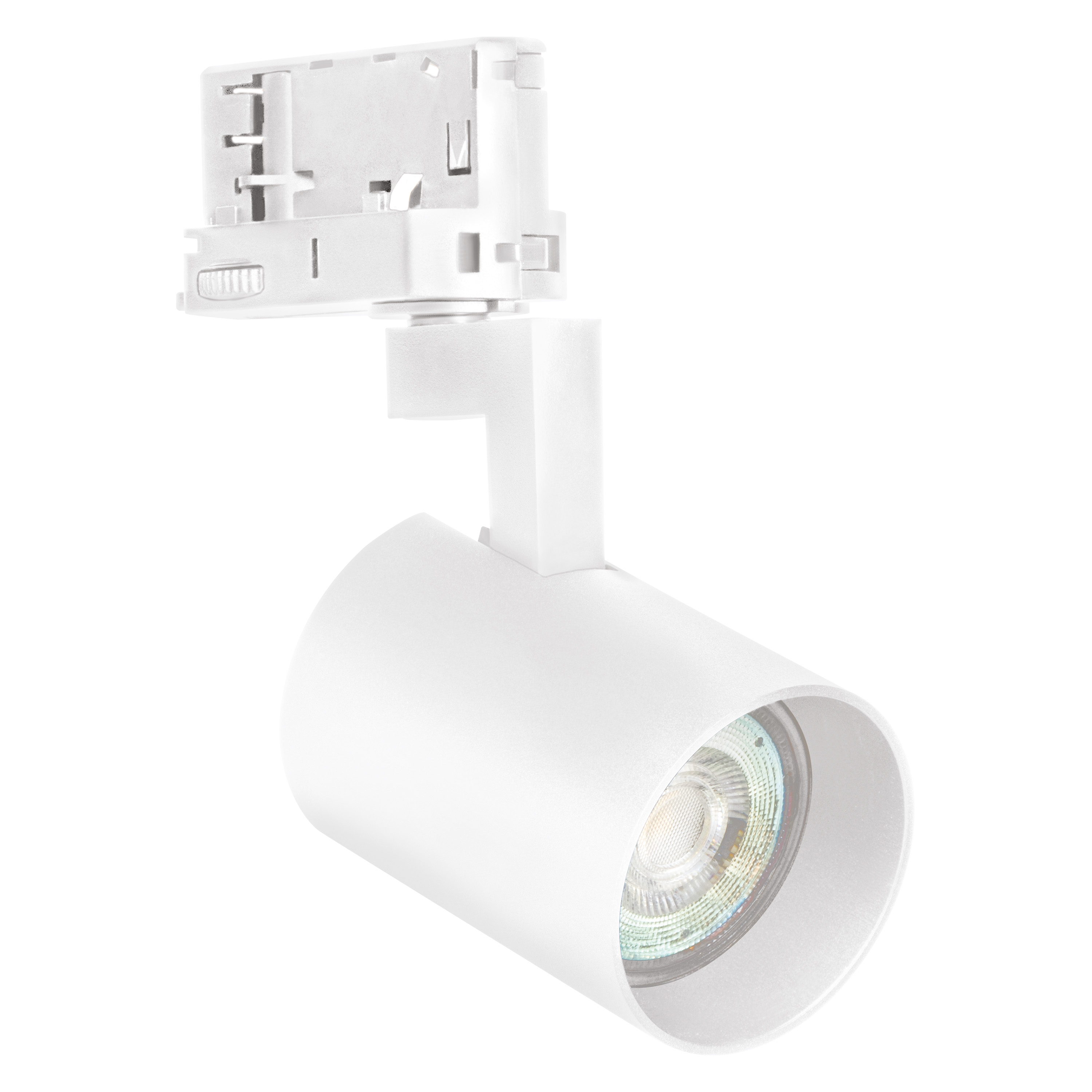

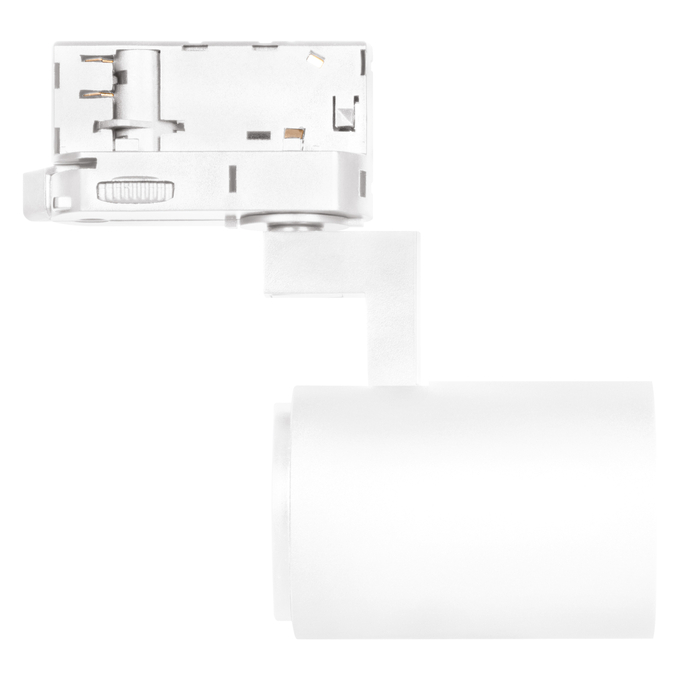

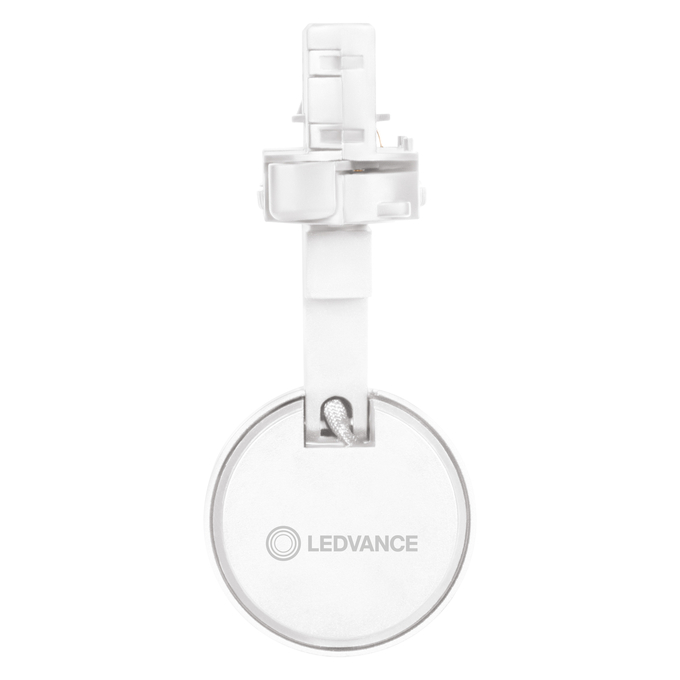

Product image: white background, diagonal
TR SP HOUSING E GU10 WT
TR SP HOUSING E GU10 WT

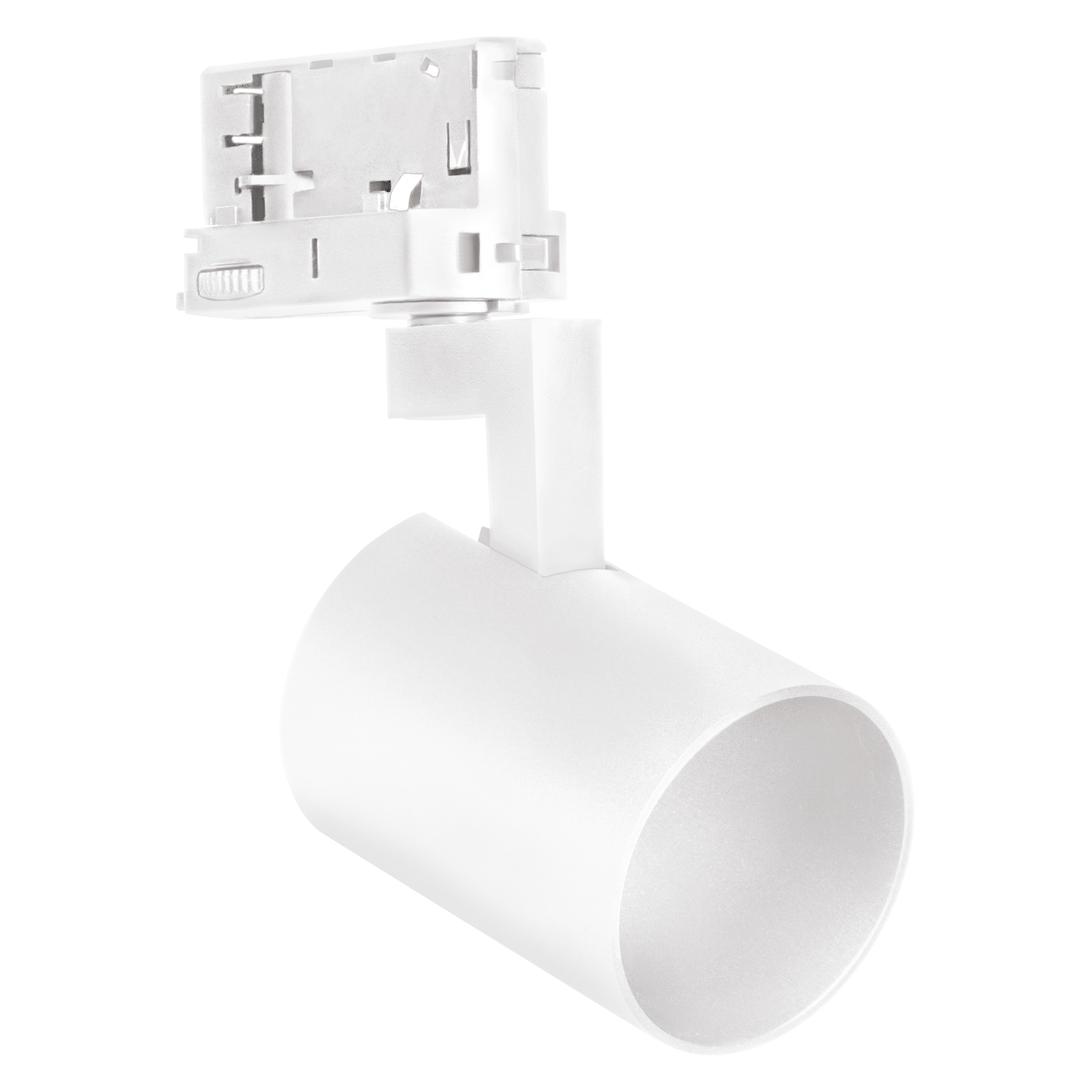

Product image: white background, diagonal, alternative image
