Coming soon
TRACKLIGHT SPOT GU10

TR SP HOUSING E GU10 BK

GTIN: 4099854590009 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Socket compatible for lamp power up to 10W
Areas of application
  • Shops, changing rooms, shop windows
  • Hotels, restaurants
Product features
  • Base: GU10
  • Rotation angle: 350°, tilt angle: 90°
  • Durable die-cast aluminum housing
  • Available in matt white (like RAL9003), matt black (like RAL9005)
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
Electrical data
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Dimensions & Weight
Diameter 58.00 mm
Height 145.00 mm
Product weight 151.00 g
Materials & Colors
Product color Black
Housing color Black
Body material Aluminum
Glow Wire Test according to IEC 60695-2-12 650 °C
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Adapter, 3-phase
Protection class IK (shock resistance) IK02
Dimmable No
Mounting type Surface
Mounting location Mounting track
Application environment Indoor
Adjustable Yes
With light source No
Replaceable light source No
Holder designation GU10
Certificates & Standards
Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Additional product data
Product remark Available from September 2025
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854590009 Folding box
1		 67 mm x 92 mm x 163 mm 185.00 g 1.00 dm³
4099854590016 Shipping box
20		 385 mm x 350 mm x 190 mm 4347.00 g 25.60 dm³
User instruction / safety instructions
G11248823 TRACKLIGHT SPOT HOUSING E GU10
PDF (2.4 MB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Declarations of conformity
TRACKLIGHT SPOT HOUSING E GU10
PDF (264.9 KB)

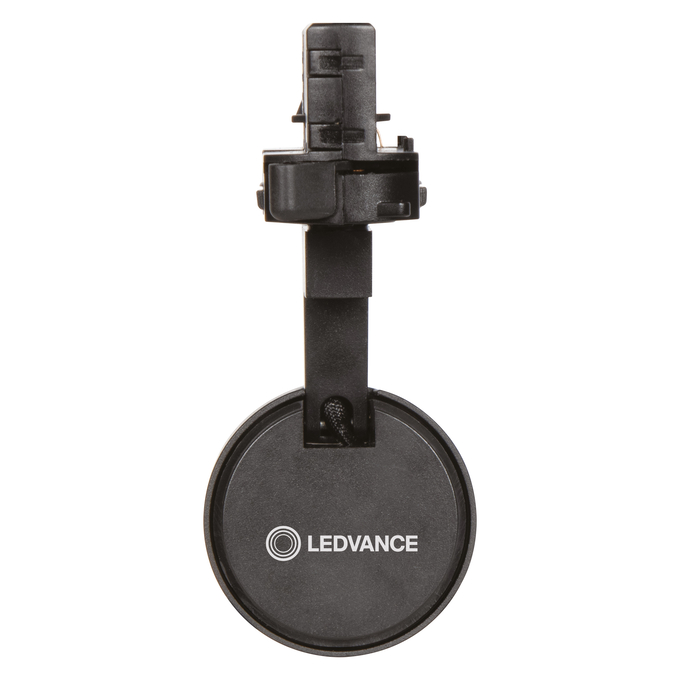

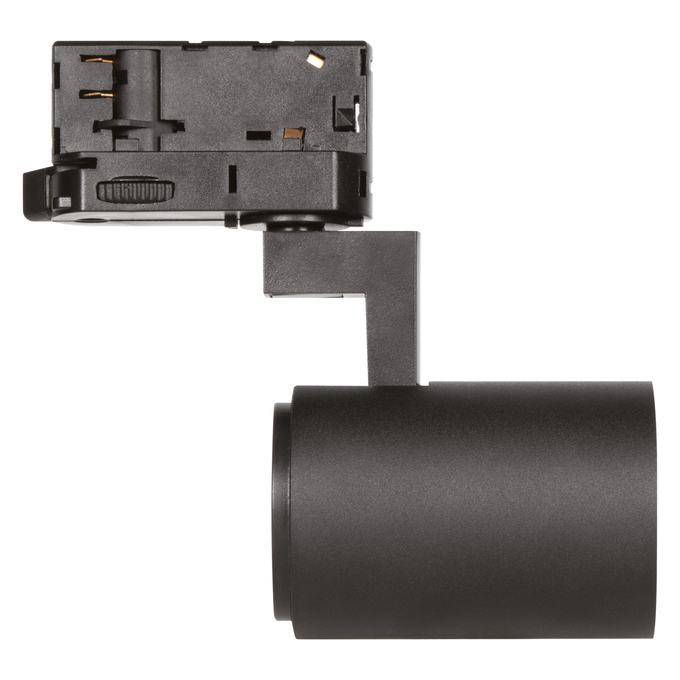

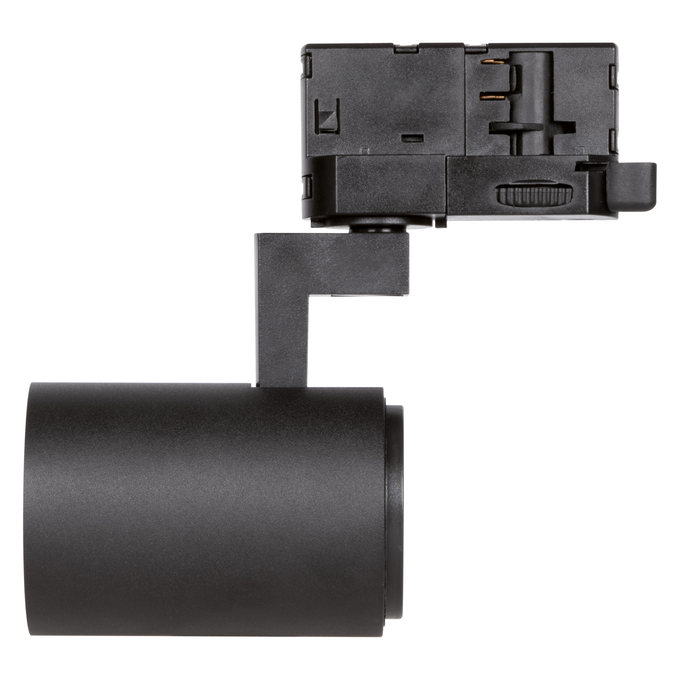

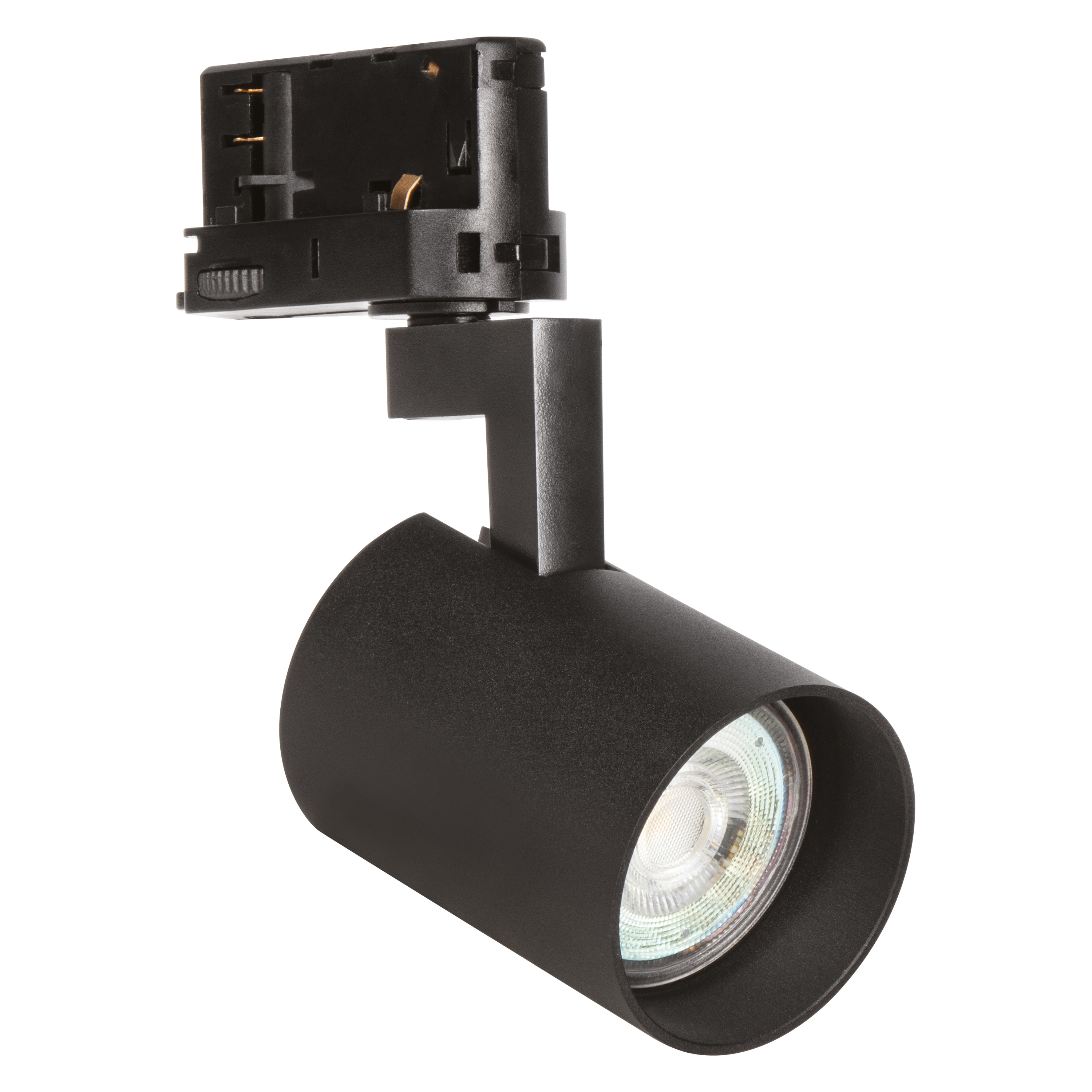

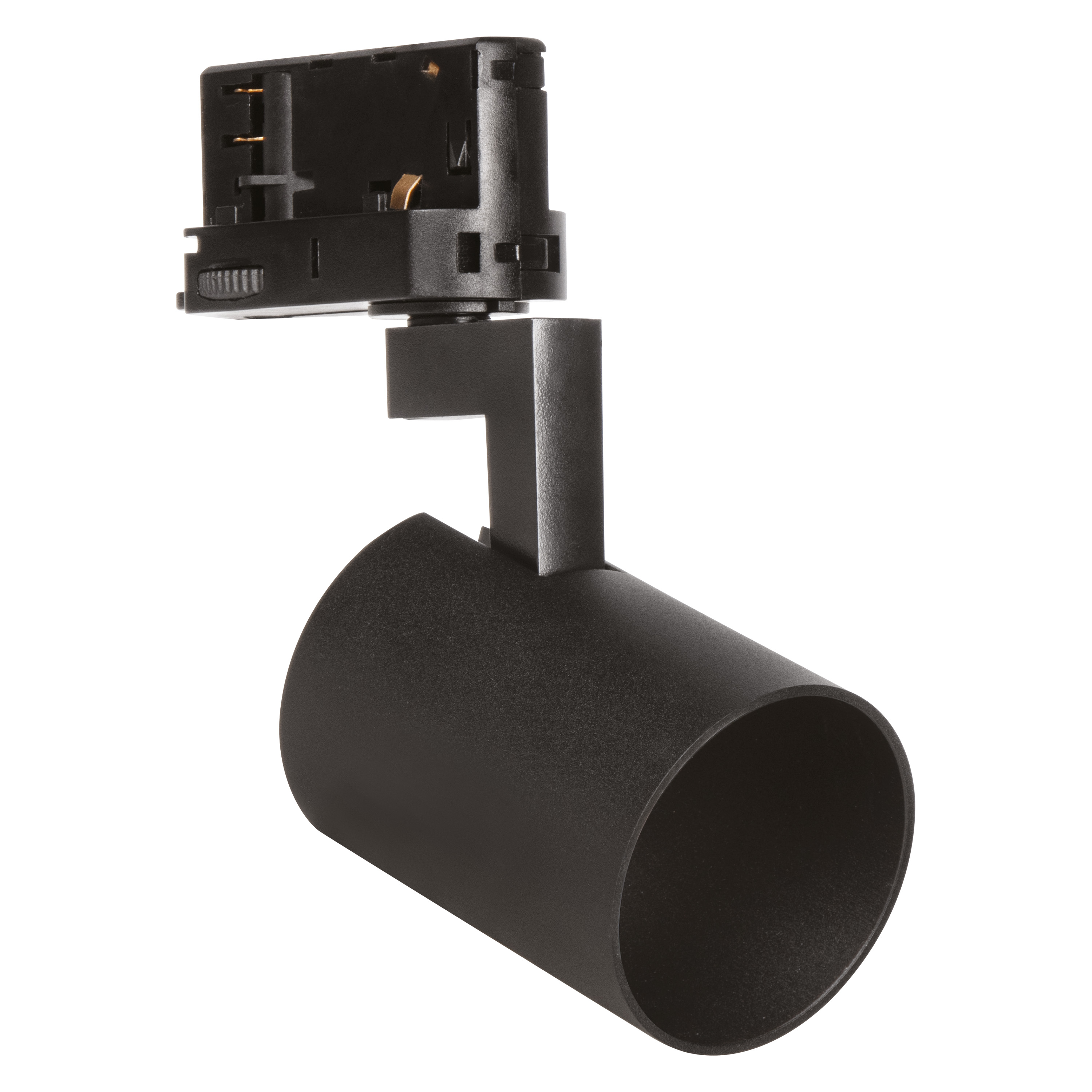

Product image: white background, diagonal
TR SP HOUSING E GU10 BK
JPG (594.3 KB)
Product image: white background, diagonal, alternative image
TR SP HOUSING E GU10 BK
JPG (675.26 KB)
Product line drawing with letters
TR SP HOUSING E GU10 BK
SVG (23.36 KB)
Product line drawing with numbers
TR SP HOUSING E GU10 BK
SVG (24.98 KB)
Product line drawing - technical
TR SP HOUSING E GU10 BK
SVG (13.58 KB)
