LINEAR INDIVILED DIRECT/INDIRECT 1200 PS
LN INV DI 1200 P 55W 930 PS WT
GTIN: 4099854135156
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy upgradeability of light source and driver (EVERLOOP design)
- Homogenous light distribution and reduced glare (UGR ≤ 19) thanks to IndiviLED® optics
- Pendant luminaires with direct light emission (70%) and indirect light emission (30%)
- High performance with CRI90 and up to 133 lm/W

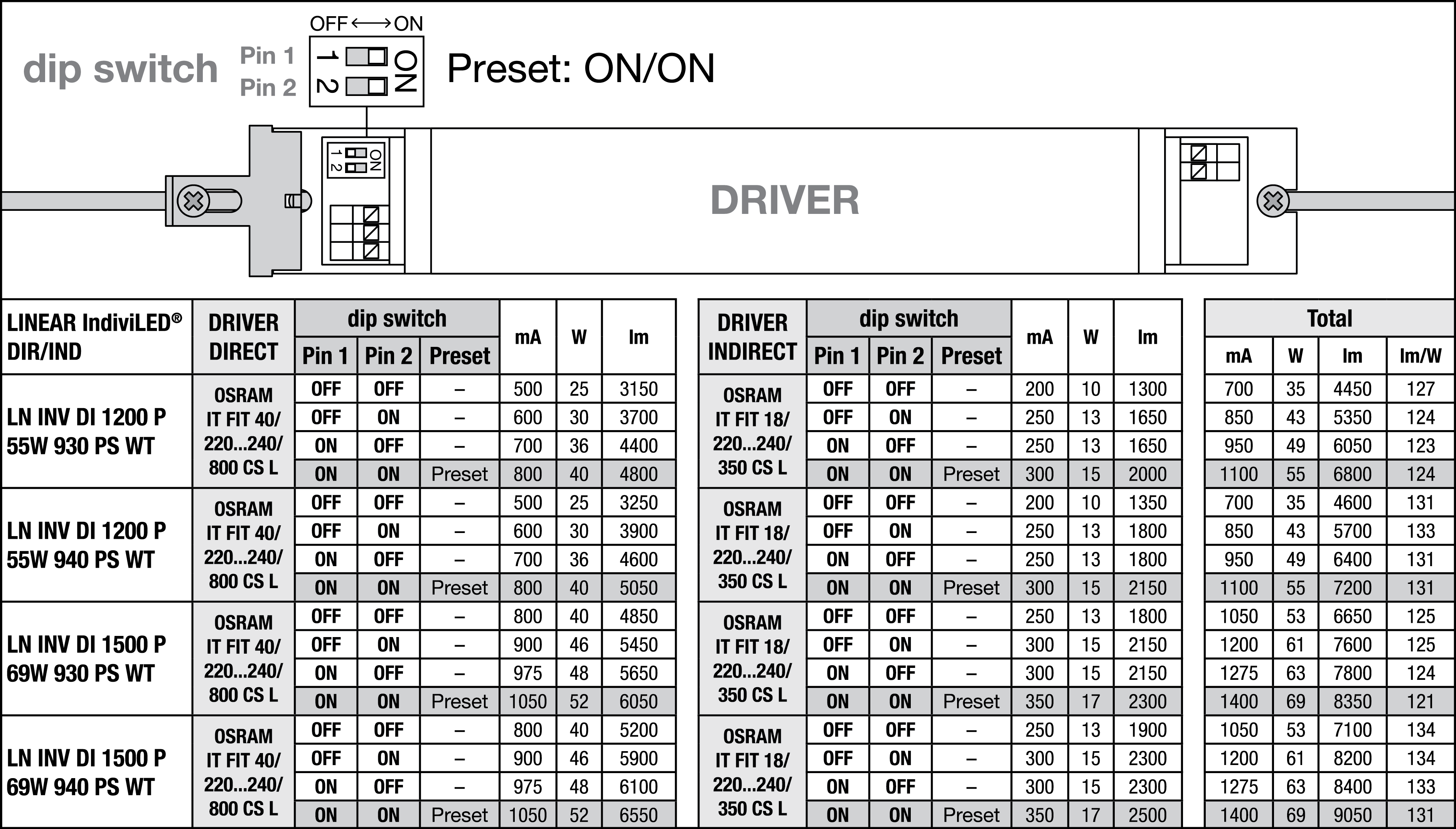

- Highly versatile due to selectable power steps (Power Select - PS) on the driver
- High color consistency with SDCM 3
- Easy installation
- Low flicker light thanks to special electronic control gear
- Multiple mounting options thanks to different accessories
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Offices, education, public buildings
- Single and continuous line configuration
- Direct and indirect lighting
Product features
- Minimalistic LEDVANCE SCALE design in extruded aluminum housing, available in white and black color
- Includes EVERLOOP: Convenient replacement of light source and LED driver
- Linkable into seamless light line with accessories (surface or pendant mounting)
- Pendant mounting with suspension kit (to be ordered separetely)
- Glow Wire Test according to IEC 60695-2-12: 850 °C
- 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
- Lifetime (L80/B10): 70,000 h (at 25 °C)
Equipment / Accessories
- Suspension kit available for pendant luminaire version (to be ordered separately)
- Inline, corner and infill connectors available as separate accessory
- Through-wiring cable kit available
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 55 W / 49 W / 43 W / 35 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 255…227…197…167 mA |
| Inrush current | 15.4 A |
| Inrush current time Th50 | 80 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 47 |
| Max. number of luminaires per miniature circuit breaker C10 | 29 |
| Max. number of luminaires per miniature circuit breaker C16 | 47 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | ≤ 20 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 6800 lm / 6050 lm / 5350 lm / 4450 lm |
| Luminous efficacy | 124 lm/W / 123 lm/W / 127 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥90 |
| Standard deviation of color matching | 3 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | ≤1 |
| Stroboscope effect metric (SVM) | ≤0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 90 ° + 130 ° |
| UGR | < 19 |
Adjustable attributes
| Nominal wattage | Color temperature | Luminous flux | Luminous efficacy |
|---|---|---|---|
| 55 W | 3000 K | 6800 lm | 124 lm/W |
| 49 W | 3000 K | 6050 lm | 123 lm/W |
| 43 W | 3000 K | 5350 lm | 124 lm/W |
| 35 W | 3000 K | 4450 lm | 127 lm/W |
Dimensions & Weight
| Length | 1210.00 mm |
| Height | 43.00 mm |
| Width | 125.00 mm |
| Product weight | 3700.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Polymethylmethacrylate (PMMA) |
| Light emitting surface material | Polymethylmethacrylate (PMMA) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+50 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Screwless terminal |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Mounting type | Suspended |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Adjustable | No |
| With light source | Yes |
| Replaceable light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 100000 h 1) |
| Lifespan L80/B10 at 25 °C | 70000 h 1) |
| Lifespan L90/B10 at 25 °C | 35000 h |
| Number of switching cycles | 25000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 1100mA / 950mA / 850mA / 700 mA |
| ECG - Output ripple current | ≤ 5 % |
| Recommended control gear | OSRAM type IT FIT 40/220-240/800 CS L& IT FIT 18/220-240/350 CS L |
Certificates & Standards
| Standards | CE, CB, ENEC, TÜV SÜD, UKCA, EAC, EPD |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| EPD | LEDV-00026-V01.01-EN |
| Replaceable light source (EPREL) | By the end consumer |
Additional product data
| Number of illuminants | 2 |
| Added function | EVERLOOP, MULTI SELECT |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) - (3147-75-9) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854135156 | Folding box 1 |
178 mm x 1,263 mm x 103 mm | 4300.00 g | 23.16 dm³ |
| 4099854135163 | Shipping box 2 |
1,277 mm x 187 mm x 189 mm | 10000.00 g | 45.13 dm³ |
| Product image | Product name | EAN |
|---|---|---|
|
LN INV SUSPENSION KIT WT | 4099854215537 |
|
LN INV SUSPENSION WIRE | 4099854323980 |
| Product image | Product name | Product brand | Product component type | GTIN |
|---|---|---|---|---|
|
IT FIT 40/220-240/800 CS L | OSRAM | driver direct | 4062172212700 |
|
IT FIT 18/220-240/350 CS L | OSRAM | driver indirect | 4062172212663 |
User instruction / safety instructions
LN INV
LN INV
Legal information
LN INV PS
LN INV PS
Legal information
LSI LN INDIVILED
LSI LN INDIVILED
Legal information
Legal Insert LN INV P PS
Legal Insert LN INV P PS
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
LN INV
LN INV
EPD
EPD EN LINEAR INDIVILED DIRECT INDIRECT
EPD EN LINEAR INDIVILED DIRECT INDIRECT

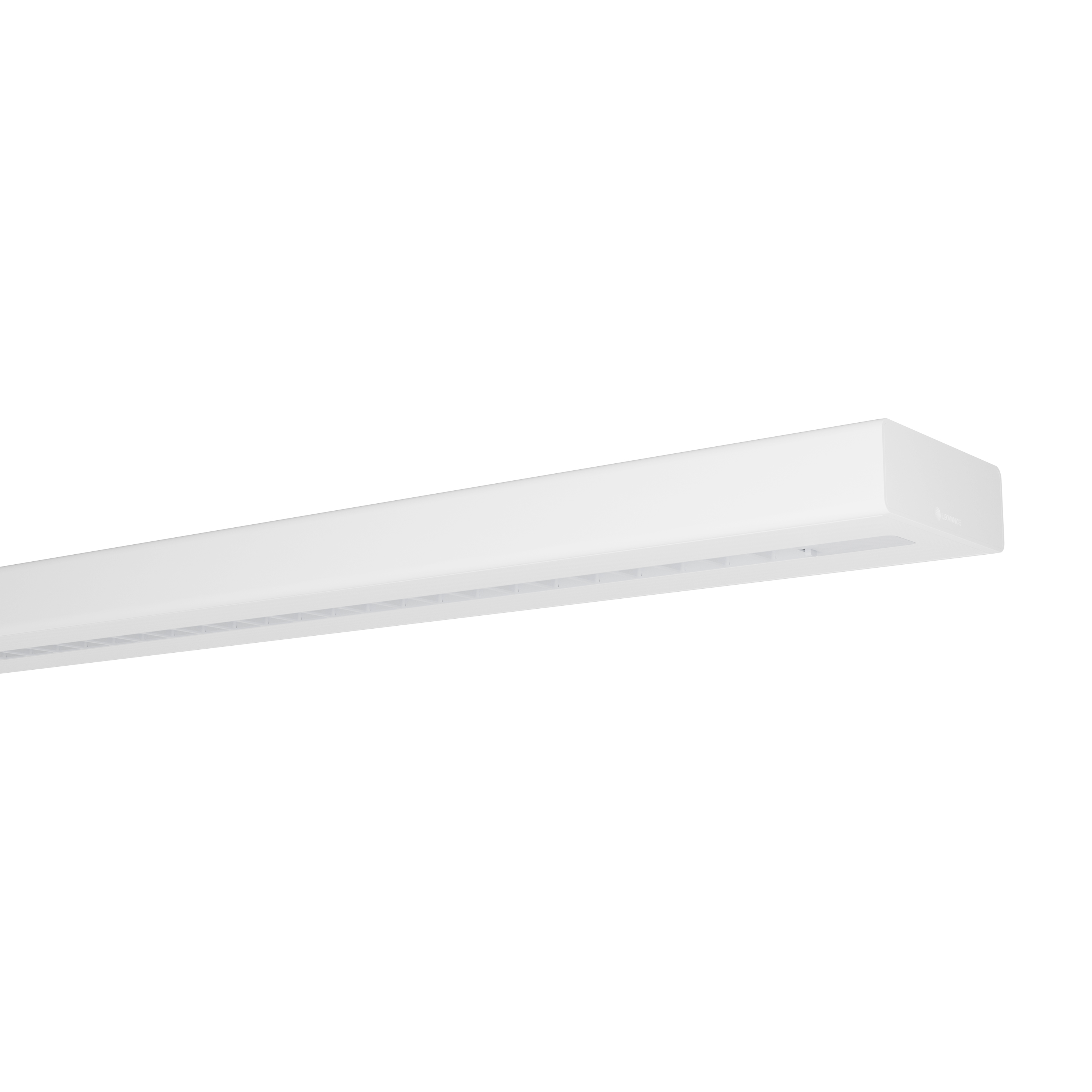

Product image: white background, diagonal
LN INV DI 1200 P
LN INV DI 1200 P

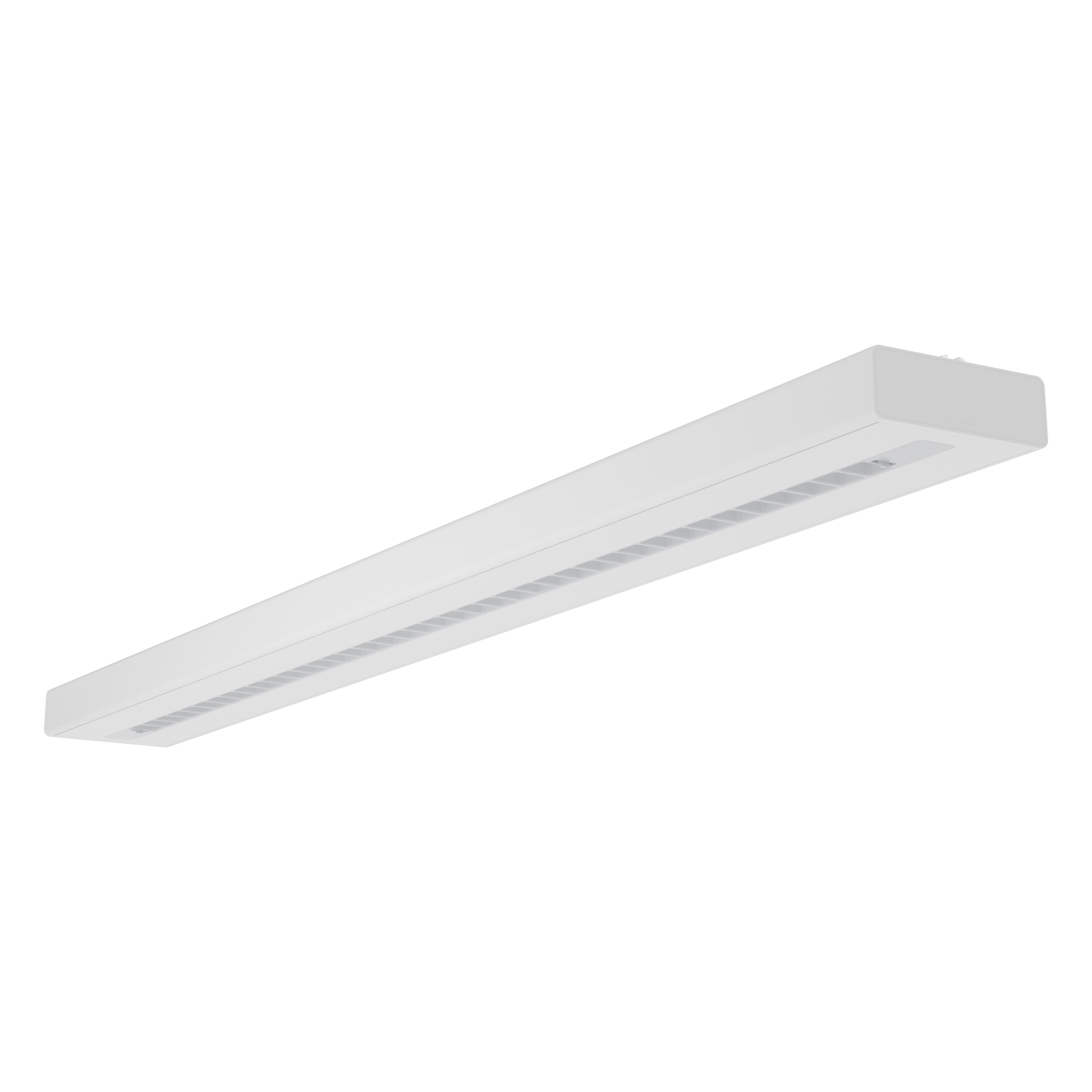

Product image: white background, diagonal, alternative image
LN INV DI 1200 P
LN INV DI 1200 P

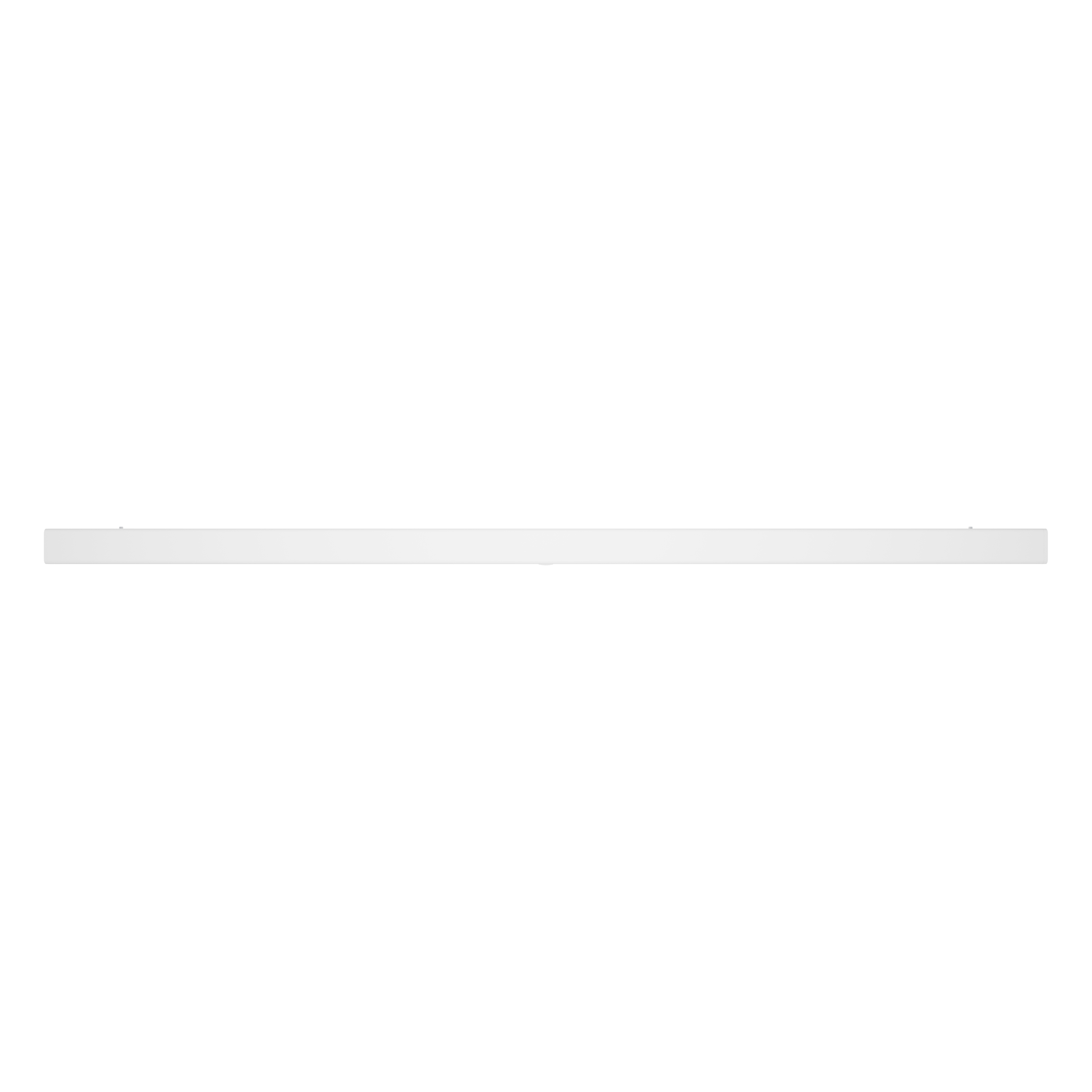

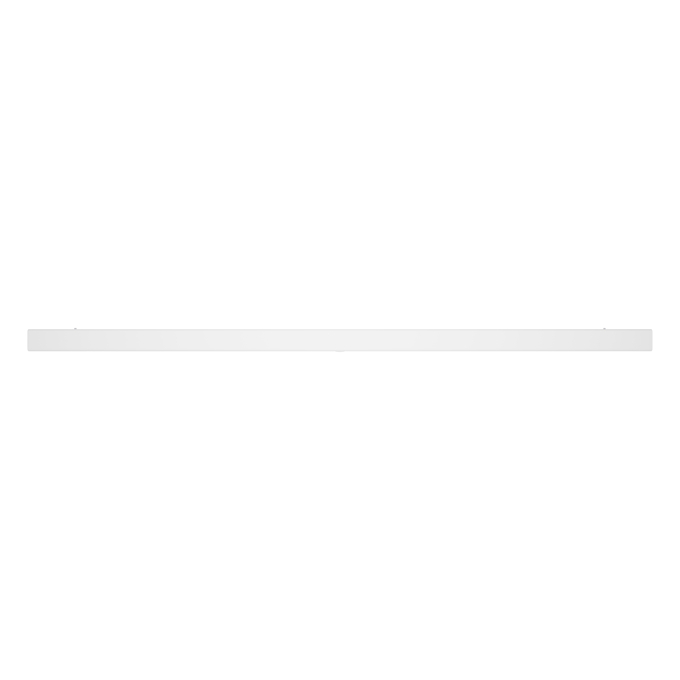

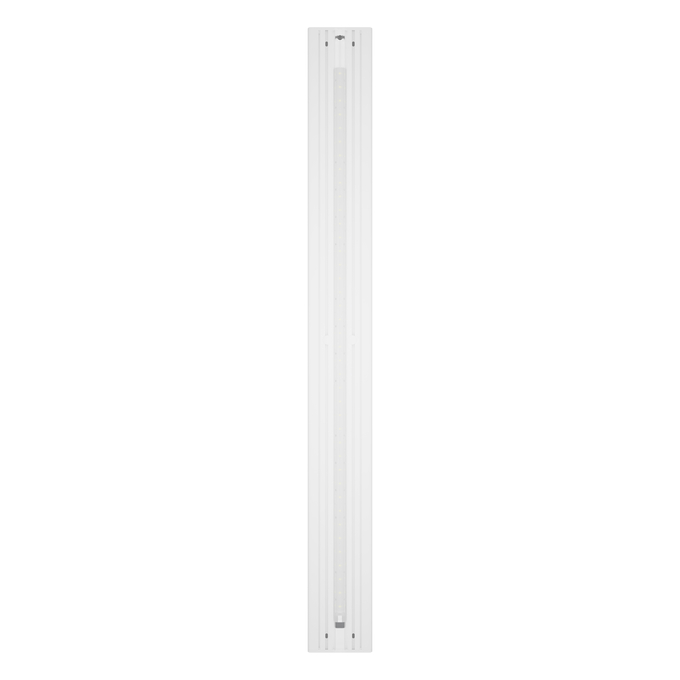

Product image: white background, horizontal
LN INV DI 1200 P
LN INV DI 1200 P

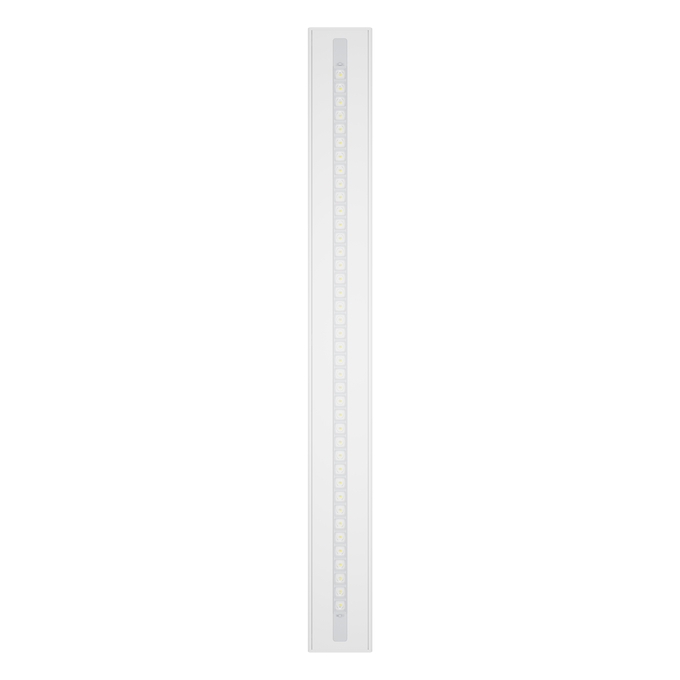

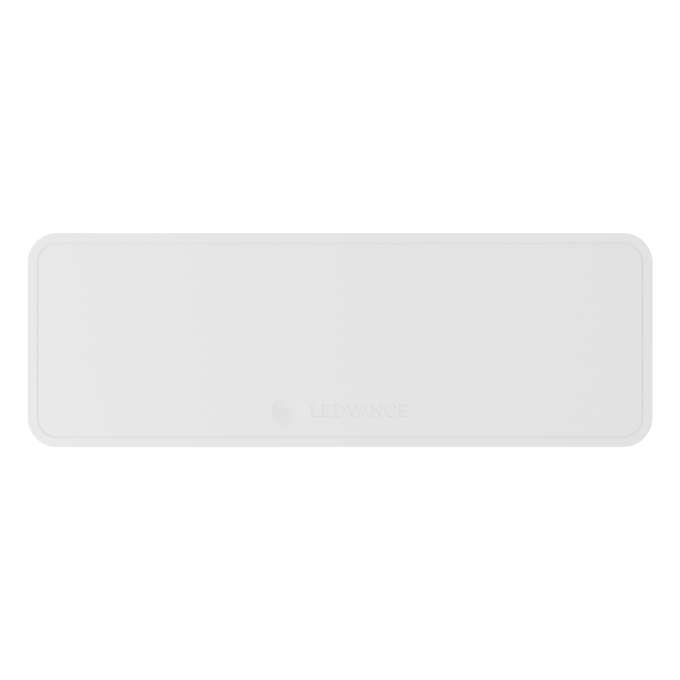

Product image: white background, upright
LN INV DI 1200 P
LN INV DI 1200 P

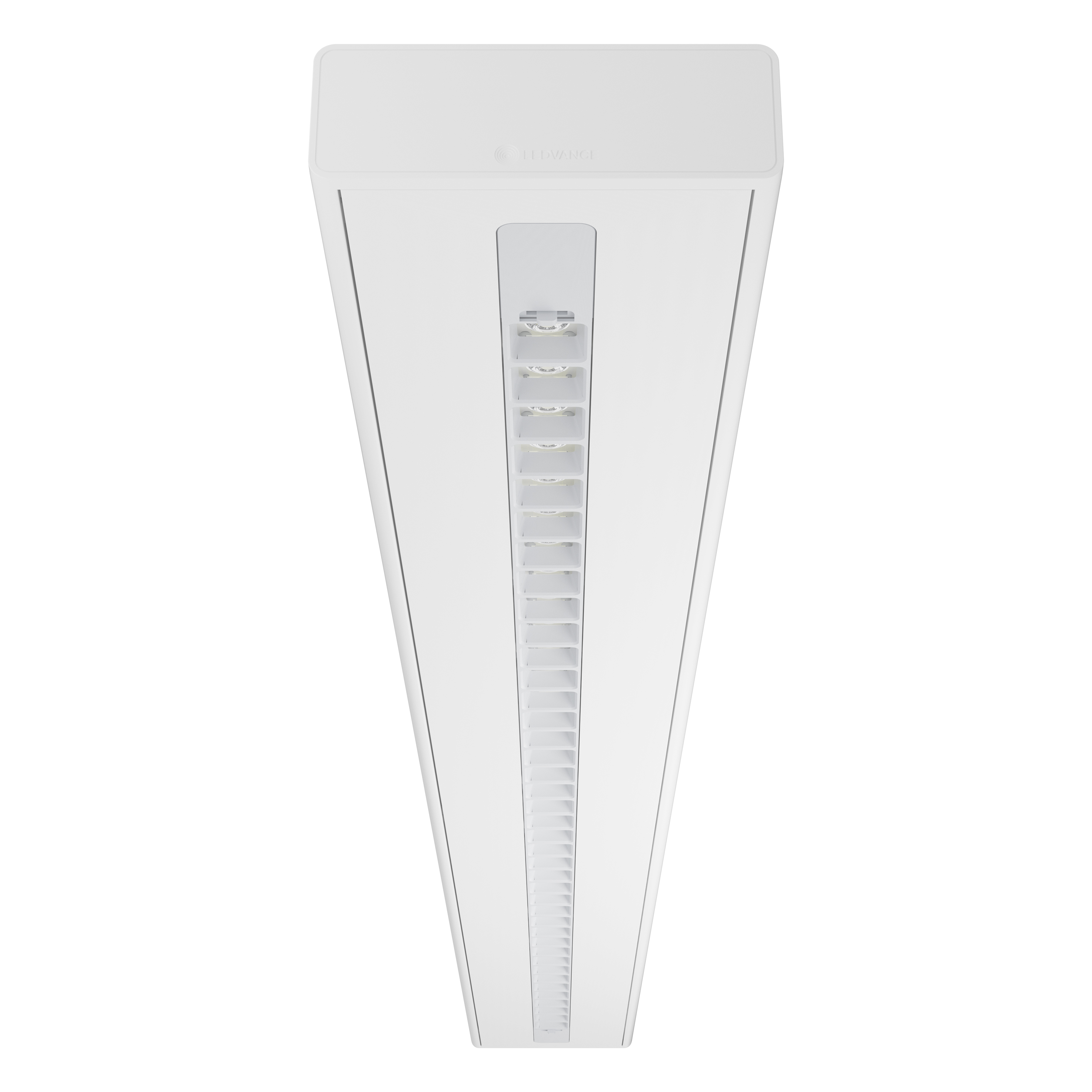

Product image: white background, upright, alternative image
LN INV DI 1200 P
LN INV DI 1200 P

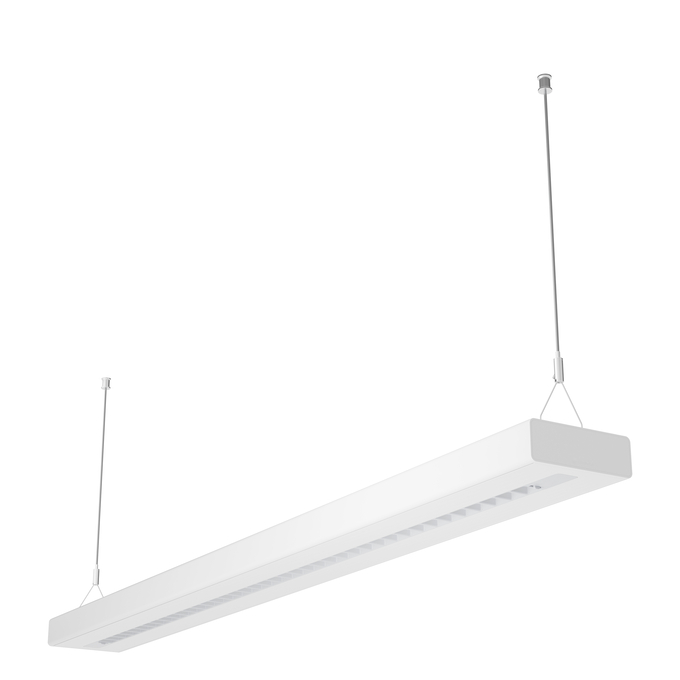

Product image: white background, spacial
LN INV DI 1200 P
LN INV DI 1200 P
Product line drawing with letters
LN INV 1200 P
LN INV 1200 P
Product line drawing with numbers
LN INV 1200 P
LN INV 1200 P
Product line drawing, front, no dimensions
LN INV 1200 P
LN INV 1200 P

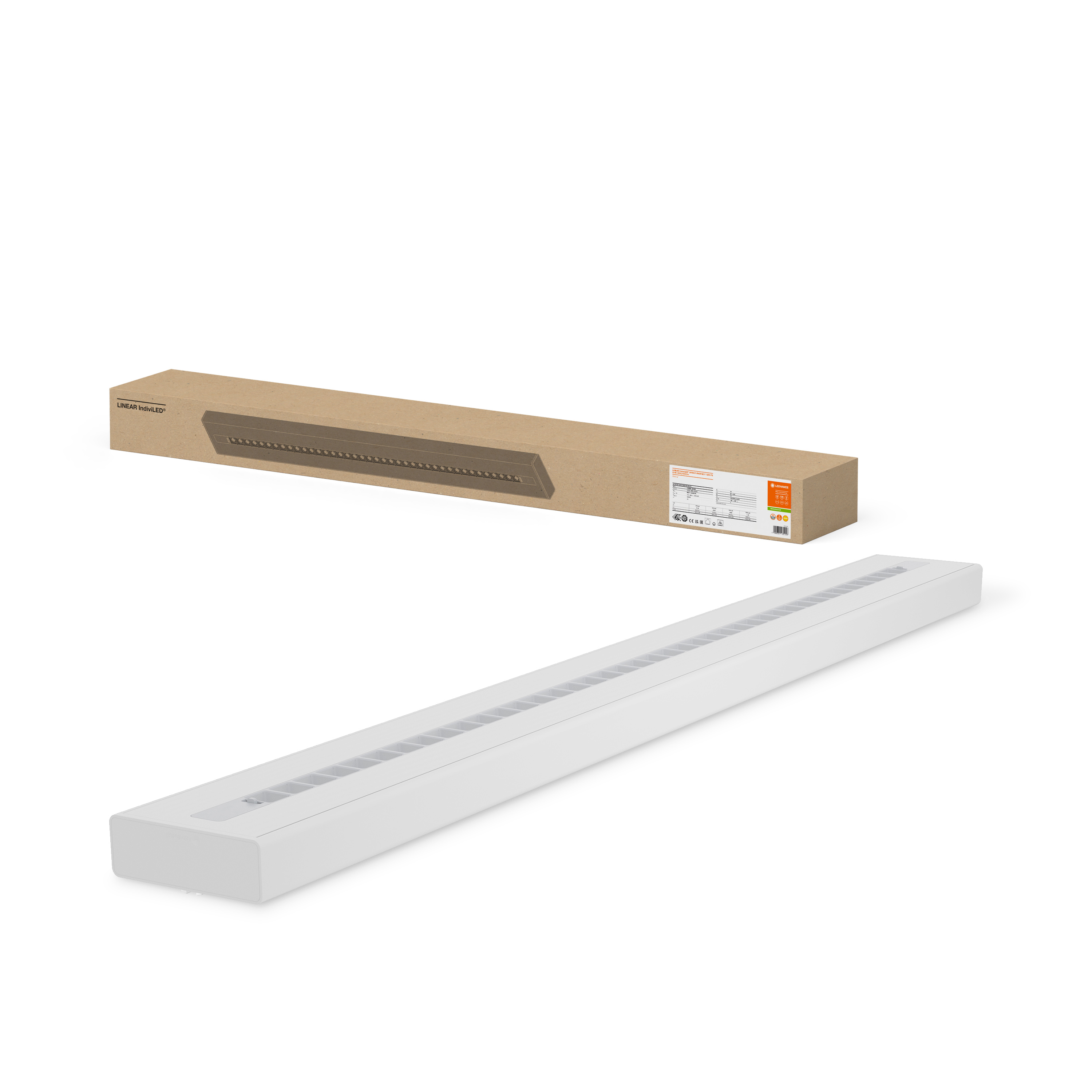

Combo Shot = Product Beauty Shot + Packaging Image
LINEAR IndiviLED DIRECT INDIRECT 1200 PS 3000K
LINEAR IndiviLED DIRECT INDIRECT 1200 PS 3000K

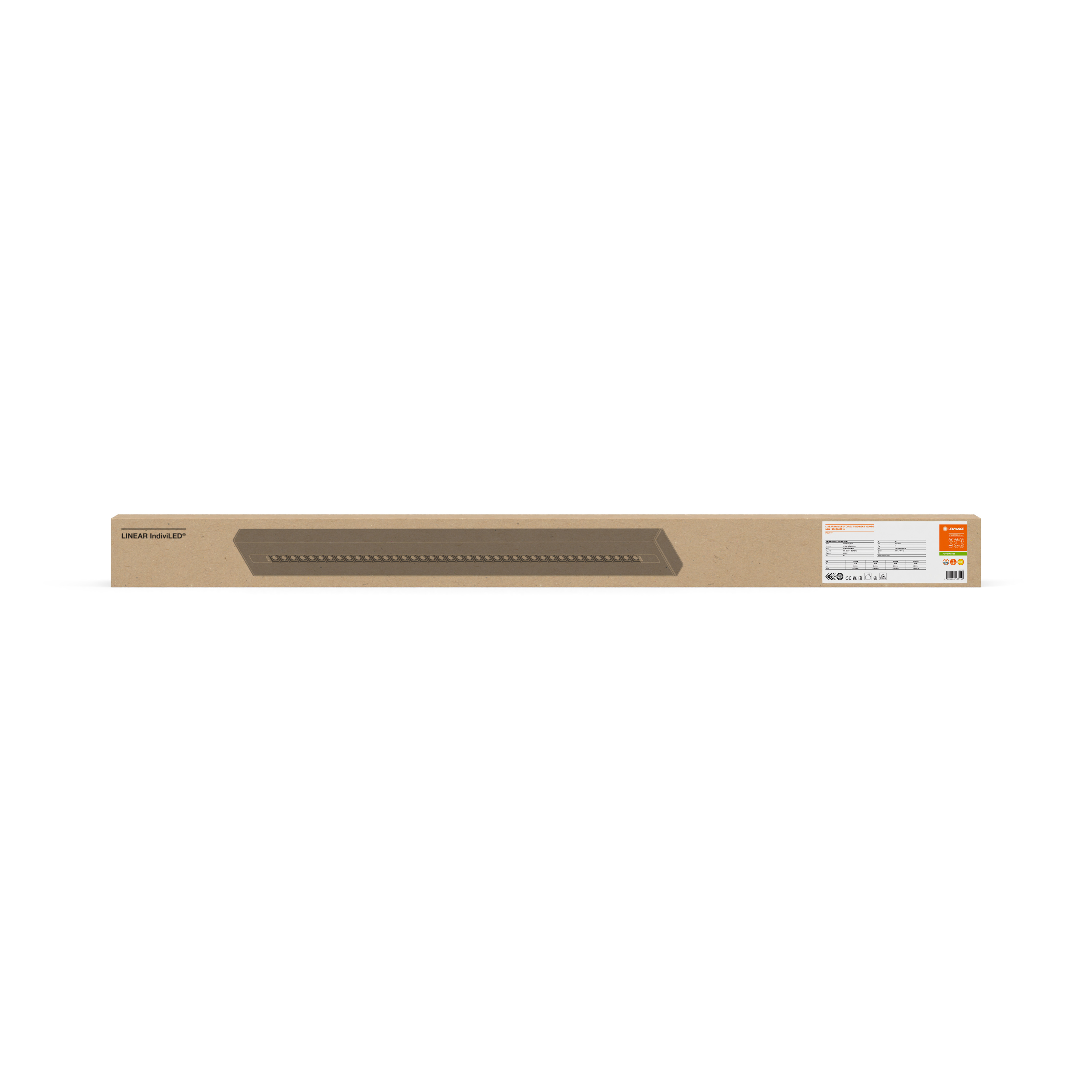

Packaging image, frontal
LINEAR IndiviLED DIRECT INDIRECT 1200 PS 3000K
LINEAR IndiviLED DIRECT INDIRECT 1200 PS 3000K

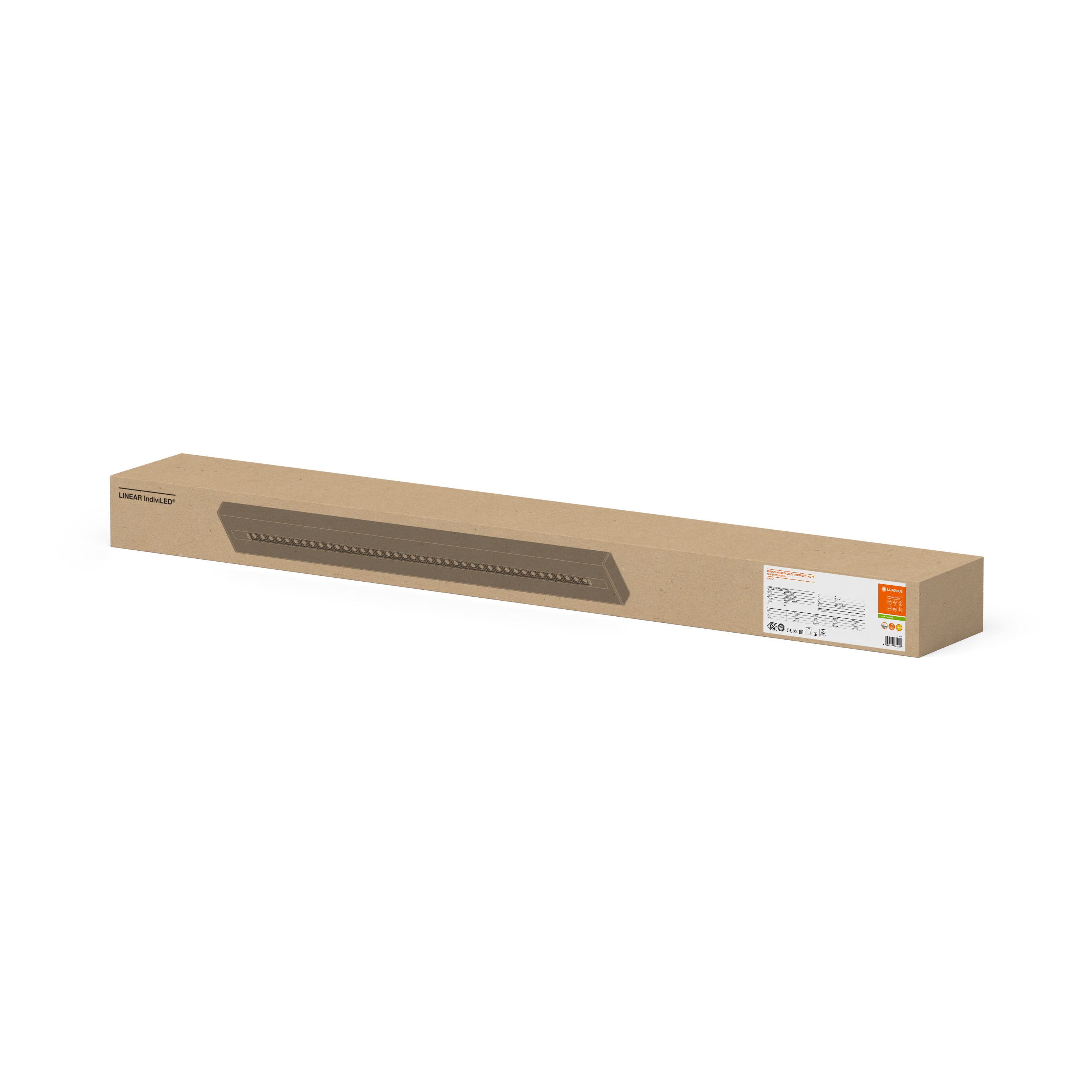

Packaging image, spacial
LINEAR IndiviLED DIRECT INDIRECT 1200 PS 3000K
LINEAR IndiviLED DIRECT INDIRECT 1200 PS 3000K

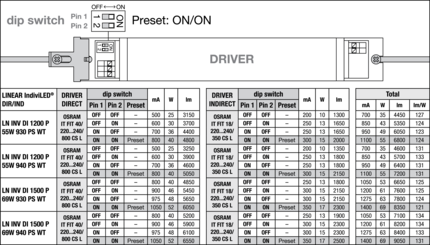

Catalog info 1
LN INV
LN INV

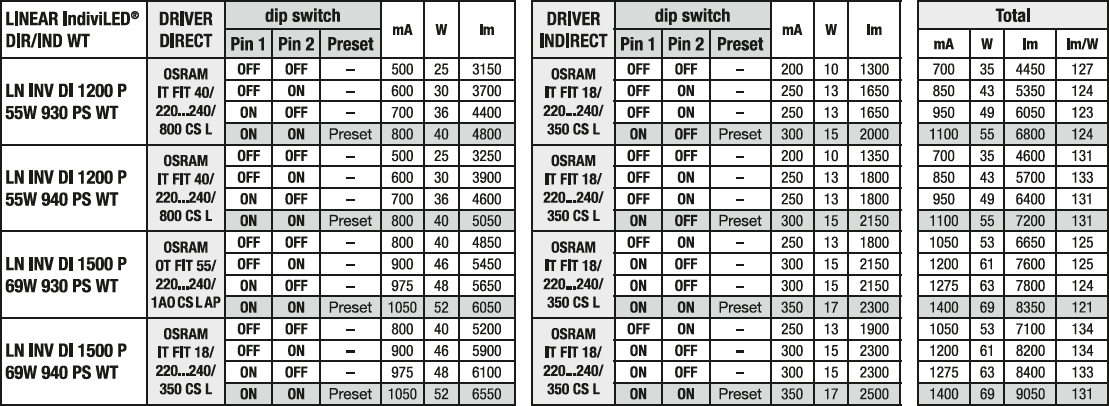

Catalog info 1
LN INV DI PS WT
LN INV DI PS WT
Catalog info 3
LN INV
LN INV
Catalog info 3
LN INV
LN INV
Catalog info 6
LN INV
LN INV
IES file (IES)
LN INV DI 1200 P 55W 930 PS WT 1100mA
LN INV DI 1200 P 55W 930 PS WT 1100mA
LDT file (Eulumdat)
LN INV DI 1200 P 55W 930 PS WT 1100mA
LN INV DI 1200 P 55W 930 PS WT 1100mA
ULD file (DIALux)
LN INV DI 1200 P 55W 930 PS WT
LN INV DI 1200 P 55W 930 PS WT
ROLF file (RELUX)
LN INV DI 1200 P 55W 930 PS WT
LN INV DI 1200 P 55W 930 PS WT

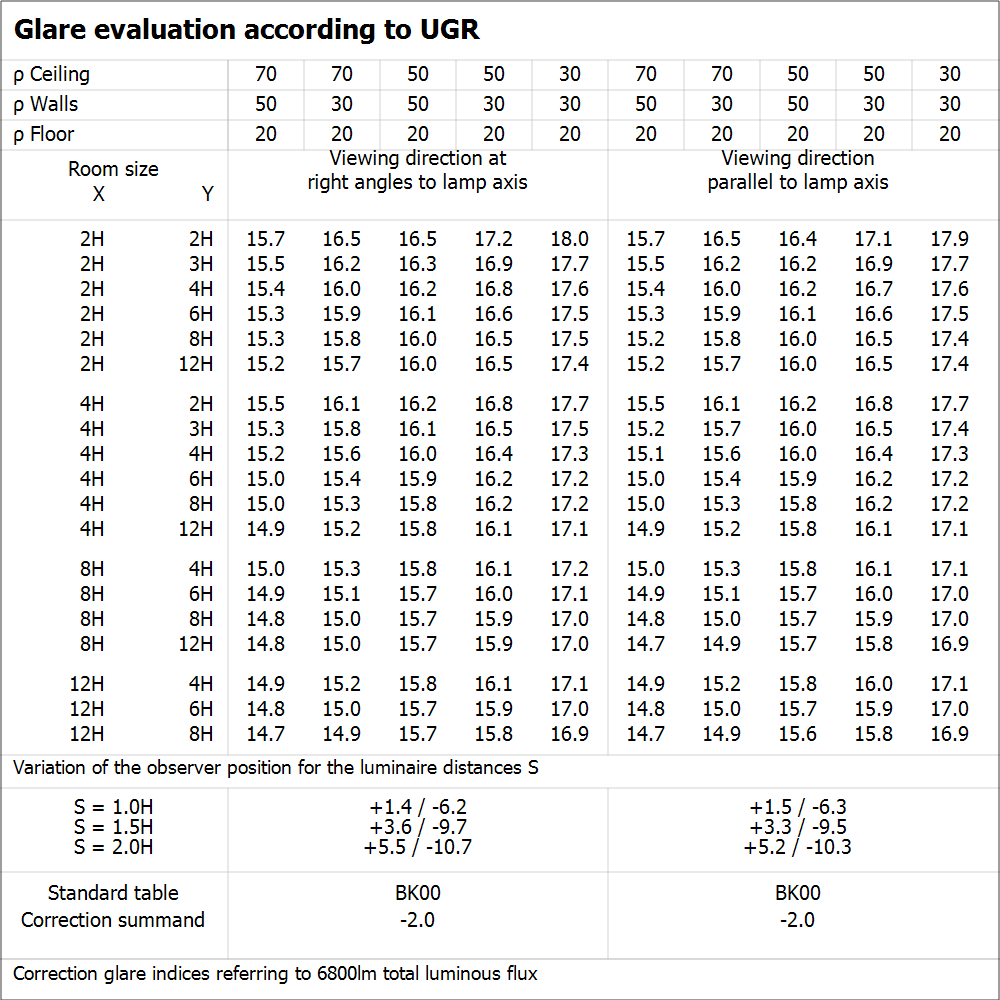

UGR file (UGR table)
