LINEAR INDIVILED INFILL
LN INV INFILL 1200 WT
GTIN: 4099854214868
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy and quick connection of luminaires for light line installations
- Very solid connector for long operation
Product features
- Mechanical and electric connector (profile, 5 x 2.5 mm² internal wiring and terminal plug, male-female AC plug)
- Connector made of aluminum, white powder-coated
- Available in black and white color
Safety advice
- All electrical connections must be made by a qualified person.
Dimensions & Weight
| Length | 1300 mm |
| Height | 43 mm |
| Width | 125 mm |
| Product weight | 2700.00 g |
Materials & Colors
| Product color | White |
| Body material | Aluminum |
Application & Mounting
| With light source | No |
| Replaceable light source | No |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854214868 | Folding box 1 |
177 mm x 1,357 mm x 102 mm | 2740.00 g | 24.50 dm³ |
| 4099854214875 | Shipping box 2 |
1,377 mm x 197 mm x 224 mm | 7180.00 g | 60.76 dm³ |
User instruction / safety instructions
LN INV accessories
LN INV accessories
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety Insert G11218828
Safety Insert G11218828
Declarations of conformity
LN INV
LN INV

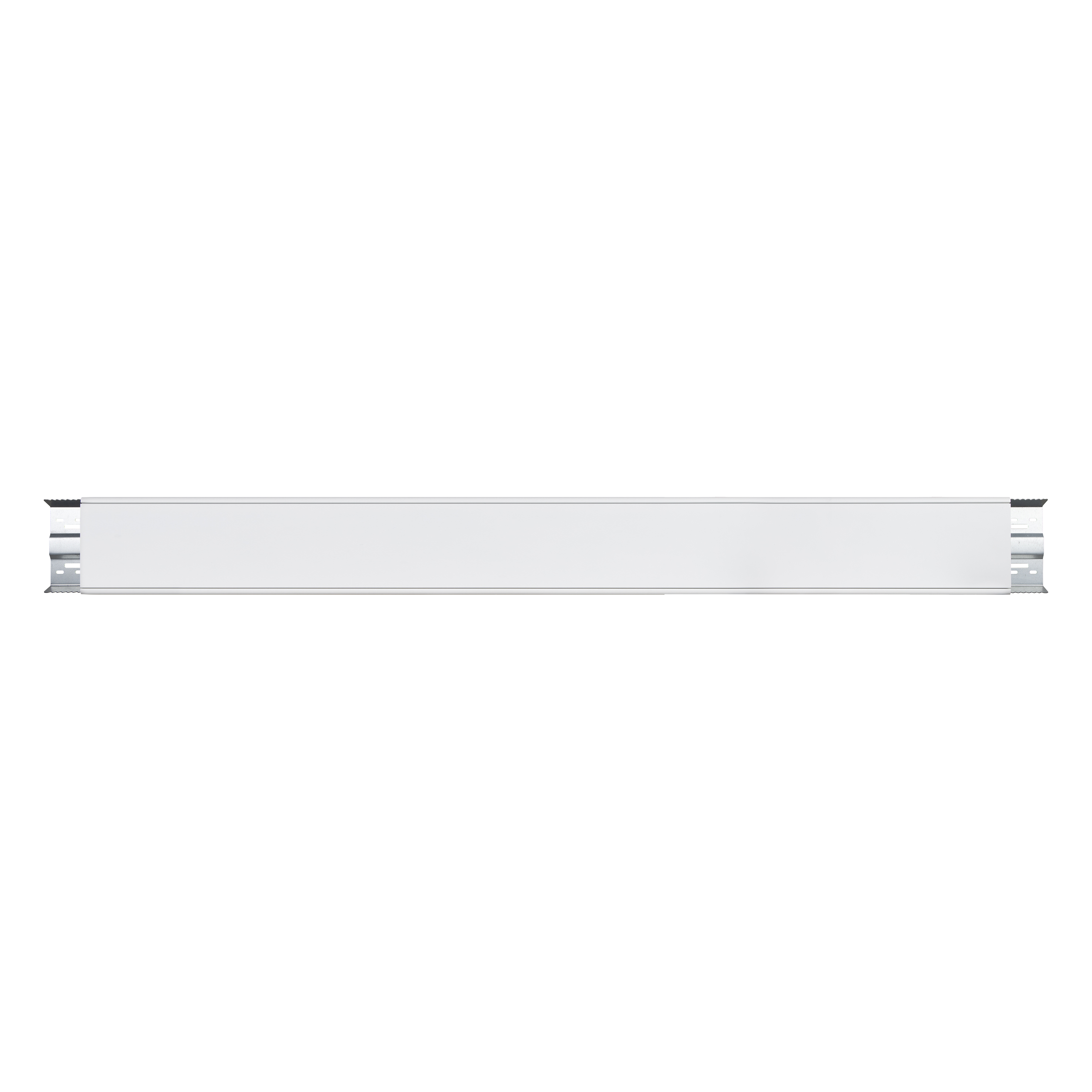

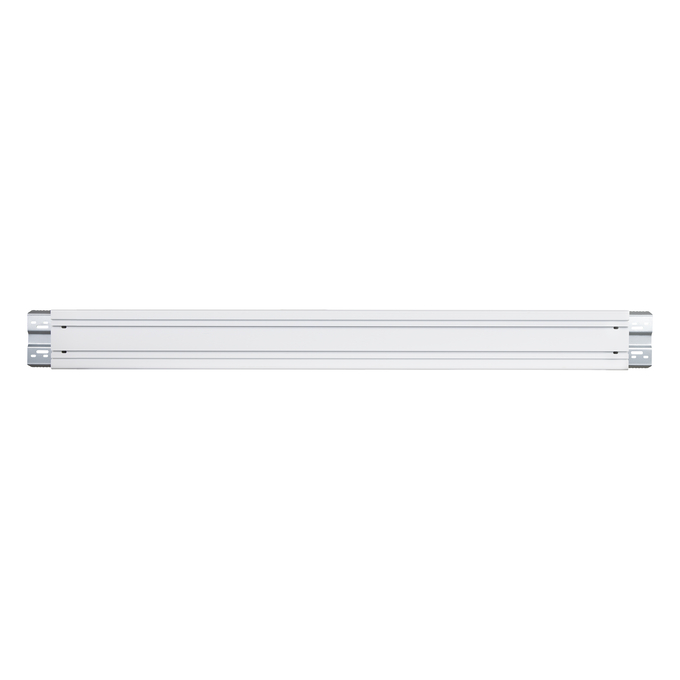

Product image: white background, horizontal
LN INV INFILL 1200
LN INV INFILL 1200

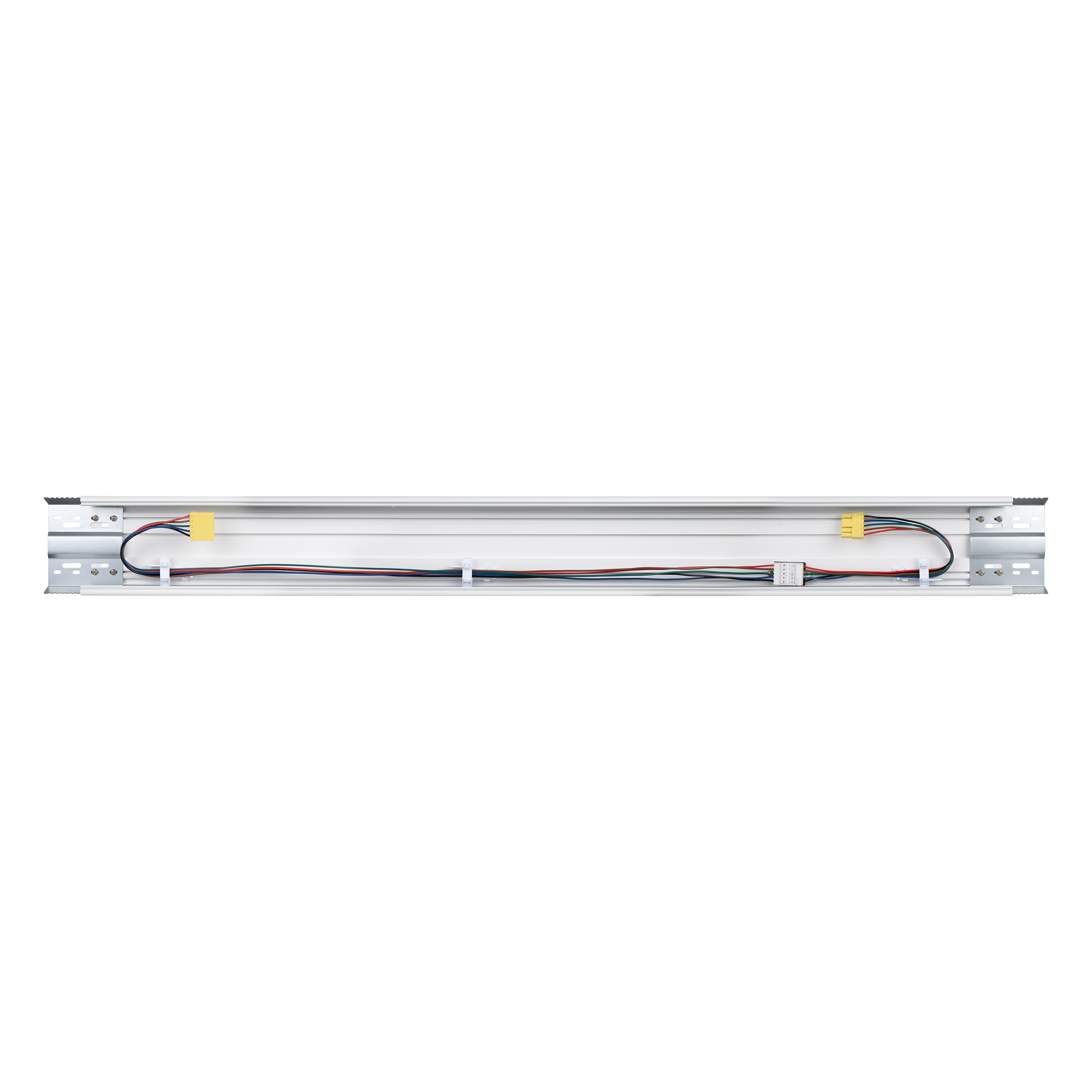

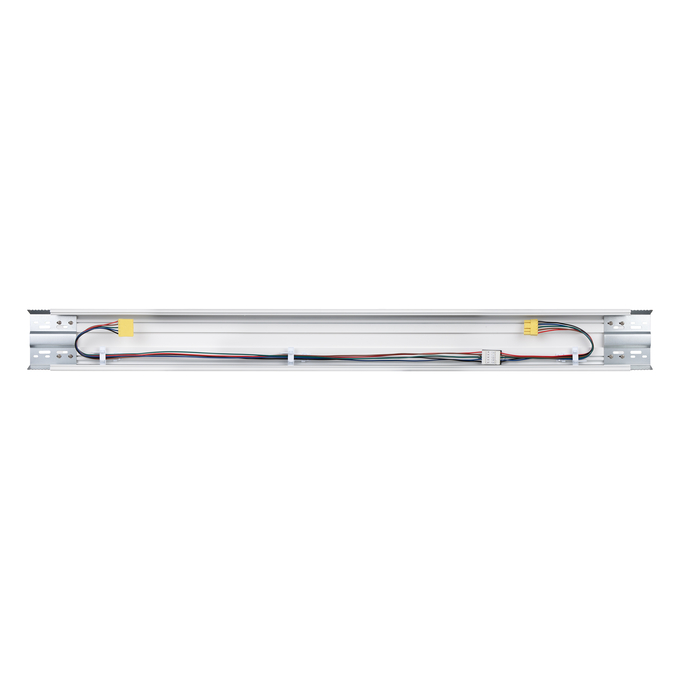

Product image: white background, horizontal, alternative image
LN INV INFILL 1200
LN INV INFILL 1200
Product line drawing with letters
LN INV INFILL 1200 WT
LN INV INFILL 1200 WT
Product line drawing with numbers
LN INV INFILL 1200 WT
LN INV INFILL 1200 WT
Product line drawing, front, no dimensions
LN INV INFILL 1200 WT
LN INV INFILL 1200 WT

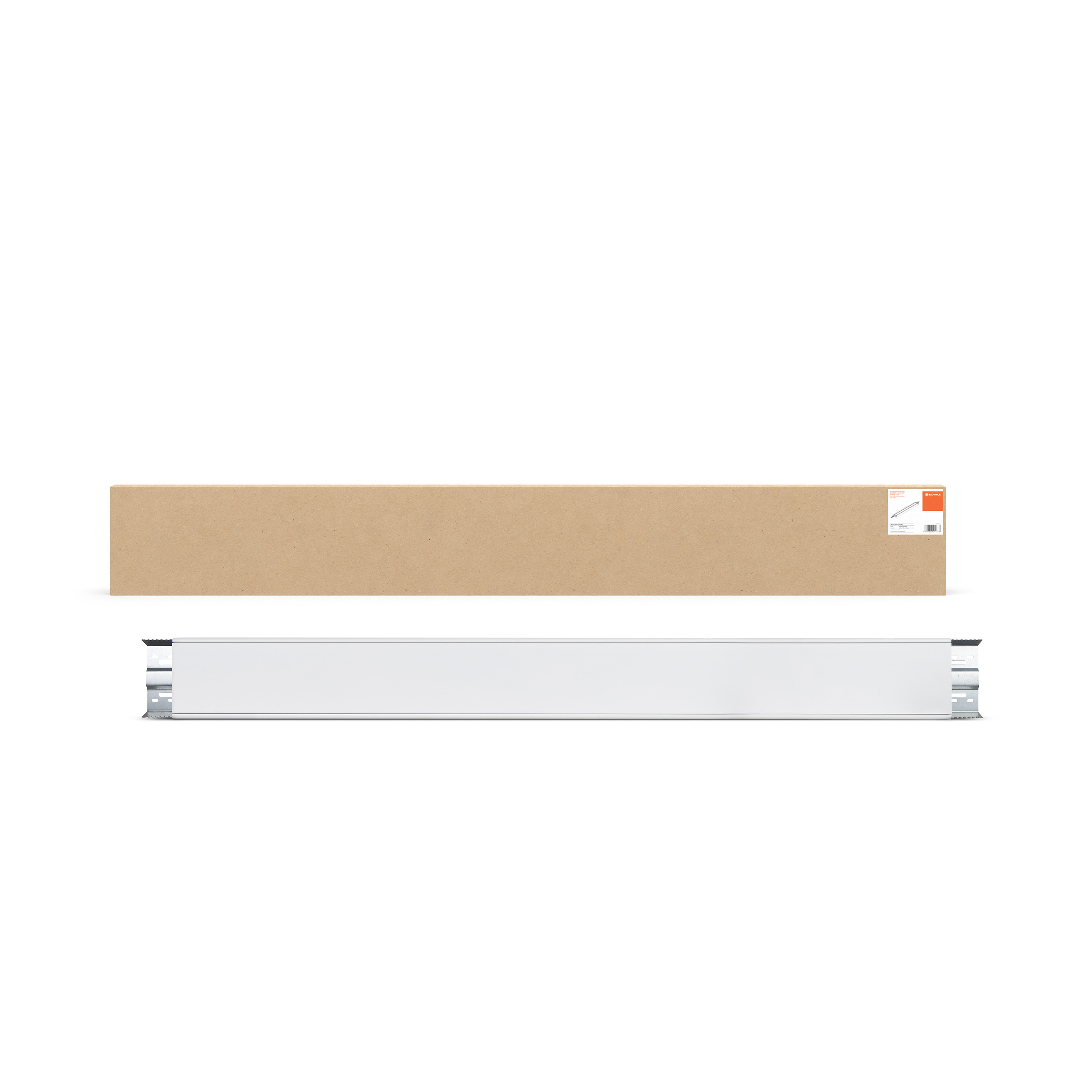

Combo Shot = Product Beauty Shot + Packaging Image
LN INV INFILL 1200 WT
LN INV INFILL 1200 WT
Packaging image, frontal
LN INV INFILL 1200 WT
LN INV INFILL 1200 WT
Packaging image, spacial
LN INV INFILL 1200 WT
LN INV INFILL 1200 WT
Catalog info 3
LN INV
LN INV
Tender documents
LINEAR INDIVILED INFILL 1200 WT-EN
LINEAR INDIVILED INFILL 1200 WT-EN
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4099854214868 | 7027131 | 4152025 | 3361425 | 941006150 |
