SPOT VARIO
SPOT VARIO DN 170 35 W 4000 K 24DEG WT
GTIN: 4058075104044
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Low flicker light thanks to special electronic control gear
- High luminous efficacy
- Die-cast aluminum housing for improved heat dissipation
- Easy replacement of external driver thanks to plug with bayonet lock
- Design matches the LEDVANCE Spot-, Down- and Tracklight luminaire family
- Shallow mounting depth
- Various options to highlight target areas
- 5 years guarantee
Areas of application
- Accent- and general lighting for all kind of salesrooms
- Retail
- Supermarkets
- Shops, boutiques
- Hotel rooms
- Stairways
- Corridors
- Lobbies
Product features
- Large faceted reflector for high light output
- Beam angle: 24°
- Rotation angle: 0°...350°, tilt angle: 0°...35°
- Diameter of required ceiling cut out: 165...170 mm
Equipment / Accessories
- Driver included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 35.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 850 mA |
| Inrush current | 40 A |
| Inrush current time Th50 | 100 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 15 |
| Max. number of luminaires per miniature circuit breaker C10 | 9 |
| Max. number of luminaires per miniature circuit breaker C16 | 15 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | 20 % |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 3550 lm |
| Luminous efficacy | 100 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 5 sdcm |
| Luminous intensity | - |
| Low flicker | Yes |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 24 ° |
Dimensions & Weight
| Diameter | 180.00 mm |
| Height | 129.00 mm |
| Product weight | 1126.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| RAL Color (most similar) | RAL 9016 |
| Body material | Aluminum |
| Cover material | Polymethylmethacrylate (PMMA) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+45 °C |
| Type of connection | Screw terminal, 2-Pole (L,N) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 170 mm |
| Mounting depth | 150 mm |
| Adjustable | Yes |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 45000 h 1) |
| Lifespan L90/B10 at 25 °C | 30000 h |
| Number of switching cycles | 50000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| ECG - Length | 153 mm |
| ECG - Width | 44 mm |
| ECG - Height | 31 mm |
Certificates & Standards
| Standards | CE, CB, ENEC, TÜV SÜD, RoHS |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075104044 | Folding box 1 |
200 mm x 200 mm x 150 mm | 1204.00 g | 6.00 dm³ |
| 4058075104051 | Shipping box 4 |
415 mm x 215 mm x 320 mm | 5580.00 g | 28.55 dm³ |
User instruction / safety instructions
SP VARIO DN170
SP VARIO DN170
Legal information
Legal Insert G11120030
Legal Insert G11120030
Legal information
LSI_SP VARIO DN170
LSI_SP VARIO DN170
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
EU Declaration of Conformity SP Vario DN 170 35W LEDV
EU Declaration of Conformity SP Vario DN 170 35W LEDV
Declarations of conformity
Attestation-of-Conform ity Spot Vario TÜV
Attestation-of-Conform ity Spot Vario TÜV

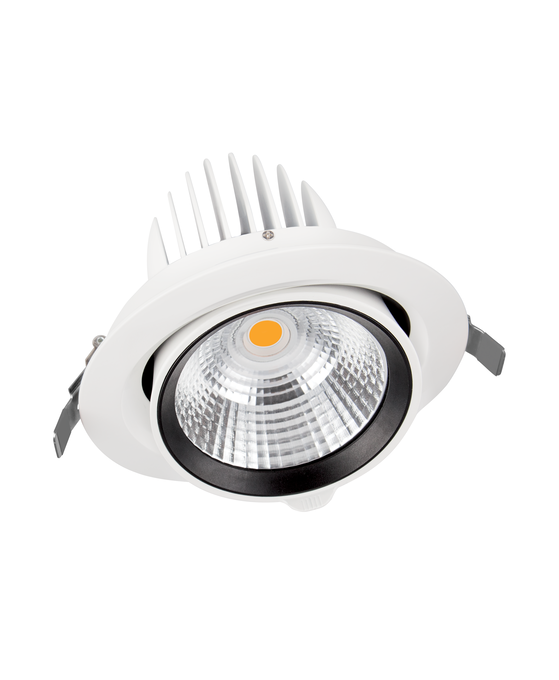

Product image: white background, diagonal
SP VARIO DN170 35W WT
SP VARIO DN170 35W WT

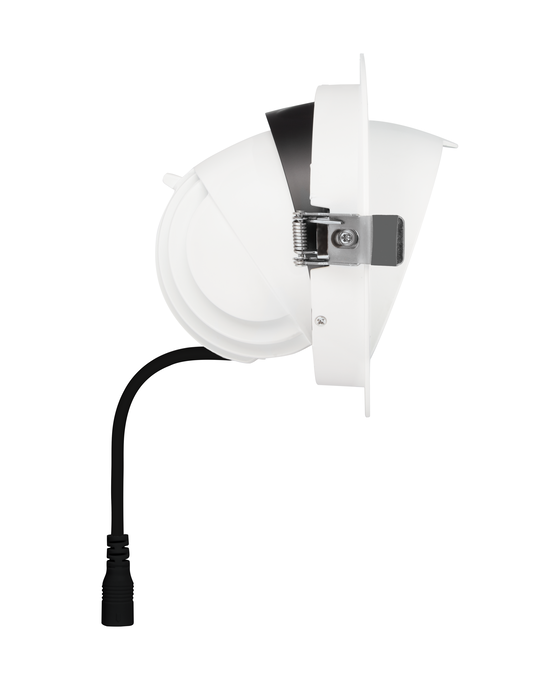

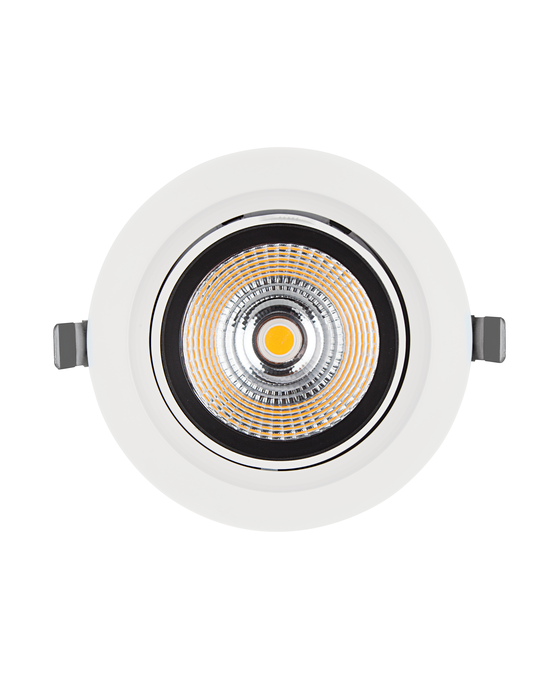

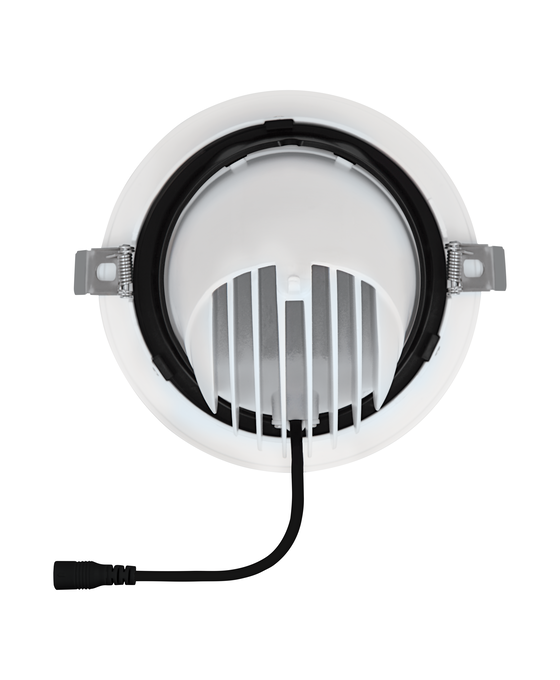

Product image: white background, horizontal
SP VARIO DN170 35W WT
SP VARIO DN170 35W WT
Product line drawing with letters
SP VARIO DN170 35W WT
SP VARIO DN170 35W WT
Product line drawing with numbers
SP VARIO DN170 35W WT
SP VARIO DN170 35W WT
Product line drawing - technical
SP VARIO DN170 35W WT
SP VARIO DN170 35W WT
Combo Shot = Product Beauty Shot + Packaging Image
SP VARIO DN170 35W 4000K 24DEG WT MiCh Side
SP VARIO DN170 35W 4000K 24DEG WT MiCh Side
Packaging image, spacial
SP VARIO DN170 35W 4000K 24DEG WT MiCh Side
SP VARIO DN170 35W 4000K 24DEG WT MiCh Side
Catalog info 1
Spot Vario
Spot Vario
Catalog info 2
Spot Vario
Spot Vario
Catalog info 3
Spot Vario
Spot Vario
Catalog info 6
Spot Vario
Spot Vario
IES file (IES)
SP VARIO DN170 35W4000K 24DEG WT
SP VARIO DN170 35W4000K 24DEG WT
LDT file (Eulumdat)
SP VARIO DN170 35W4000K 24DEG WT
SP VARIO DN170 35W4000K 24DEG WT
ULD file (DIALux)
SPOTVARIO17035W4000K24 DEGWT
SPOTVARIO17035W4000K24 DEGWT
ROLF file (RELUX)
SP VARIO DN170 35W-4000K
SP VARIO DN170 35W-4000K
UGR file (UGR table)
SP VARIO DN170 35W4000K 24DEG WT
SP VARIO DN170 35W4000K 24DEG WT
Light distribution curve type cone
SP VARIO DN170 35W4000K 24DEG WT
SP VARIO DN170 35W4000K 24DEG WT
Light distribution curve type polar
SP VARIO DN170 35W4000K 24DEG WT
SP VARIO DN170 35W4000K 24DEG WT
BIM Revit 3D
SpotVARIO
SpotVARIO
CAD STEP 3D
Spot Vario
Spot Vario
Tender documents
SPOT VARIO 170 35 W 4000 K 24DEG WT-EN
SPOT VARIO 170 35 W 4000 K 24DEG WT-EN

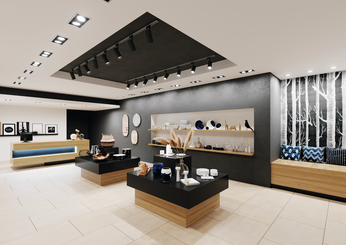

Application pictures
