SPOT COMBO FIRE RATED ADJUST MS

SP CBO FPADJ V 7W MS827 DIM IP65 WT

GTIN: 4099854459948 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • Easy color temperature adjustment via switch on the front of the spot
  • Highly versatile due to selectable CCT and power steps (Multi Color / Multi Lumen) on the driver
  • Can be covered with most insulating materials
  • Fire-rated: Designed and tested to meet fire rating standards (in certain fire rated ceilings)
Areas of application
  • Direct replacement for recessed spotlights with halogen lamps
  • General illumination
  • Hotel rooms and corridors
  • Bars, restaurants
  • Residential interiors
Product features
  • Adjustable color temperature (Multi Color): 2700 K, 3000 K, 4000 K, 6000 K
  • Version with Multi Lumen function available: power steps selectable
  • Type of protection: IP65 (room side)
  • Housing material: iron
  • Ring material: plastic
Equipment / Accessories
  • Already equipped with white round ring
  • Additional cover rings separately available in round shape and in different colors
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
References / Links
Electrical data
Nominal wattage 7 W / 5 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 32.000 mA
Inrush current 0.7 A
Inrush current time Th50 100 µs
Max. number of luminaires per miniature circuit breaker B16 426
Max. number of luminaires per miniature circuit breaker C10 266
Max. number of luminaires per miniature circuit breaker C16 426
Power factor λ 0.90
Total harmonic distortion < 40 %
Protection class I
Operating mode Electronic control gear (ECG)
Photometrical data
Luminous flux 840 lm / 800 lm / 770 lm / 600 lm / 570 lm
Luminous efficacy 120 lm/W / 115 lm/W / 110 lm/W
Color temperature 2700 K / 3000 K / 4000 K / 6000 K
Light color (designation) Warm White, Cool White, Cool Daylight
Color rendering index Ra > 80
Standard deviation of color matching < 6 sdcm
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 60 °
UGR < 30
Adjustable attributes
Nominal wattage Color temperature Luminous flux Luminous efficacy
7 W 6000 K 840 lm 120 lm/W
7 W 4000 K 840 lm 120 lm/W
7 W 3000 K 800 lm 115 lm/W
7 W 2700 K 770 lm 110 lm/W
5 W 6000 K 600 lm 120 lm/W
5 W 4000 K 600 lm 120 lm/W
5 W 3000 K 570 lm 115 lm/W
5 W 2700 K 570 lm 115 lm/W
Dimensions & Weight
Diameter 100.00 mm
Height 43.00 mm
Product weight 277.00 g
Cable length 60 mm
Materials & Colors
Product color Black
Housing color Black
Body material Plastic|METAL
Cover material Plastic
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Push terminal
Type of protection IP65/IP20
Protection class IK (shock resistance) IK03
Dimmable Yes
Type of dimming PHASE CUT
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting diameter 80 mm
Mounting depth 43 mm
Adjustable Yes
With light source Yes
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 40000 h 1)
Lifespan L90/B10 at 25 °C 30000 h
Number of switching cycles 25000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
Output current 85 mA
ECG - Output ripple current < 5 %
ECG - Length 124 mm
ECG - Width 47 mm
ECG - Height 27.3 mm
Certificates & Standards
Standards CE, CB, ENEC, TÜV SÜD, UKCA, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Additional product data
Added function MULTI SELECT
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854459948 Folding box
1		 117 mm x 115 mm x 71 mm 327.00 g 0.96 dm³
4099854459955 Shipping box
30		 590 mm x 246 mm x 242 mm 10510.00 g 35.12 dm³
User instruction / safety instructions
SP CBO FPADJ V 7W MS827 DIM IP65
PDF (3.39 MB)
Legal information
Safety insert G11221844
PDF (165.78 KB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Legal information
SP CBO FPADJ V 7W MS827 DIM IP65 WTLEDV
PDF (2.19 MB)
Declarations of conformity
SP CBO
PDF (275.94 KB)

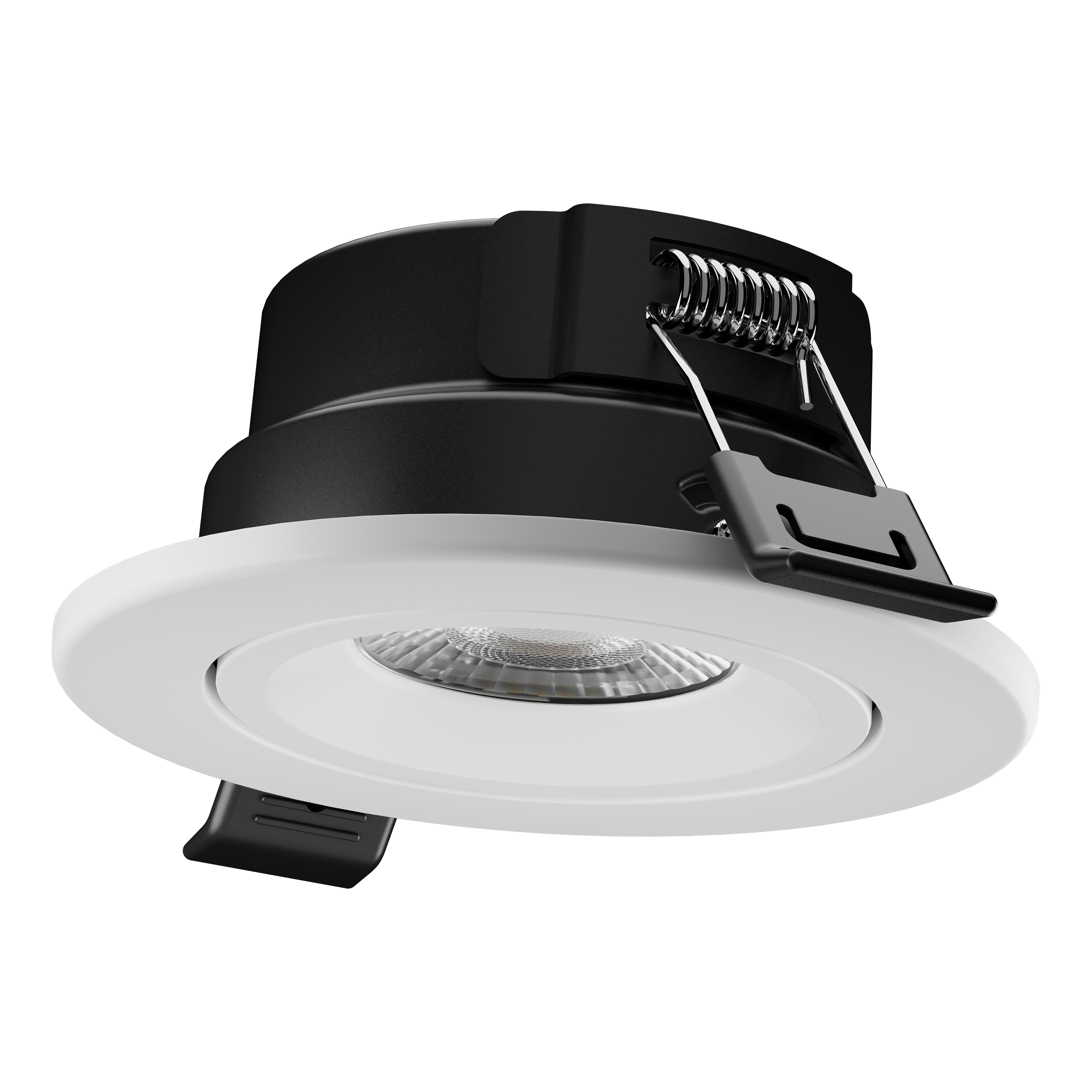

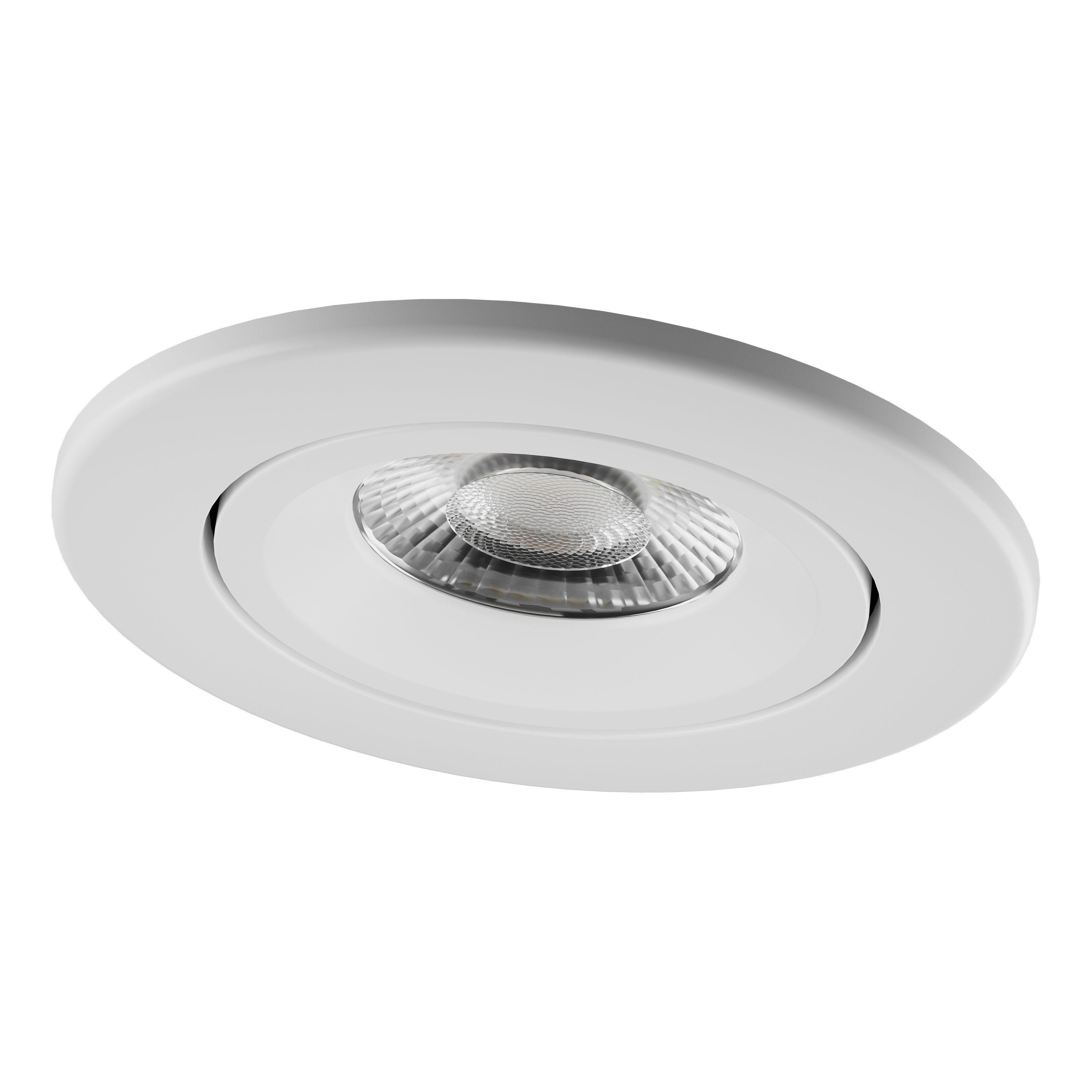

Product image: white background, diagonal
SP CBO FPADJ V 7W MS827 DIM IP65 WT
JPG (1.34 MB)

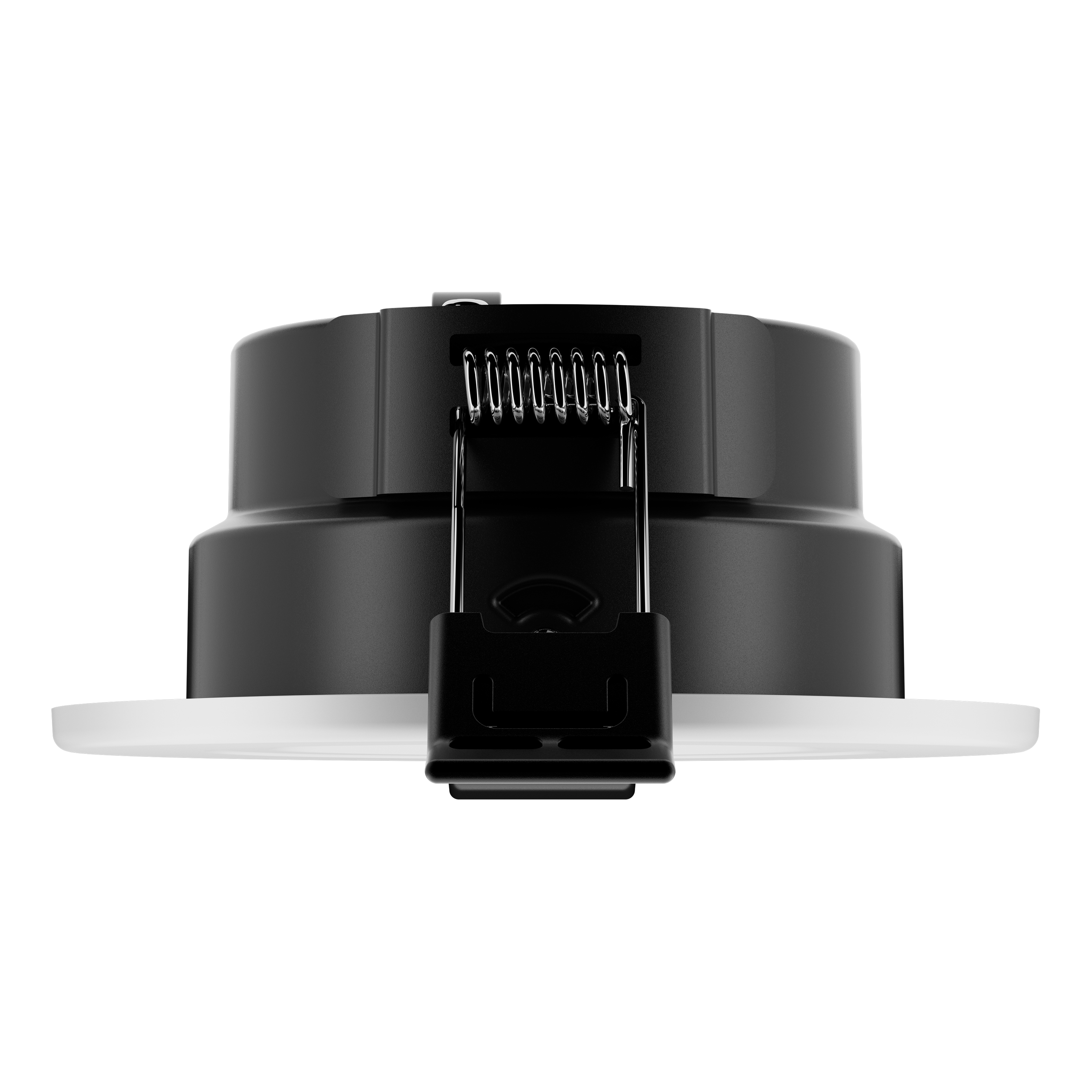

Product image: white background, horizontal
SP CBO FPADJ V 7W MS827 DIM IP65 WT
JPG (1.25 MB)

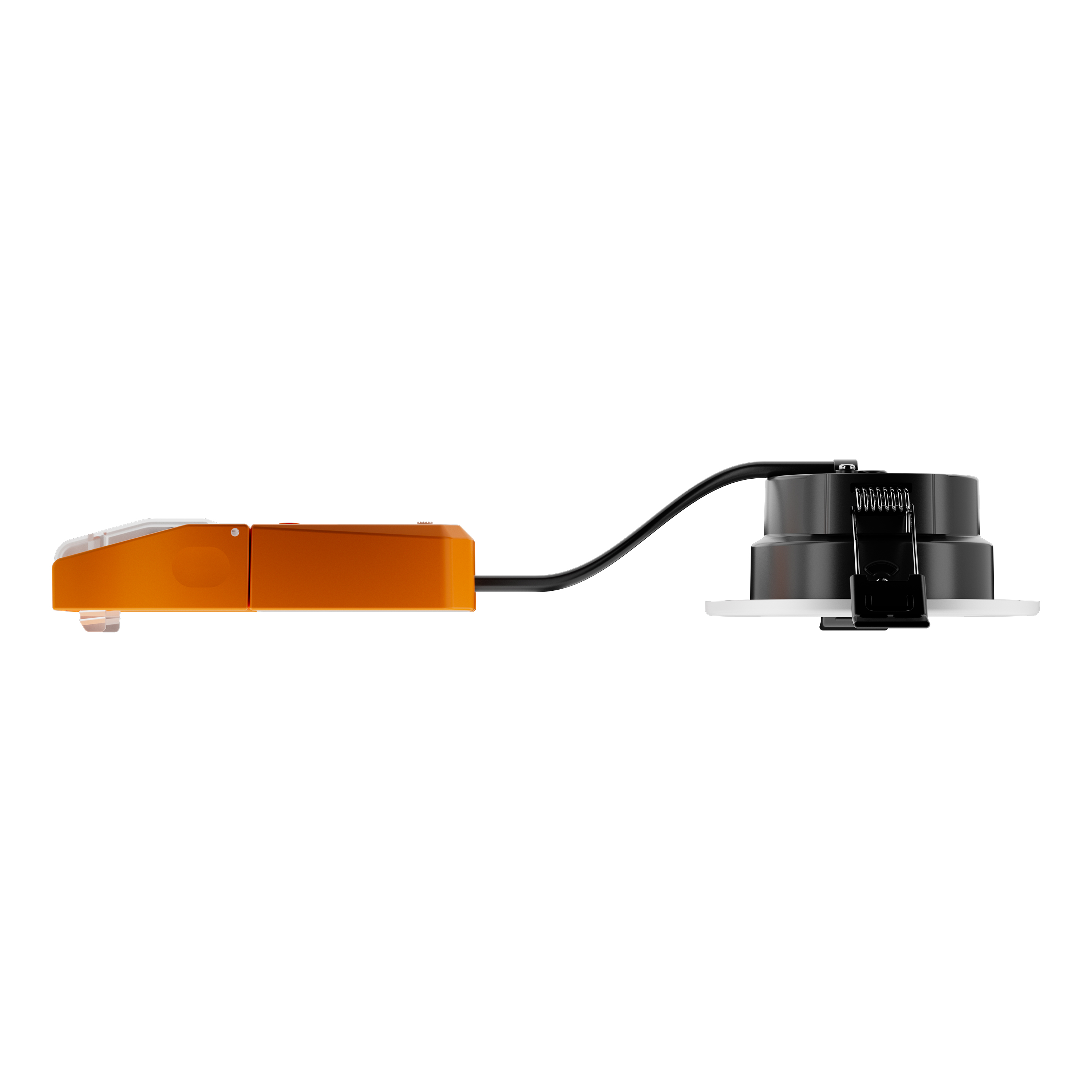

Product image: white background, horizontal, alternative image
SP CBO FPADJ V 7W MS827 DIM IP65 WT
JPG (882.14 KB)

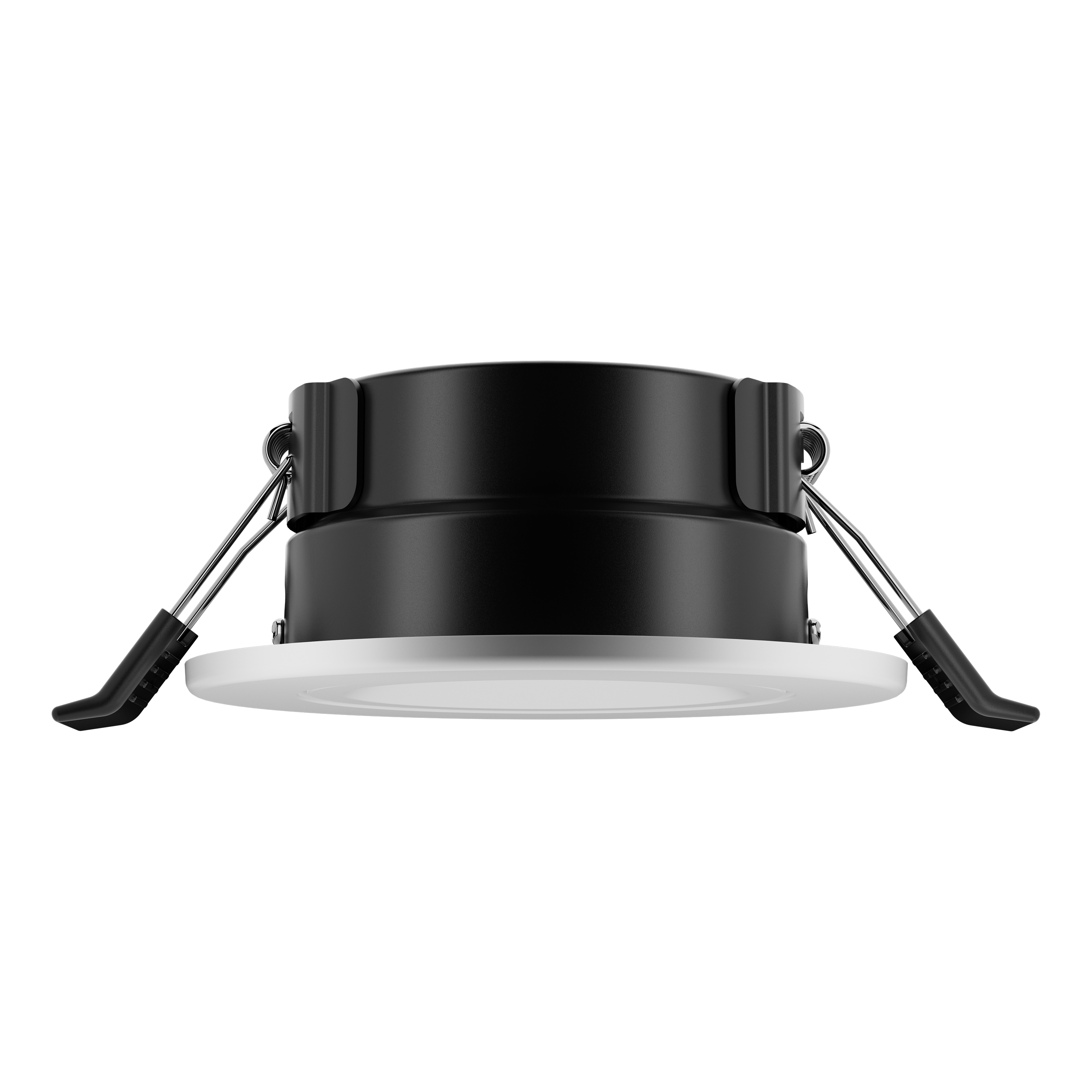

Product image: white background, horizontal, alternative image
SP CBO FPADJ V 7W MS827 DIM IP65 WT
JPG (1.56 MB)

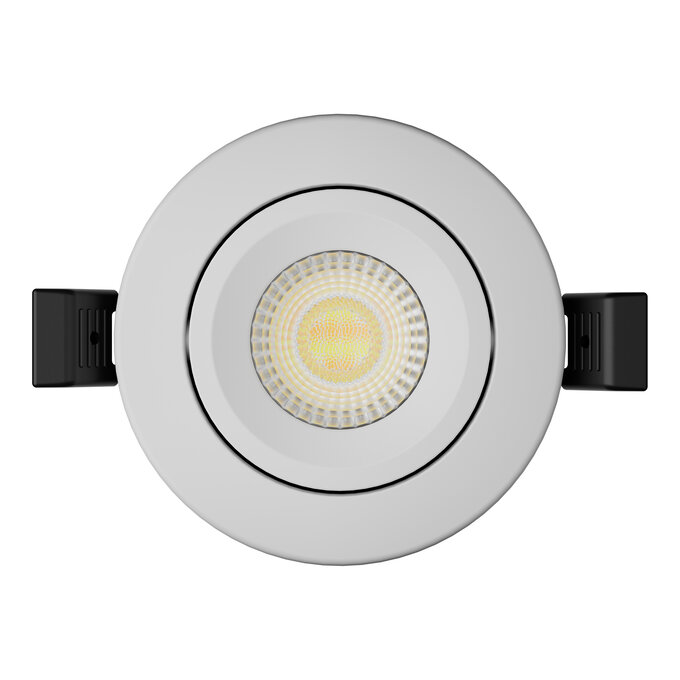

Product image: white background, upright
SP CBO FPADJ V 7W MS827 DIM IP65 WT
JPG (2.04 MB)

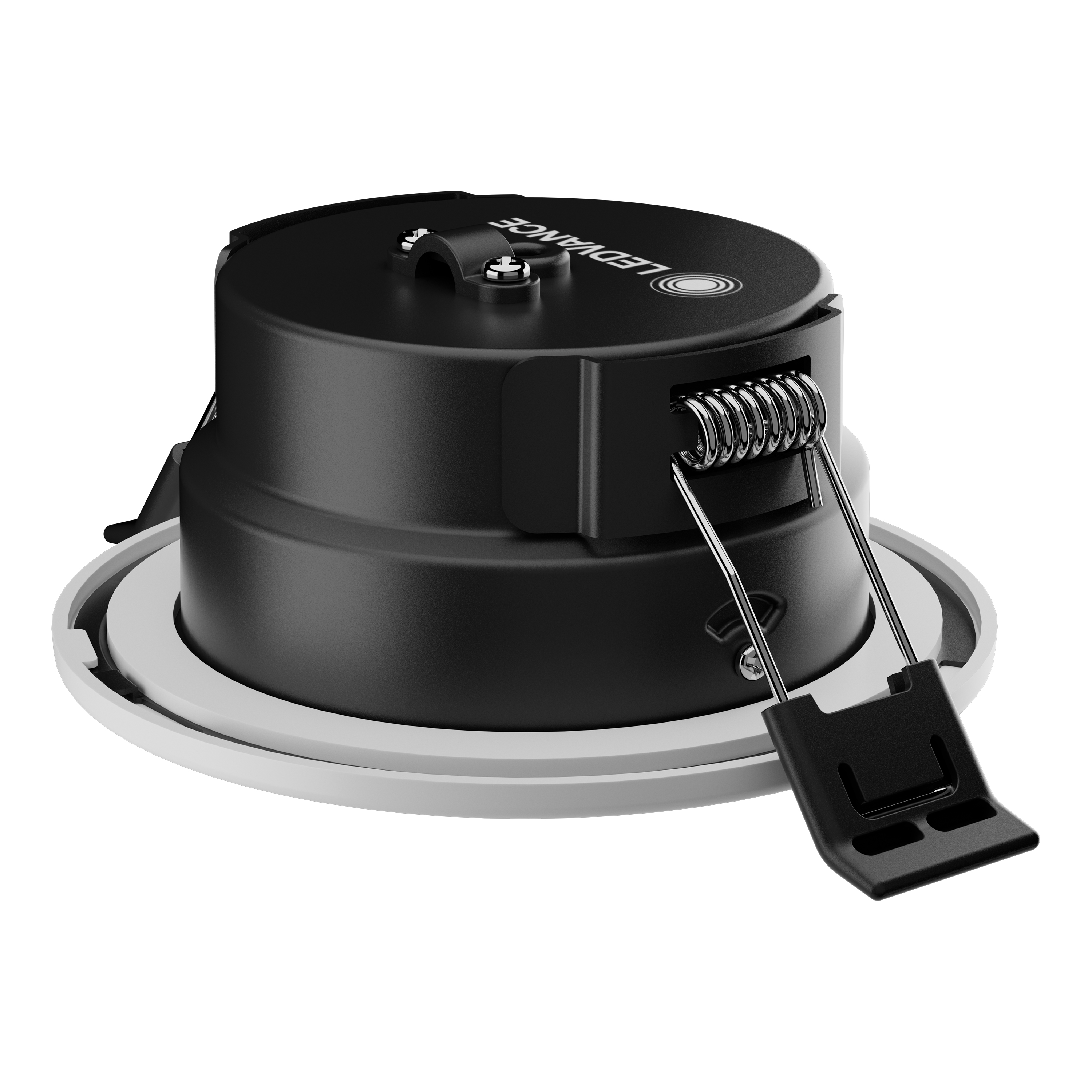

Product image: white background, spacial
