SPOT FRAME D68

SPOT FRAME 100X300 3X D68 BK

GTIN: 4099854460258 BAG / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Frame enables the change of the design from round to square shape
Areas of application
  • General illumination
  • Hotel rooms and corridors
  • Bars, restaurants
  • Accent lighting
  • Galleries, museums
  • Residential interiors
Product features
  • Steel-sheet housing
  • Available in 3 different sizes
  • Available in 3 different colors: white, black and silver
  • Suitable only for LEDVANCE SPOT GEN 2 with 68 mm cut-out in recessed ceilings
Dimensions & Weight
Length 300 mm
Height 4 mm
Width 100 mm
Product weight 165.00 g
Materials & Colors
Product color Black
Body material Steel
Application & Mounting
Ambient temperature range -20…+40 °C
Mounting type Recessed
Mounting location Ceiling
Replaceable light source No
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1), Tripnehyl Phosphate (115-86-6), Formaldehyde (25214-70-4), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329)(3147-75-9)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854460258 BAG
1		 320 mm x 115 mm x 2 mm 168.00 g 0.07 dm³
4099854460265 Shipping box
20		 328 mm x 123 mm x 98 mm 3395.00 g 3.95 dm³
4099854460272 Shipping box
40		 340 mm x 255 mm x 110 mm 7240.00 g 9.54 dm³

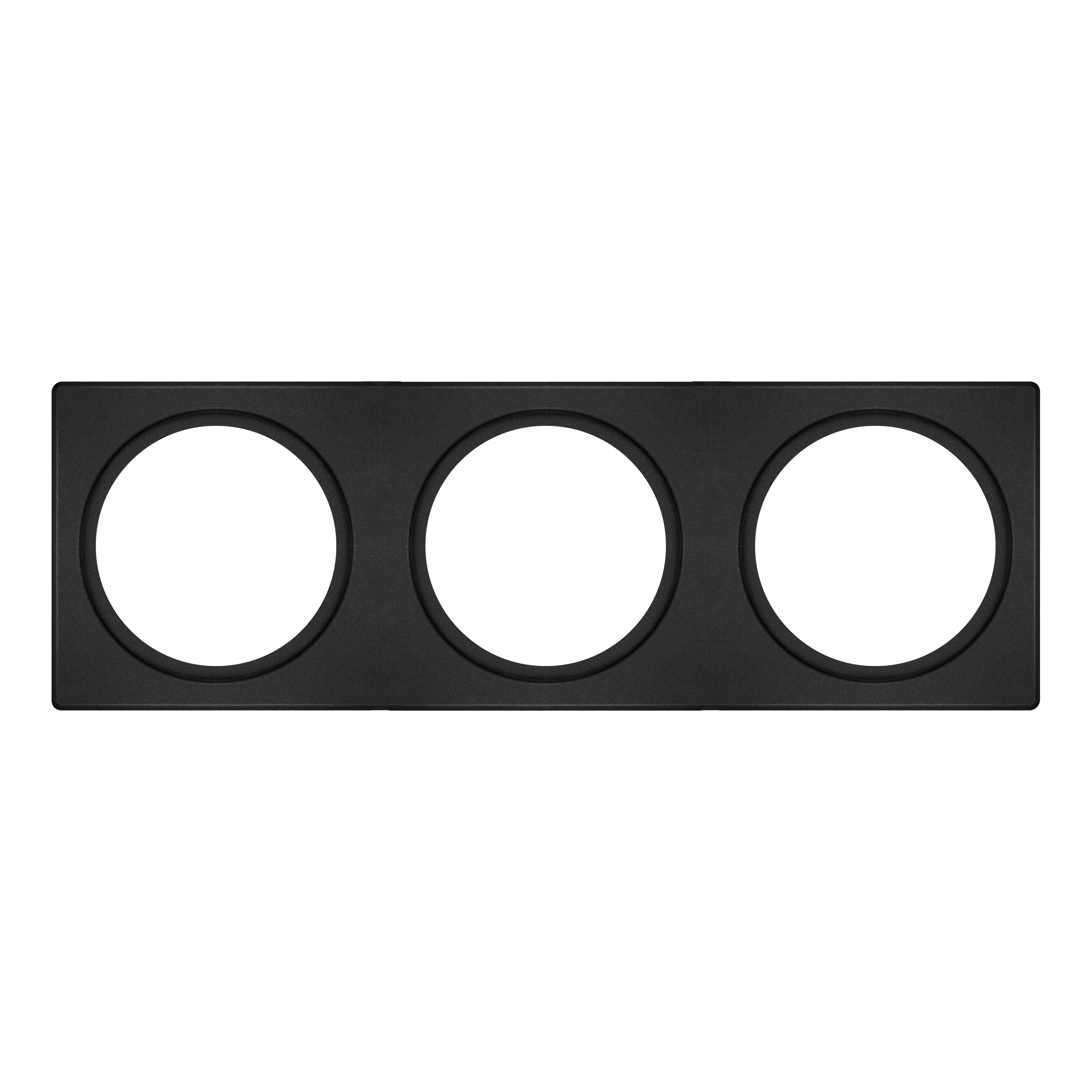

Product image: white background, upright
SPOT FRAME 100X300 3X D68 BK
JPG (1.44 MB)
Product line drawing with letters
SPOT FRAME 100X300 3X D68 BK
SVG (12.91 KB)
Product line drawing with numbers
SPOT FRAME 100X300 3X D68 BK
SVG (15.54 KB)
Product line drawing - technical
SPOT FRAME 100X300 3X D68 BK
SVG (6.72 KB)
Tender documents
SPOT FRAME D68 100X300 3X D68 BK-en
TXT (508 B)
EAN STK number ELDAS number
4099854460258 4161016 941904220
