PRODUCT DETAILS
Product benefits
- Retrofit: Replacement of old recessed lights with LEDVANCE SPOTs FIX or ADJ in latest LED-technology
- Standardize: Reduce existing cut-outs to a standard cut-out of 68 mm
- Versatile: Refurbishment rings for padding cut-out holes from Ø68 - Ø90 or Ø68 - Ø115 or Ø115 - Ø160 mm
Areas of application
- Refurbishment of existing cut-outs in recessed ceilings
Product features
- Material: deep-drawn steel
- Suitable only for LEDVANCE SPOTs in 68 mm cut-out
- Silicon-pad protected springs
Dimensions & Weight
| Diameter | 100 mm |
| Height | 4 mm |
| Product weight | 50.00 g |
Materials & Colors
| Product color | Black |
| Body material | Steel |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Mounting diameter | 68…90 mm |
| Replaceable light source | No |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854136542 | BAG 1 |
180 mm x 160 mm x 1 mm | 51.00 g | 0.03 dm³ |
| 4099854136559 | Shipping box 20 |
114 mm x 114 mm x 72 mm | 1065.00 g | 0.94 dm³ |
| 4099854136566 | Shipping box 240 |
355 mm x 240 mm x 164 mm | 13084.00 g | 13.97 dm³ |
User instruction / safety instructions
UI SP FIX P and SP FIX ADJ
UI SP FIX P and SP FIX ADJ
User instruction / safety instructions
UI SP DK FIX P
UI SP DK FIX P
User instruction / safety instructions
UI SP AIR FIX P
UI SP AIR FIX P

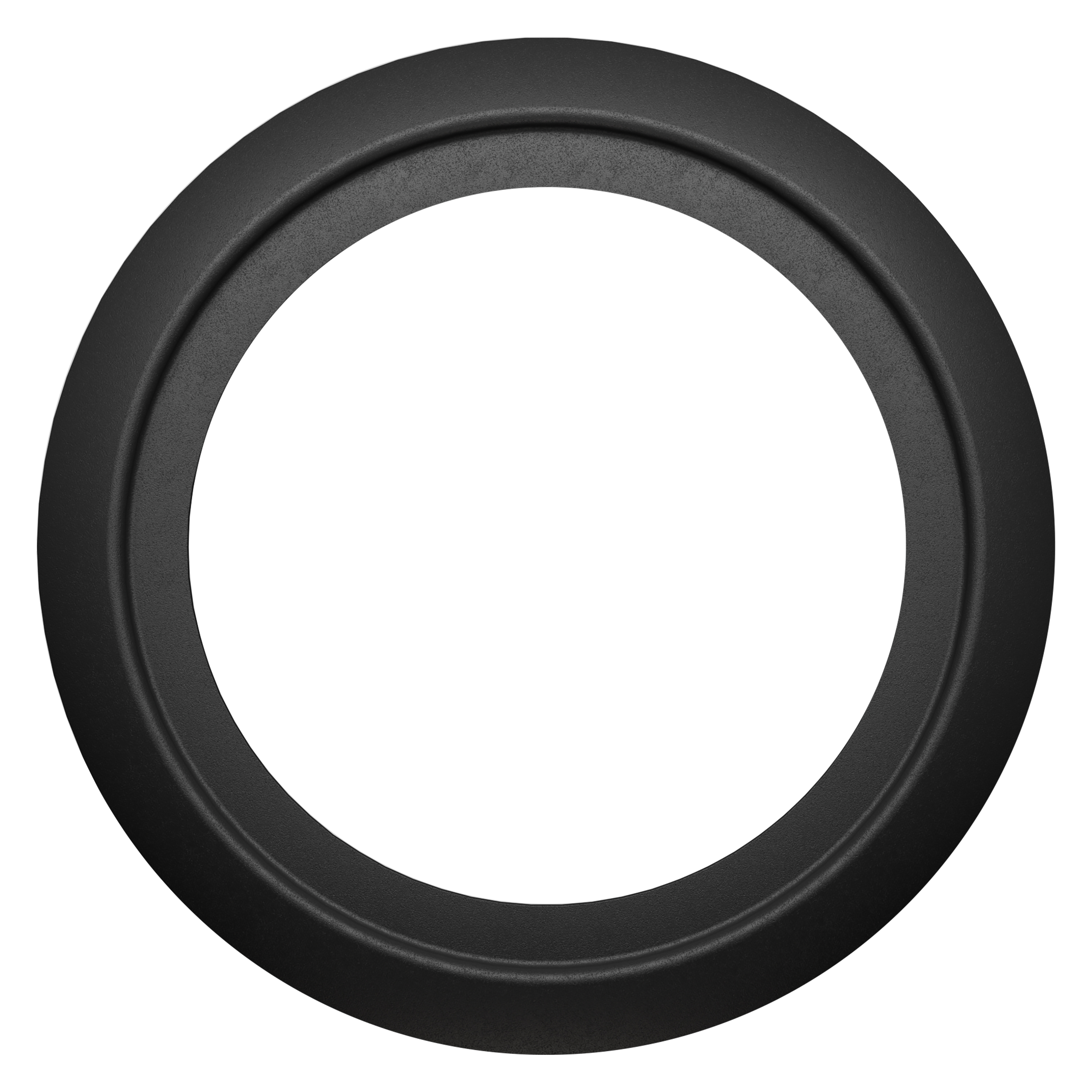

Product image: white background, horizontal

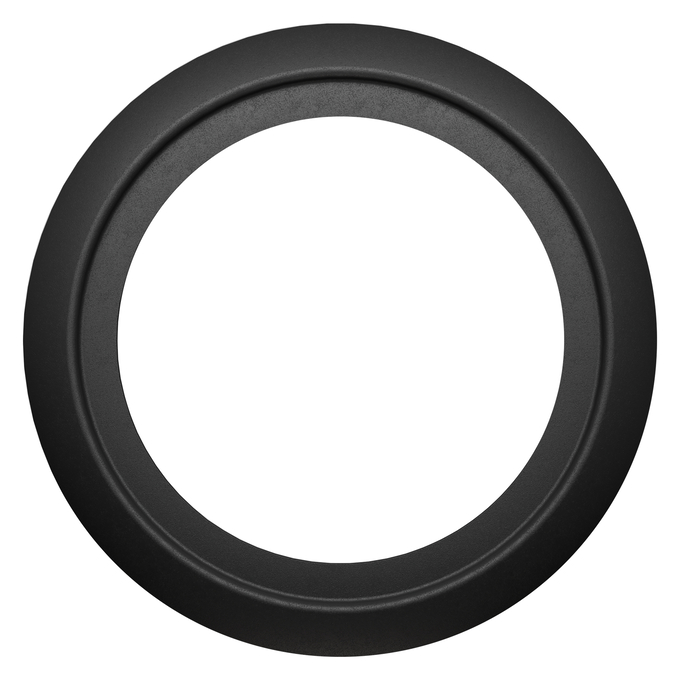

Product image: white background, upright
SP RING D100 BK
SP RING D100 BK

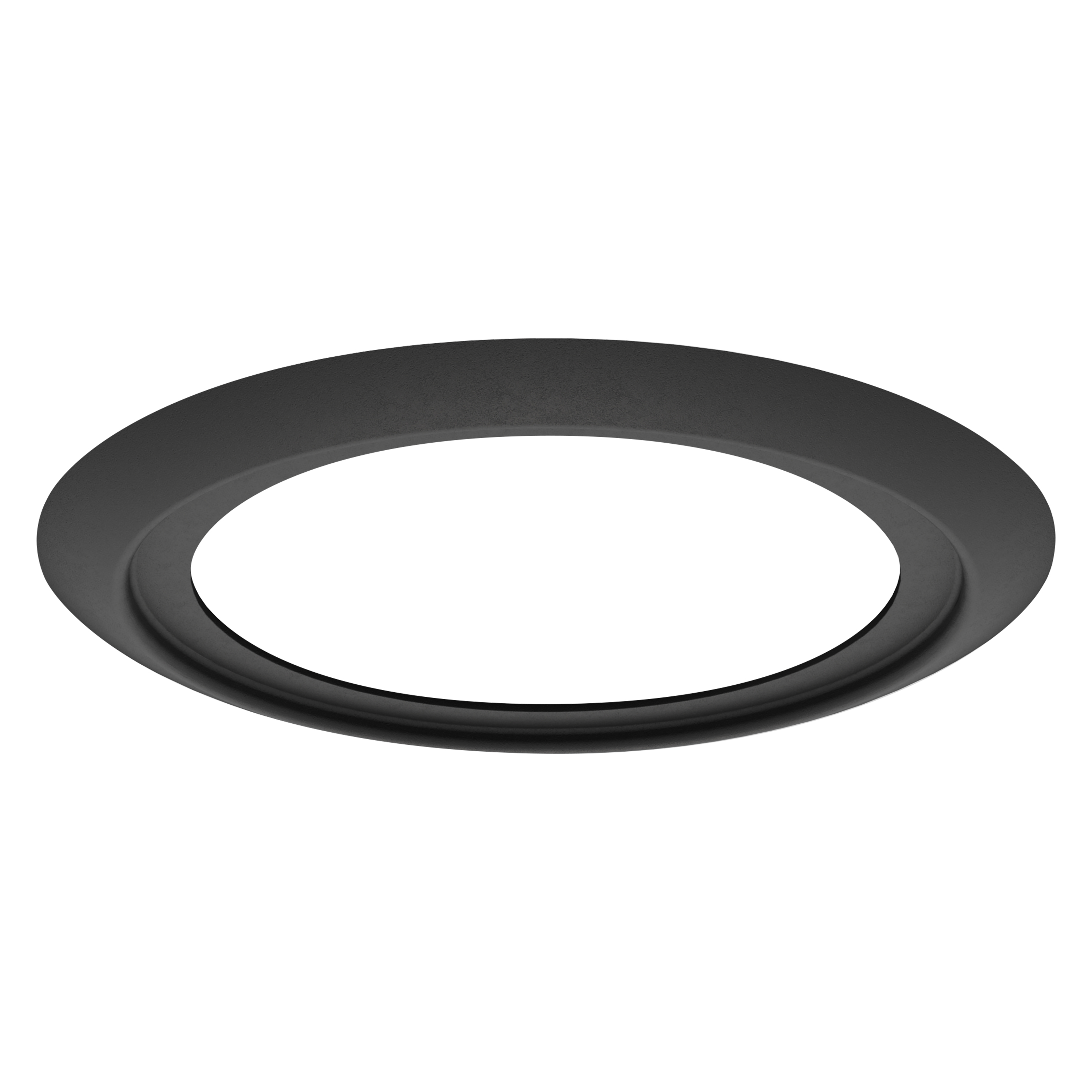

Product image: white background, spacial
SP RING D100 BK
SP RING D100 BK
Product line drawing with letters
SP RING
SP RING
Product line drawing with numbers
SP RING D100
SP RING D100
Product line drawing - technical
SP RING
SP RING

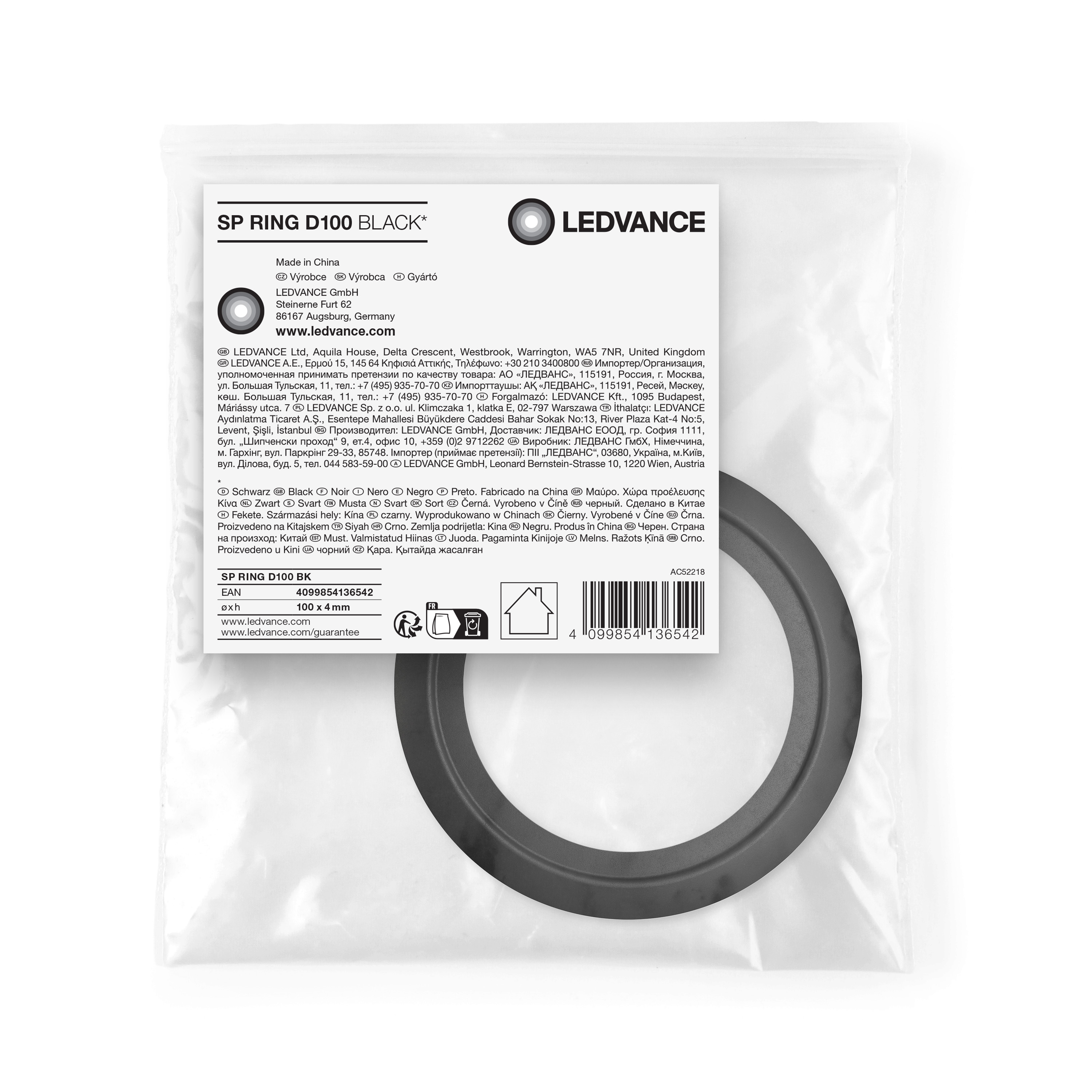

Packaging image, frontal
SP RING D100 BK
SP RING D100 BK
Tender documents
SPOT RING D100 BK-EN
SPOT RING D100 BK-EN
| EAN | SEG number | STK number | ELDAS number |
|---|---|---|---|
| 4099854136542 | 7452808 | 4136295 | 941005910 |
