SP DRIVER

SP DRIVER DALI 8W

GTIN: 4099854089558 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • DALI driver with individual luminaire current set-up already installed
  • Extended services such as energy monitoring and remote maintenance possible with DALI versions
  • Easy replacement of external driver thanks to plug with bayonet lock
Areas of application
  • DALI installations
Product features
  • IoT-ready driver with DALI-2 technology
  • Push DIM function for dimming and switching directly on a pushbutton
  • Suitable for emergency central battery installations acc. to EN 60598-2-22
  • Twist & lock connector for ease of installation
Equipment / Accessories
  • Can only be used with LEDVANCE SPOTs 8 W (CC 180mA)
Safety advice
  • Do not cover with any thermal insulation material!
Electrical data
Nominal wattage 8.00 W
Nominal voltage 220…240 V
Mains frequency 50/60 Hz
Max. number of luminaires per miniature circuit breaker B16 130
Power factor λ 0.90
Protection class II
Dimensions & Weight
Length 120.00 mm
Height 30.00 mm
Width 53.00 mm
Product weight 100.00 g
Materials & Colors
Product color Grey
Body material Polycarbonate (PC)
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -42…+80 °C
Type of protection IP20
Dimmable Yes
Type of dimming DALI2
Replaceable light source No
Control gear
Output current 180 mA
Emergency lighting
Wattage in emergency operation mode 3,0 W
Luminous flux in emergency operation mode 120 lm
Certificates & Standards
Standards CE, UKCA, EAC
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854089558 Folding box
1		 35 mm x 220 mm x 62 mm 205.00 g 0.48 dm³
4099854089565 Shipping box
4		 227 mm x 155 mm x 74 mm 1025.00 g 2.60 dm³
User instruction / safety instructions
UI SP FIX P and SP FIX ADJ
PDF (3.71 MB)
User instruction / safety instructions
UI SP DK FIX P
PDF (3.22 MB)
User instruction / safety instructions
UI SP FP FIX P
PDF (3.22 MB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)

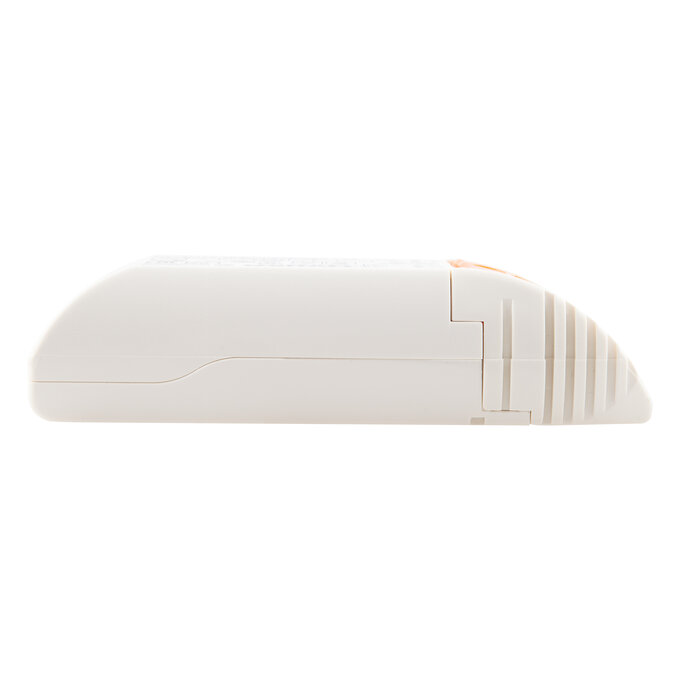

Product image: white background, upright
SP DRIVER DALI 8W
JPG (1.8 MB)

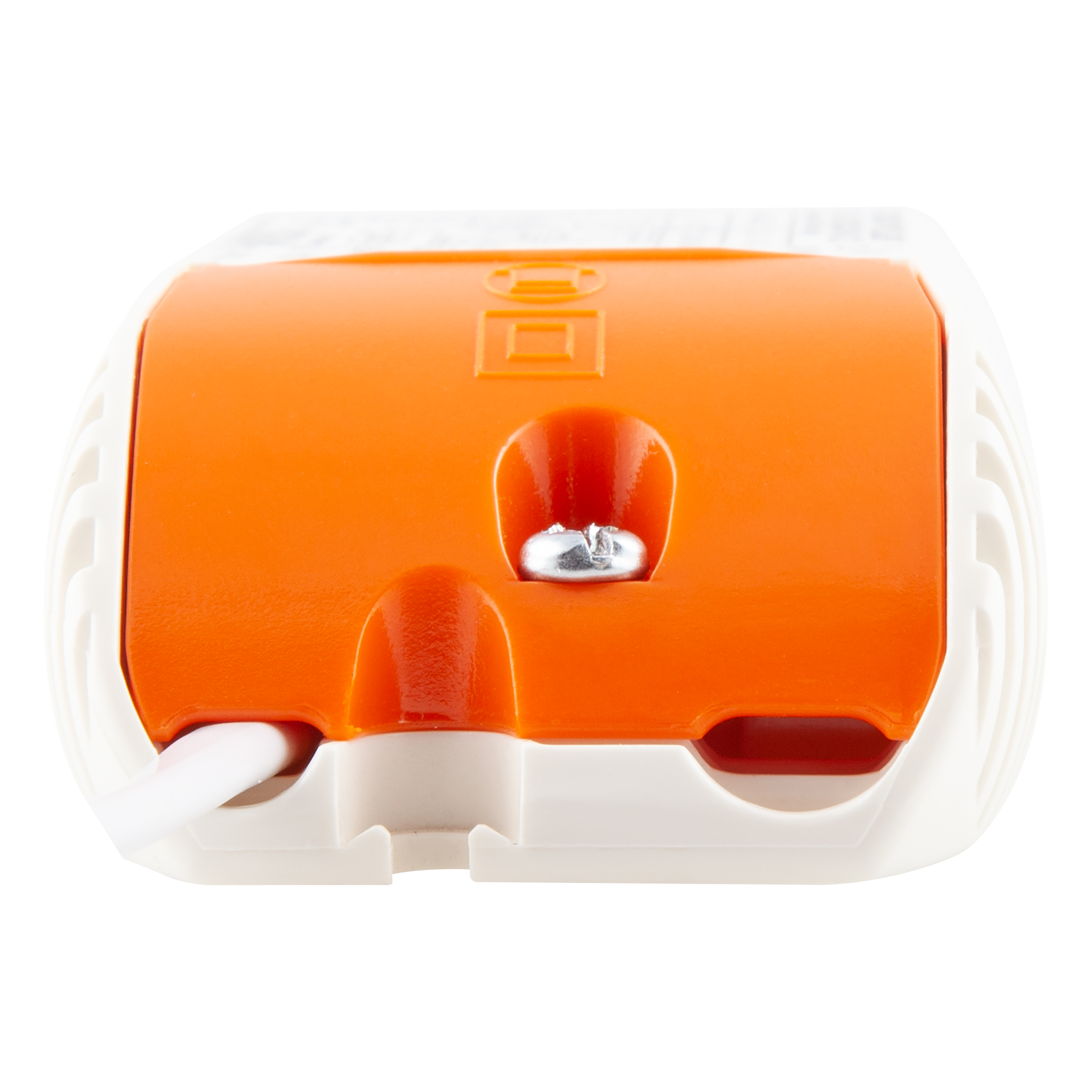

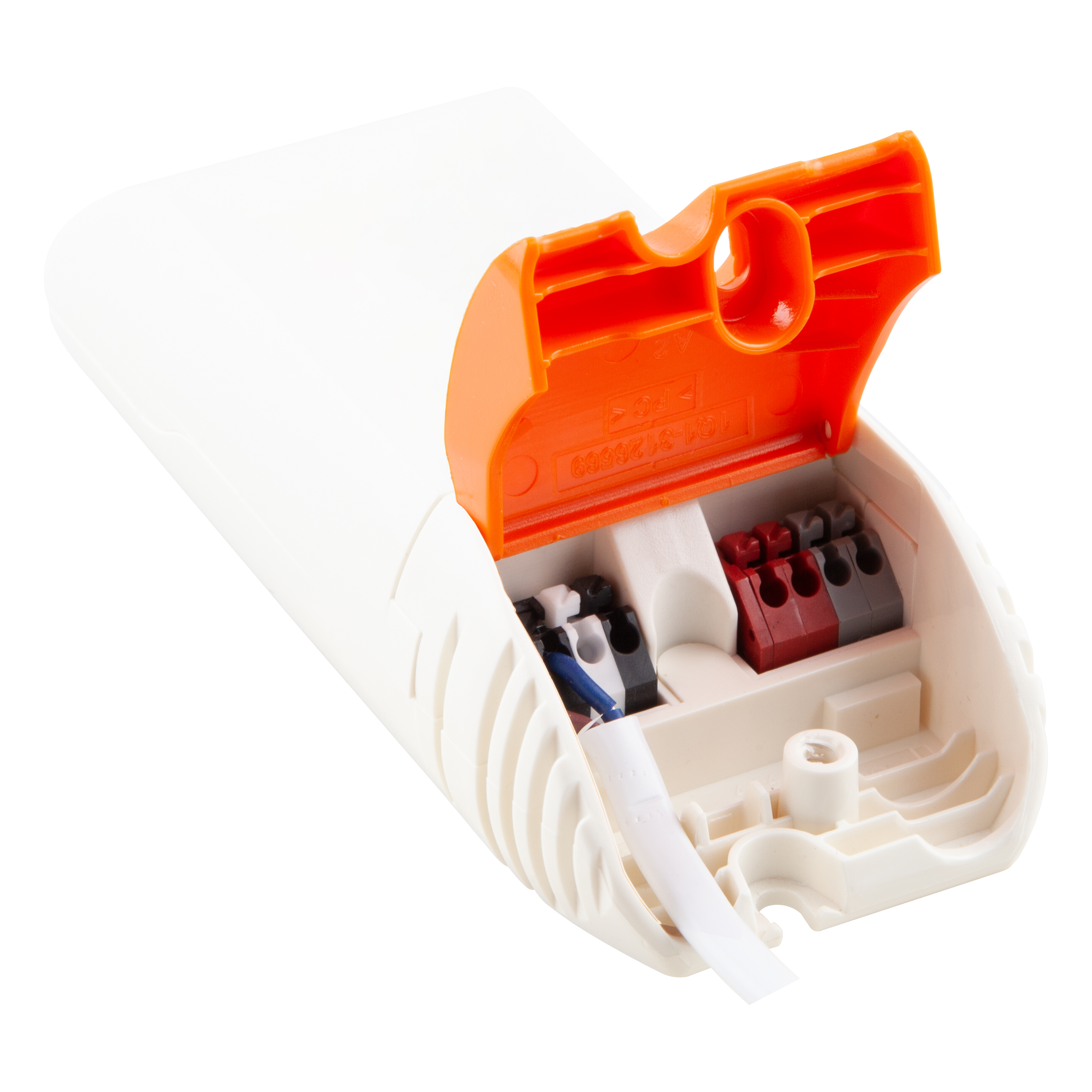

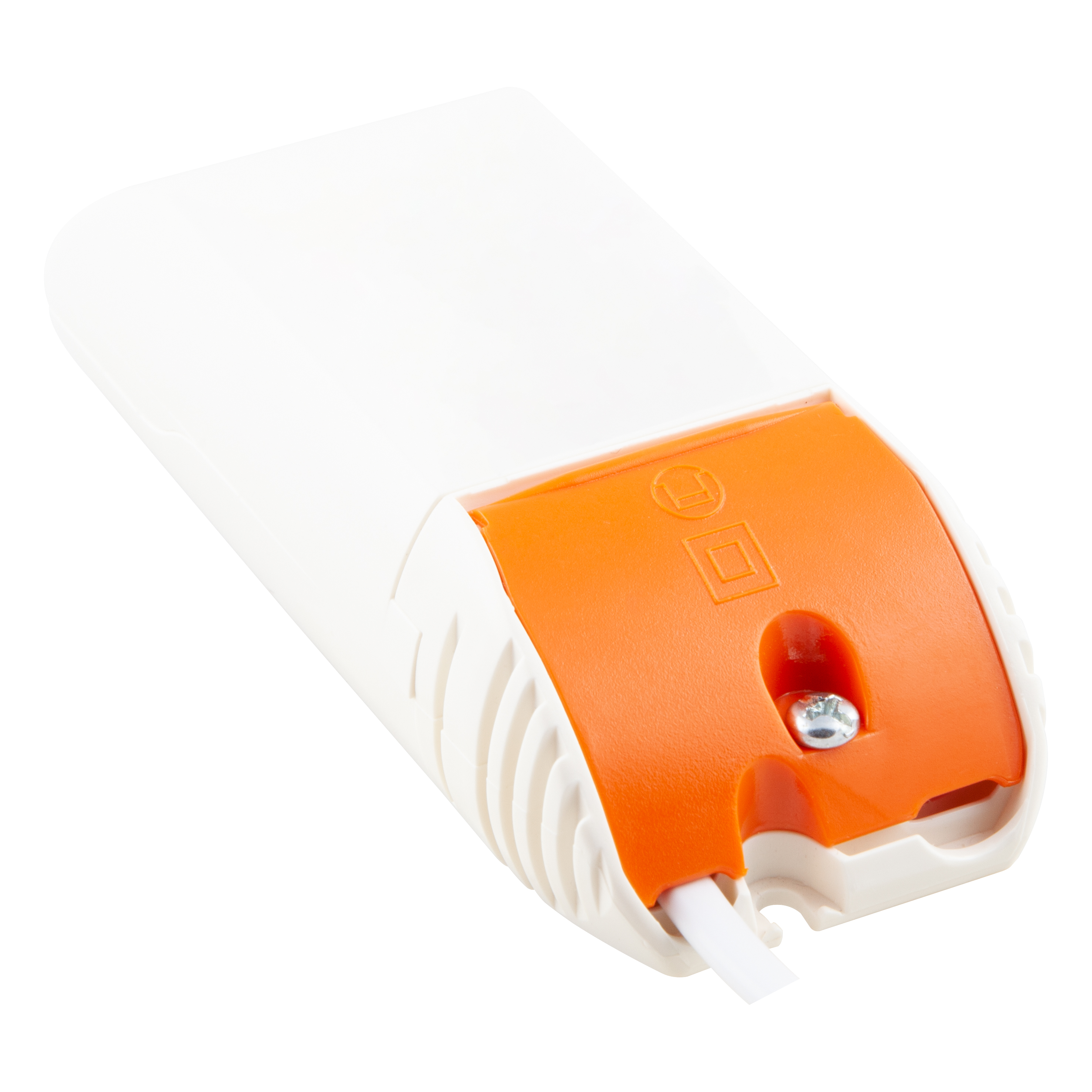

Product image: white background, spacial
SP DRIVER DALI 8W
JPG (1.94 MB)
Product image: white background, spacial
SP DRIVER DALI 8W
JPG (2.07 MB)
Product line drawing with letters
SP DRIVER DALI 8W
SVG (41.11 KB)
Product line drawing with numbers
SP DRIVER DALI 8W
SVG (43.71 KB)

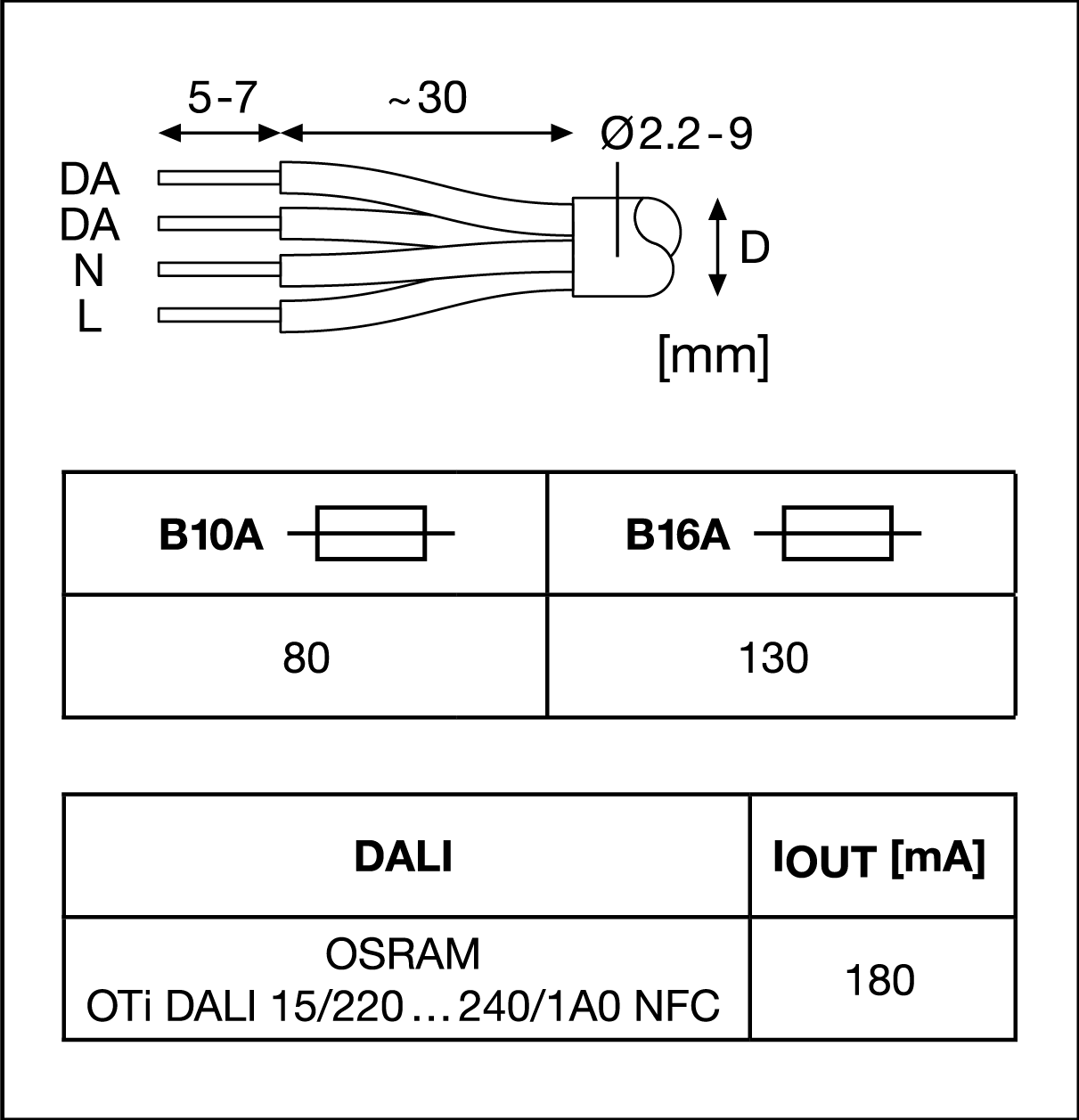

Product line drawing - technical
