SURFACE MOUNT KIT
PANEL 625 SURFACE MOUNT KIT H50
GTIN: 4058075826403
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Ready-to-mount thanks pre-assembled magnetic corners
- Crossbar for advanced stability
- H50 version with slim design fits for panels with an overall height of 38 mm (Panel + driver)
Areas of application
- H75 versions suitable for all LEDVANCE Panels
- H50 versions suitable only for LEDVANCE Biolux Panel and Panel Protect
Product features
- Extruded aluminum frame
- Mount frames available in 75 mm (H75) or 50 mm (H50) height
- Available in white (like RAL9003) or black (like RAL9005) color
Dimensions & Weight
| Length | 625 mm |
| Height | 50.00 mm |
| Width | 625 mm |
| Product weight | 1225.00 g |
Materials & Colors
| Product color | White |
| RAL Color (most similar) | RAL 9003 |
| Body material | Aluminum |
Application & Mounting
| Ambient temperature range | -20…+50 °C |
| Mounting type | Surface |
| Mounting location | Ceiling |
| Replaceable light source | No |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075826403 | Folding box 1 |
58 mm x 634 mm x 636 mm | 1655.00 g | 23.39 dm³ |
| 4099854120763 | Shipping box 5 |
652 mm x 314 mm x 665 mm | 9796.00 g | 136.14 dm³ |
User instruction / safety instructions
UI PL PROT 600 P 36W and PL PROT 625 P 36W
UI PL PROT 600 P 36W and PL PROT 625 P 36W
Product image: white background, diagonal
LEDVANCE Panel Surface Mount Kit 600 Montage
LEDVANCE Panel Surface Mount Kit 600 Montage
Product line drawing with letters
LEDVANCE Panel Surface Mount Kit 625 ml
LEDVANCE Panel Surface Mount Kit 625 ml

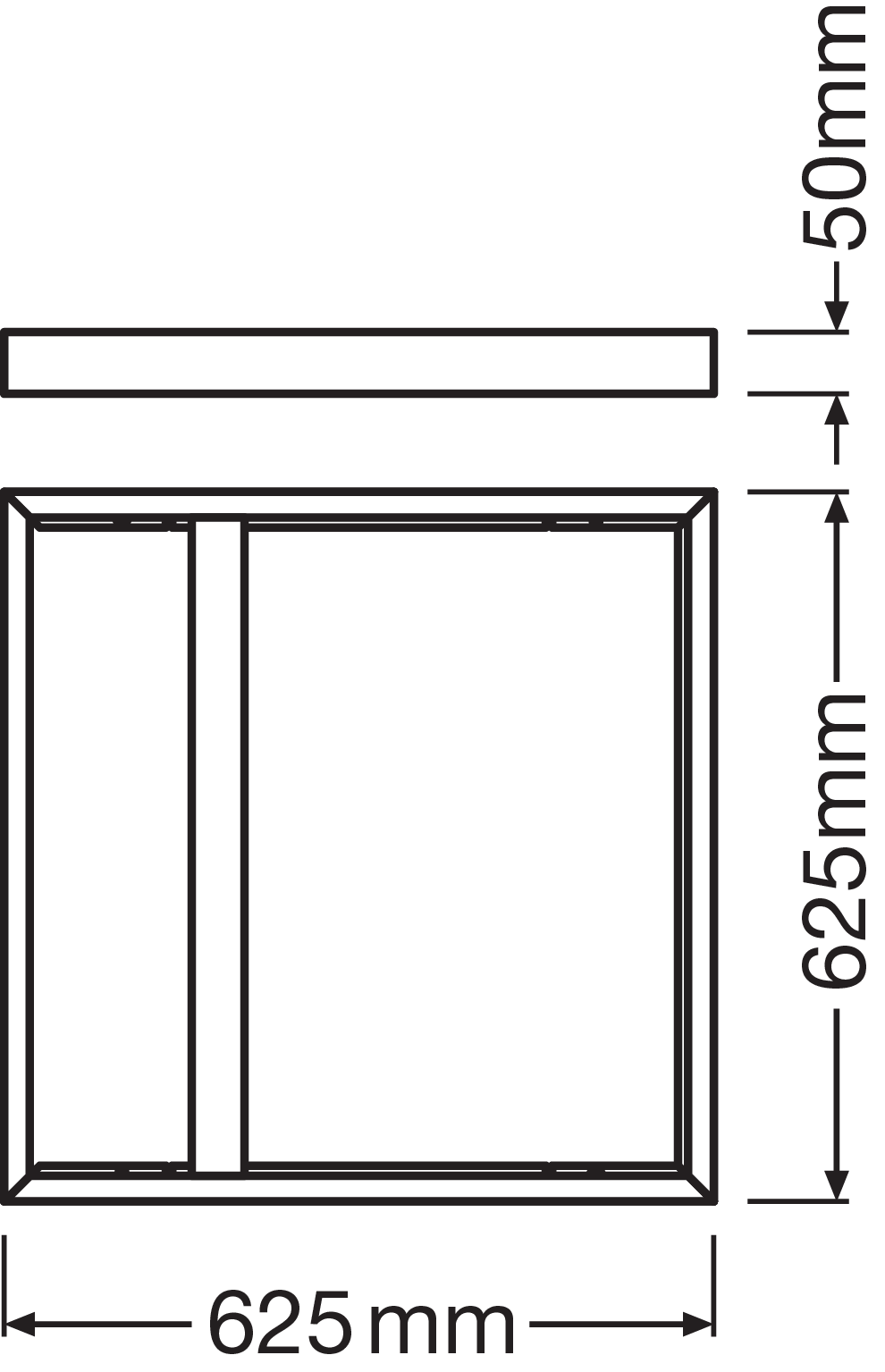

Product line drawing with numbers
PL 625 SURFACE MOUNT KIT H50
PL 625 SURFACE MOUNT KIT H50
Product line drawing, front, no dimensions
LEDVANCE Panel Surface Mount Kit 625
LEDVANCE Panel Surface Mount Kit 625

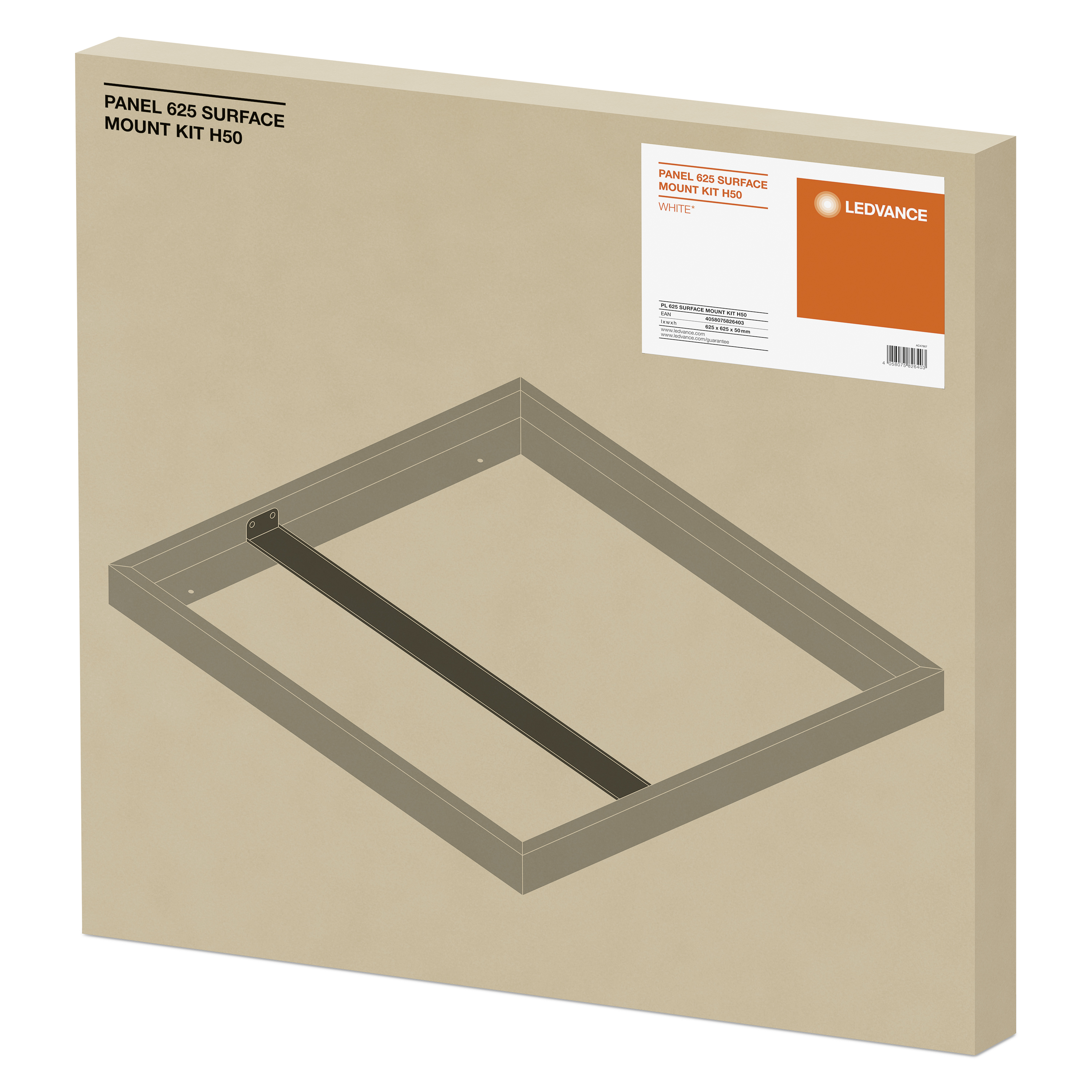

Packaging image, spacial
Panel 625 SURFACE MOUNT KIT H50 MiCh
Panel 625 SURFACE MOUNT KIT H50 MiCh
Tender documents
SURFACE MOUNT KIT 625 SURFACE MOUNT KIT H50-EN
SURFACE MOUNT KIT 625 SURFACE MOUNT KIT H50-EN
Application pictures Getty
Patient admission area Panel Protect
Patient admission area Panel Protect
| EAN | ELDAS number | UK Org |
|---|---|---|
| 4058075826403 | 941005870 | 435958057 |
