OUTDOOR FACADE POLE

O FACADE POLE SENSOR 6 W 3000 K IP44 S SST

GTIN: 4058075075115 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • Energy-efficient thanks to LED technology
  • 5 years guarantee
  • Easy and quick installation
  • Special light guide design for low-glare illumination
Areas of application
  • Outdoor
  • Building facades
  • Entrance lighting
  • Gardens, balconies and other outdoor areas
Product features
  • Bright and functional outdoor LED luminaires
  • Type of protection: IP44
  • Housing made of Polycarbonate covered with stainless steel
  • Available as wall, ceiling and bollard luminares
  • Available with and without motion sensor
  • Diffuser made of transparent polycarbonate
Equipment / Accessories
  • Complete mounting and connecting accessories included
References / Links
Electrical data
Nominal wattage 6.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 60 mA
Max. number of luminaires per miniature circuit breaker B16 38
Max. number of luminaires per miniature circuit breaker C10 54
Max. number of luminaires per miniature circuit breaker C16 34
Power factor λ > 0.5
Protection class II
Operating mode Mains voltage
Photometrical data
Luminous flux 360 lm
Luminous efficacy 60 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra ≥80
Standard deviation of color matching < 6 sdcm
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 160 °
Dimensions & Weight
Length 150.00 mm
Height 135.00 mm
Width 102.00 mm
Product weight 500.00 g
Materials & Colors
Product color Steel
Housing color Steel
Body material Stainless steel
Cover material Polycarbonate (PC)
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Type of connection Screw terminal, 2-Pole (L,N)
Type of protection IP44
Protection class IK (shock resistance) IK06
Dimmable No
Mounting type Surface
Mounting location Wall
Application environment Outdoor
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 30000 h 1)
Number of switching cycles 15000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Sensor
Type of sensor Motion, Light
Sensor technology Passive infrared (PIR)
Sensor detection angle 120 °
Sensor controlled switching time 5 s/30 s/1 min/3 min/5 min/8 min
Detection range of motion sensor 3 m, 6 m
Detection threshold of daylight sensor 10 lx, 2000 lx
Sensor IP rating IP44
Certificates & Standards
Standards CE
Ball shot safe No
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075075115 Folding box
1		 124 mm x 154 mm x 166 mm 540.00 g 3.17 dm³
4058075075122 Shipping box
6		 380 mm x 175 mm x 320 mm 3471.00 g 21.28 dm³
User instruction / safety instructions
User Instruction Outdoor Facade Pole
PDF (2.13 MB)
On-Pack-Info
Legal Insert OUTDOOR
PDF (1.55 MB)
Declarations of conformity
EC declararion Outdoor
PDF (1.75 MB)

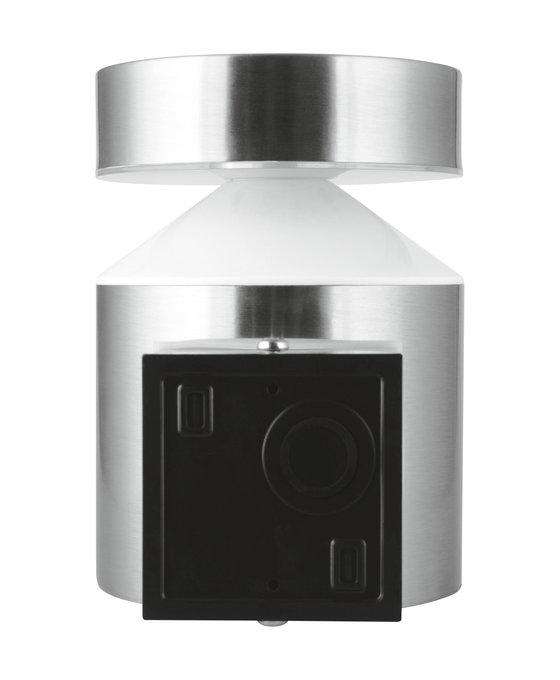

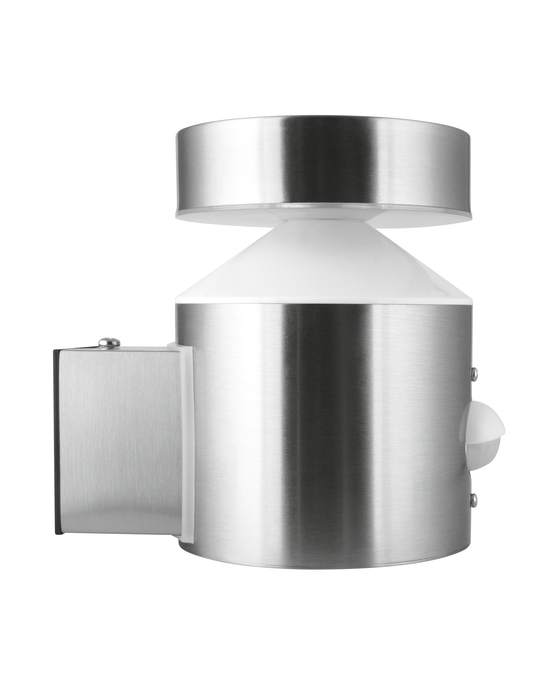

Product image: white background, upright
O FACADE POLE 6W/3000K SST S IP44
TIF (19.6 MB)
Product line drawing with numbers
O FACADE POLE 6W/3000K SST S IP44
SVG (14.44 KB)
Product line drawing with numbers
O FACADE POLE 6W/3000K SST S IP44
SVG (14.38 KB)
Packaging image, spacial
Outdoor Facade Pole Sensor 6W 830 IP44 MiCh Side
TIF (6.25 MB)
IES file (IES)
O Facade Pole 6W3000K SST S IP44
IES (2.61 KB)
LDT file (Eulumdat)
O Facade Pole 6W3000K SST S IP44
LDT (2.56 KB)

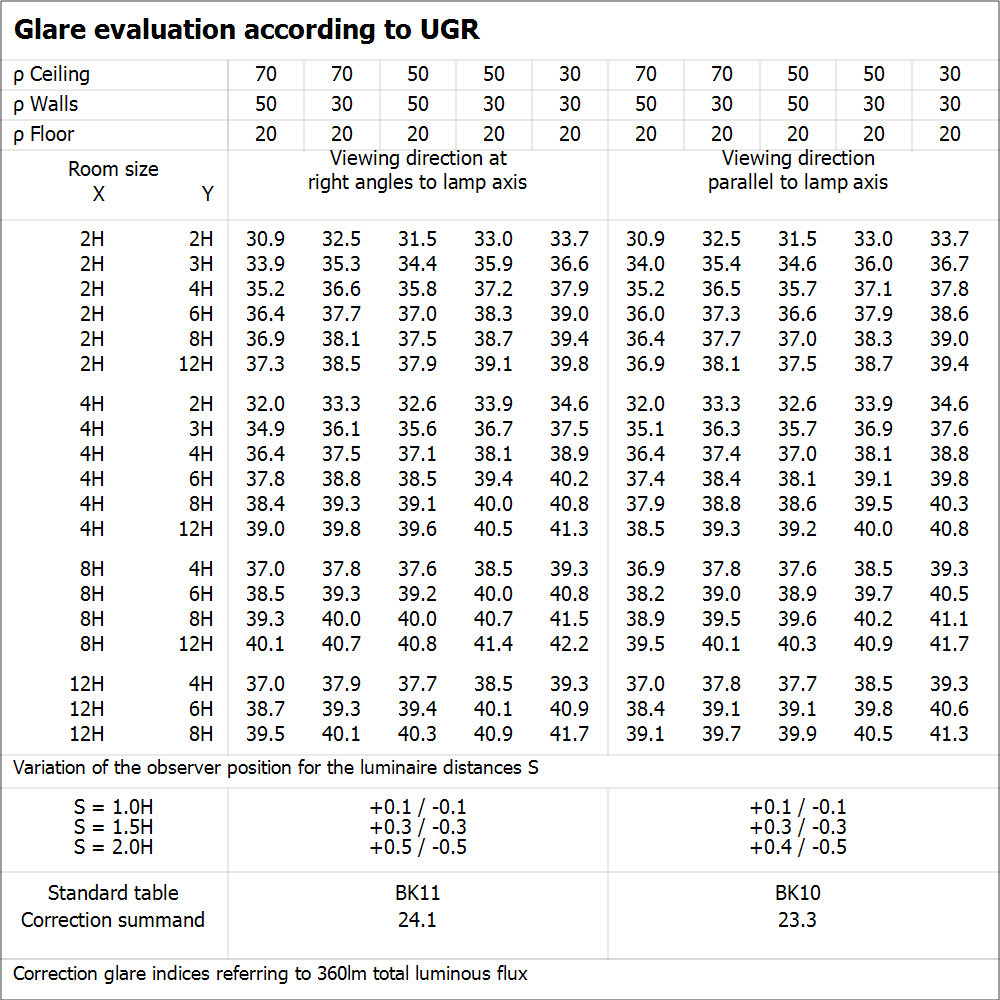

UGR file (UGR table)
O Facade Pole 6W3000K SST S IP44
PNG (62.25 KB)
Light distribution curve type cone
O Facade Pole 6W3000K SST S IP44
SVG (81.58 KB)
Light distribution curve type polar
4058075075115 O Facade Pole 6W3000K SST S IP44
SVG (620.24 KB)
EAN SEG number STK number EFO number ELDAS number
4058075075115 7703496 4567433 3201728 941300260
