OUTDOOR FACADE POLE
O FACADE POLE 6 W 3000 K IP44 SST
GTIN: 4058075075092
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Energy-efficient thanks to LED technology
- 5 years guarantee
- Easy and quick installation
- Special light guide design for low-glare illumination
Areas of application
- Outdoor
- Building facades
- Entrance lighting
- Gardens, balconies and other outdoor areas
Product features
- Bright and functional outdoor LED luminaires
- Type of protection: IP44
- Housing made of Polycarbonate covered with stainless steel
- Available as wall, ceiling and bollard luminares
- Available with and without motion sensor
- Diffuser made of transparent polycarbonate
Equipment / Accessories
- Complete mounting and connecting accessories included
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 6.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 60 mA |
| Max. number of luminaires per miniature circuit breaker B16 | 38 |
| Max. number of luminaires per miniature circuit breaker C10 | 54 |
| Max. number of luminaires per miniature circuit breaker C16 | 34 |
| Power factor λ | > 0.5 |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 360 lm |
| Luminous efficacy | 60 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 160 ° |
Dimensions & Weight
| Length | 138.00 mm |
| Height | 135.00 mm |
| Width | 102.00 mm |
| Product weight | 470.00 g |
Materials & Colors
| Product color | Steel |
| Housing color | Steel |
| Body material | Stainless steel |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Screw terminal, 2-Pole (L,N) |
| Type of protection | IP44 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall |
| Application environment | Outdoor |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075075092 | Folding box 1 |
124 mm x 154 mm x 166 mm | 510.00 g | 3.17 dm³ |
| 4058075075108 | Shipping box 6 |
380 mm x 175 mm x 320 mm | 3291.00 g | 21.28 dm³ |
User instruction / safety instructions
User Instruction Outdoor Facade Pole
User Instruction Outdoor Facade Pole
On-Pack-Info
Legal Insert OUTDOOR
Legal Insert OUTDOOR
Declarations of conformity
EC declararion Outdoor
EC declararion Outdoor

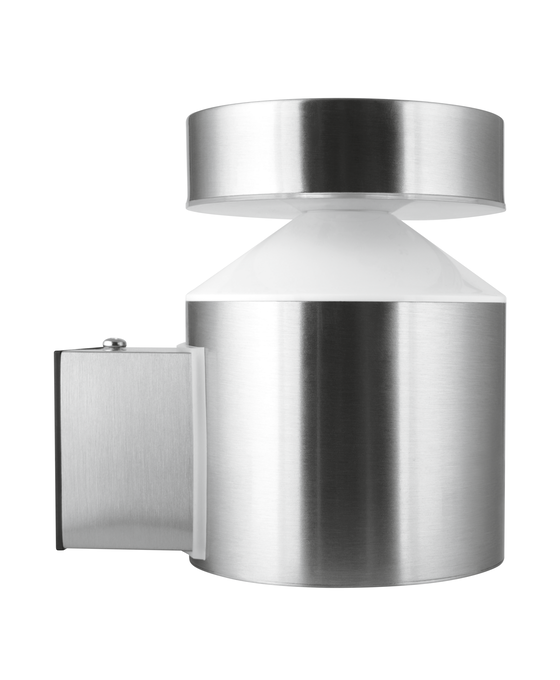

Product image: white background, upright
O FACADE POLE 6W/3000K SST IP44
O FACADE POLE 6W/3000K SST IP44
Product line drawing with letters
O FACADE POLE 6W/3000K SST IP44
O FACADE POLE 6W/3000K SST IP44
Product line drawing with numbers
O FACADE POLE 6W/3000K SST IP44
O FACADE POLE 6W/3000K SST IP44
Packaging image, spacial
Outdoor Facade Pole 6W 830 IP44 MiCh Side2
Outdoor Facade Pole 6W 830 IP44 MiCh Side2
IES file (IES)
O Facade Pole 6W3000K SST IP44
O Facade Pole 6W3000K SST IP44
LDT file (Eulumdat)
O Facade Pole 6W3000K SST IP44
O Facade Pole 6W3000K SST IP44

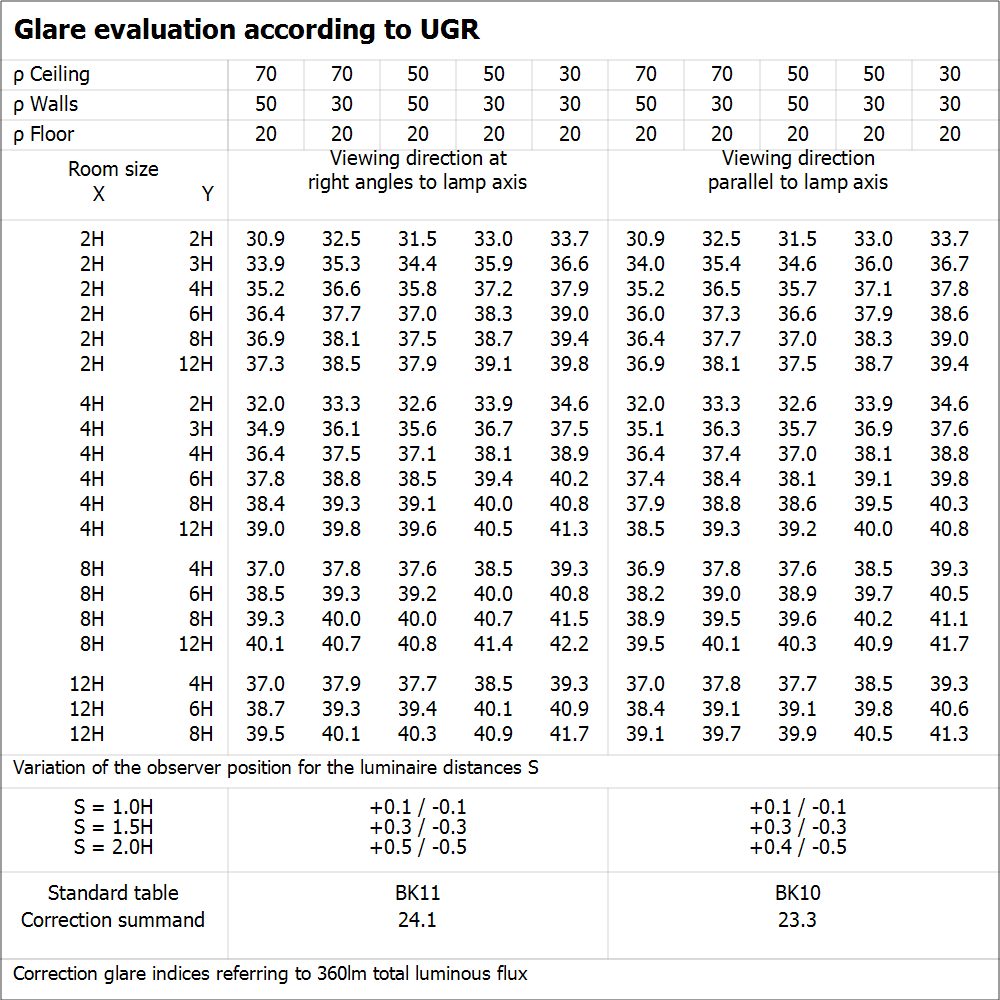

UGR file (UGR table)
O Facade Pole 6W3000K SST IP44
O Facade Pole 6W3000K SST IP44
Light distribution curve type cone
O Facade Pole 6W3000K SST IP44
O Facade Pole 6W3000K SST IP44
Light distribution curve type polar
4058075075092 O Facade Pole 6W3000K SST IP44
4058075075092 O Facade Pole 6W3000K SST IP44
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075075092 | 7703495 | 4567432 | 3201727 | 941300160 |
