FLOODLIGHT 20
FL 20 P 17W 2K4LM 830 PS SY100 WT
GTIN: 4099854305801
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Breather membrane to optimize air exchange, without compromising IP protection

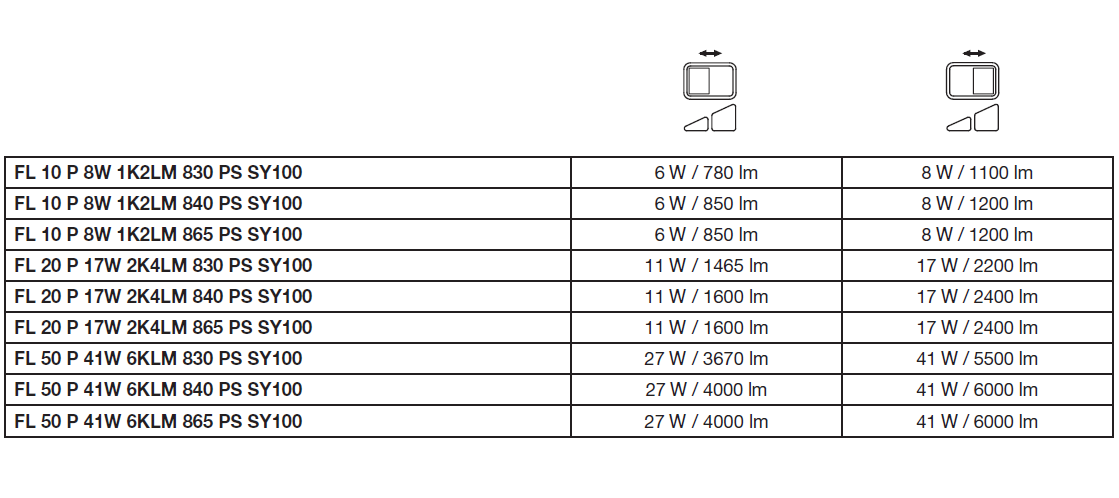

- Highly versatile due to selectable power steps (Multi Lumen) on the housing
- Robust cable gland with integrated waterstop function
- Safe and very uniform illumination, due to frosted and tempered glass diffuser
- Bright, robust and durable
- Energy savings of up to 90 % compared to halogen lamp floodlights
- No upper light output ratio (ULOR 0%) when mounted at 0° tilt
Areas of application
- Replacement for floodlights with halogen lamps
- Outdoor use (IP66)
- D-sign according to EN 60598-2-24 for fire-risk commercial unit, e.g. by accumulation of dust
- Public areas
- Building facades
- Construction areas
- Parking
- Gardens and balconies
Product features
- High luminous efficacy: up to 145 lm/W
- Type of protection: IP66

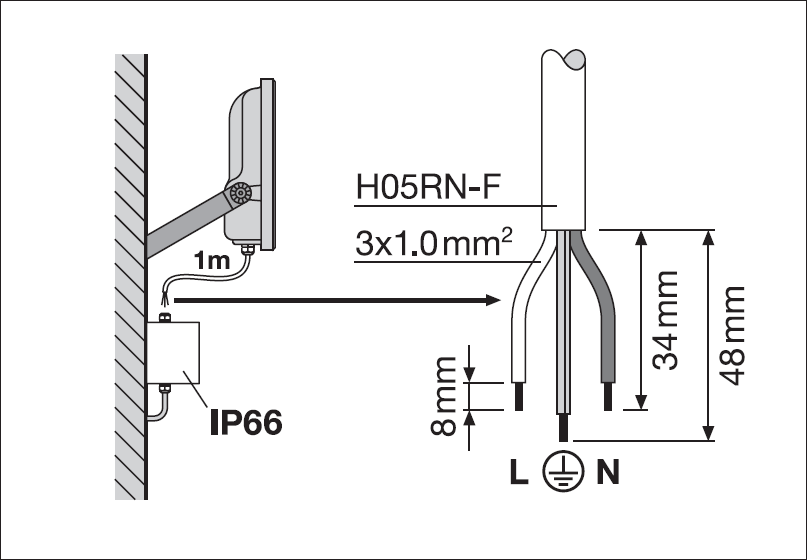

- Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires
- Reflector-based, symmetric light distribution with 100° x 100° beam angle
- Mounting bracket with 30° angle and wide rotation area
Safety advice

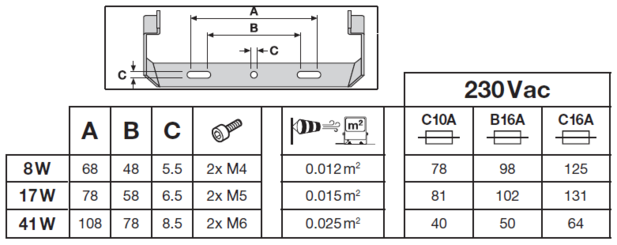

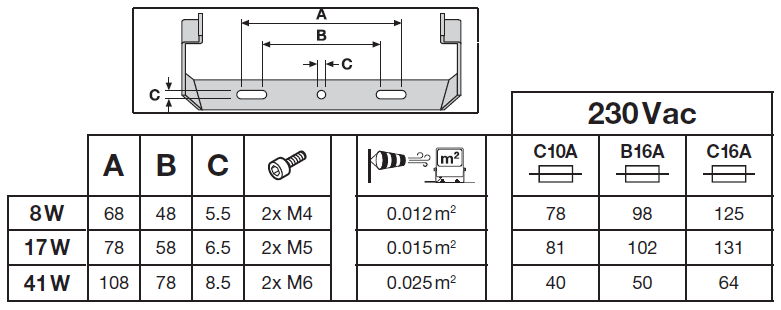

- Max. wind load surface 0.015 m²
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 17 W / 11 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 75/60 mA |
| Inrush current | 7.32 A |
| Inrush current time Th50 | 23.4 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 102 |
| Max. number of luminaires per miniature circuit breaker C10 | 81 |
| Max. number of luminaires per miniature circuit breaker C16 | 131 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Surge capability (L-N) | 2 kV |
| Surge capability (L/N-Ground) | 4 kV |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 2200 lm / 1465 lm |
| Luminous efficacy | 133 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | 80 |
| Standard deviation of color matching | 5 sdcm |
| Stroboscope effect metric (SVM) | ≤0.9 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 100 ° x 100 ° |
Dimensions & Weight
| Length | 157.00 mm |
| Height | 141.00 mm |
| Width | 38.00 mm |
| Product weight | 526.00 g |
| Cable length | 1000 mm |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Glass |
| Light emitting surface material | Glass |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -30…+50 °C |
| Temperature range at storage | -40…+70 °C |
| Type of connection | Cable, 3-pole |
| Type of protection | IP66 |
| Protection class IK (shock resistance) | IK07 |
| Corrosion resistance class acc. to EN 12944 | C4 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall, Ceiling, Floor |
| Application environment | Outdoor |
| Adjustable | Yes |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 100000 h 1) |
| Lifespan L80/B10 at 25 °C | 75000 h 1) |
| Lifespan L90/B10 at 25 °C | 35000 h |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 133 mA |
| ECG - Output ripple current | < 20 % |
Certificates & Standards
| Standards | CE, CB, ENEC, EAC, UKCA, EPD |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Ball shot safe | No |
| EPD | LEDV-00031-V01.01-EN |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Added function | MULTI SELECT |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854305801 | Folding box 1 |
64 mm x 162 mm x 150 mm | 585.00 g | 1.56 dm³ |
| 4099854305818 | Shipping box 12 |
402 mm x 338 mm x 175 mm | 7604.00 g | 23.78 dm³ |
User instruction / safety instructions
G11193706_UI_Floodligh t_08W-41W
G11193706_UI_Floodligh t_08W-41W
Legal information
Insert_LSI_Floodlight_ 8_41w_G11195967
Insert_LSI_Floodlight_ 8_41w_G11195967
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety Insert G11205496
Safety Insert G11205496
Legal information
Legal Insert FLOODLIGHT LUMS
Legal Insert FLOODLIGHT LUMS
Declarations of conformity
FLOODLIGHT GEN4
FLOODLIGHT GEN4
EPD
FLOODLIGHT GEN 4 LP SENSOR
FLOODLIGHT GEN 4 LP SENSOR

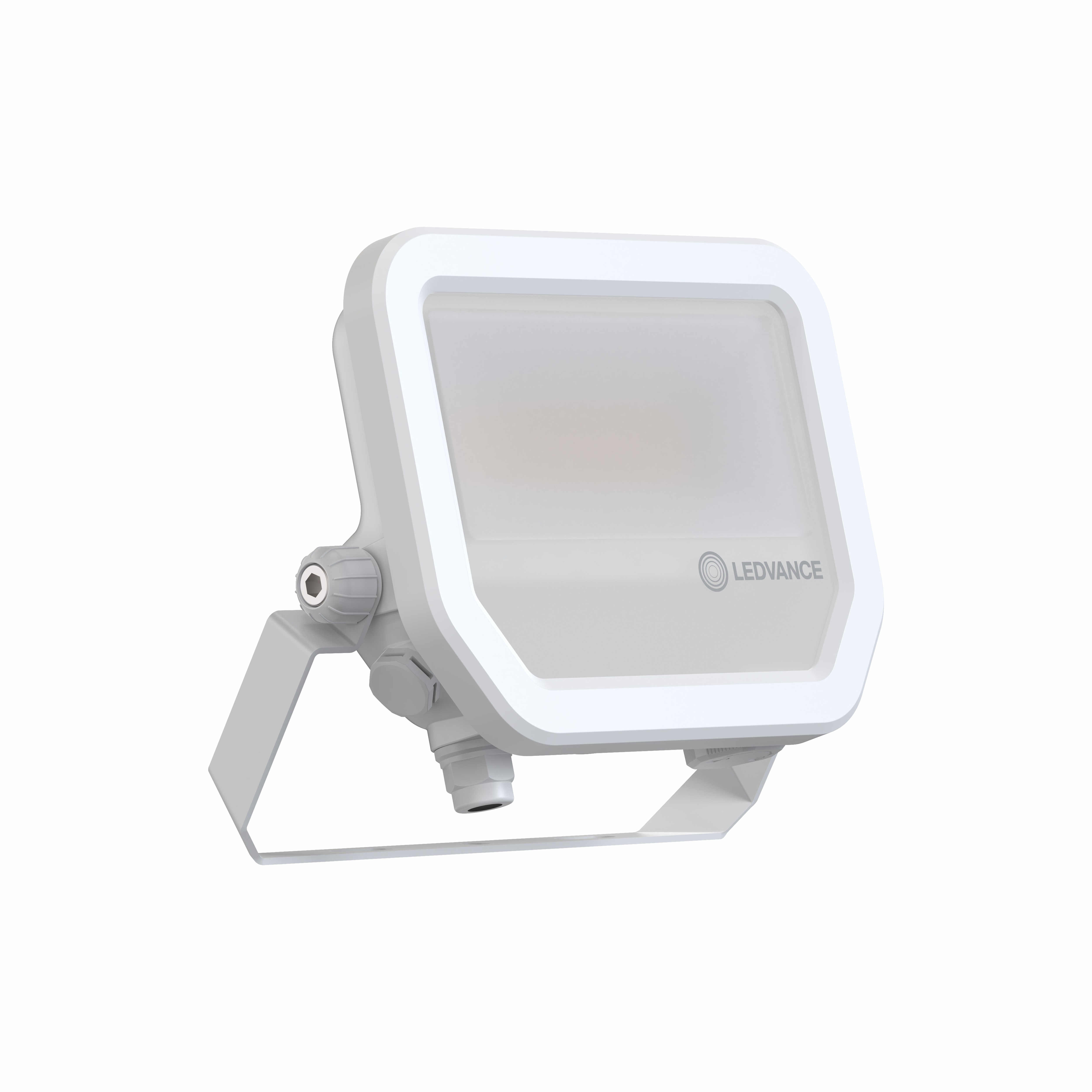

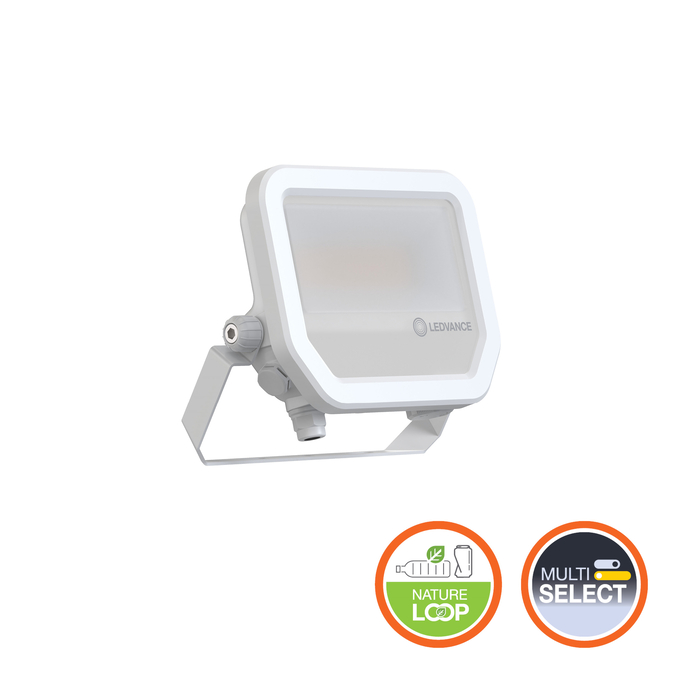

Product image: white background, diagonal
FL 20 P 17W 2K4LM
FL 20 P 17W 2K4LM

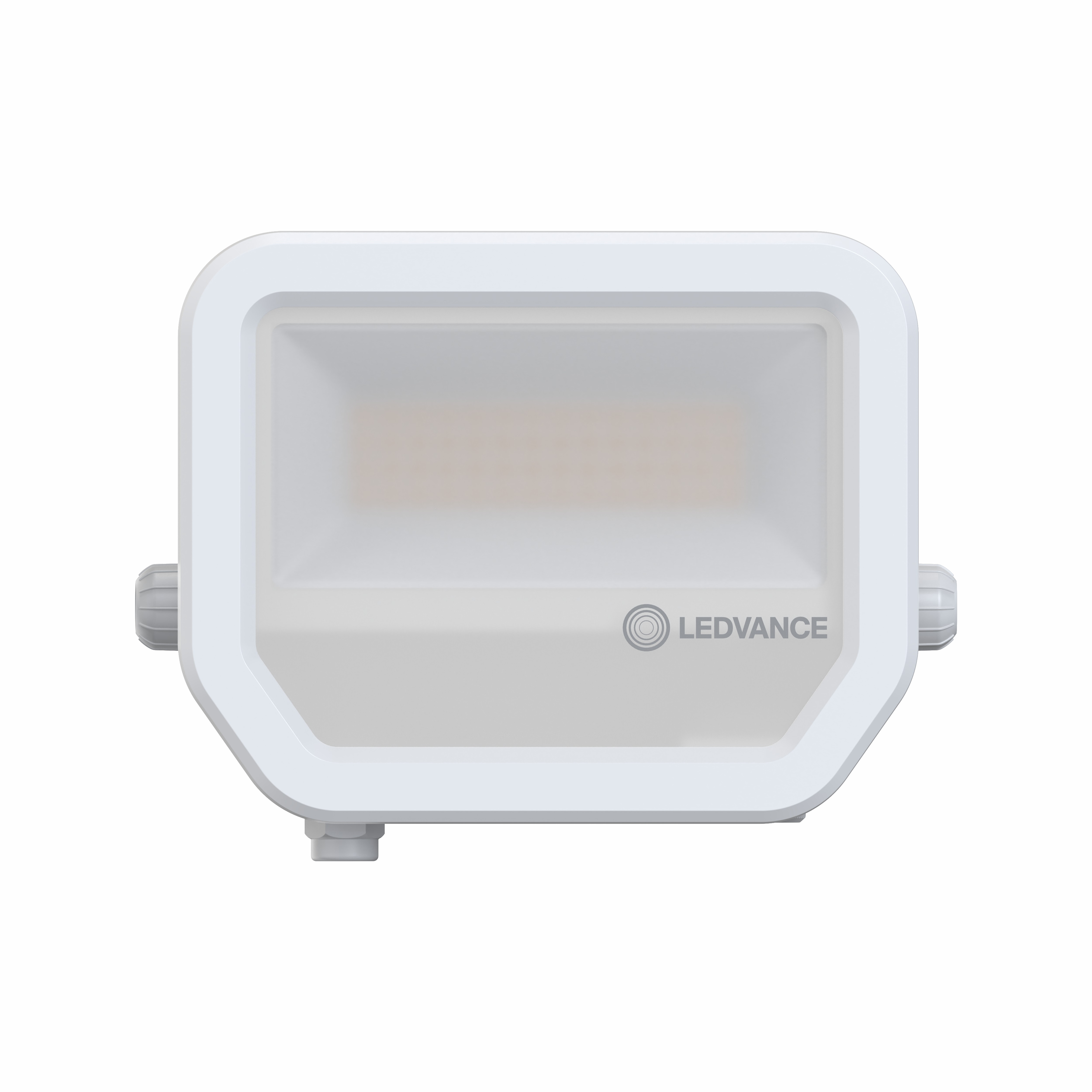

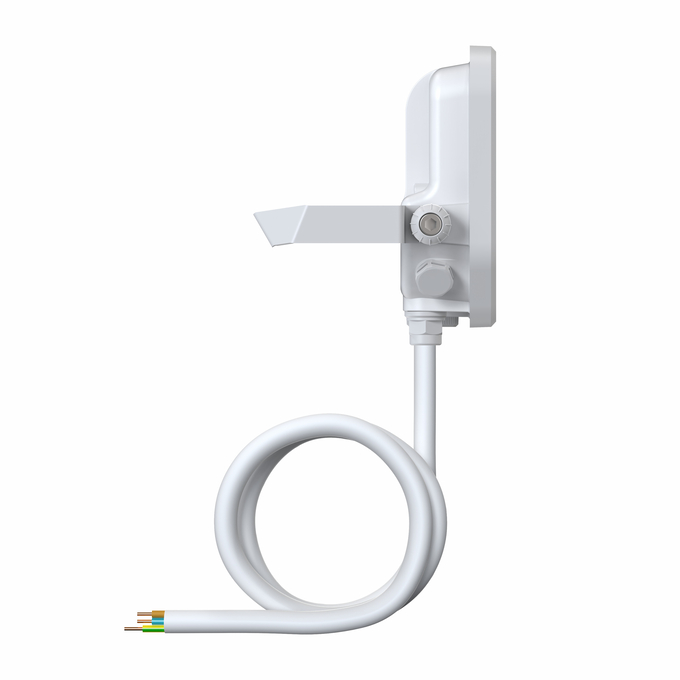

Product image: white background, upright
FL 20 P 17W 2K4LM
FL 20 P 17W 2K4LM
Product line drawing with letters
FL 20 P SY100
FL 20 P SY100
Product line drawing with numbers
FL 20 P SY100
FL 20 P SY100
Product line drawing, front, no dimensions
FL 20 P SY100
FL 20 P SY100

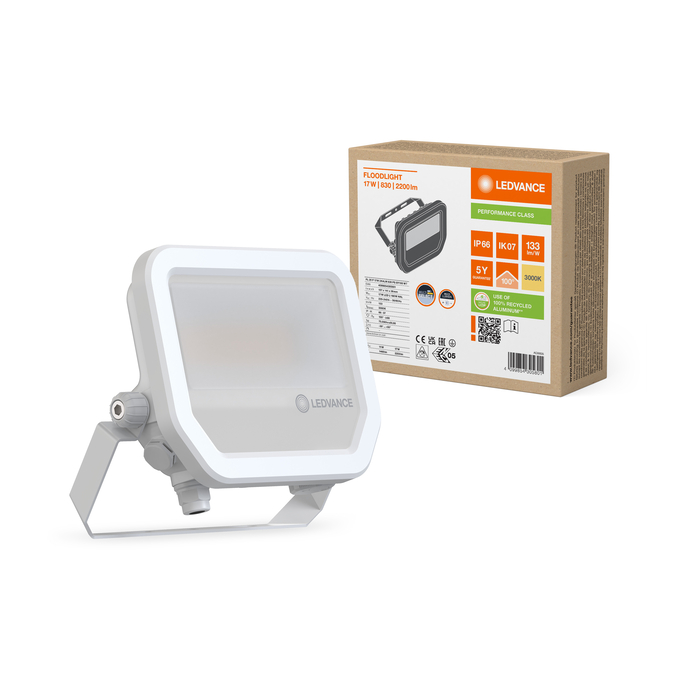

Combo Shot = Product Beauty Shot + Packaging Image
