DOWNLIGHT UGR19
DL UGR19 PFM DN195 21 W 830 WT IP54
GTIN: 4058075459250
Folding box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- Good glare reduction (UGR < 19) and cut off angle up to 30° for comfortable indoor lighting
- Easy and quick installation thanks to connector box with 5-pole toolless terminal
- Low flicker light
- Suitable for use in dusty and damp locations thanks to high IP rating
- 5 years guarantee
Areas of application
- Suitable for office applications, especially for computer screen workplaces
- Direct replacement for luminaires with compact fluorescent lamps
- Entrances / Hallways
- Bathrooms, kitchens and sheltered outdoor areas
- General illumination
Product features
- Housing material: Aluminum mirror-finished reflector
- Type of protection: IP54 (room side) / IP20 (back side)
- Connector box with push wire terminal for tool-free connection
- Through-wiring possible
- Luminaire versions with IoT-ready DALI-2 driver or IoT Zigbee 3.0 technology available
Equipment / Accessories
- External control gear included
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 21.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 120 mA |
| Inrush current | 30 A |
| Inrush current time Th50 | 200 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 120 |
| Max. number of luminaires per miniature circuit breaker C10 | 80 |
| Max. number of luminaires per miniature circuit breaker C16 | 120 |
| Power factor λ | ≥0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 2400 lm |
| Luminous efficacy | 115 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | ≤5 sdcm |
| Luminous intensity | - |
| Low flicker | Yes |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 65 ° |
| UGR | < 19 |
Dimensions & Weight
| Diameter | 220.00 mm |
| Height | 82.00 mm |
| Product weight | 900.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+45 °C |
| Temperature range at storage | -40…+70 °C |
| Type of connection | Screwless terminal |
| Type of protection | IP54/IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 195,0 mm |
| Mounting depth | 120 mm |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 70000 h 1) |
| Lifespan L80/B10 at 25 °C | 60000 h 1) |
| Lifespan L90/B10 at 25 °C | 40000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 700 mA |
| ECG - Output ripple current | < 10 % |
| ECG - Length | 114.0 mm |
| ECG - Width | 45 mm |
| ECG - Height | 28 mm |
| Recommended control gear | OSRAM OTI DALI 50/220-240/1A4 NFC |
Certificates & Standards
| Standards | CE, CB, ENEC, TÜV SÜD, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Number of illuminants | Not relevant |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075459250 | Folding box 1 |
262 mm x 108 mm x 266 mm | 1197.00 g | 7.53 dm³ |
| 4058075459267 | Shipping box 16 |
545 mm x 452 mm x 563 mm | 20749.00 g | 138.69 dm³ |
User instruction / safety instructions
DL UGR19 PFM
DL UGR19 PFM
Legal information
Legal insert DL UGR19 PFM
Legal insert DL UGR19 PFM
Legal information
LSI DL UGR19 PFM
LSI DL UGR19 PFM
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
DL UGR19 PFM
DL UGR19 PFM

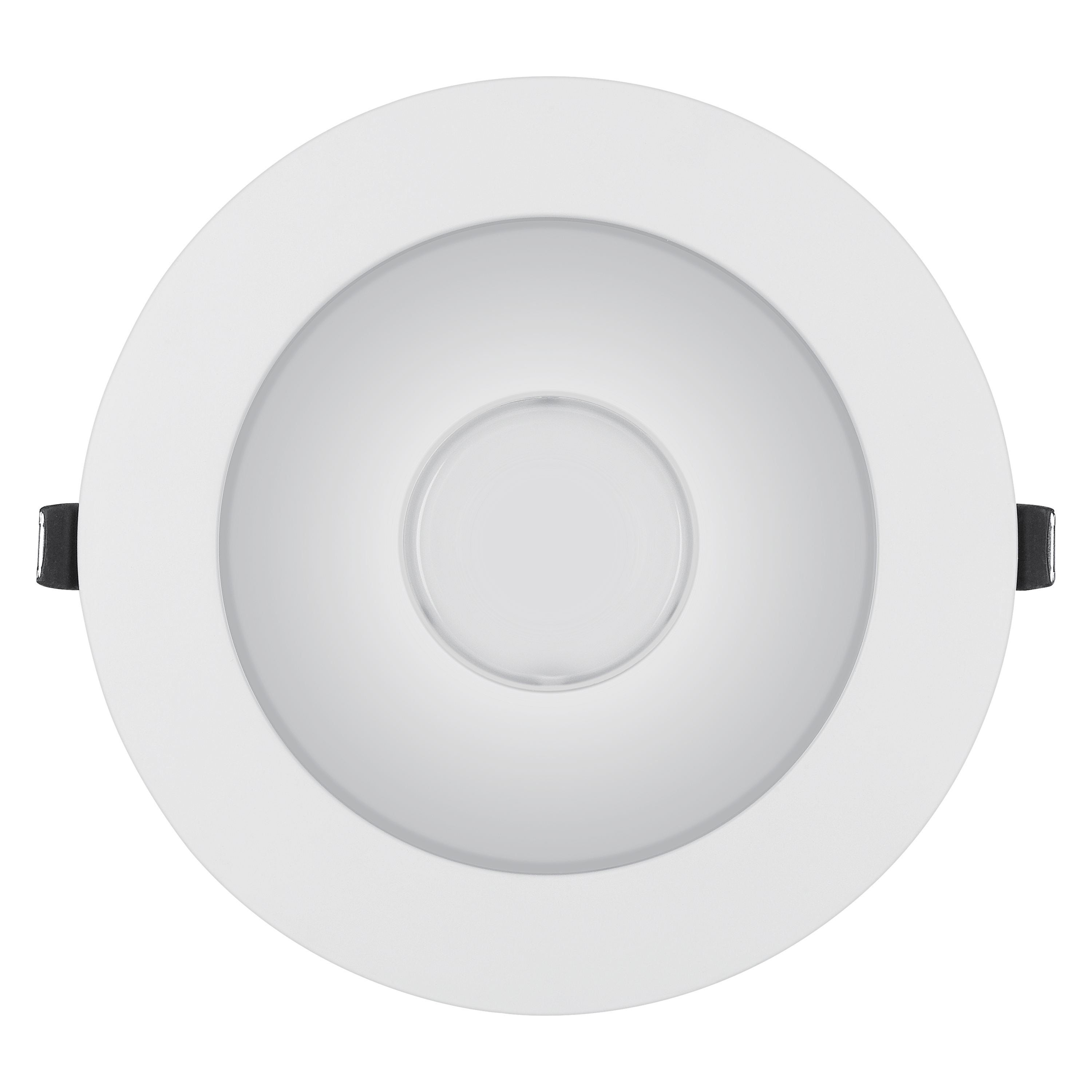

Product image: white background, diagonal
DL UGR19 PFM 21W
DL UGR19 PFM 21W
Product image: white background, upright
DL UGR19 PFM 21W
DL UGR19 PFM 21W
Product line drawing with letters
DL UGR19 PFM 21W
DL UGR19 PFM 21W
Product line drawing with numbers
DL UGR19 PFM 21W
DL UGR19 PFM 21W
Product line drawing, front, no dimensions
DL UGR19 PFM 21W
DL UGR19 PFM 21W
Packaging image, spacial
Downlight UGR19 DN195 PFM MiCh
Downlight UGR19 DN195 PFM MiCh
Catalog info 1
UI Downlight UGR19 PFM
UI Downlight UGR19 PFM
Catalog info 2
UI Downlight UGR19 PFM
UI Downlight UGR19 PFM
Catalog info 3
UI Downlight UGR19 PFM
UI Downlight UGR19 PFM
Catalog info 6
UI Downlight UGR19 PFM
UI Downlight UGR19 PFM
IES file (IES)
DL UGR19 DN195 PFM 21W 830 WT IP54
DL UGR19 DN195 PFM 21W 830 WT IP54
LDT file (Eulumdat)
DL UGR19 DN195 PFM 21W 830 WT IP54
DL UGR19 DN195 PFM 21W 830 WT IP54
ULD file (DIALux)
DL UGR19 DN195 PFM 21W-830 WT IP54
DL UGR19 DN195 PFM 21W-830 WT IP54
ROLF file (RELUX)
DL UGR19 DN195 PFM 21W-830
DL UGR19 DN195 PFM 21W-830

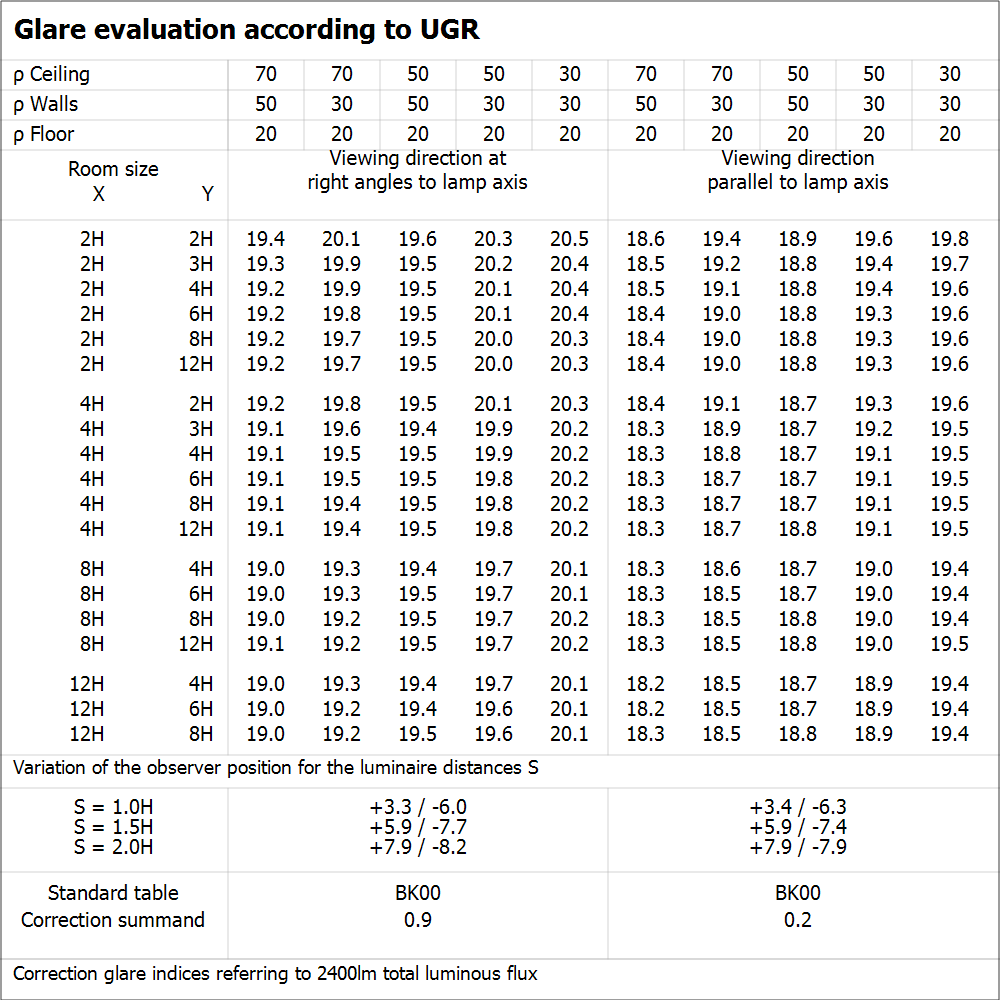

UGR file (UGR table)
DL UGR19 DN195 PFM 21W830 WT IP54
DL UGR19 DN195 PFM 21W830 WT IP54
UGR file (UGR table)
DL UGR19 DN195 PFM 21W 830 WT IP54
DL UGR19 DN195 PFM 21W 830 WT IP54

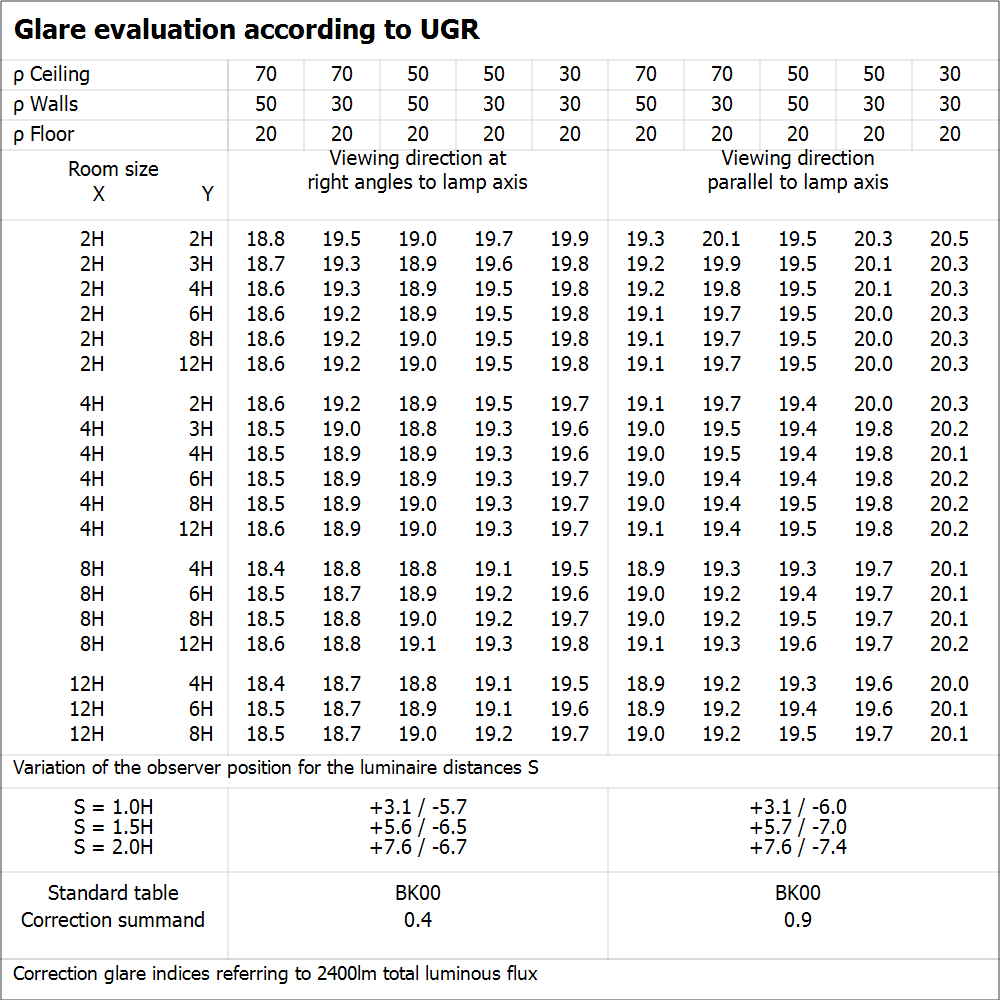

UGR file (UGR table)
