DAMP PROOF / BATTEN COMBO EMERGENCY KIT
DP BATTEN CBO EL CG 200V 3H MT AT
GTIN: 4099854521430
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Plug & Upgrade concept to extend the On/Off luminaire to an emergency luminaire
- Easy maintenance thanks to manual or self-test function of the emergency lighting
- Easy battery replacement possible
Areas of application
- Suitable for DAMP PROOF / BATTEN COMBO
Product features
- Type of protection: IP20
- Impact resistance: IK06
- Operation mode: maintained (M) or non-maintained (NM)
- Battery technology: LiFePO4
- Ambient temperature in operation: 0…+40 °C
Equipment / Accessories
- Battery included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 3.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 23 mA |
| Inrush current | 6.8 A |
| Power factor λ | > 0.3 |
| Protection class | II |
Dimensions & Weight
| Length | 217.00 mm |
| Height | 31.00 mm |
| Width | 44.00 mm |
| Product weight | 219.00 g |
Materials & Colors
| Product color | White |
| RAL Color (most similar) | RAL 9003 |
| Body material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | 0…+40 °C |
| Temperature range at storage | -20…+60 °C |
| Type of connection | Screwless terminal |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 40000 h 1) |
| Number of switching cycles | 25000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| ECG lifetime | 40000 h |
BATTERY
| Type of Battery | LiFePO4 |
| Battery size [GMS] | Others |
Emergency lighting
| Type of emergency operation test | Manual |
| Wattage in maintained operation mode | 3 W |
| Battery life in emergency operation mode | >3h |
Certificates & Standards
| Standards | CE, CB, UKCA, EAC |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854521430 | Folding box 1 |
250 mm x 57 mm x 39 mm | 247.00 g | 0.56 dm³ |
| 4099854521447 | Shipping box 40 |
342 mm x 311 mm x 266 mm | 10450.00 g | 28.29 dm³ |
User instruction / safety instructions
DP BATTEN CBO EL
DP BATTEN CBO EL
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety Insert G11218810
Safety Insert G11218810
Legal information
Legal Insert DP BATTEN CBO
Legal Insert DP BATTEN CBO
Declarations of conformity
DP BATTEN CBO EL
DP BATTEN CBO EL

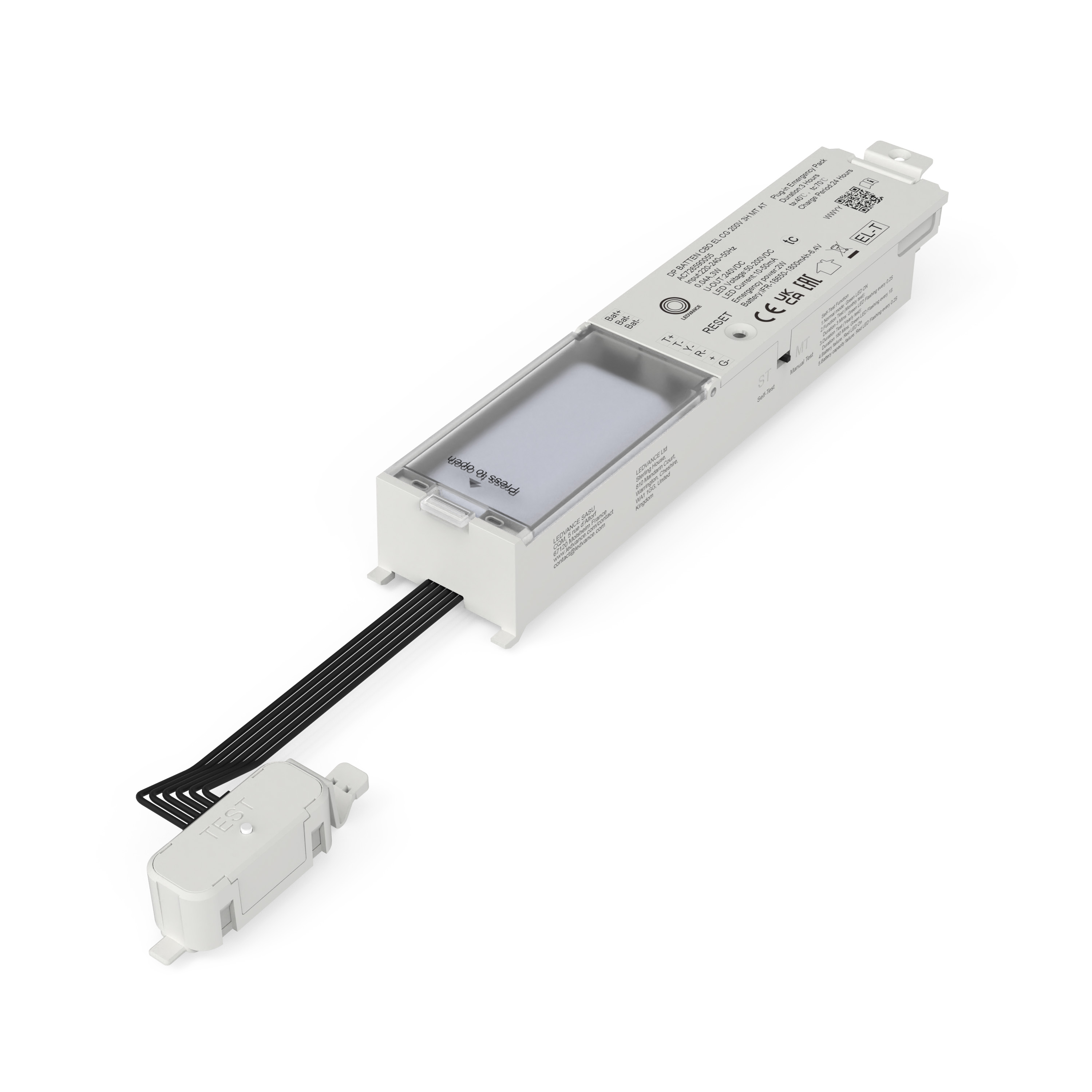

Product image: white background, diagonal
DP BATTEN CBO EL CG 200V 3H MT AT
DP BATTEN CBO EL CG 200V 3H MT AT

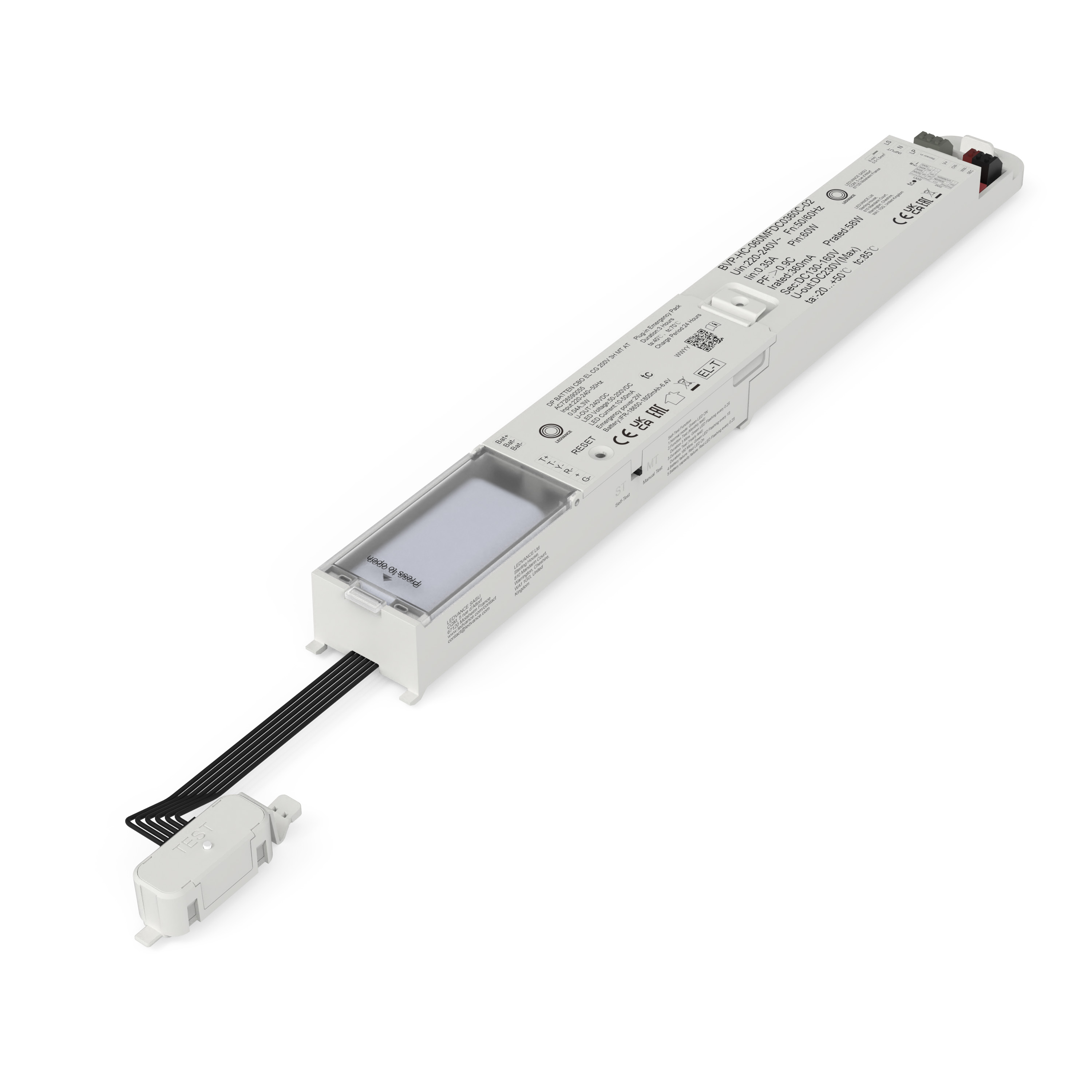

Product image: white background, diagonal, alternative image
DP BATTEN CBO EL CG 200V 3H MT AT
DP BATTEN CBO EL CG 200V 3H MT AT

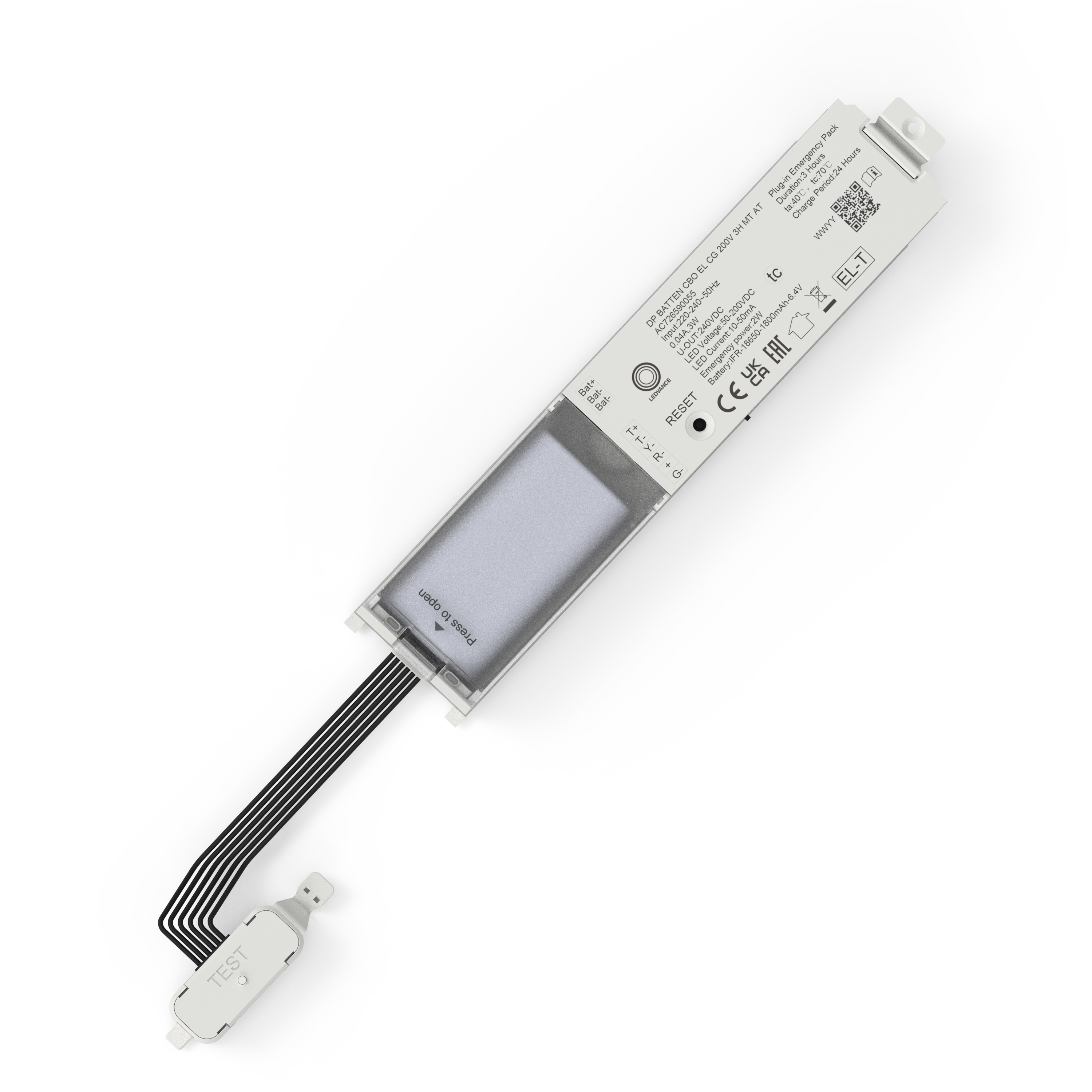

Product image: white background, horizontal, alternative image
DP BATTEN CBO EL CG 200V 3H MT AT
DP BATTEN CBO EL CG 200V 3H MT AT

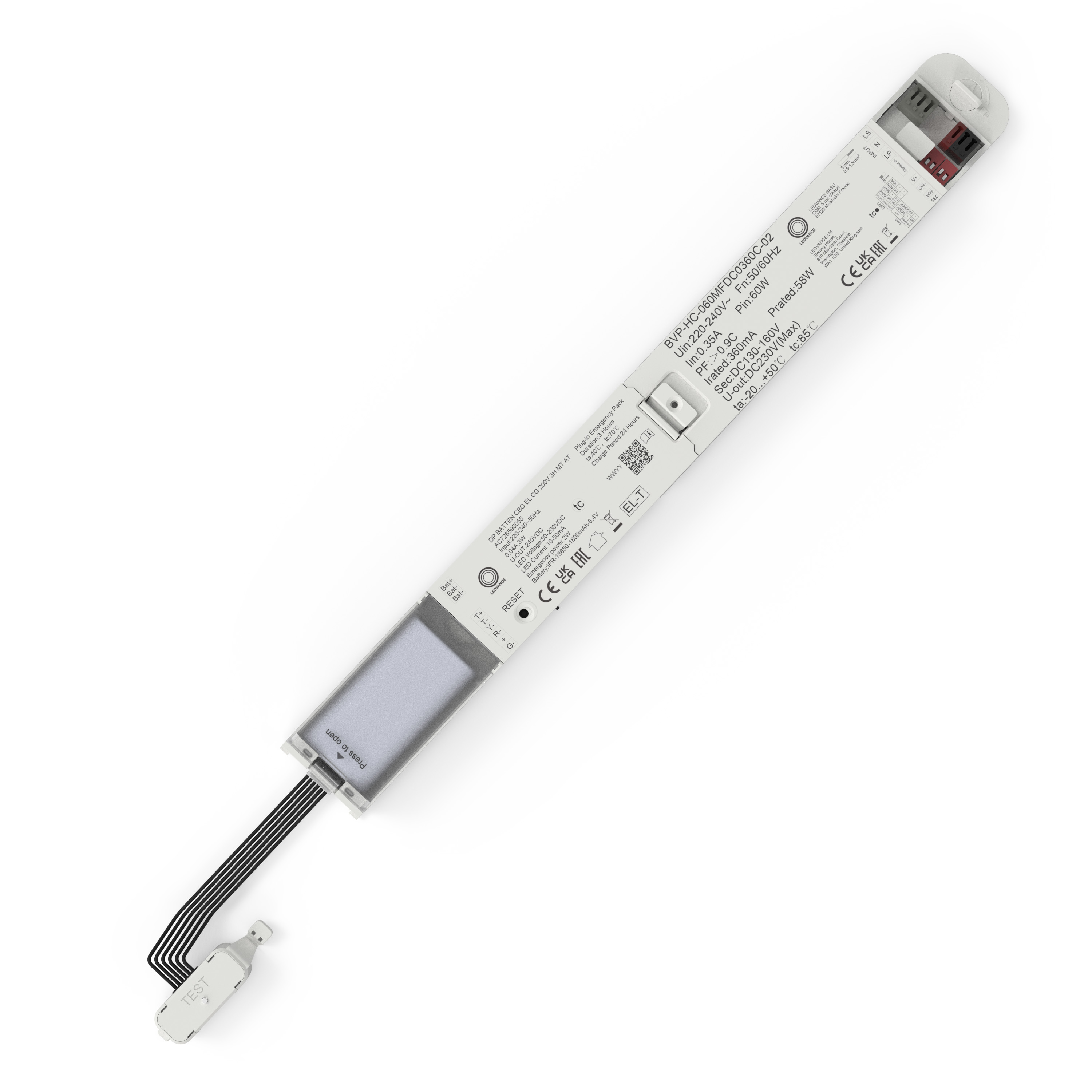

Product image: white background, upright, alternative image
DP BATTEN CBO EL CG 200V 3H MT AT
DP BATTEN CBO EL CG 200V 3H MT AT

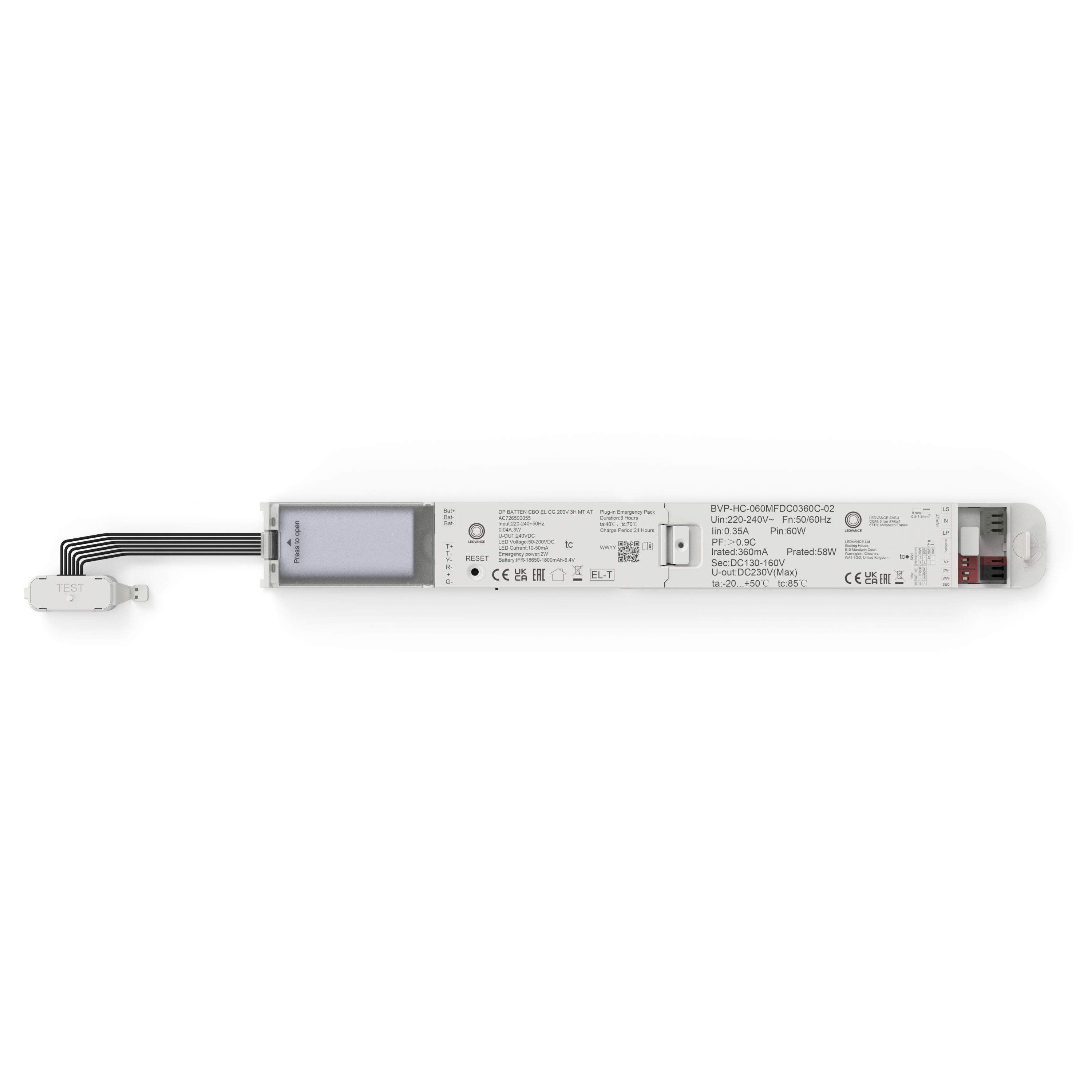

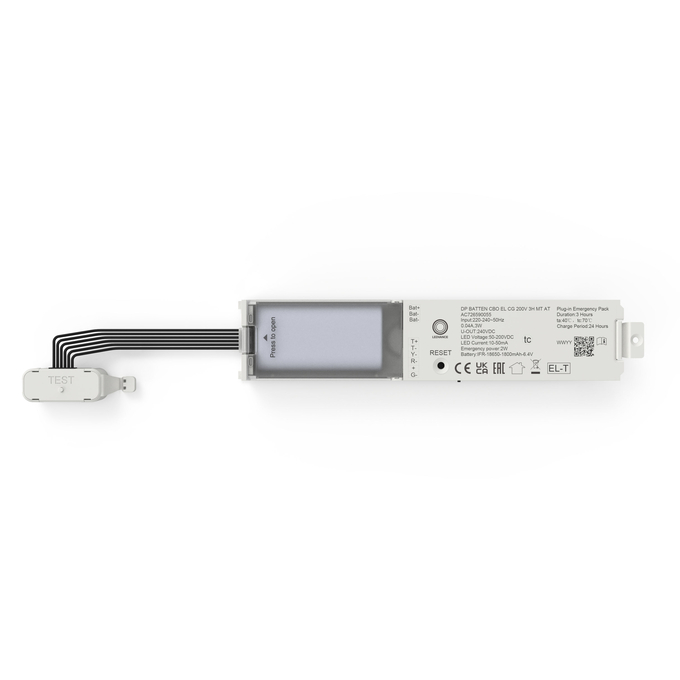

Product image: white background, spacial
DP BATTEN CBO EL CG 200V 3H MT AT
DP BATTEN CBO EL CG 200V 3H MT AT
Product image: white background, explosion
Damp Proof Combo
Damp Proof Combo
Product image: white background, explosion
Damp Proof Combo
Damp Proof Combo
Product image: white background, explosion
Batten Combo
Batten Combo
Product image: white background, explosion
Batten Combo
Batten Combo
Product line drawing with letters
DP BATTEN CBO EL CG 200V 3H MT AT
DP BATTEN CBO EL CG 200V 3H MT AT
Product line drawing with numbers
DP BATTEN CBO EL CG 200V 3H MT AT
DP BATTEN CBO EL CG 200V 3H MT AT
Product line drawing - technical
DP BATTEN CBO EL CG 200V 3H MT AT
DP BATTEN CBO EL CG 200V 3H MT AT
Tender documents
DAMP PROOF BATTEN COMBO EMERGENCY KIT EL CG 200V 3H MT AT-en
DAMP PROOF BATTEN COMBO EMERGENCY KIT EL CG 200V 3H MT AT-en
| EAN | SEG number | STK number | UK Org |
|---|---|---|---|
| 4099854521430 | 7220811 | 4161134 | 438119055 |
