DAMP PROOF SLIM VALUE

DP SLIM VALUE 1200 36 W 4000 K IP65 GY

GTIN: 4058075066458 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • Uniform light distribution
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
  • Very slim housing
  • Easy installation as mounting brackets can be positioned freely on the luminaire
  • Tool-free electrical connection due to push button connector
  • 3 years guarantee

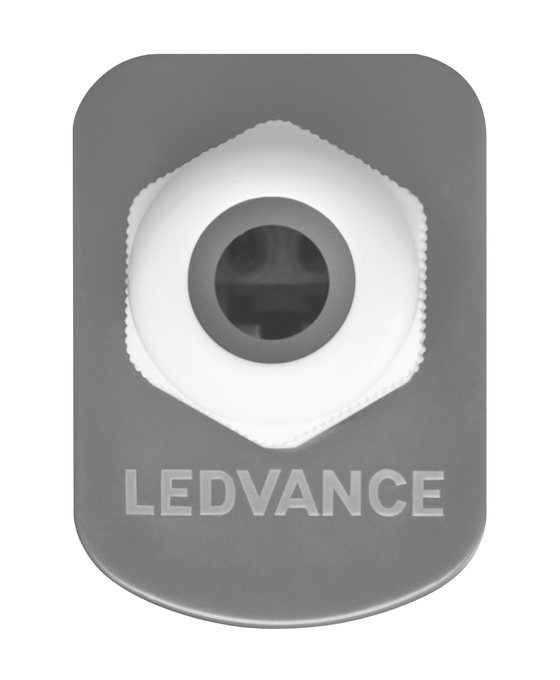

  • Easy access to electrical terminal thanks end caps with clip mechanism
Areas of application
  • Industrial and storage facilities
  • Car parks and underpasses
  • Garages
  • Workshops, assembly lines
Product features
  • High luminous efficacy: up to 110 lm/W
  • Beam angle: 120°
  • Type of protection: IP65
Equipment / Accessories
  • Stainless steel clamps with safety screws included
  • Mounting accessories included (suspension kit, theft protection kit)
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
Electrical data
Nominal wattage 36.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 200 mA
Inrush current 7 A
Inrush current time Th50 60 µs
Max. number of luminaires per miniature circuit breaker B16 77
Max. number of luminaires per miniature circuit breaker C10 48
Max. number of luminaires per miniature circuit breaker C16 77
Power factor λ ≥0.90
Protection class II
Operating mode Integrated LED driver
Photometrical data
Luminous flux 4000 lm
Luminous efficacy 110 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching ≤5 sdcm
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °
Dimensions & Weight
Length 1200.00 mm
Height 48.00 mm
Width 35.00 mm
Product weight 450.00 g
Materials & Colors
Product color White
Housing color White
RAL Color (most similar) RAL 7045
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -30…+70 °C
Type of connection Screwless terminal, 2-Pole
Type of protection IP65
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Suspended/Surface
Mounting location Ceiling
Application environment Indoor
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 30000 h 1)
Lifespan L80/B10 at 25 °C 27000 h 1)
Lifespan L90/B10 at 25 °C 19000 h
Number of switching cycles 100000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
Output current 460 mA
Certificates & Standards
Standards CE, CB
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075066458 Folding box
1		 39 mm x 1,257 mm x 50 mm 533.00 g 2.45 dm³
4058075066465 Shipping box
20		 1,271 mm x 215 mm x 226 mm 13700.00 g 61.76 dm³
User instruction / safety instructions
UI DP SLIM VALUE IP65
PDF (3.89 MB)
Legal information
LS Insert DP Slim Value IP65
PDF (1.23 MB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Declarations of conformity
EC Declaration of Damp Proof SlimValue
PDF (674.76 KB)
Declarations of conformity
Attestation-of-Conform ity DP Slim Value DEKRA
PDF (657.42 KB)

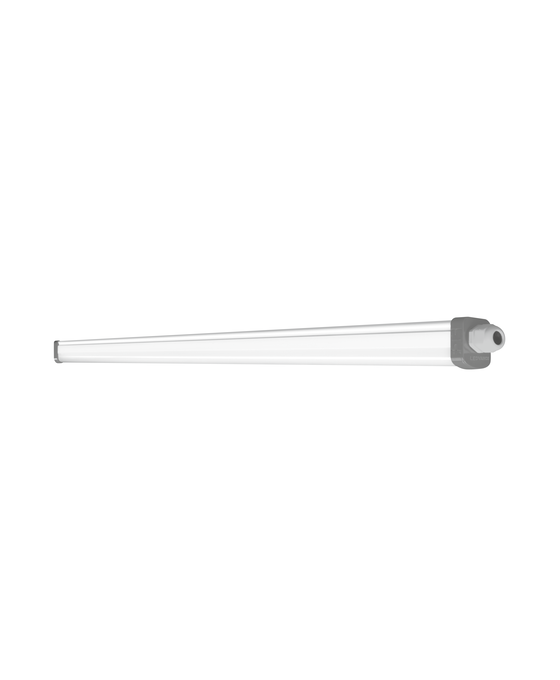

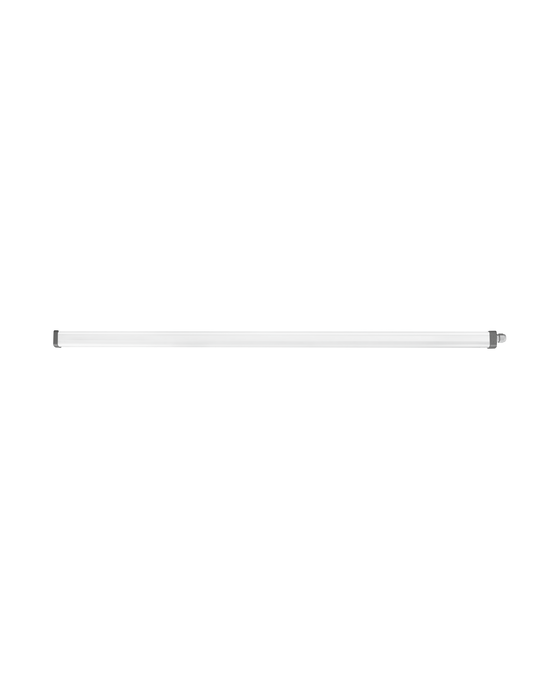

Product image: white background, horizontal
Dampproof Slim Value 1200 36W IP65
TIF (1.83 MB)

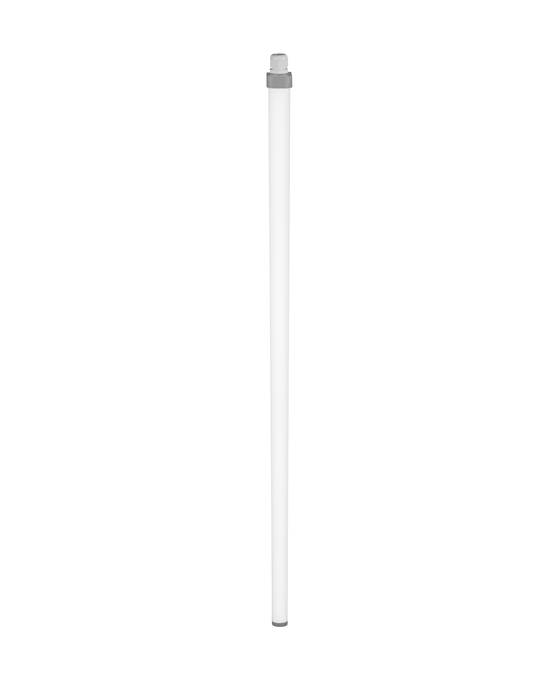

Product image: white background, upright
